Car Sectionals

[Bfg]

Just for the sheer pleasure of looking and learning, seeing the mechanical engineering of the day and a car's structure ..and to admire the technically-artistry of the draughtsmen / illustrator .. I enjoy looking at car sectionals, cutaways, and the such like.

I'm sure many of you have a few saved on file because you too have found them interesting.   If you feel like sharing then please do.

Might I suggest just one car per post ?  . . .and please do attribute to the illustrator &/or the source.

To kick off then.,  I'll start off with a vintage Allen . . .

Pete

[Bfg]

I'm sure at first glance you all know what this is ..but are you sure ?

[Bfg]

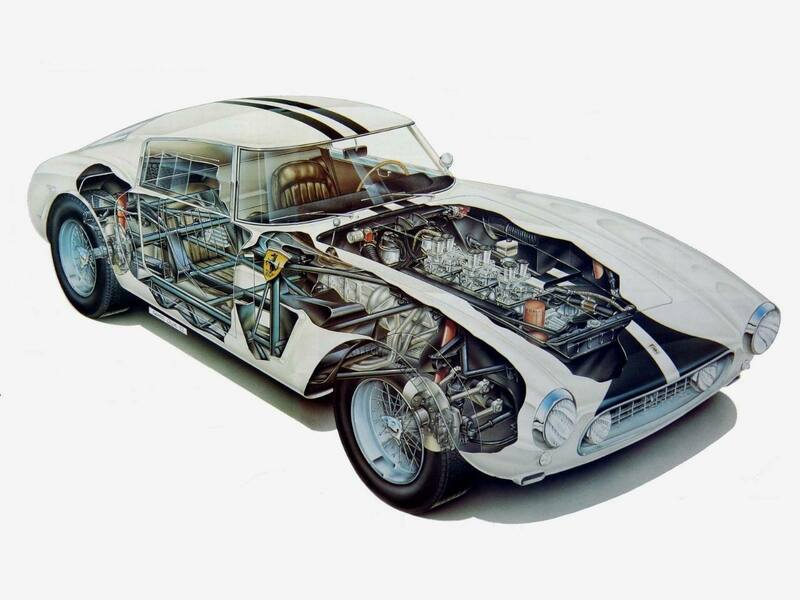

Ferrari 250GT Swb.  copyright attributed to / signed by ; Derek Owen '92  .. excellent drawing Derek

[bunglebus]

A couple of actual cutaways from Stondon Motor Museum



[Bfg]

1 minute ago, bunglebus said:

A couple of actual cutaways from Stondon Motor Museum

Ah., I see the restorers have cut the rust out of the outer panels

[bunglebus]

This Beetle floorpan was on display at a show a few years back. Absolutely fascinating



[willswitchengage]

[Out Run]

58 minutes ago, Bfg said:

I'm sure at first glance you all know what this is ..but are you sure ?

Horsey Horseless?

[sheffcortinacentre]

4 hours ago, bunglebus said:

This Beetle floorpan was on display at a show a few years back. Absolutely fascinating



About 20 years ago I had chance of a MK3 cortina (all the running gear I think with an electric motor) but no way of moving storing it).

[sierraman]

What was the guy that used to illustrate the Haynes manuals?

[sheffcortinacentre]

Terry Davey?

[FakeConcern]

I always liked seeing this Mini at the Science Museum...

[sdkrc]

[sierraman]

12 minutes ago, sheffcortinacentre said:

Terry Davey?

That’s the badger.

[sdkrc]

[chaseracer]

[Bfg]

18 hours ago, Out Run said:

Horsey Horseless?

nope..

[Out Run]

19 minutes ago, Bfg said:

nope..

D701 SWL

[Bfg]

Ford Popular D701 ?

On 1/5/2022 at 5:24 PM, Bfg said:

I'm sure at first glance you all know what this is ..but are you sure ?

^ Delage , but tbh I don't know which model

photo ; courtesy Simon cars



[Bfg]



And if we R going Continental, then . . .

[Wilko220]

21 hours ago, sheffcortinacentre said:

Terry Davey?

Absolute legend - here’s an article about him.
https://www.carandclassic.co.uk/magazine/the-work-of-terry-davey/



One of my favourite items on the bookshelf is this tome which has more than 100 of his drawings in it.



[Landy Mann]

From the 1941 edition of the motor manual.

Exact car models (if any) unknown. (All pre war cars look the same)

[bunglebus]

Terry Davey was a bloody idiot. He drew door locks on the rear door handles on the MK2 Escort manual cover pic...

[bangernomics]

Terry Davey was a bloody idiot. He drew door locks on the rear door handles on the MK2 Escort manual cover pic...

Maybe it was the {insert dodgy area name} edition.

[Leyland Worldmaster]

Ok... Audi A2 time...

[loserone]

9 minutes ago, Leyland Worldmaster said:



But I heard you let that little friend of mine
Take off your party dress

[AnnoyingPentium]

53 minutes ago, Leyland Worldmaster said:

Ok... Audi A2 time...

Despite the fact I used to find those things absolutely repulsive to look at, the engineering that went into them is admirable, it's all very clever (to a troll-like being such as myself). I think that's about the only reason I appreciate them really.

[neil1971]

Does anyone remember Bob Freeman? His work appeared in Supercar Classics and Car, absolutely amazing. Few examples pinched from the web.



[artdjones]

On 1/5/2022 at 5:24 PM, Bfg said:

I'm sure at first glance you all know what this is ..but are you sure ?

Delage D8?

[Blake's Den]

On 1/6/2022 at 7:43 PM, Wilko220 said:

Absolute legend - here’s an article about him.
https://www.carandclassic.co.uk/magazine/the-work-of-terry-davey/



One of my favourite items on the bookshelf is this tome which has more than 100 of his drawings in it.



+1 for being a big fan of Terry Davey.

I bought a Haynes colouring book from the works which had a lot of the classic cutaways in. I carefully scanned them all in and printed off a load to go up in my garage.
