shitbox edition JYD's 1990 Mk2 Golf Gti.

[junkyarddog]

26 minutes ago, Tickman said:

Get well soon

Thanks,I'm annoyed that I've lost a fairly decent week of weather because of it,it's broken my momentum.

[junkyarddog]

Covid has thankfully left the building, but I've lost two weeks welding on this heap.

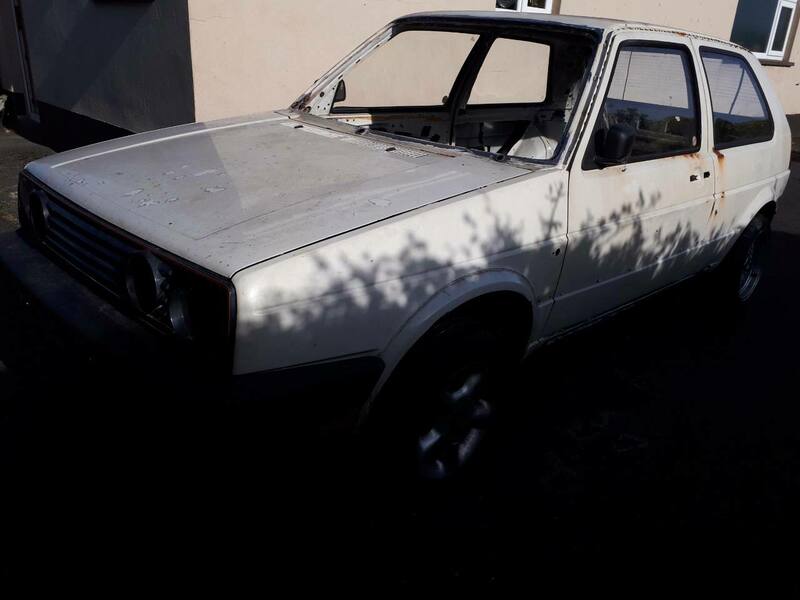

Paneled up the front end,used the bonnet from the doner car as it's pretty decent, the old one was a repainted red that my nephew and his pals had used as a trampoline sometime in the past.

The wings are off my other golf,not sure if I'll use these ones yet,but for now they will suffice in lining things up.

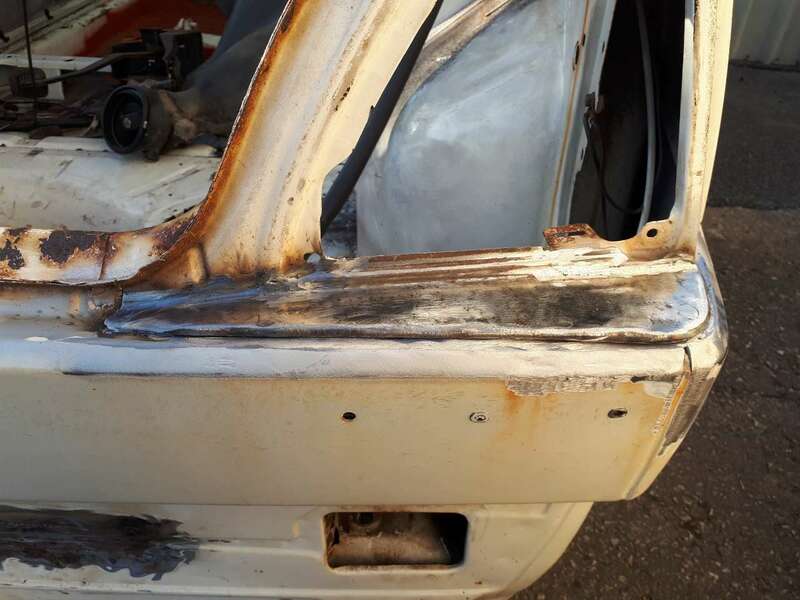

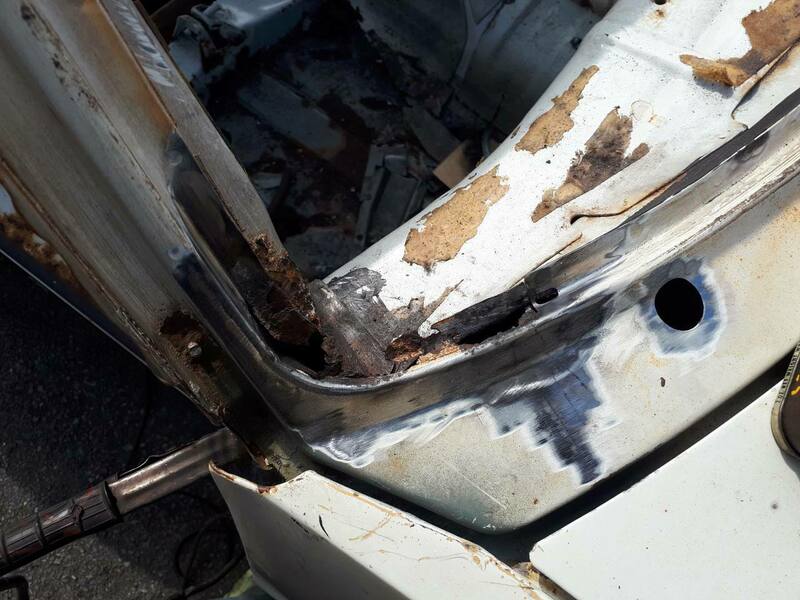

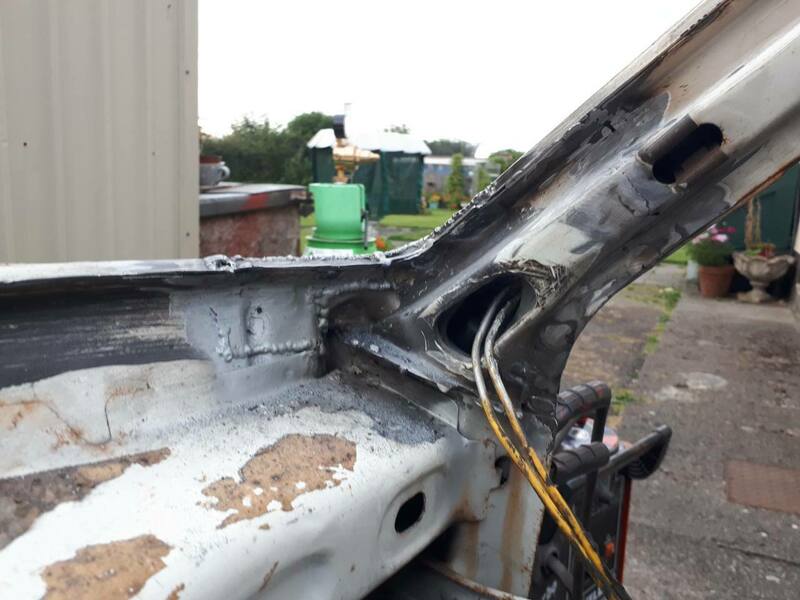

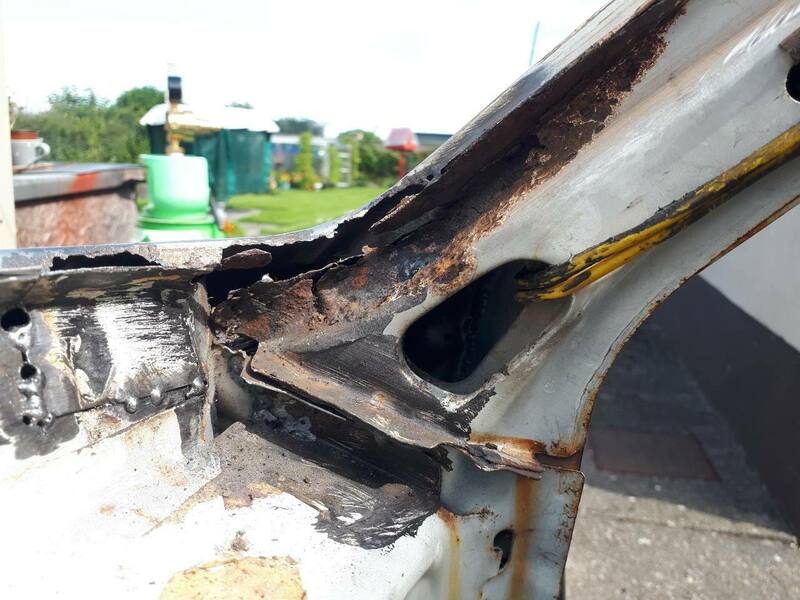

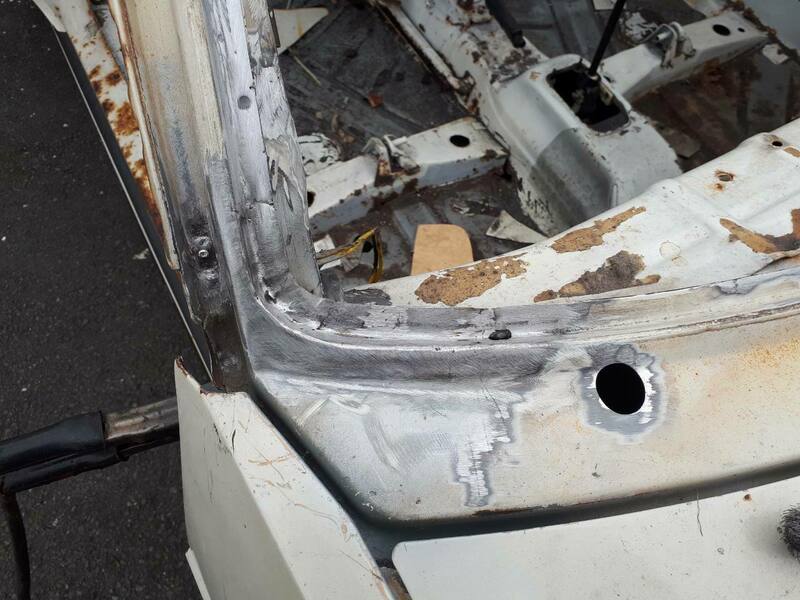

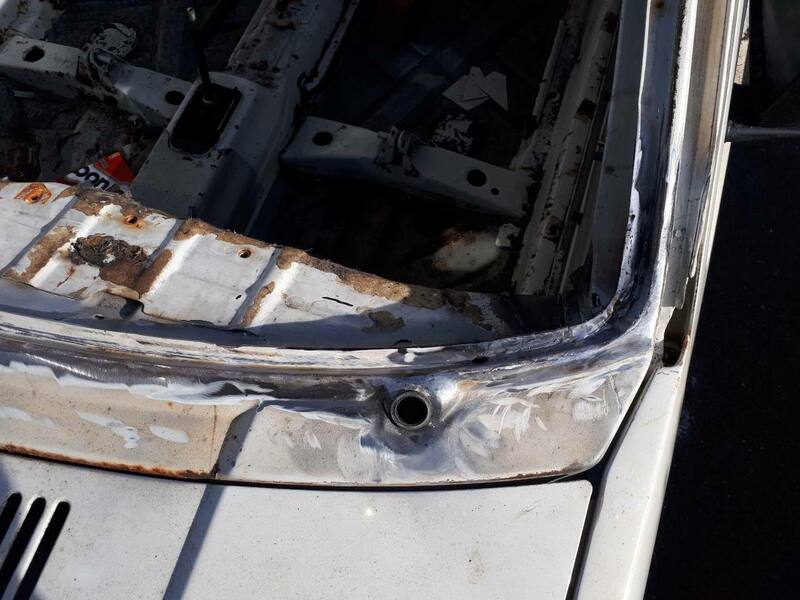

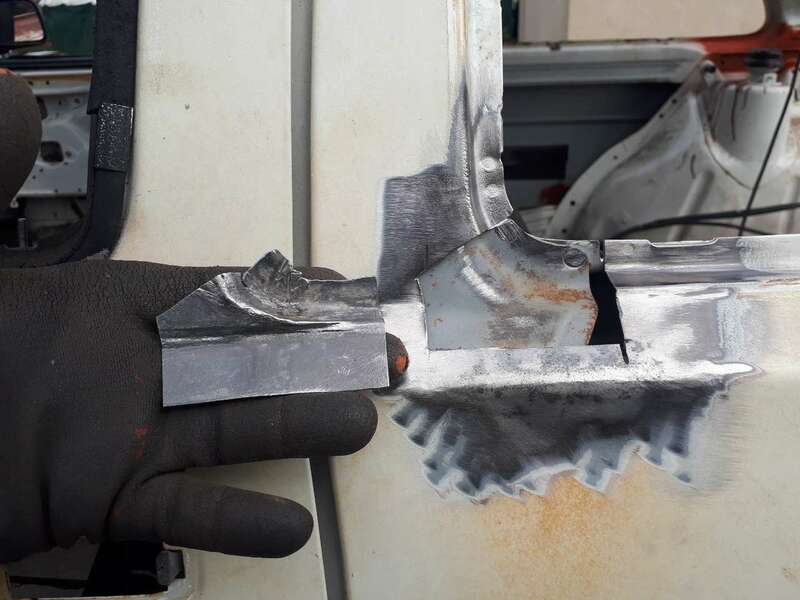

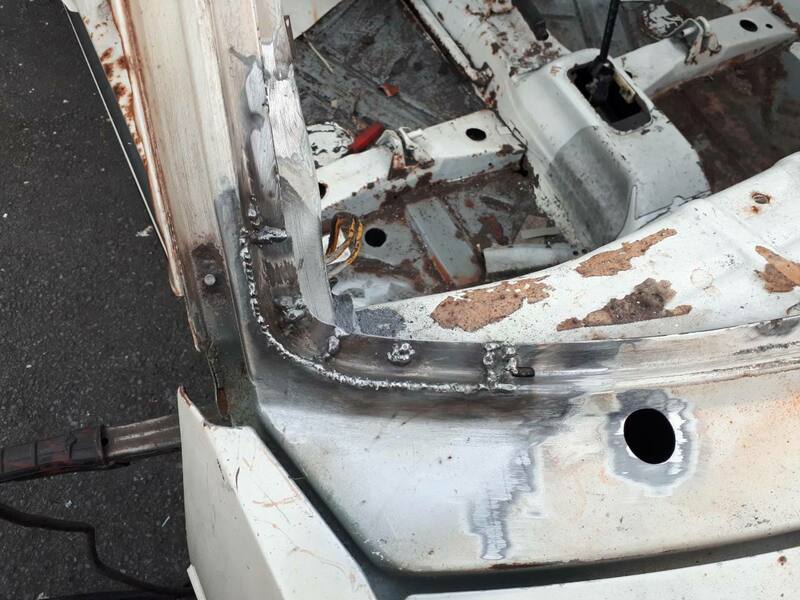

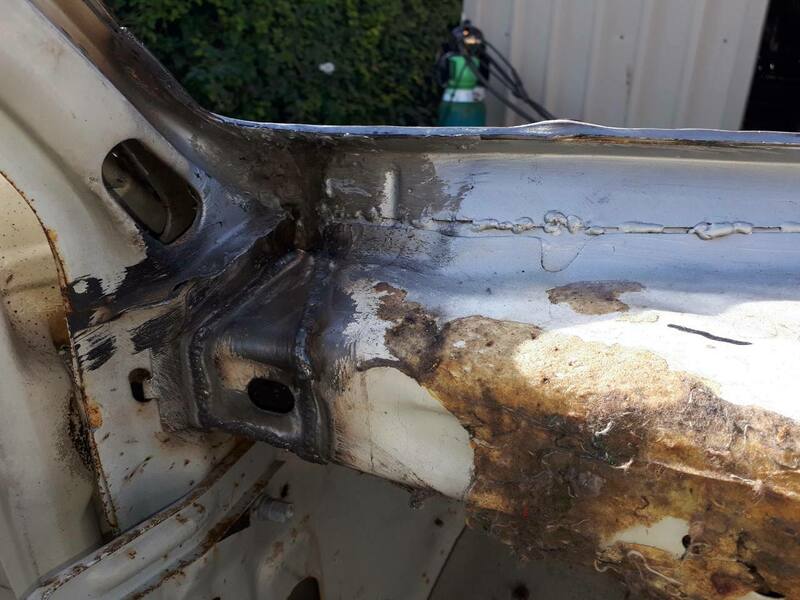

Then it was onto fixing the windscreen surround.

That took me three days,was knackered after the first day,but gradually felt better.

Floorpans next.

[junkyarddog]

Work has restarted on this heap.

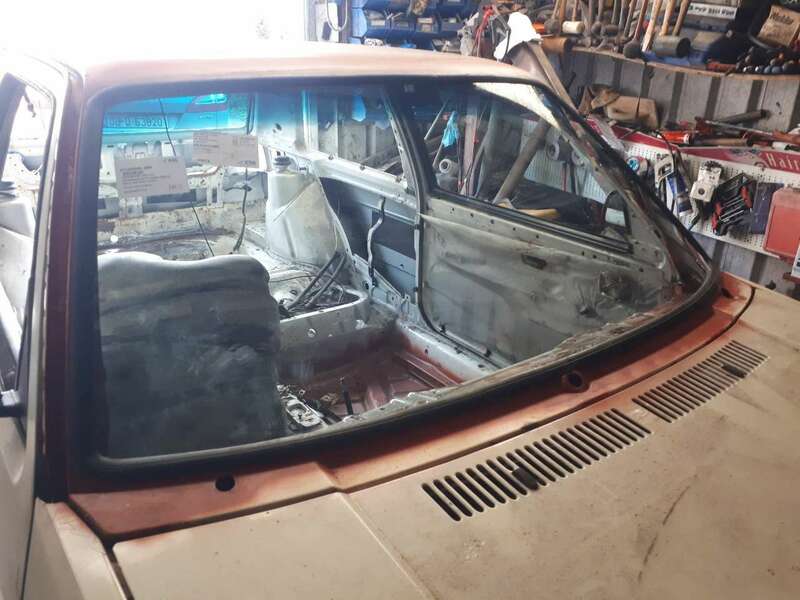

Today's endeavour was to fit a windscreen to make sure the repaired surround was the correct shape.

I didn't have a spare screen,so had to buy a new one.

Thankfully they are still readily available,went for one with a top tint.

It fits!

[junkyarddog]

Floor pan repair is next.

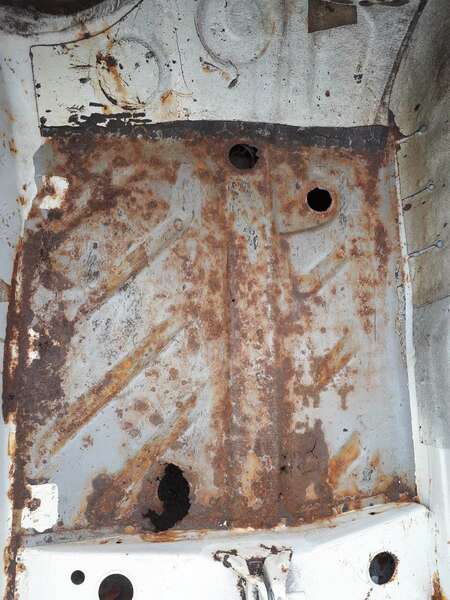

Started on the passenger side front first.

Bit scruffy,but not too bad.

Some wire brush action revealed more holes.

Welded up and welds dressed.



[junkyarddog]

Rear passenger side Floor pan next.

Wasn't too bad.

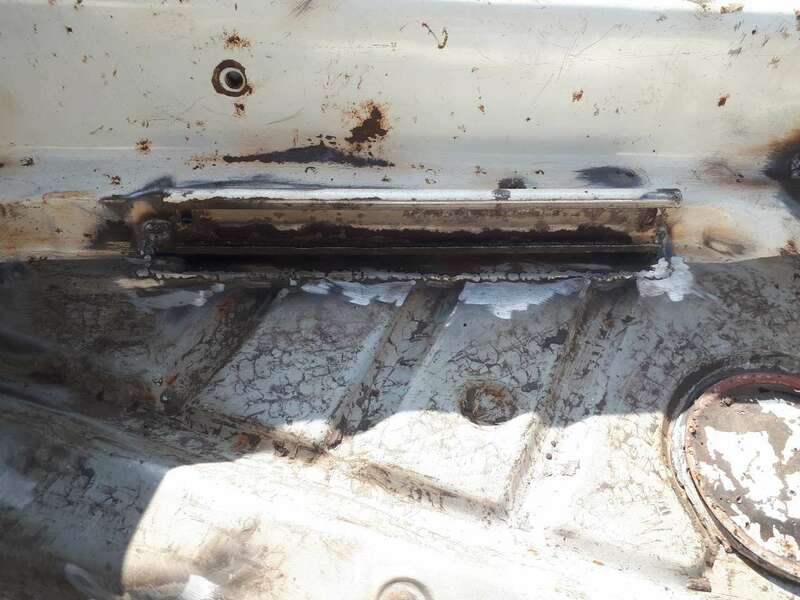

Long strip needed under the seat rail.

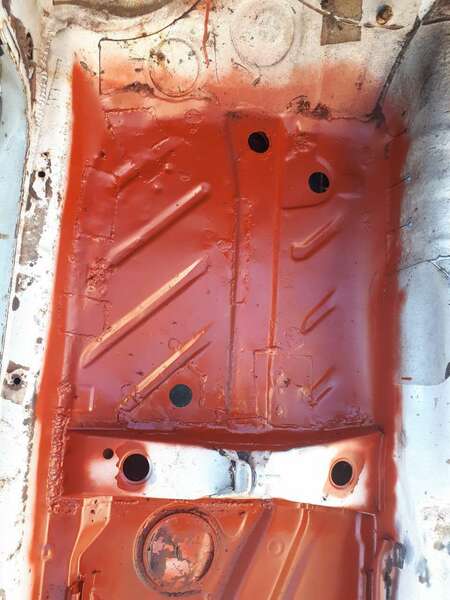

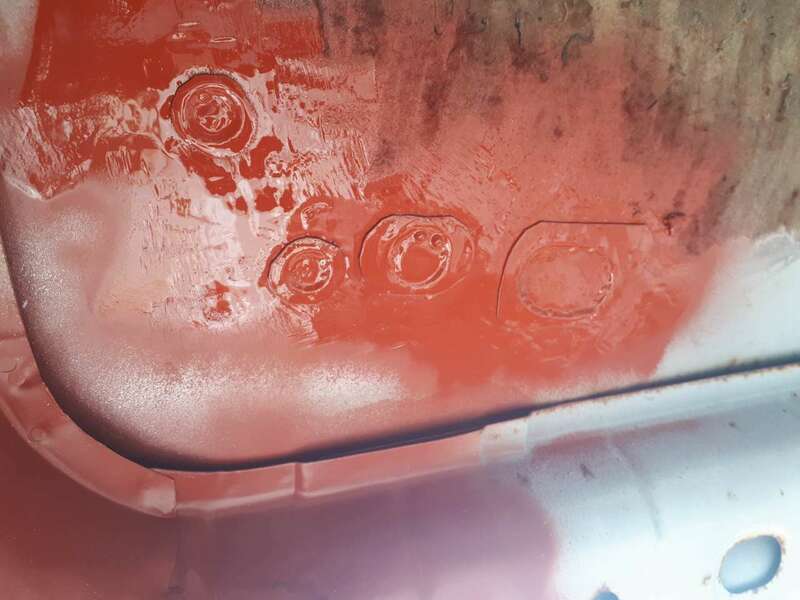

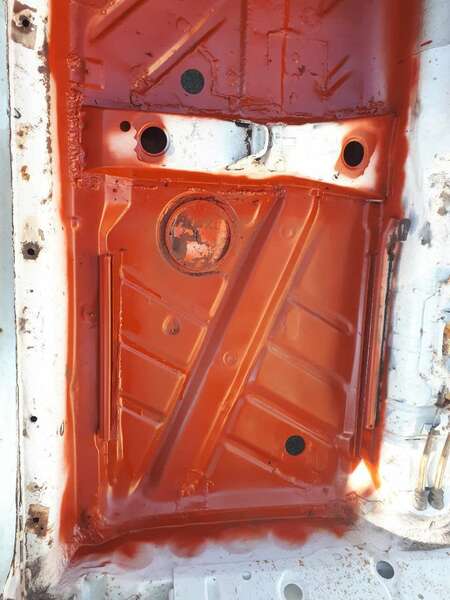

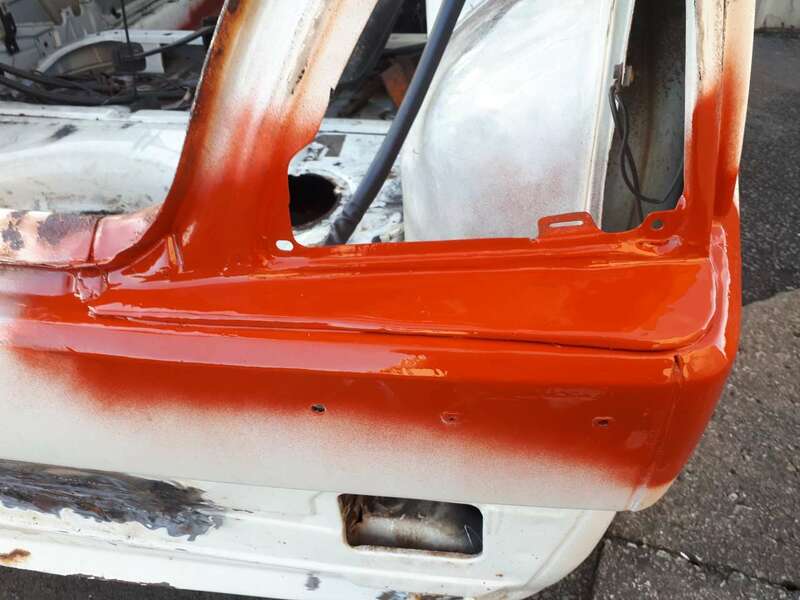

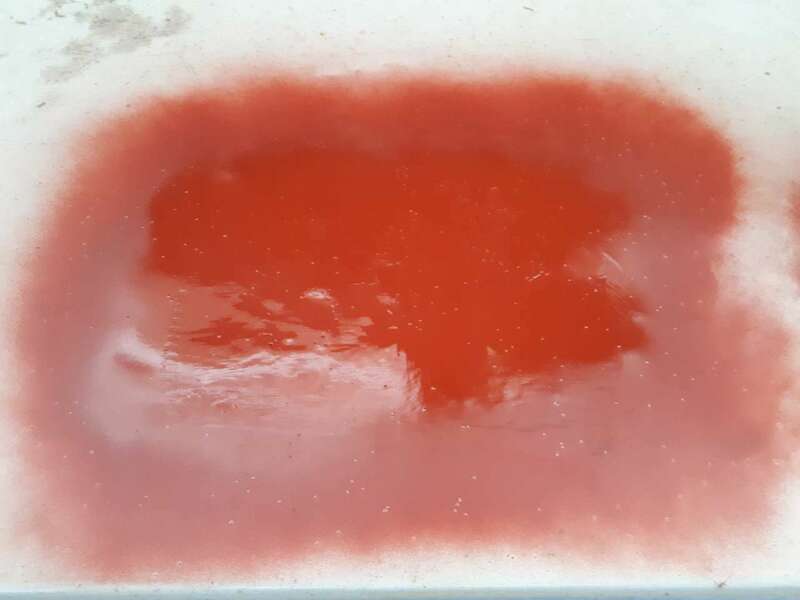

Then gave it all a squirt of red oxide primer.

One side done.

[junkyarddog]

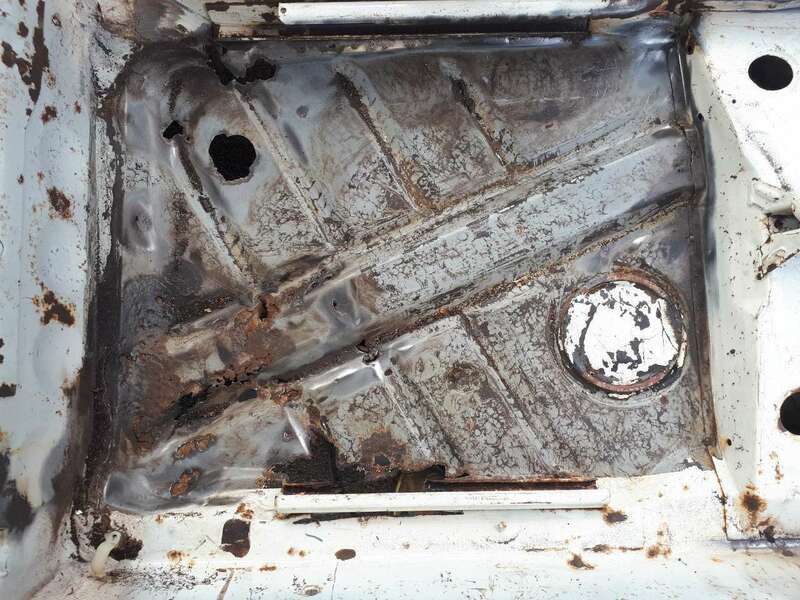

Driver side rear.

Seat rail has rotted through,luckily had a good one on the doner vehicle.

Just have to weld it in the correct position!

Overview of the whole floor pan.

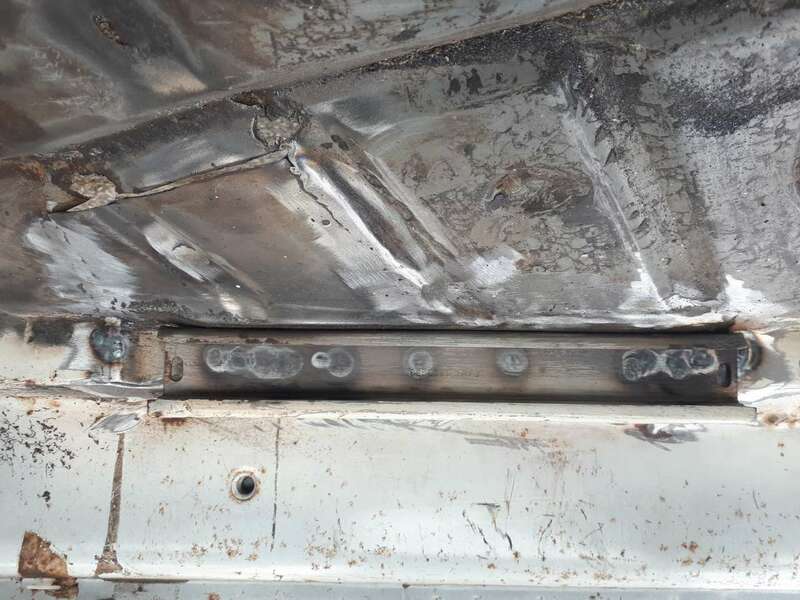

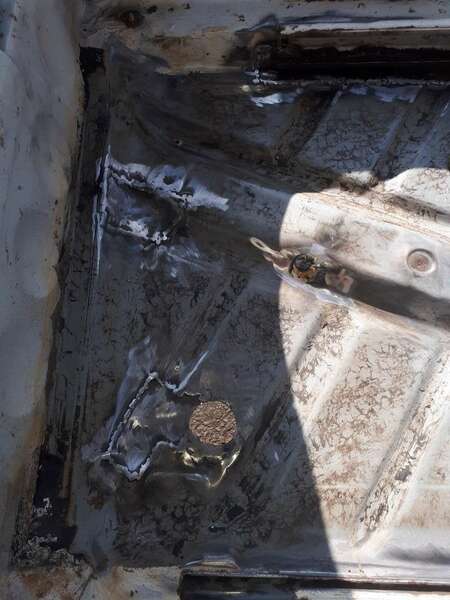

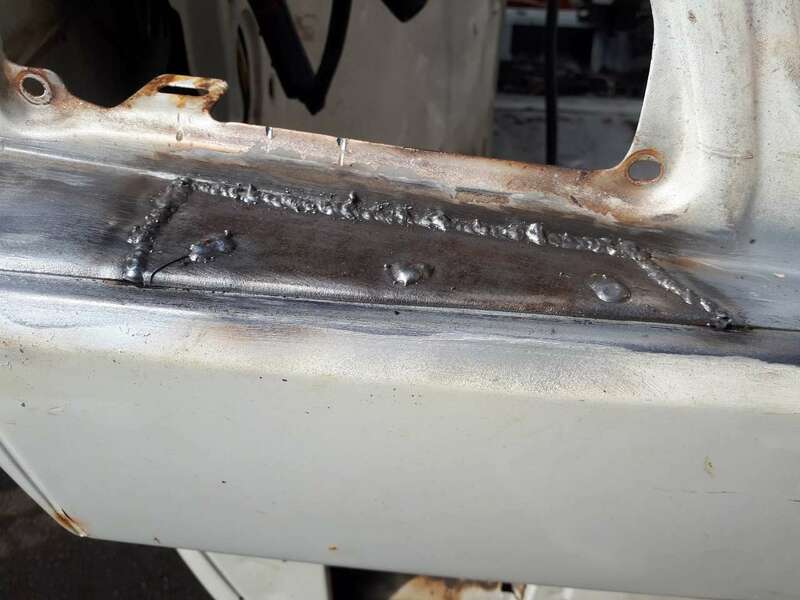

Welded in the seat rail first.

Then patch the rest up.





[junkyarddog]

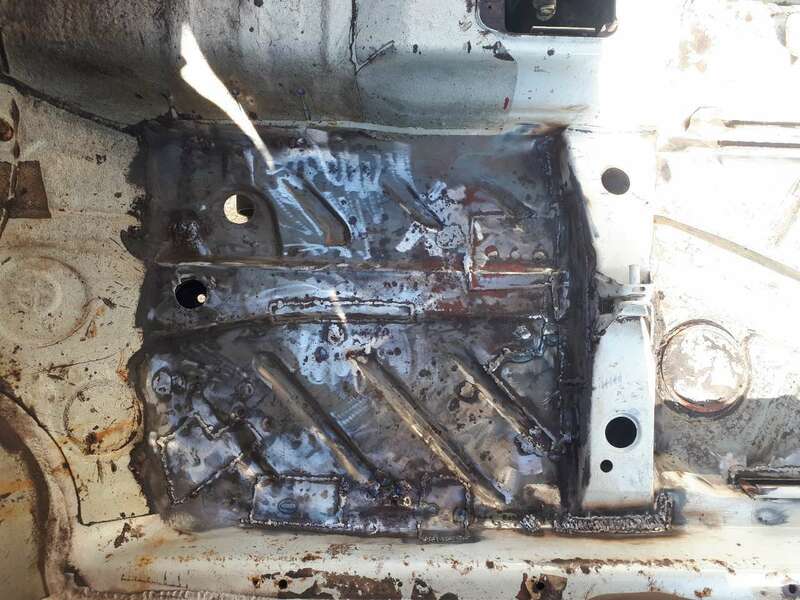

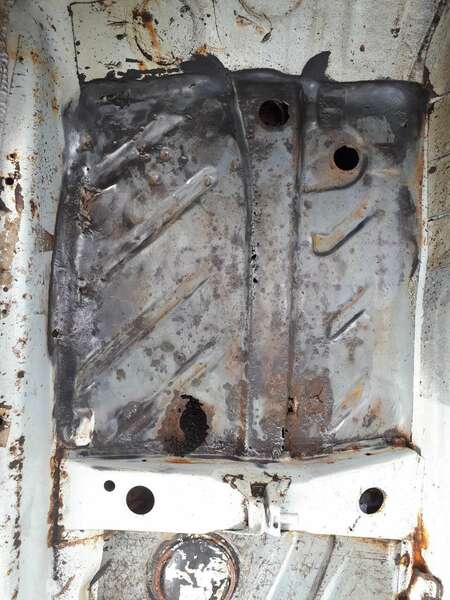

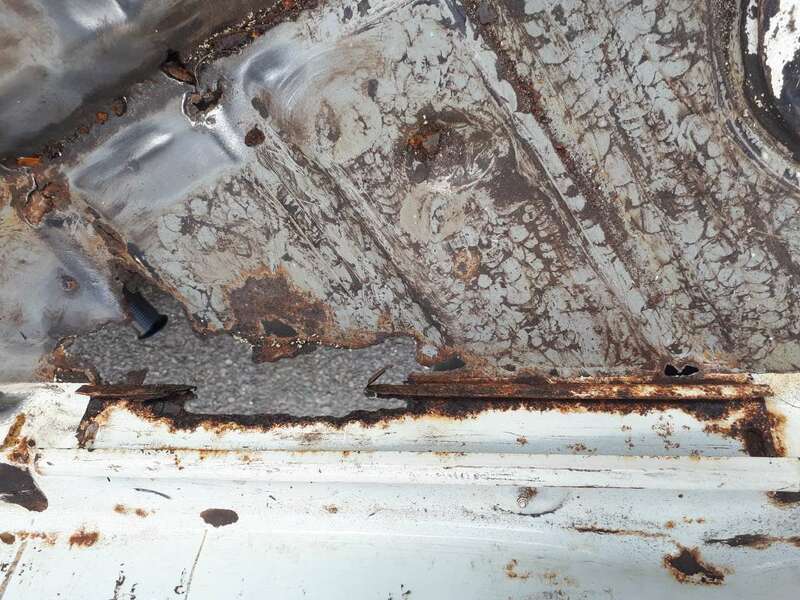

Drivers floorpan next.

This one needed the most work.

Managed to get quite a chunk from the doner car.

Chassis rail needed a minor repair too.

That done,time to tackle the rest.

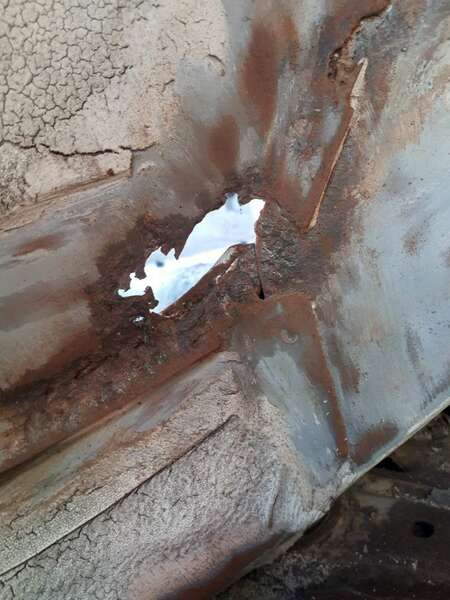

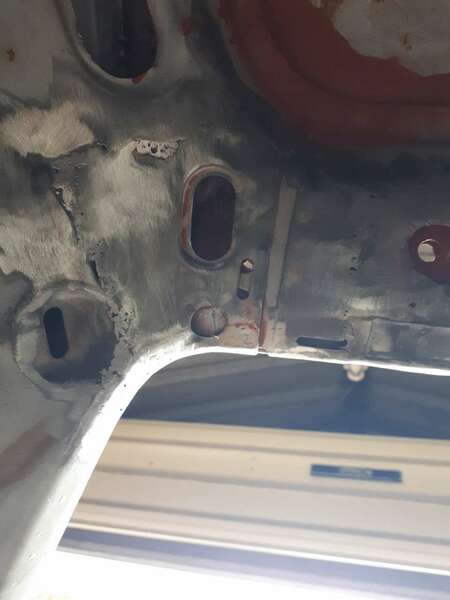

Next was the front corner.

Underneath this is a jacking point.

So I chopped out a bigger section to see the condition of what lay beneath.

I had thought I'd have to repair this from underneath,but the rust was very localised,so it could be repaired from the top,result!

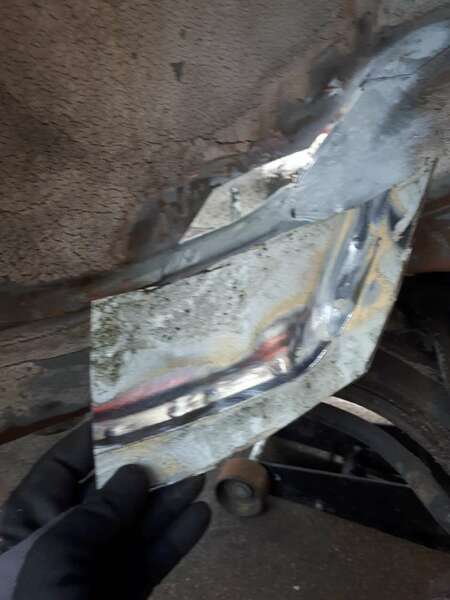

Ground the rot out then fashioned a repair patch and welded it in.

Then welded the floor section back in.

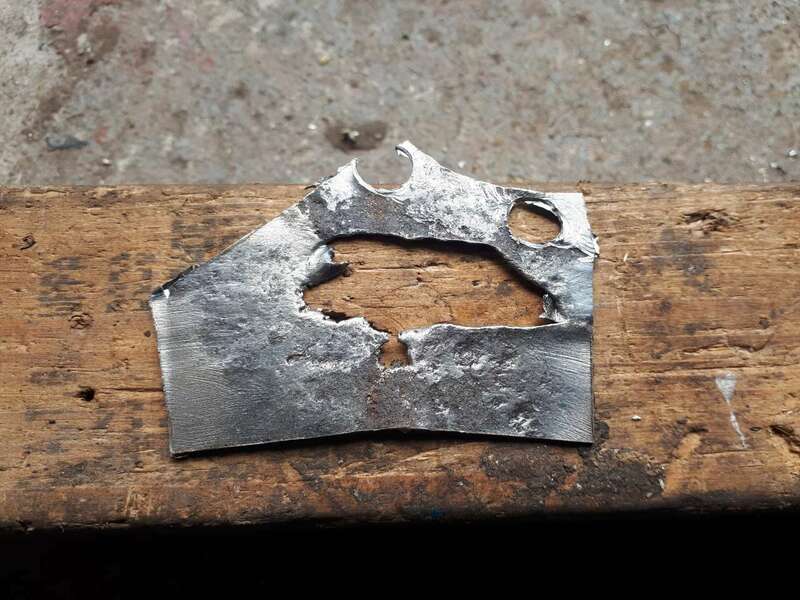

Then make up another patch.

Then weld it in(was a bit of Vauxhall Viva once upon a time)

Time to make up a few more repairs then clean up the welds.

Done.

[junkyarddog]

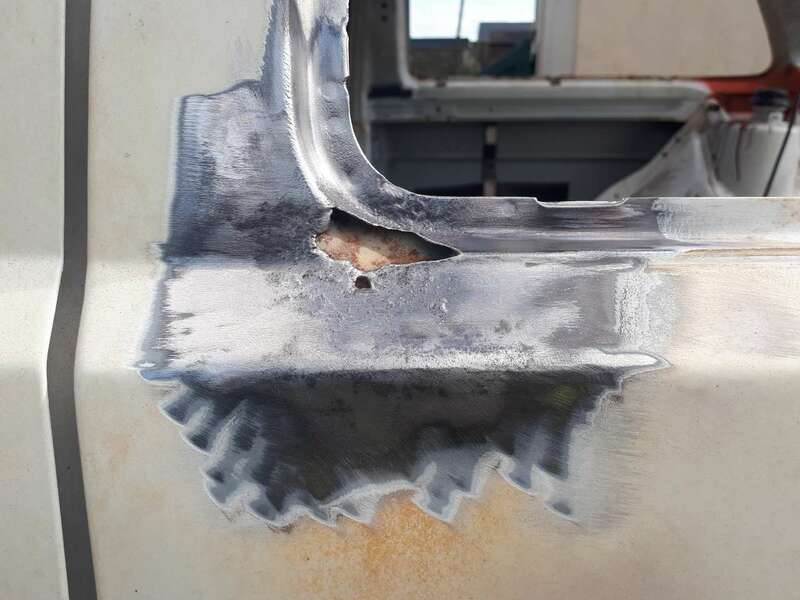

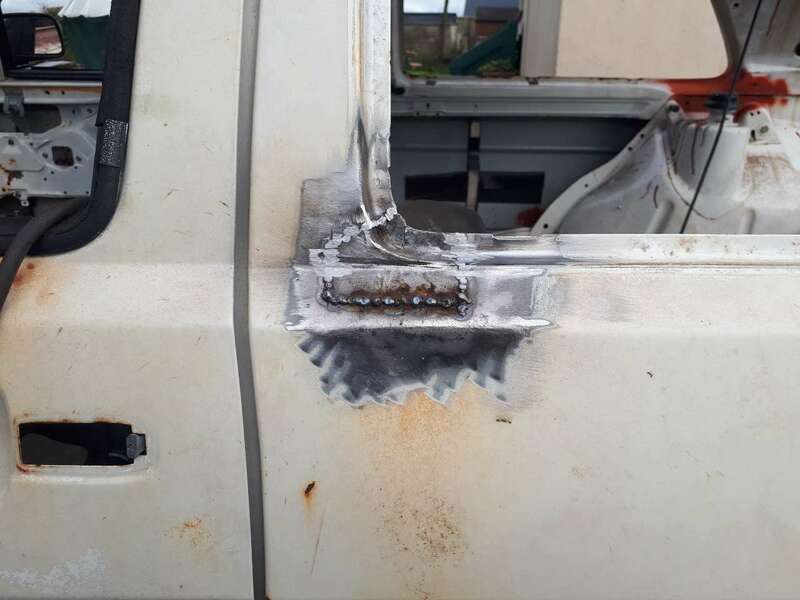

Next was this cheeky little rust hole in the front wheel arch.

Doner car came to the rescue again.

Welded in.

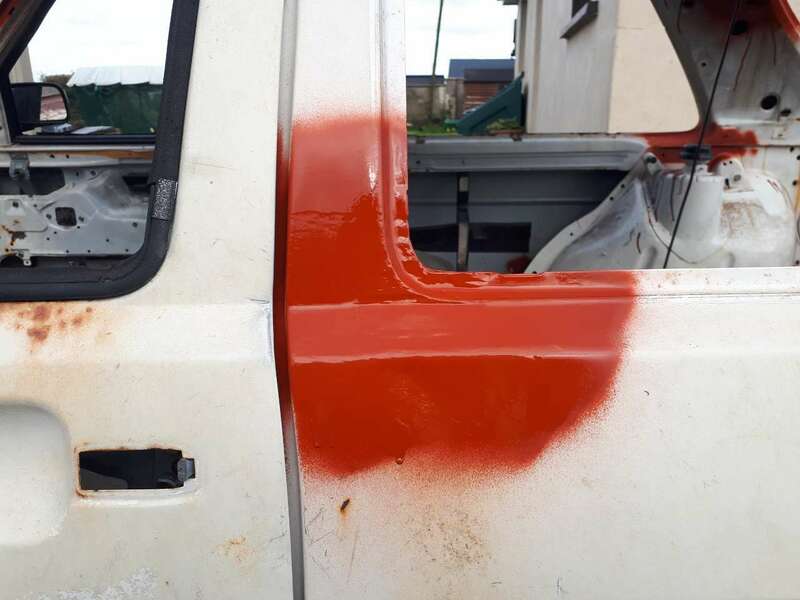

Cleaned up the driver side floors ready for a squirt of red oxide primer.

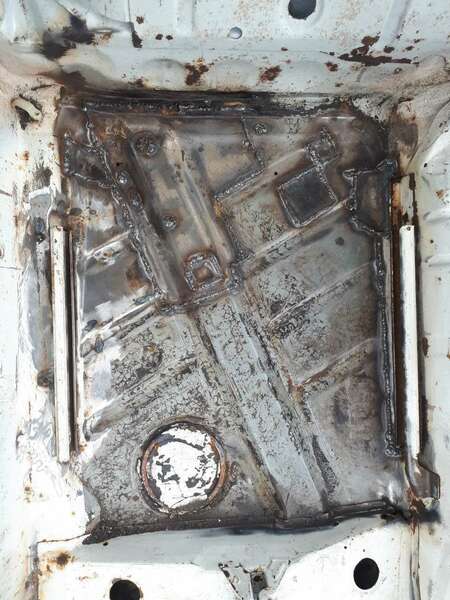

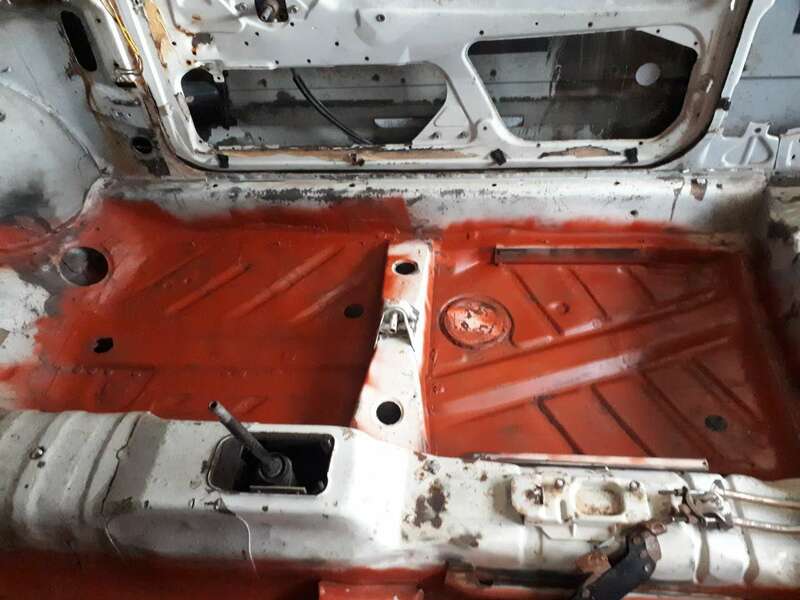

Floors in the cabin are finished.

[junkyarddog]

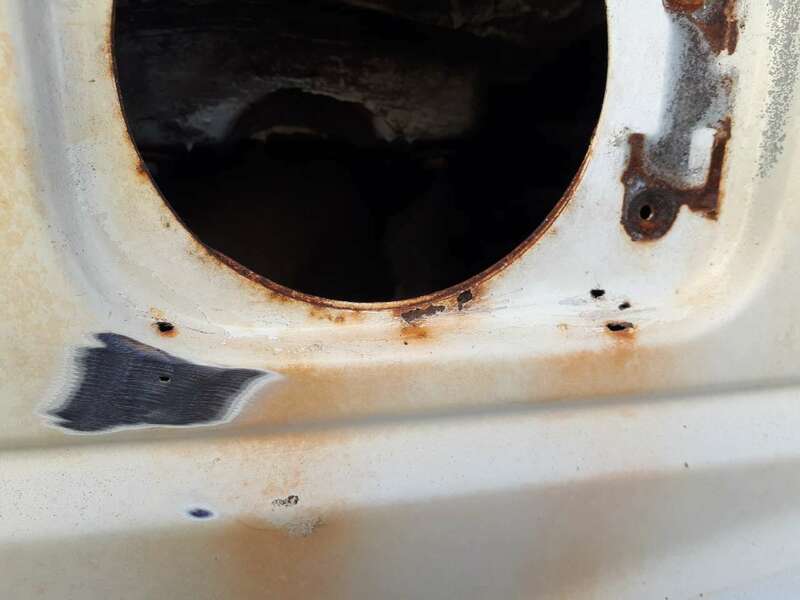

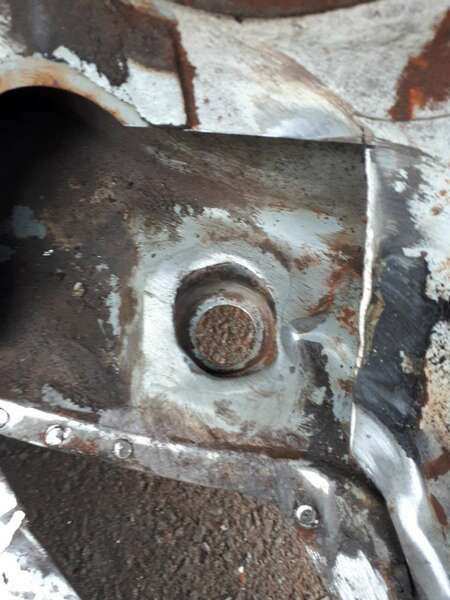

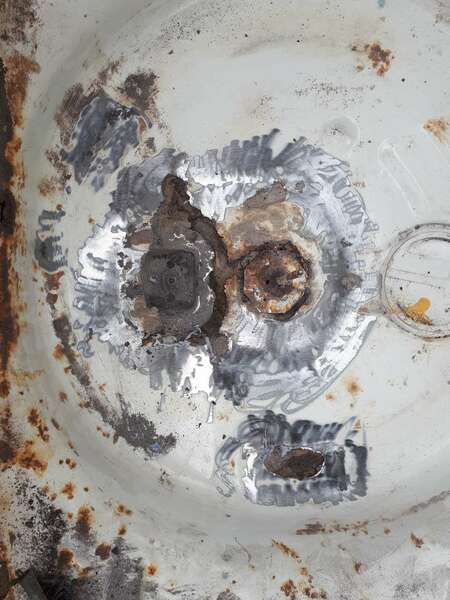

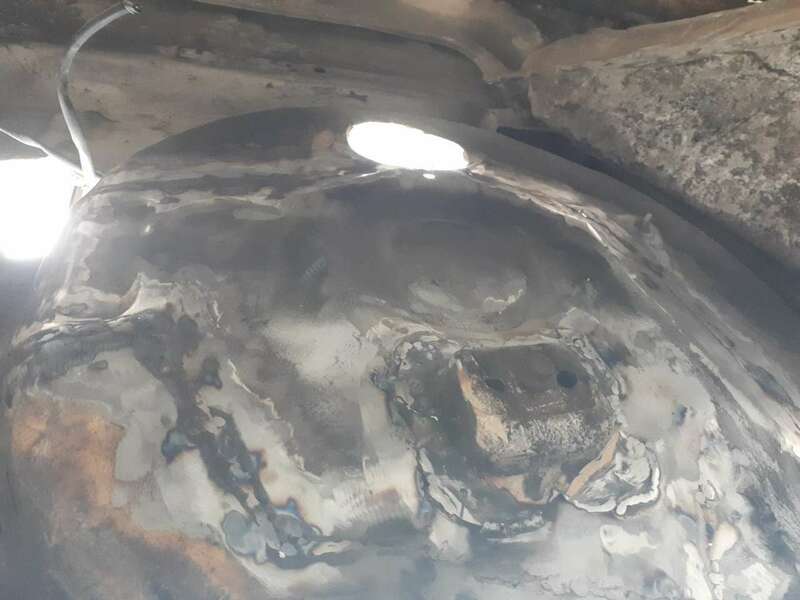

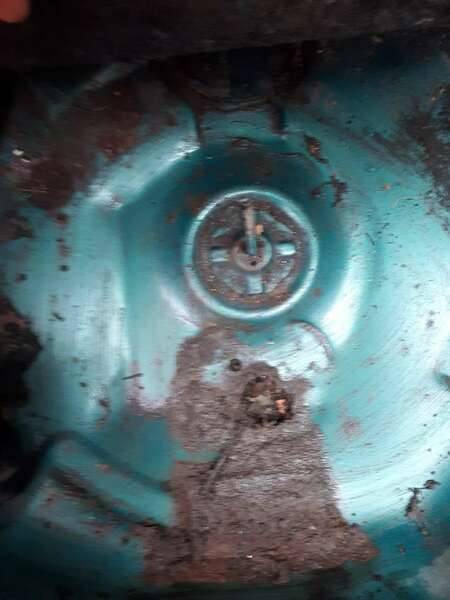

Spare wheel well.

Rotted around the retaining bolt to hold the spare,and also the fuel tank strap that is on the underneath.

Mmmmmm,rusty.

Fortunately the Mk3 I bought recently had a reasonably decent spare wheel well,unfortunately the tank strap bracket has rusted and been plated up before.

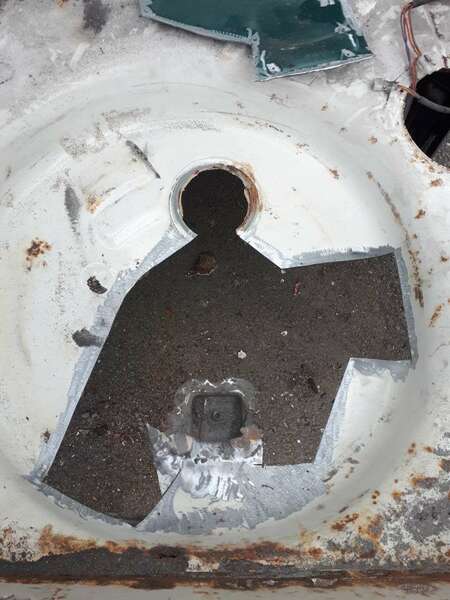

Time to chop out the grot.

I was going to make several smaller patches,but decided to chop out as much as I could in one go.

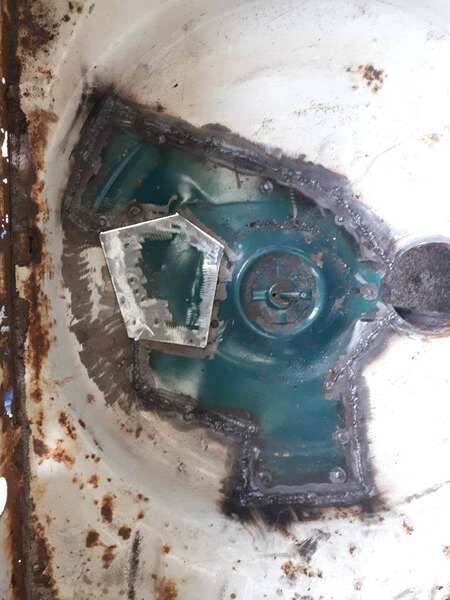

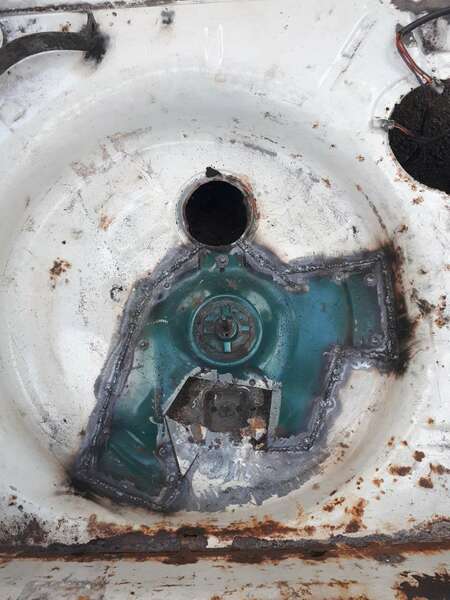

Doner cut lined up.

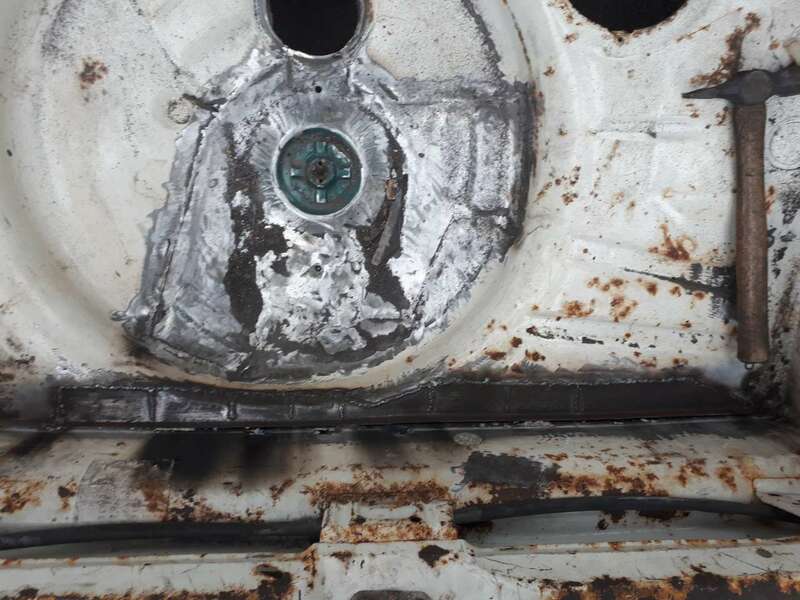

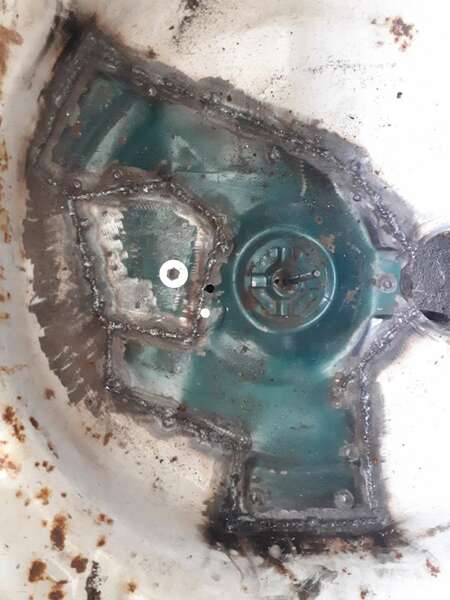

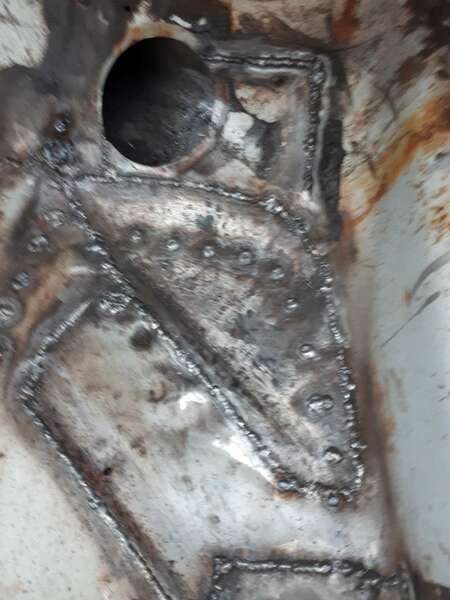

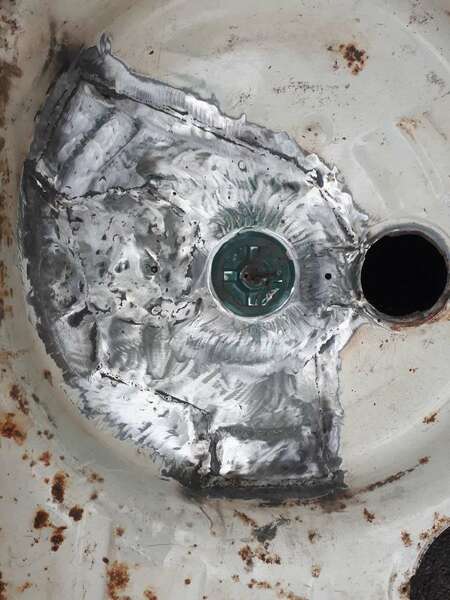

Welded.

Still got to do the tank strap bracket.

I left the old one on to maintain its position for the time being.



[junkyarddog]

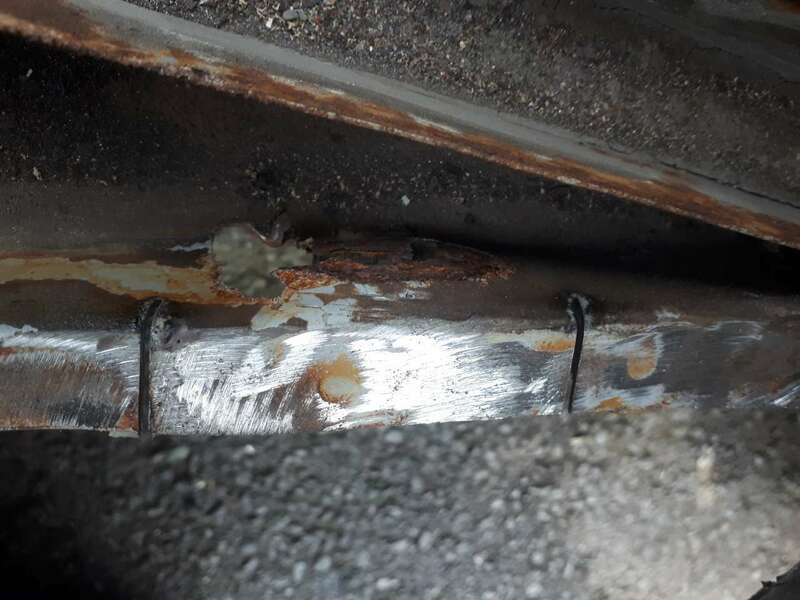

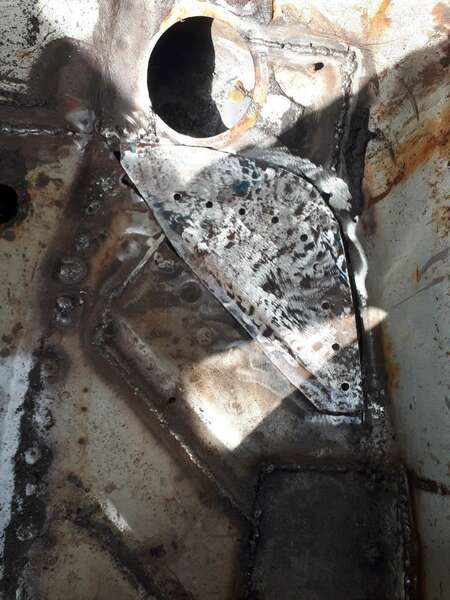

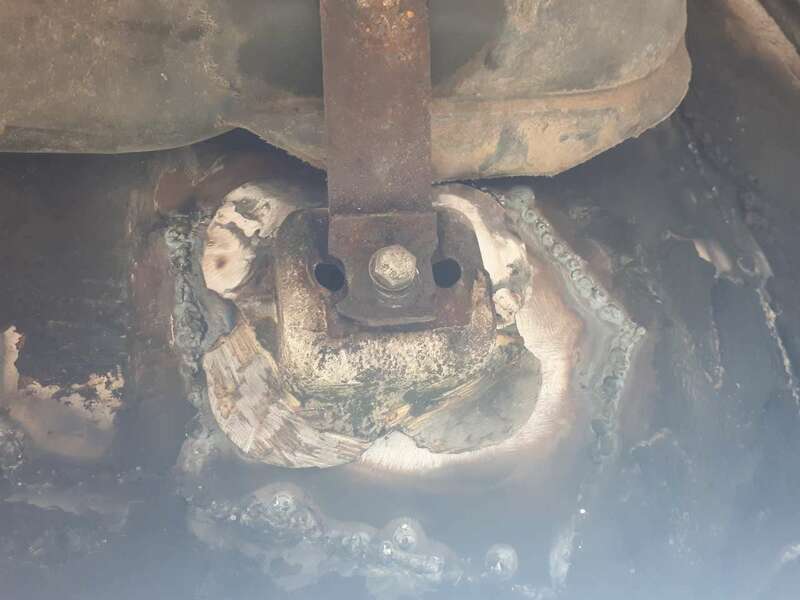

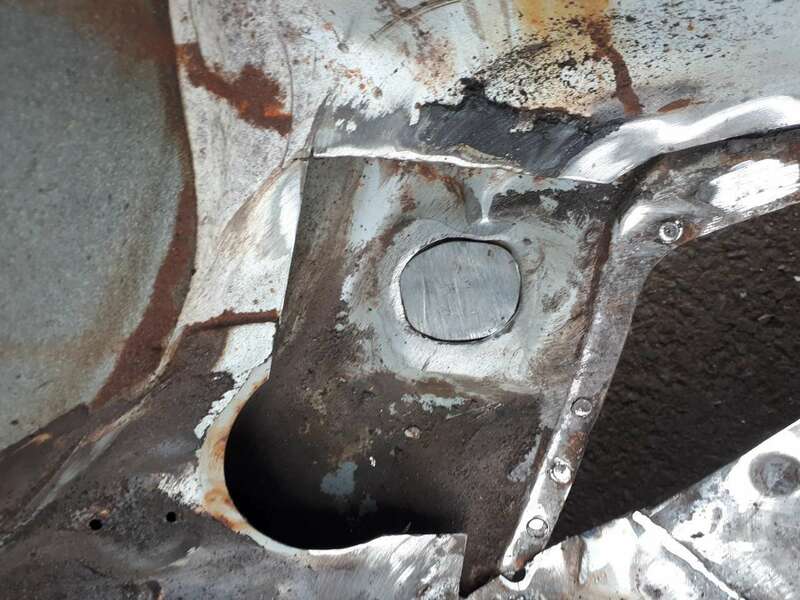

Next was to finish the fuel tank strap bracket.

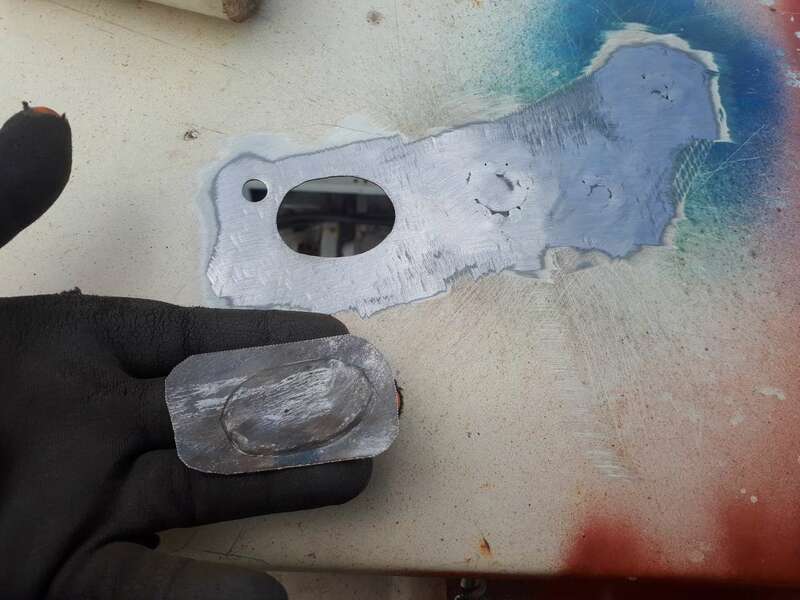

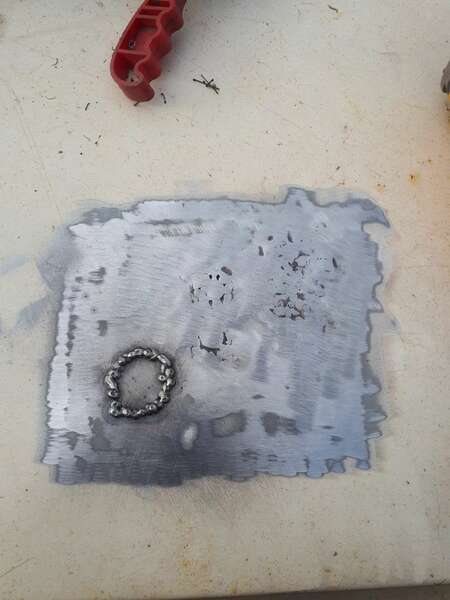

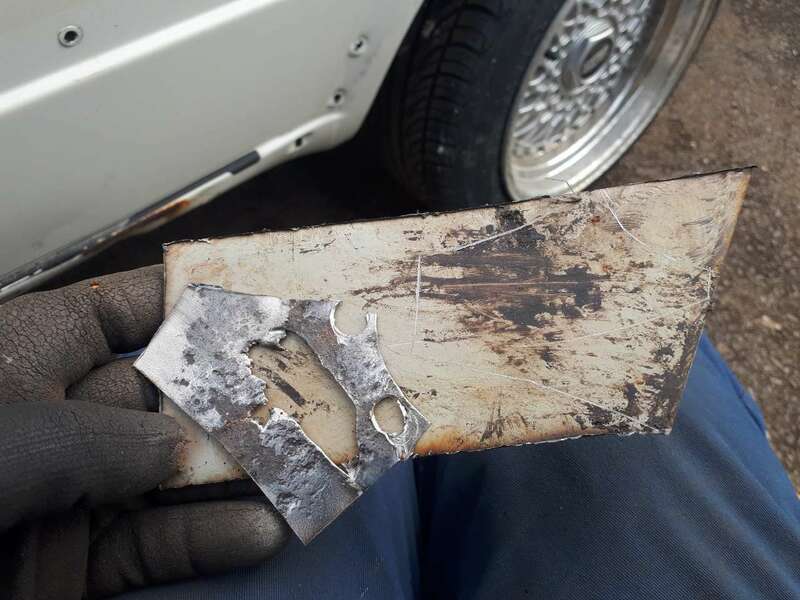

First make up a patch for the top of the bracket.

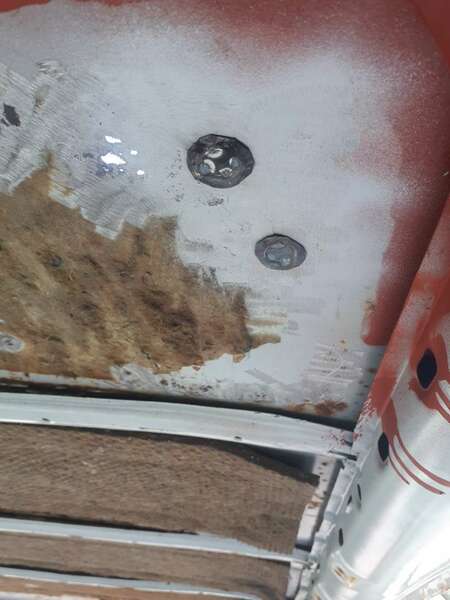

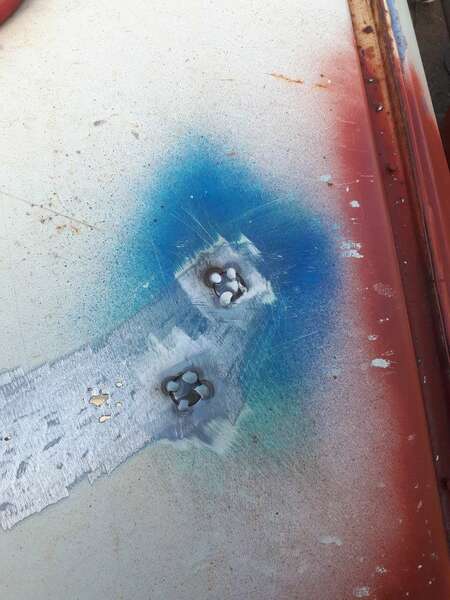

Then  drilled a hole in the panel and threaded a bolt all the way through the bracket and floor to preserve the location point,the original had this too,it doubled up as a drain hole.

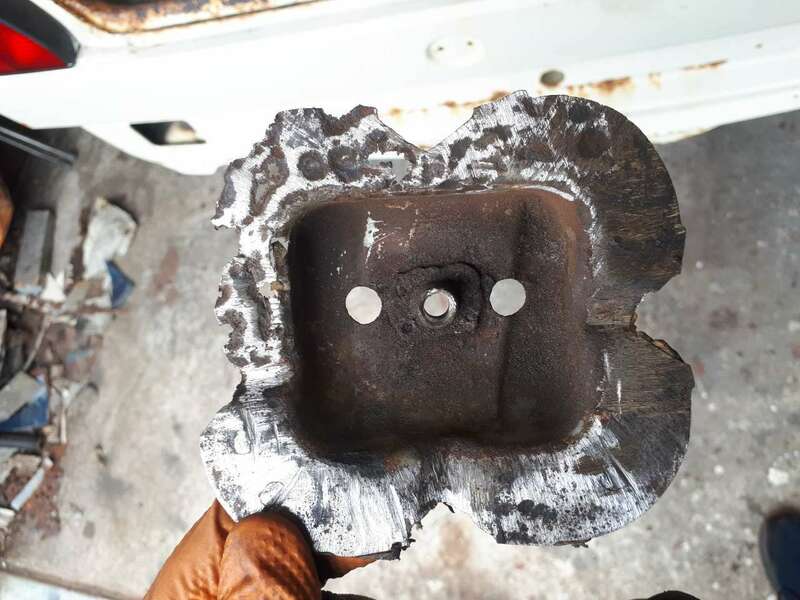

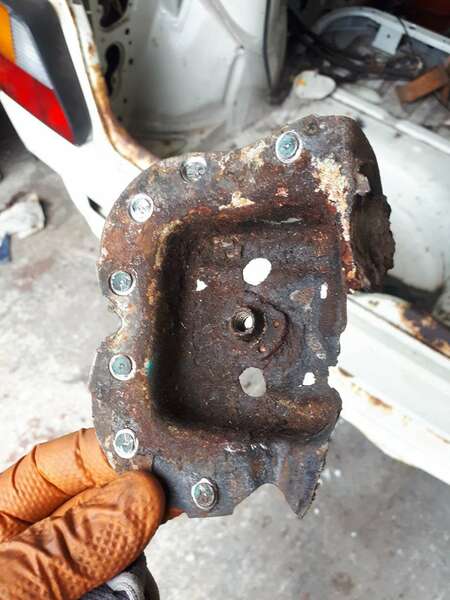

Next I could remove the tank bracket.

Hmmm,needs a tickle of the welder.

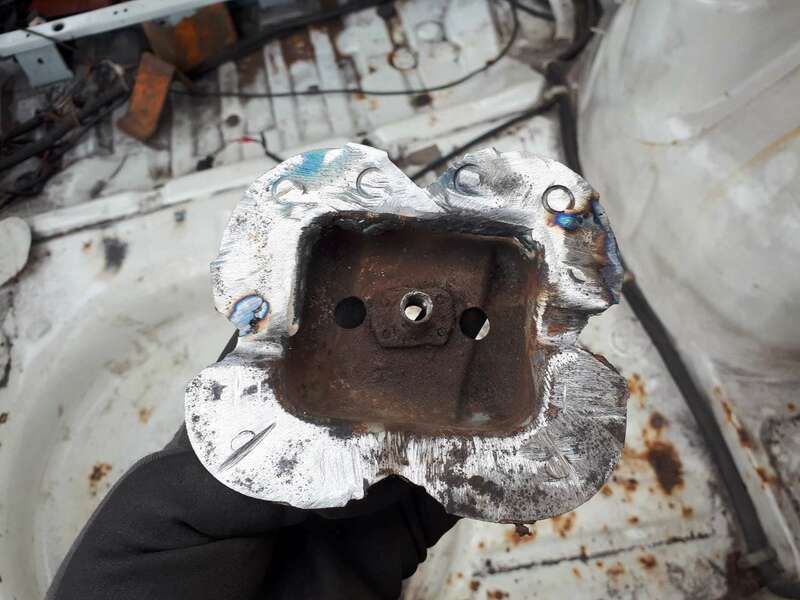

The doner mk3 bracket was in worse shape.

But there was enough material between the two to make a useable one.

So it was time to refit the fuel tank and double check everything still lined up.

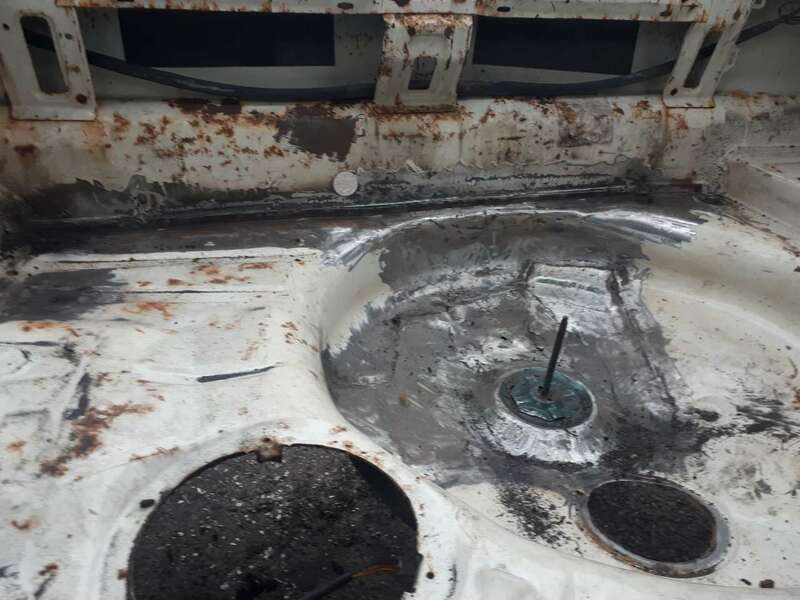

Time to weld it all in and clean back the welds.

Done.

Boot floor where it joins the rear panel next.



[Matty]

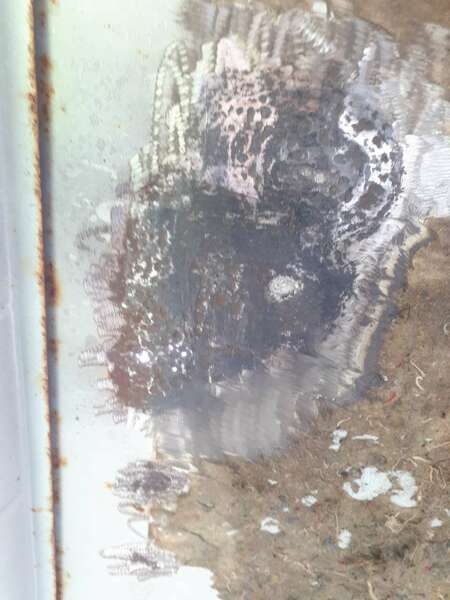

Weirdly looks like the outline of an alterboy.

(As an aside, I served on the alter till I was 16. In that time no priest ever laid a finger on me. As a result I grew feeling somehow unattractive 😆)

[junkyarddog]

54 minutes ago, Matty said:

Weirdly looks like the outline of an alterboy.

Well I guess it is a bit Holy(holey)

[junkyarddog]

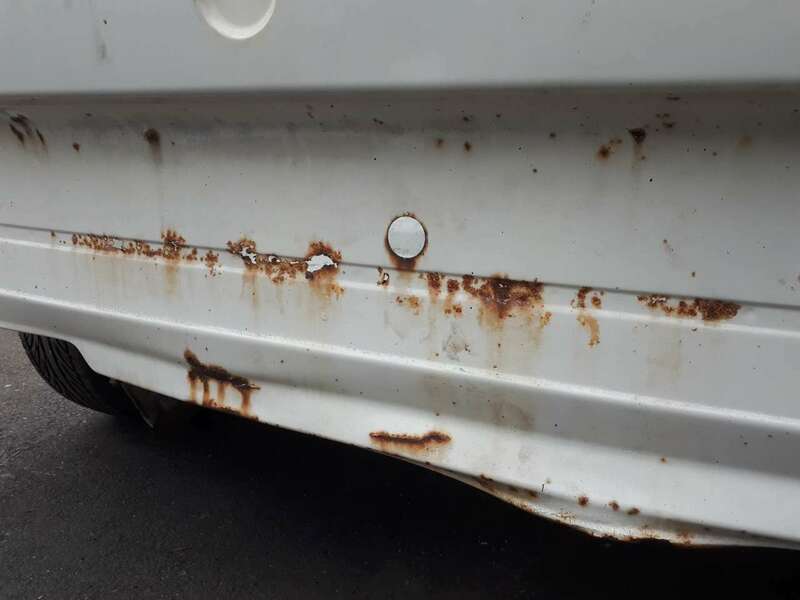

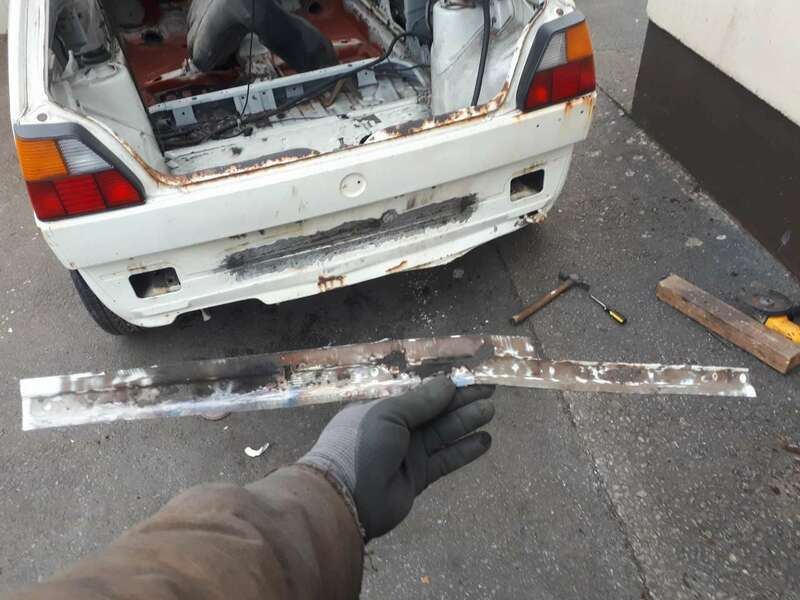

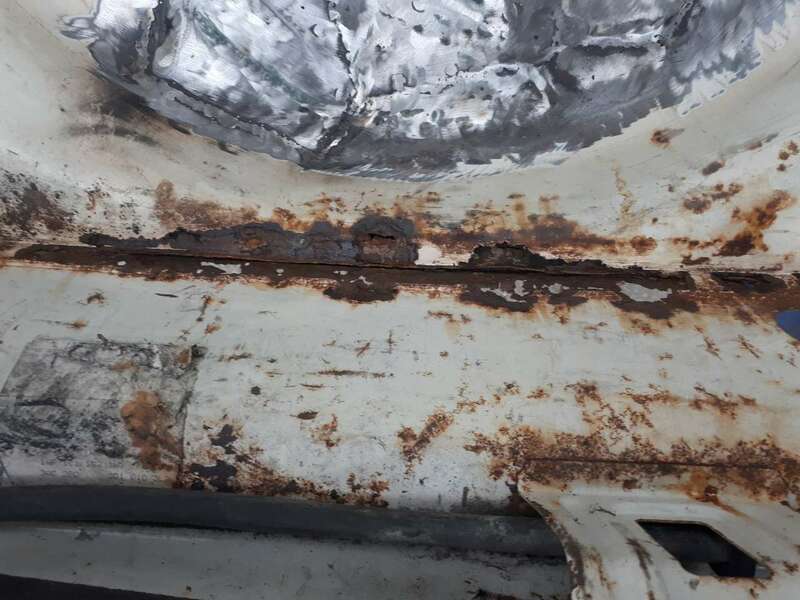

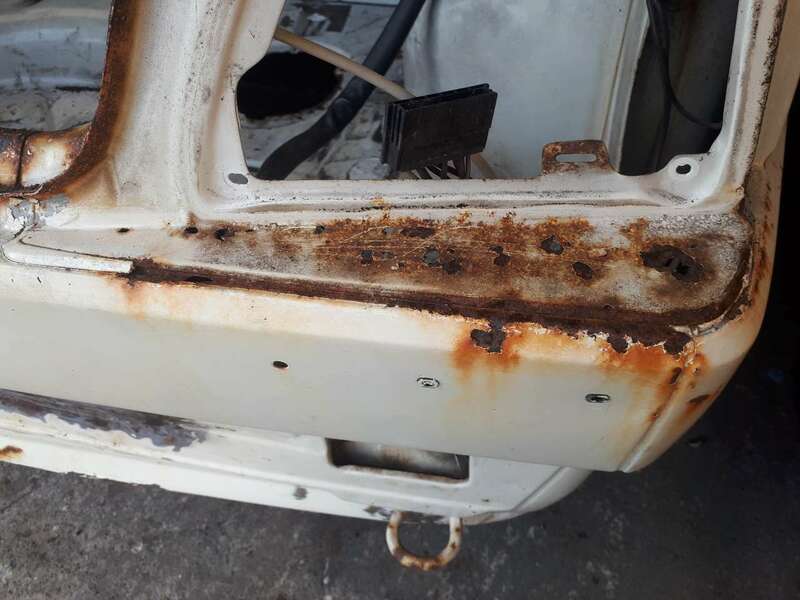

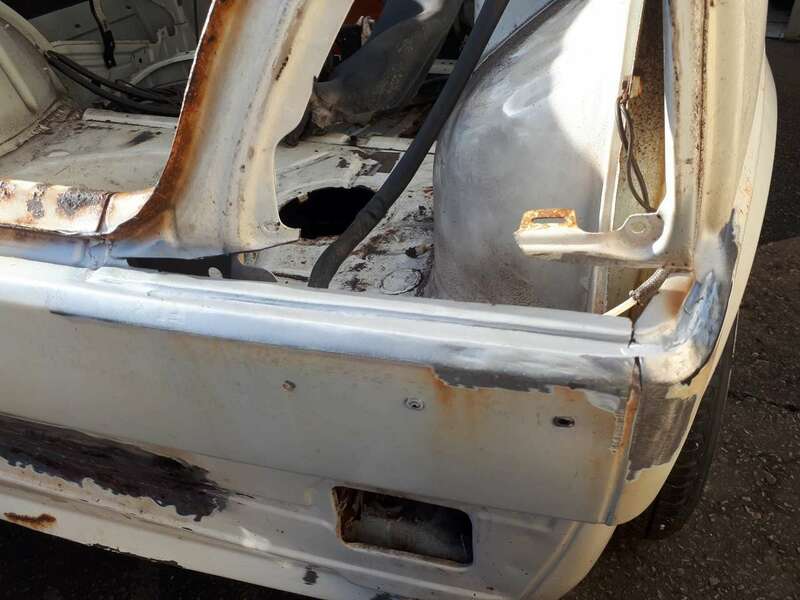

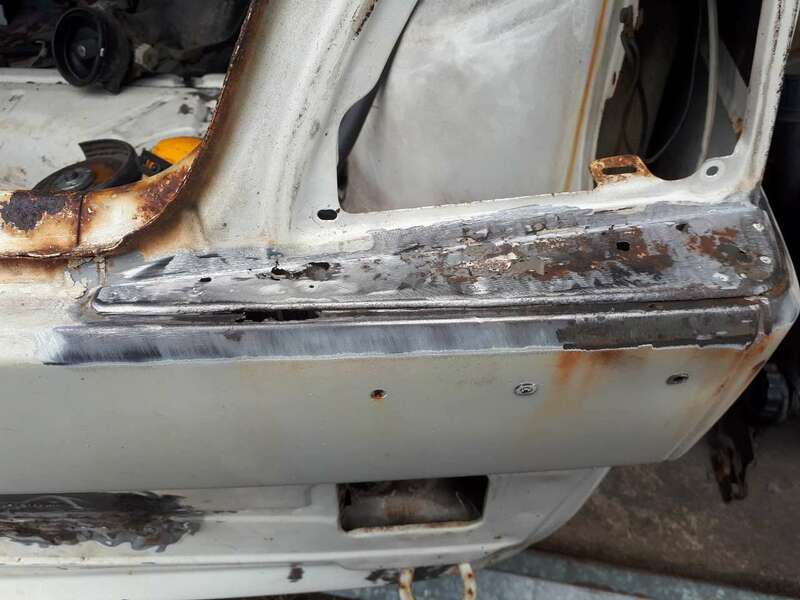

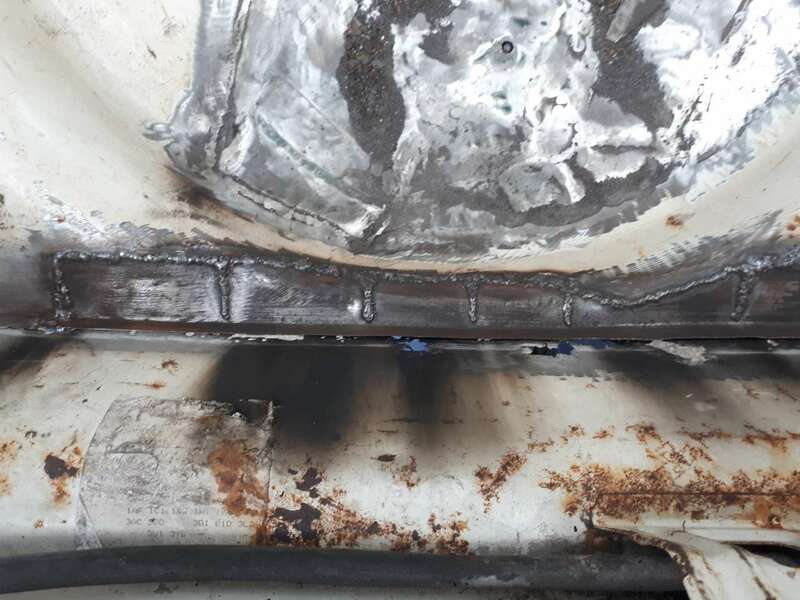

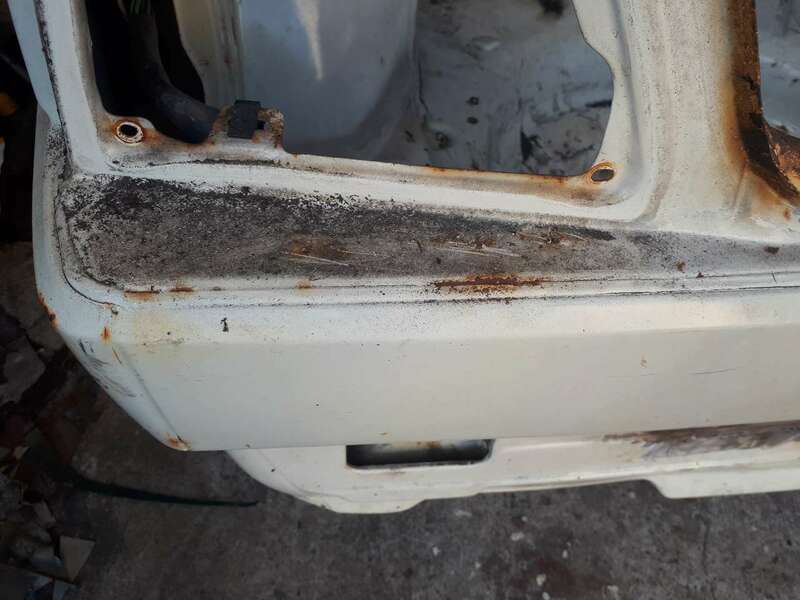

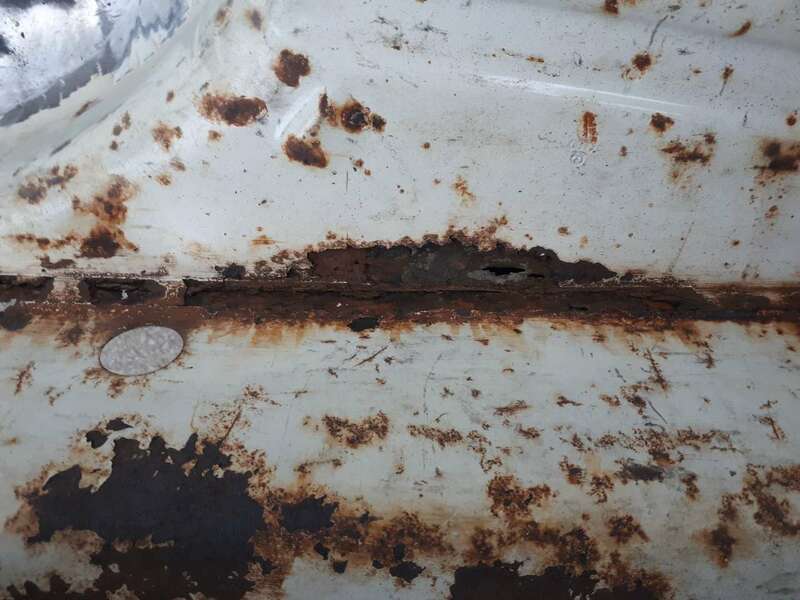

Next was the rear edge of the boot floor where it meets the rear panel.

The seam between them traps moisture with the inevitable result.

Rot.

Great.....

I needed a folded edge for the boot floor my metal folder isn't big enough to do the the fold in one go.

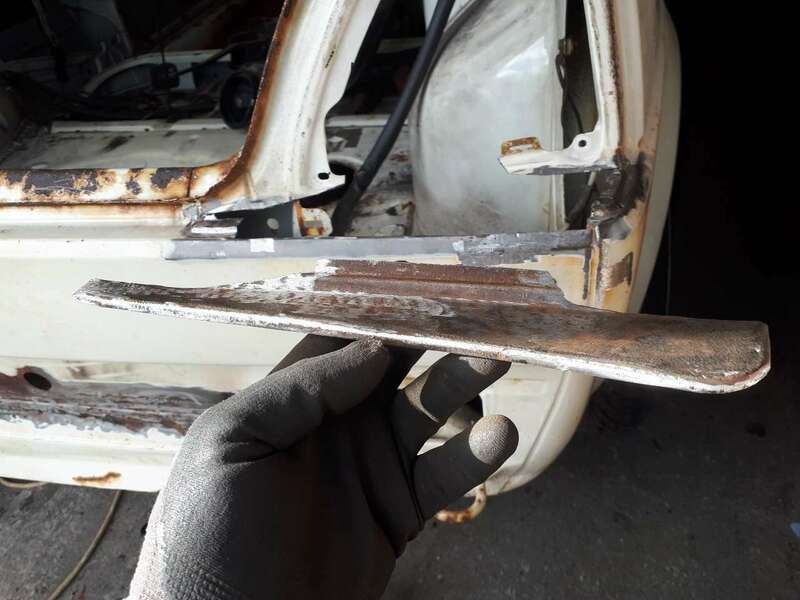

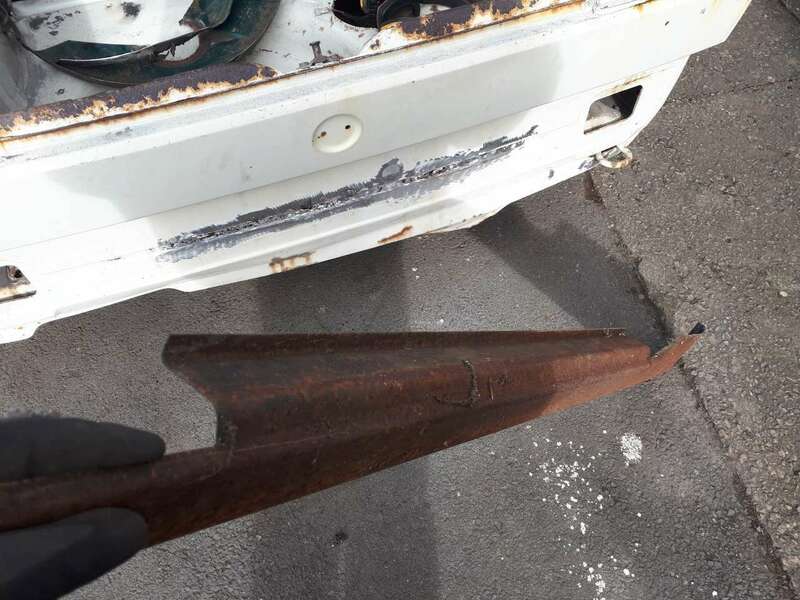

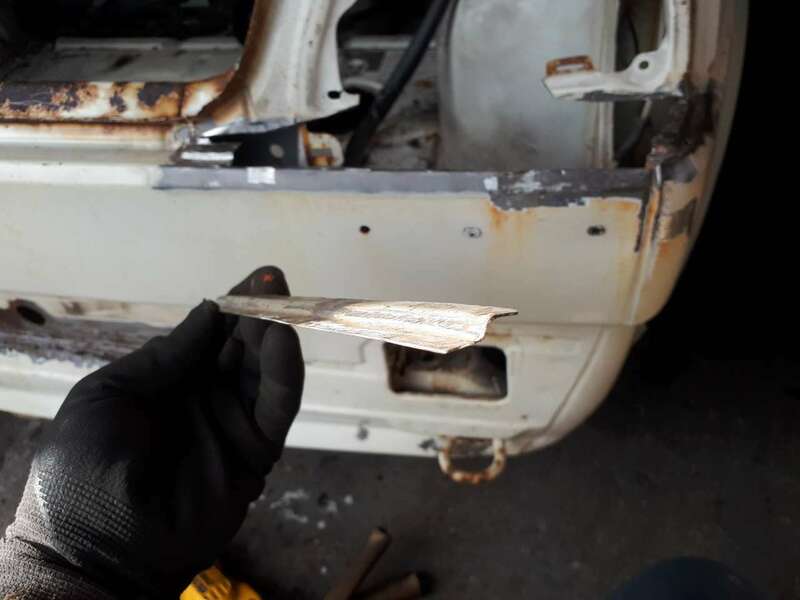

A rummage in my shed turned up this sill,for a mk1/2 Fiesta,but of surface rust but otherwise perfect!

Chop chop, weld weld.

Despite it looking straight, there is a curve to the rear panel, so I had to slit the patch in a few places to suit.

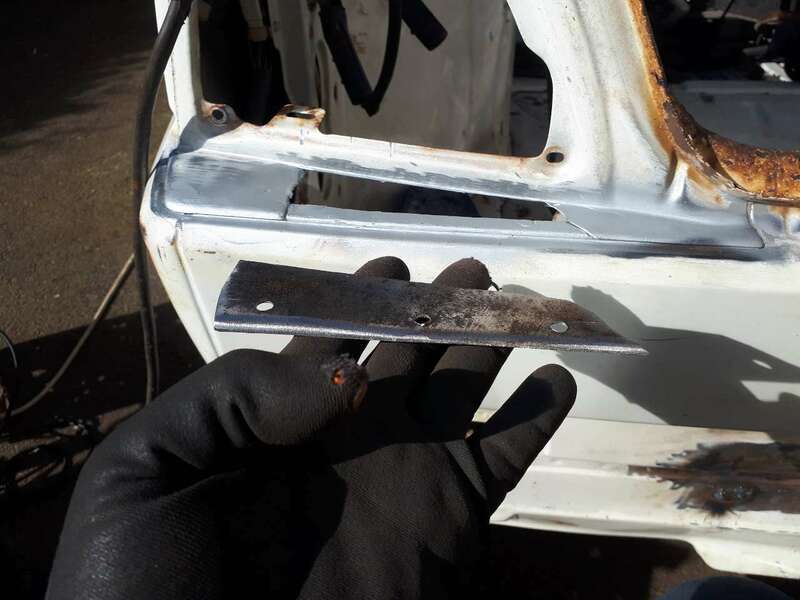

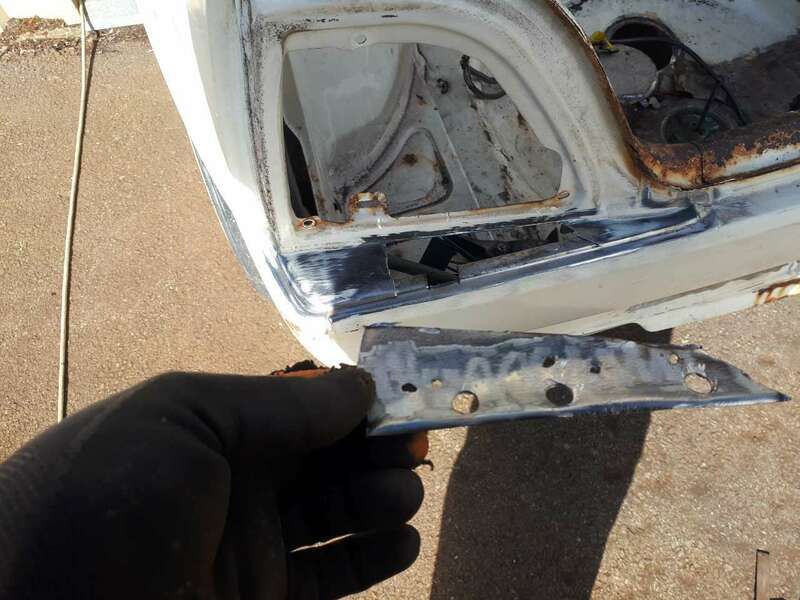

Time to make up the rear panel repair.

Bashed a groove into it with a bit of square section steel bar.

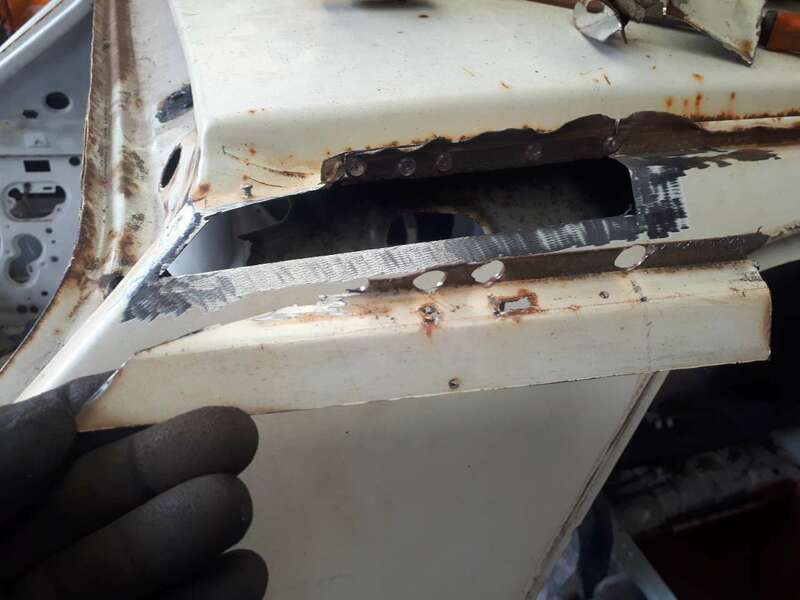

Trial fit.

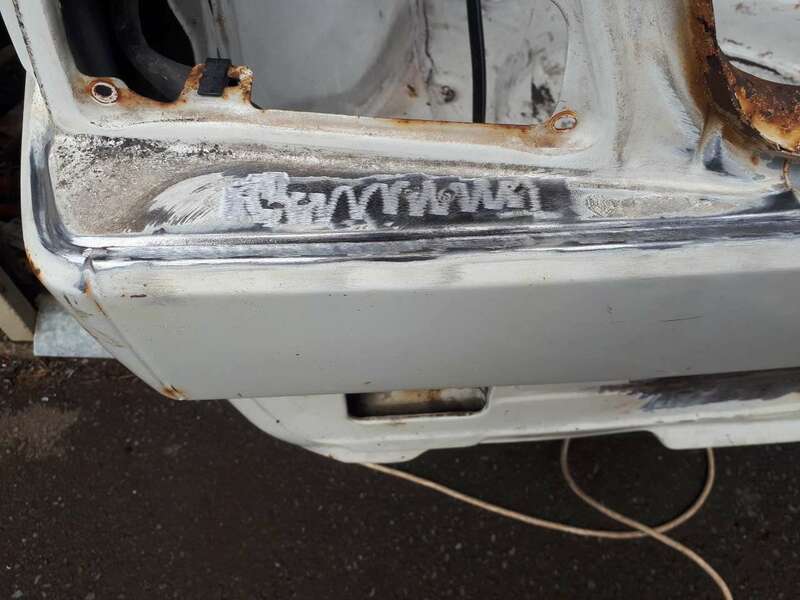

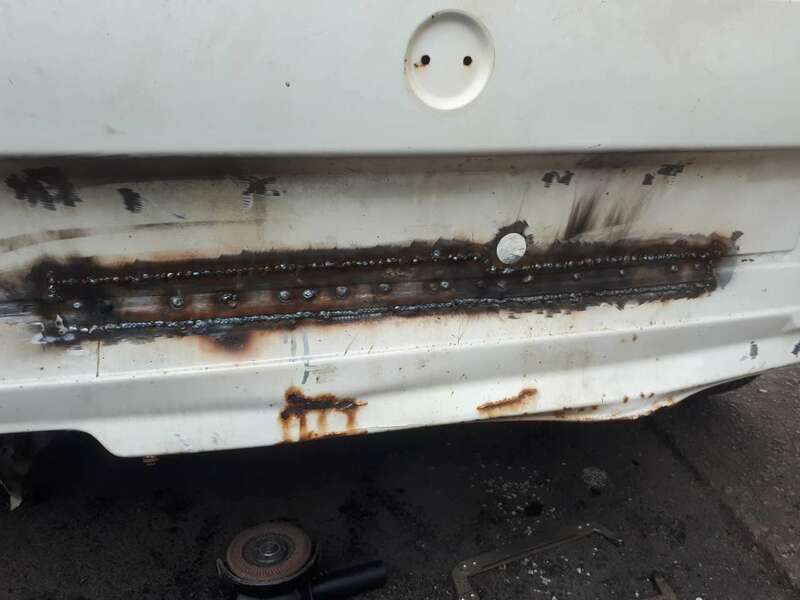

Weld.

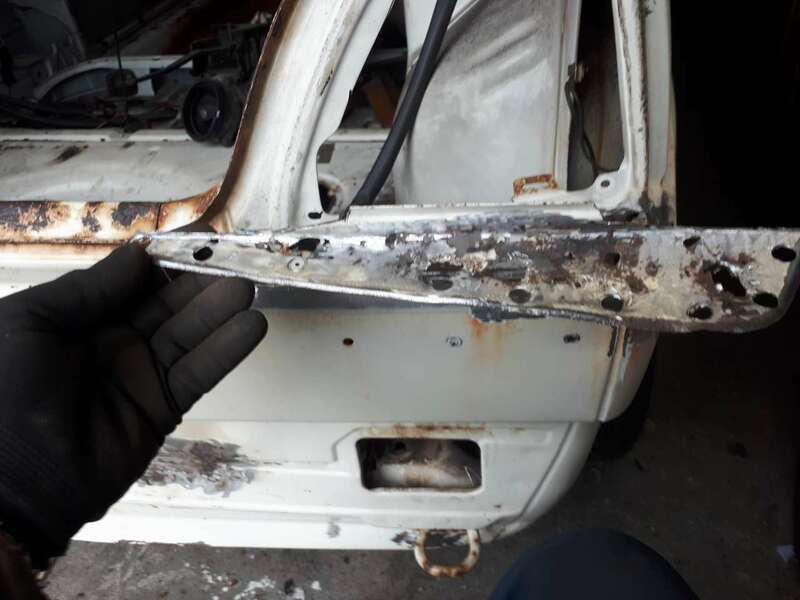

Removed rotten section.

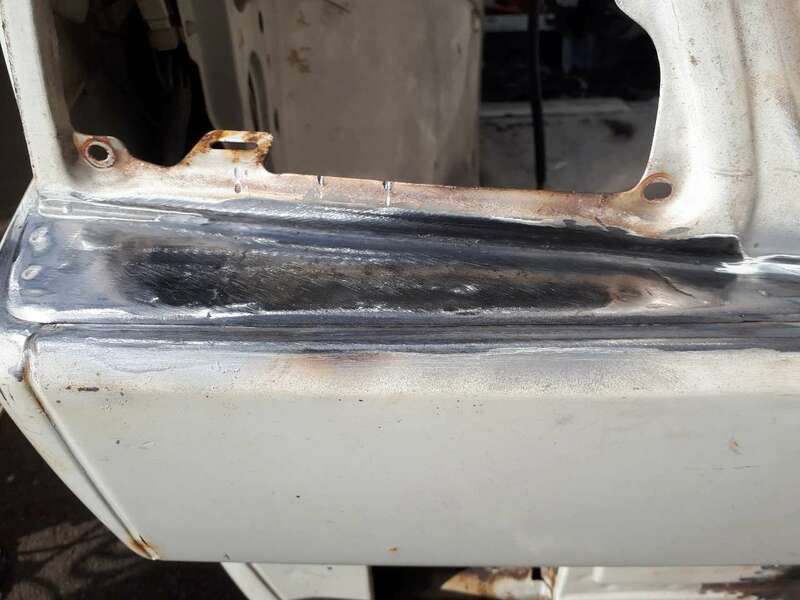

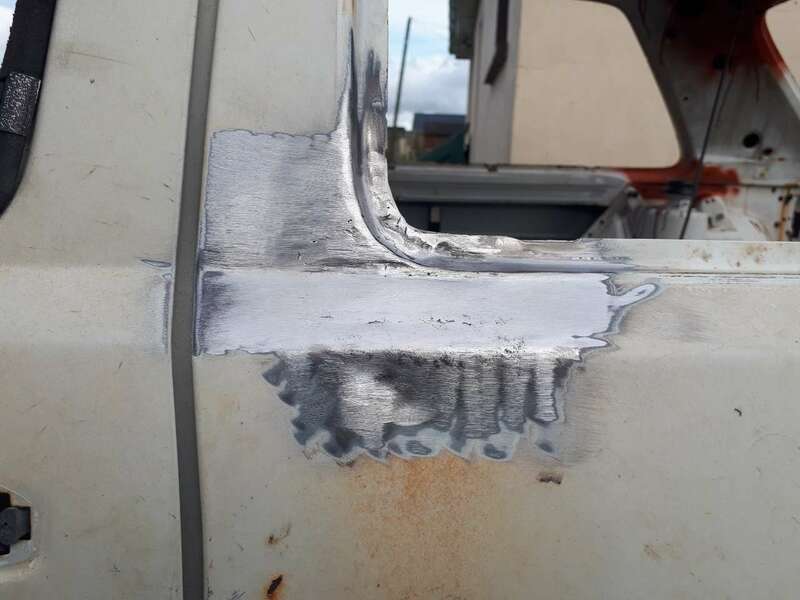

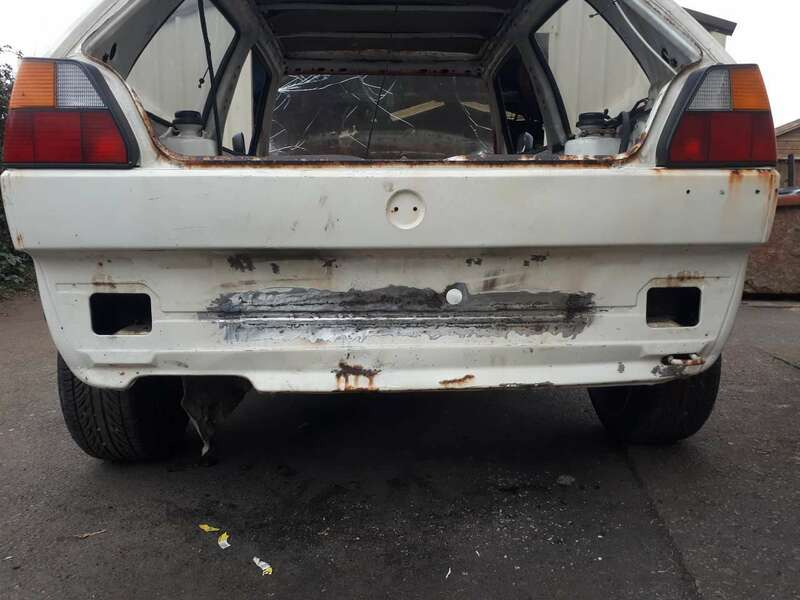

Time to clean up the welds.

That's pretty much it for the main structural repairs.

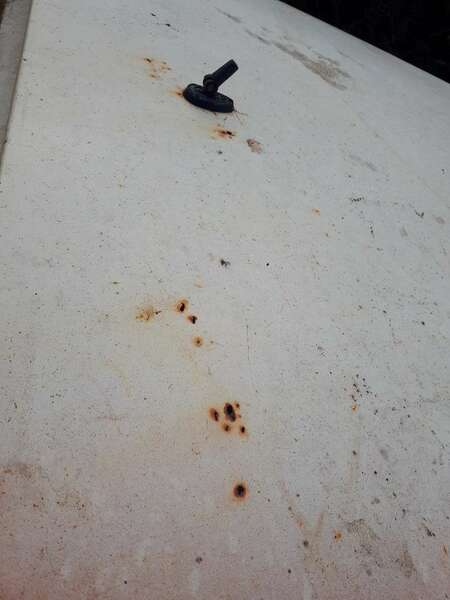

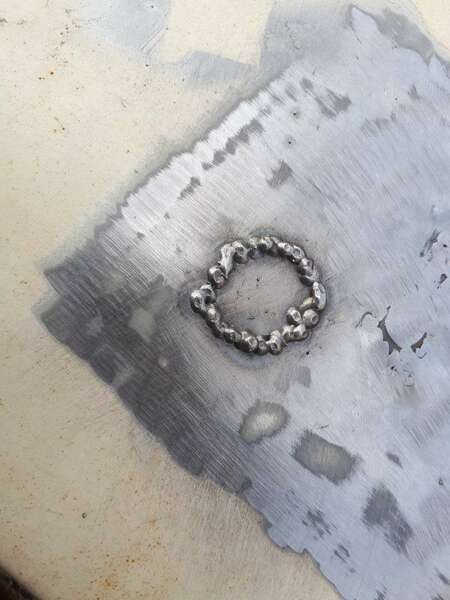

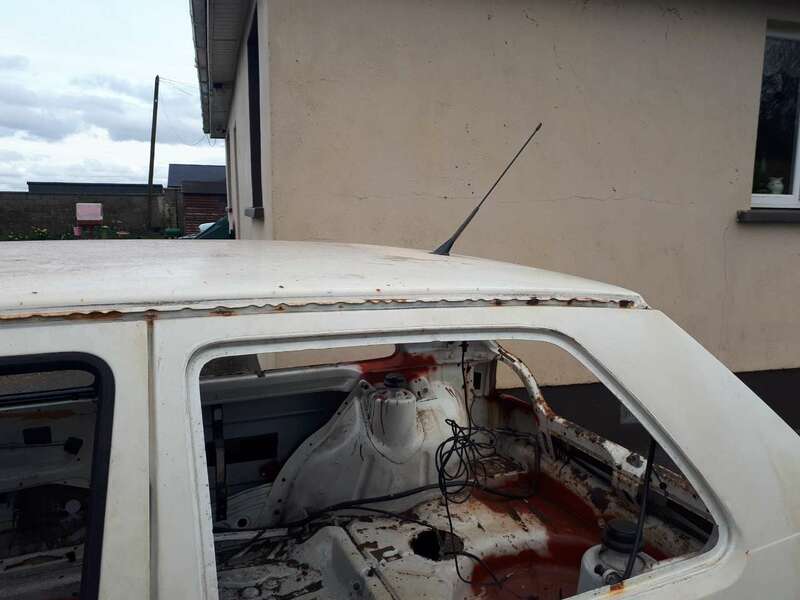

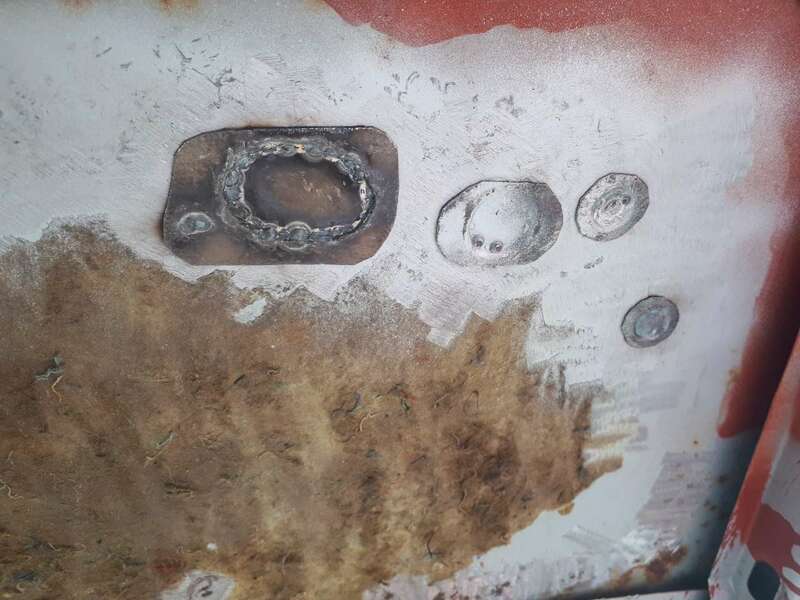

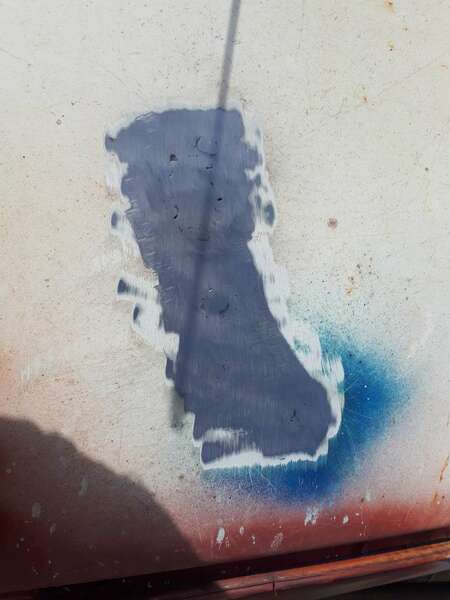

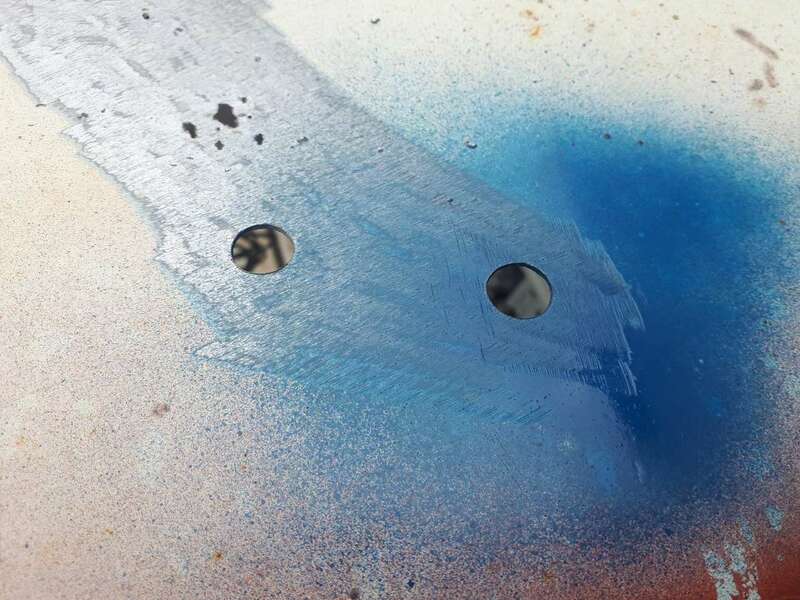

Still a few more spots of rot that need attention,so I'm not done with the welder just yet,wonderful🙄.



[stuboy]

keep up the good work!!
