XM Fettling - New Pastures New

[wesacosa]

PMd you @jonathan_dyane

[wesacosa]

things not going to plan at the moment. The place that supposedly had the brake valve ring in stock has contacted me today to say they don't. 😡 and Mister Auto website has been down for almost a week now so I have been unable to order the cambelt, alternator belt and the other bits and bobs.  No sign of the V5 yet either so its currently a very large ornament .  Hoping for some progress soon as this car probably becomes non viable for me at end of the year due to ULEZ extension so my small window for enjoyment is getting smaller

[Lacquer Peel]

Hopefully you get the bits you need. Would you like a step by step guide for the cambelt? I can email it to you.

[wesacosa]

1 minute ago, Lacquer Peel said:

Hopefully you get the bits you need. Would you like a step by step guide for the cambelt? I can email it to you.

ooh yes that would be great if you have it. thanks.  I have the Haynes already but if you have something different. Cheers

[Lacquer Peel]

Just now, wesacosa said:

ooh yes that would be great if you have it. thanks.  I have the Haynes already but if you have something different. Cheers

Yes I find it a lot easier to follow than Haynes. PM me your email address and I'll get it to you tomorrow.

[wesacosa]

so it seems like Mister Auto are not taking any UK orders for at least another 3 or 4 weeks due to the mess that shipping from EU to UK has become, just as I have a basket full of XM bits. 😡😡😡😡😡😡😡😡😡😡😡😡😡😡😡😡😡😡😡😡😡😡😡😡😡

[beko1987]

Euro car parts and have a shower after ordering?

Can @Andyrew or @twosmoke300 or similar garage owning chaps do an order and post for you via their suppliers?

[wesacosa]

ECP is my next port of call, although every part I ordered from them for my Favorit has been incorrect.

GSF do the cambelt kit but not the alternator belt/tensioner/stat or water pump I need

[Andyrew]

Ebay tb wp kit



[Andyrew]

Gates 6pk110 belt , looks like its a non AC car?

6284mc belt listed for hydraulic pump.

[Andyrew]



[Andyrew]

T36059 GATES

APV2012 DAYCO

T9330 FAI

531009710 INA

[wesacosa]

brilliant. thanks very much. that's great

[wesacosa]

got everything ordered now, thanks again @Andyrew

[Andyrew]

20 minutes ago, wesacosa said:

got everything ordered now, thanks again @Andyrew

Just ping me if you need any other part numbers, citroen or aftermarket.

[wesacosa]

6 minutes ago, Andyrew said:

Just ping me if you need any other part numbers, citroen or aftermarket.

cheers, will do.. much appreciated

[wesacosa]

well, I think (hope) the brake valve is LHM tight now. As per the previous posts the brake doseur valve seal was badly breached. It was clearly an aftermarket seal (different colour to OEM) but the locator ring was bent out of shape which I think was the reason for the leak, although there was a small split when I took the seal off but that may have been me catching it when prising the ring off.

Many thanks to @jonathan_dyane who not only sent me a replacement locator ring (which are pretty much impossible to find) but refused several attempts to take even a postage and a pint money for it.  Things like this remind me why I enjoy this forum so much

Took a few goes to get the locator ring fully home. Supposedly soaking in LHM and using finger pressure is enough but I really struggled to get it fully seated. Red rubber grease and using a socket as a drift seemed to do the trick

as you can see its all back together again now, For those that don't know the cars that well that black rubbery cone is the lever from the brake pedal which operates that metal lever and pushes on the valve to operate the brakes. the valve seems to be only on or off so the pressure regulating must be done somewhere else in the system.  In the BX and Xantia the valve connects more directly to the pedal inside the cabin which whist probably looking less Heath Robinson it does mean a similar leak to the one I had means LHM pissing all over your carpets and an even bigger pig of a job to get at

[wesacosa]

The Jam may have had a pocket full of Pretty Green, but the XM had a tank full of not so Pretty Green

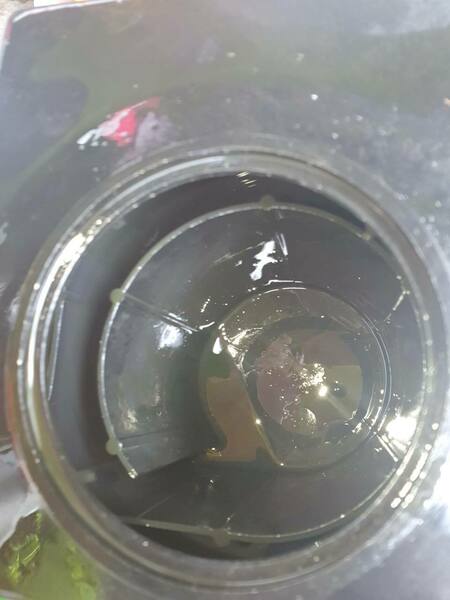

As most of the LHM had leaked out through the Doseur valve seal the stuff I syringed out before removing the tank looked ok, but the stuff in the bottom of the tank did not. Nor did the white filter

or this little disc (which I think is for the level float



The Haynes suggests cleaning the tank out with rags but its pretty heavily baffled so I suspect I will just have to swill it out with Petrol

I did manage to get the tank out without having to disturb the hoses thankfully

[wesacosa]

There is supposed to be a second filter but I think thats clipped into the centre unit currently sat in that Vimto bottle so I will have to investigate

EDIT: The second cone shaped filter located and its even more grim

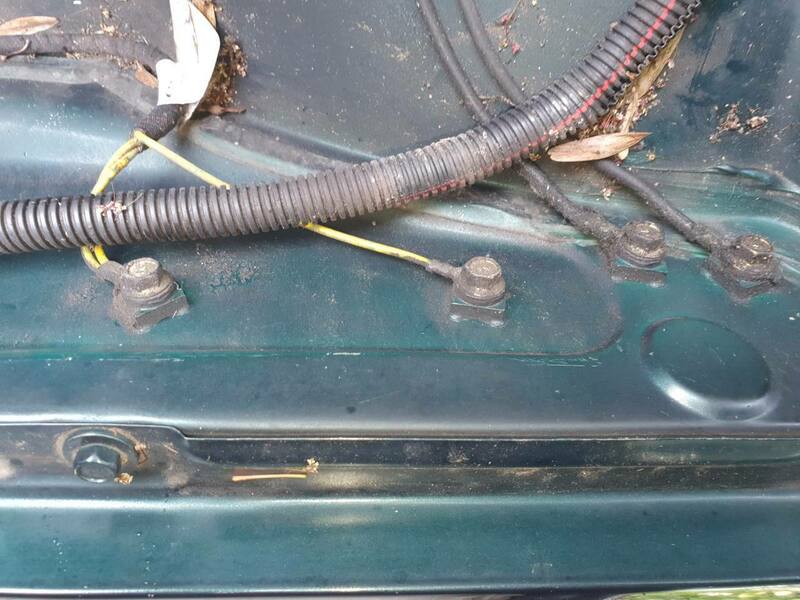

Whilst the Airbox is out I will take a look at that little green ABS relay and clean up those earths, and hope they are the cause of my ABS light not going out

[jonathan_dyane]

Ugh it’s a long time since she’s had a LHM change! If possible probably worth bleeding it through the brakes too

[wesacosa]

5 minutes ago, jonathan_dyane said:

Ugh it’s a long time since she’s had a LHM change! If possible probably worth bleeding it through the brakes too

yeah looks like it.  Annoyingly the little clip which hold the filter in seems to be missing. hoping it might be stuck in the sludge in the tank.  think I will have to try bleeding the brakes given the state of the fluid but I read they can be a bit of a pain

[jonathan_dyane]

Bleeding the brakes is easier than any other car (engine running wedge down brake pedal with suspension on high and crack open each nipple in turn) as long as the nipples undo

[wesacosa]

40 minutes ago, jonathan_dyane said:

Bleeding the brakes is easier than any other car (engine running wedge down brake pedal with suspension on high and crack open each nipple in turn) as long as the nipples undo

yeah that was my worry. I am guessing they may not have been opened for a while!

[Frogchod]

I lurv XM's.

They're not as scarey to own as most people think.

Just sold my 2.5, currently in negotiations to aquire a V6, same green as this.

[wesacosa]

23 minutes ago, Frogchod said:

I lurv XM's.

They're not as scarey to own as most people think.

Just sold my 2.5, currently in negotiations to aquire a V6, same green as this.

ooh a V6 would be very nice.

[Tomtation]

Green with envy! Im a serial hydropneumatic licker and an XM is one I'd love to have.  S1 v6 with starfish alloys in JRG obvs.

I'll keep shiting in my BX for now. Top purchase that man.

[wesacosa]

Nice box of goodies arrived. thanks @Andyrew for taking the time to confirm the right part numbers for me

Progress has stalled at the moment, I need to get the car up on its suspension to do the fitting of parts but I am part way through the LHM change and can't finish it until I can find a way to replace the missing filter clip. Thought I had a lead on FB forum but guys gone quiet

[beko1987]

I remember bleeding my brakes through on my old XM. The satisfaction was off the scale as muddy shit came out, then some air then fresh green blood.

Made zero difference to the braking but it felt good to do! The whole back end of the hydro cars is a dead end so pull a good bit of fresh fluid through. Keep the front window open to hear the low level beep then top up and carry on

[wesacosa]

After all the excitement of the Panda collection mid week, was back to a bit of XM fettling this weekend. Got all the LHM filters and tank cleaned out. Couldn't source a clip for the filter so will have to hope it stays in place. Car goes up and down well but the pump is now clicking like a b@#&ard.  I think its the accumulator sphere. Ordered a new one but looks an absolute git to get to.  Was hoping my filter strap wrench would do but no way I can get leverage on it.  I keep reading about some mystical Pleiades wrench but can't seem to find any pictures of what it looks like.  Might have to try a multi chain wrench with socket adaptor but have a feeling its been on there a while that sphere , possibly since 1997 !!

[beko1987]

It's not too bad... Put the front up on ramps (then down low, depressurise etc) , then lie underneath and once your directly under the centre sphere it's not too bad... a borrow of a sphere removal tool would make it loads easier though.

Tightened up the release/pressure screw?
