Stole a bit of shed time this afternoon - the nearside spring plate now resides in the pile of jettisoned junk by the door.

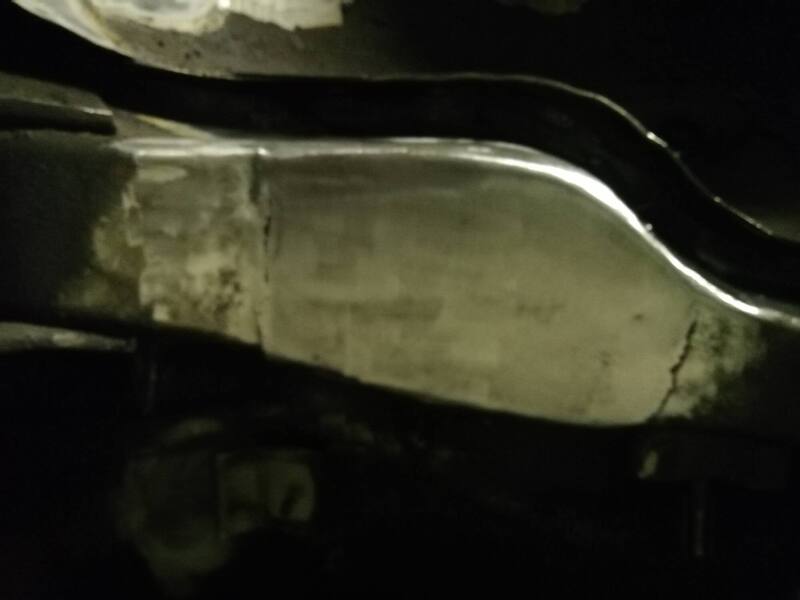

Once all the rotten metal was cut out, a piece was fashioned to repair the inner section of the leg.


And that's as far as I got today. :( New spring plates should be here by next weekend, so theres plenty of time to ensure there is some decent metal to weld them to. :)

Share this post


Link to post
Share on other sites

Been fishing + done a bit of gardening instead of toiling away in the shed this week. The arrival of these


Y tho?

convinced me that it was time to get back on it. The piece made at the weekend was tacked in

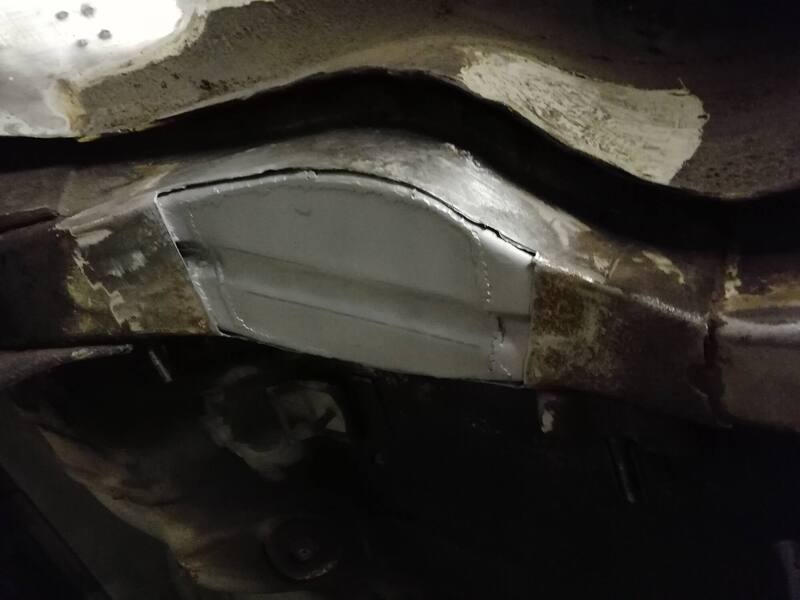

Then fully welded, and zinc primed.


Got half way through making the outer chassis leg piece before I had to vacate. I'm making this out of 2mm sheet, and its obviously a lot more difficult to form into shape


but should have it ready to mount the new spring plate at the weekend.  :)

Share this post


Link to post
Share on other sites

Not really my day today - first up, my big "working under cars" lighting rig has stopped working. Not the worst thing that could have occurred, but still a PITA (It's been on its last legs for a couple of weeks now). The outer chassis leg repair piece was finished, then welded in.

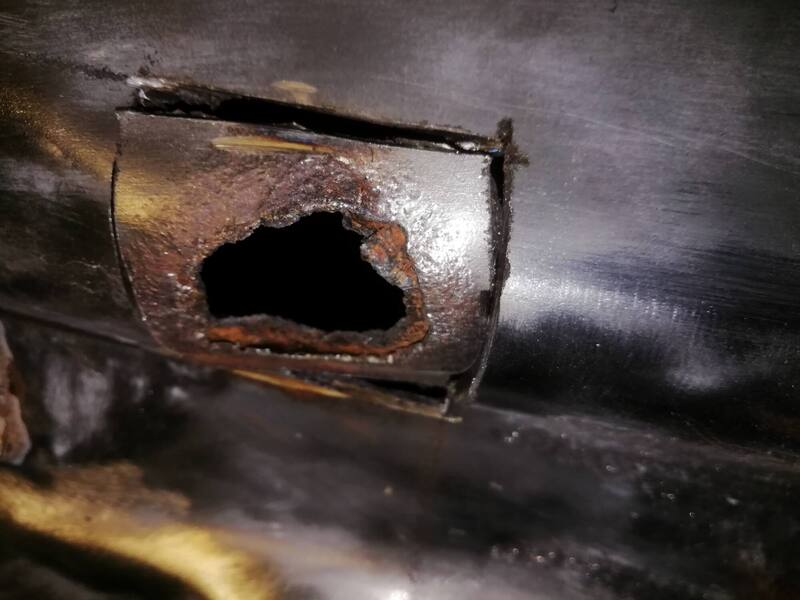

I was just about to reach for one of the new spring plates, when I noticed that further up the chassis leg, near where it is spot welded to the floor, the metal looked a little dodgy. After hitting it with the knotted wire wheel, a couple of tiny holes appeared about an inch below the joint with the floor. I had to cut it out, and it was pretty awkward to do that due to its position being partially obscured by the inboard wheel tub.

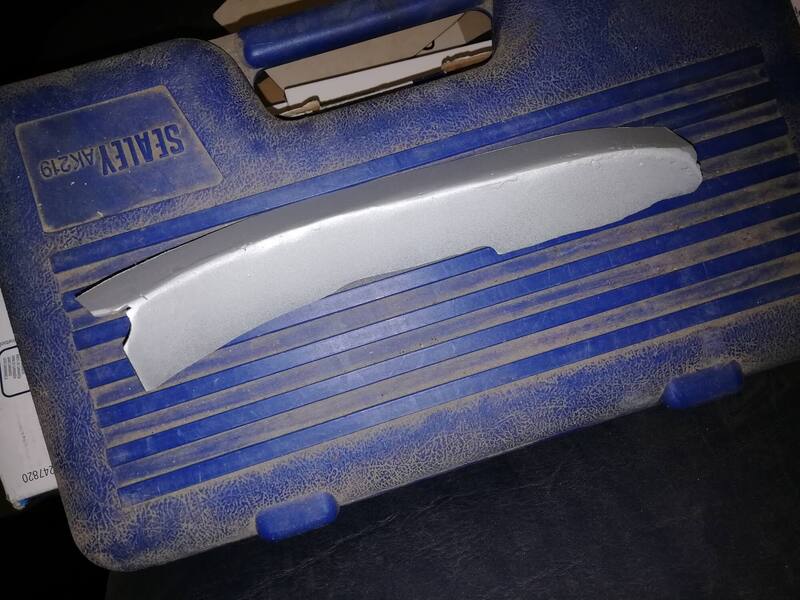

No big light means no decent pictures, (I'll hopefully get it sorted tomorrow) but the rest of the day was spent cutting out the poxy section of chassis leg, then making up this piece to replace that which has been removed.


Hopefully I'll get that welded in tomorrow, then the spring plate can go on - completing this side of the car.  :)

Share this post


Link to post
Share on other sites
8 hours ago, Dick Longbridge said:

This resto thread gets better and better. Great to see the car generally seems to have an underside as well.

Cheers! Whilst most of the underside is all there, I'm gonna need to use a lot of Hydrate 80 before it sees any paint!

Chassis leg repair piece now in, and then zinc primed.

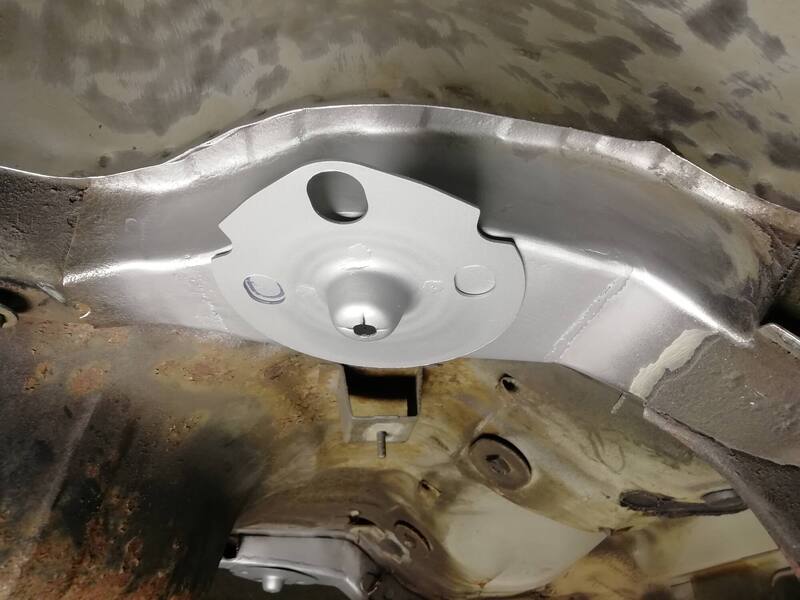

Spring plate drilled for plug welding, bare metalled, then zinc primed.


Boshed on with the positioning jig.


Started to cut out the poxy bits on the driver's side - it's a bit worse than the passenger side was - I'll need to cut this back a bit further!


Share this post


Link to post
Share on other sites
On 6/9/2019 at 8:11 PM, Dick Longbridge said:

Looks like a standard mk3! I can only assume that part of the rear legs are an internal moisture trap? Certainly looks like it's rotted from the inside out.

I think you're right chief - these cars seem to rot in many random places, but the chassis legs are a common rot spot.

Not had a lot of time for this recently, but have managed to get a bit done this week. The chassis leg pox was cut out, and a piece was knocked up and stuck in to replace the inner section.


A template was made for the outer section, then copied into 2mm sheet and trimmed to fit nicely into the gap that requires filling.


The outer piece is ready to weld in now, and should be going in on Saturday (closely followed by the spring plate!)  :)

Share this post


Link to post
Share on other sites

Finished early today, so got stuck in! Outer chassis leg became complete again.


Spring plate added using the piece of scrap fashioned into a makeshift jig.


Measuring from the centre of the spring plate to the inboard hole of the rear beam mounting points on both sides revealed that one side is within a millimetre of the other. Similar results were measured when the outboard holes were used - I'm chalking that up as a win! :)

Next up, attention was turned to removing the tailgate. Locking stuff was removed, as was the wiper mech + washer jet. The washer hose was withdrawn from the tailgate, followed by the wiring on the other side.


Just need to remove the struts and hinge pin clips and it can come off. (a second pair of hands will then be required)

Share this post


Link to post
Share on other sites

I managed to find someone to help me lift off the tail gate - theres usually plenty of people around, but not when you need there to be.!

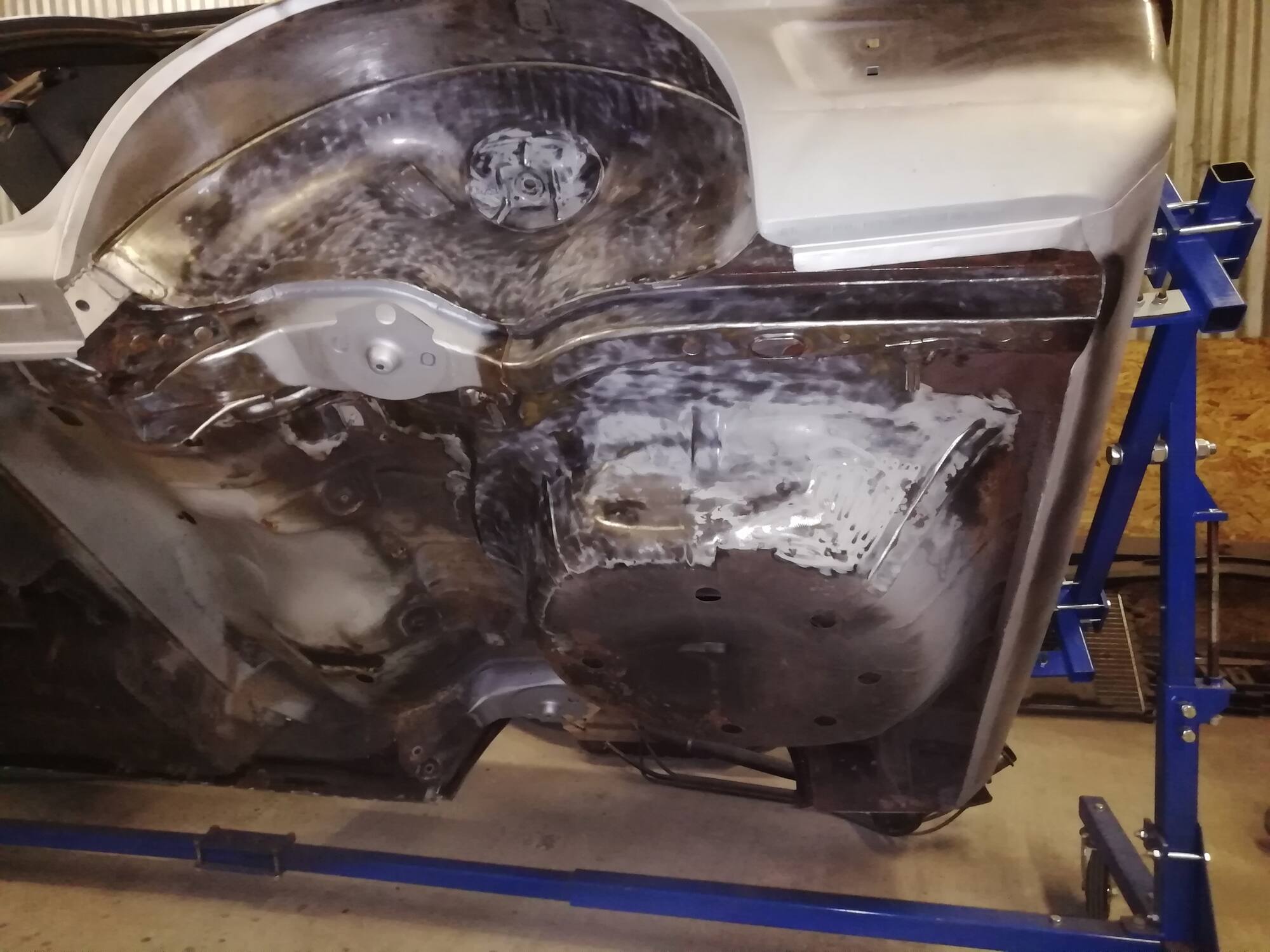

I can't keep putting off cleaning back the underside to the metal - I let myself in gently by finishing off the cleaning of the nearside rear tub.


Grim times ahead. :(

Share this post


Link to post
Share on other sites

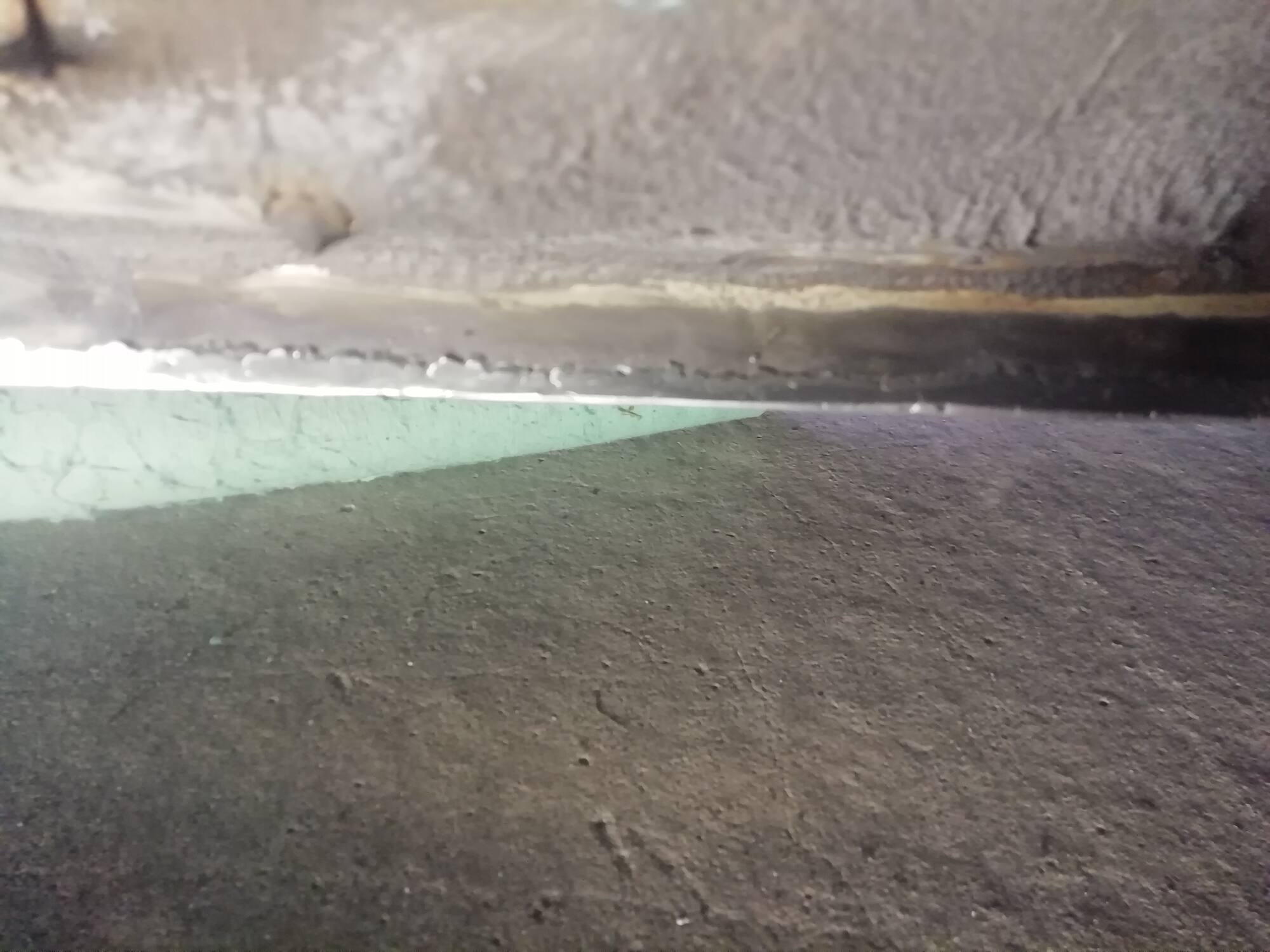

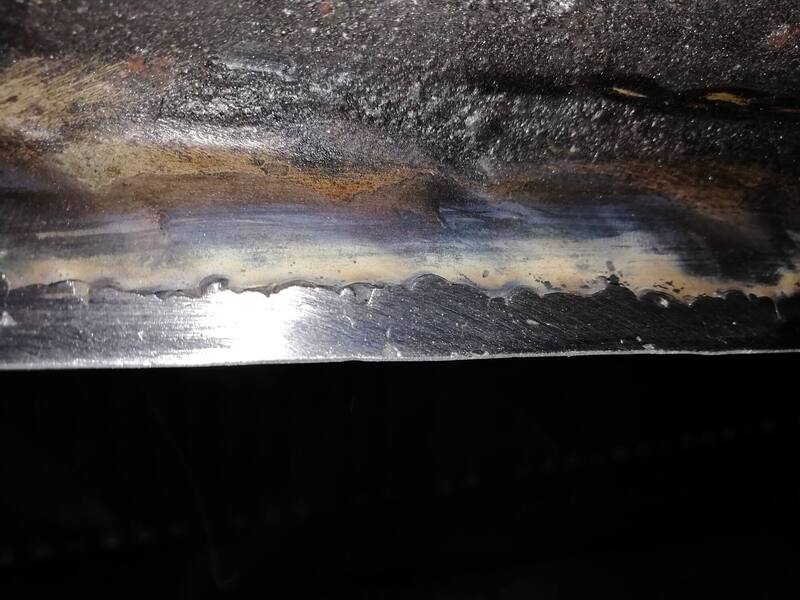

Sadly theres been next to no time available for this heap recently. My wire wheel is pretty much spent, so while I wait for some more to arrive, today I've been welding the bottom of the outer sills to the inners. The plug welds seem to have worked fine, but I didn't like the gap that was left between the bottom edge of the inner sill and the bottom edge of the outer when viewed from underneath. Most likely totally unnecessary, as seam sealer could have been used to  bridge the small gap, but I felt welding it would not only look better, but also stop the possibility of distorting the bottoms of the sills when using a four post ramp.

Driver's side is all done bar finishing cleaning back the weld - I'll have to use the finger sander as access for the flap disc is restricted by my huge grinder.


Share this post


Link to post
Share on other sites

Still struggling to get time in on this at present. I managed to finish welding the bottom of the passenger side sill to the inner sill today.


Bizzarely this side took a fraction of the time the driver's side did - perhaps I'm getting better at it?

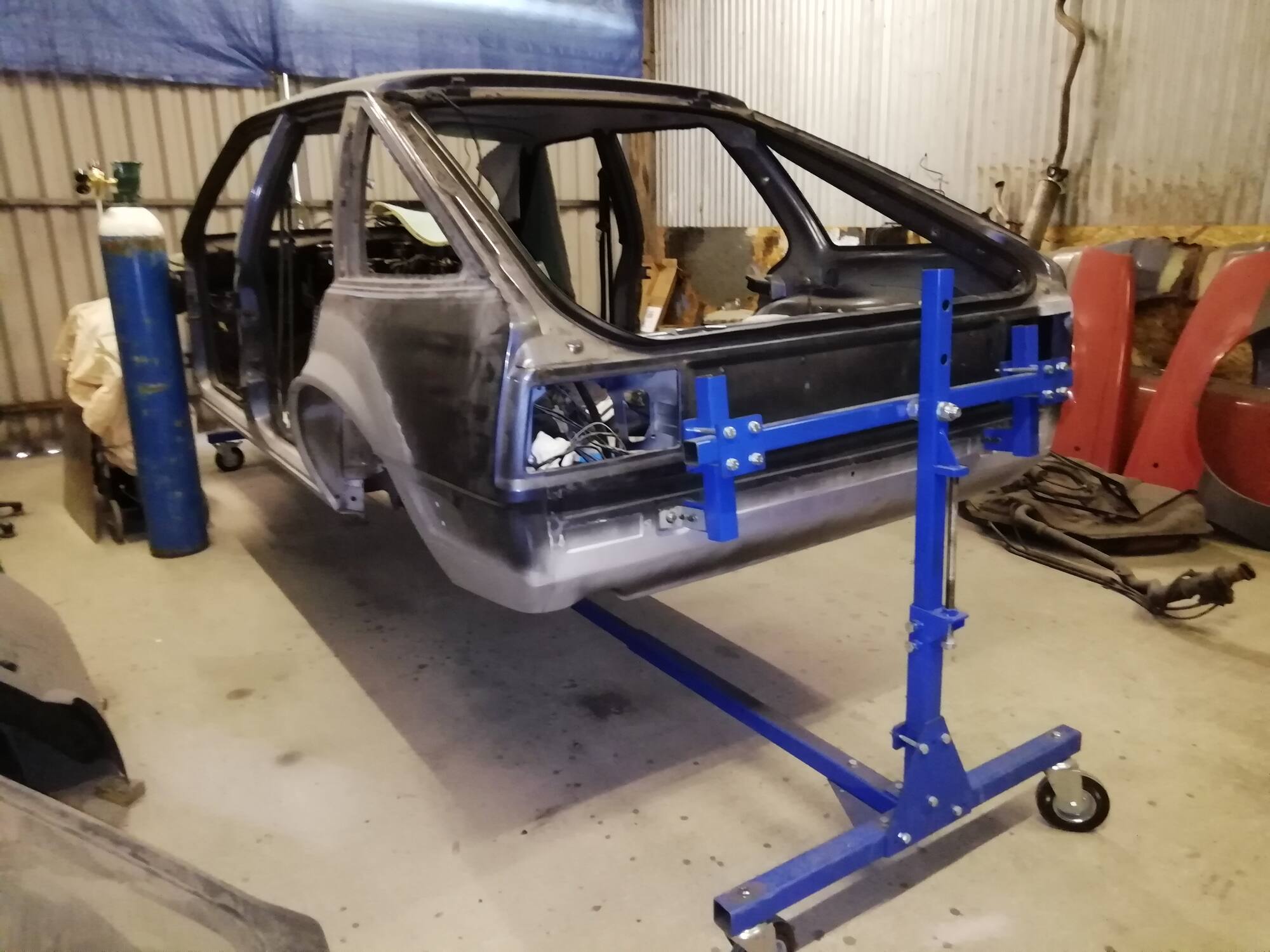

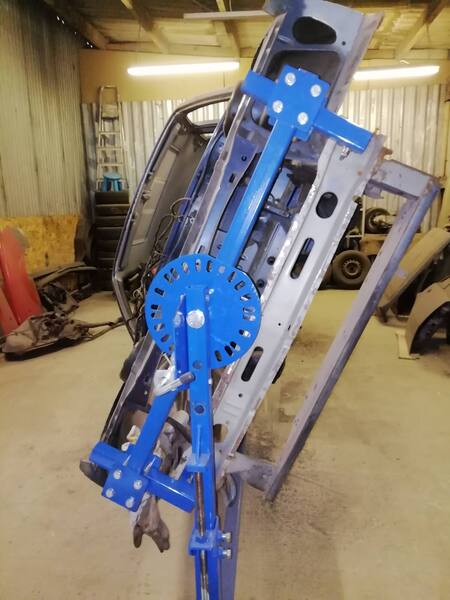

With that done, I decided to reset the spit onto the highest of its three pivot points. Its been on the lowest one, and with the adjustment wound all the way up, it wasn't high enough to roll right over.


As you can see, on the highest pivot point with the adjusters wound halfway up, there is now plenty of clearance to roll it right over If I want.


Back to cleaning the underside for paint next. :(

Share this post


Link to post
Share on other sites

Had a decent pop at this today - it was as grim a job as ever, but a pleasing amount of progress was made.



I intend to do the underside in three sections - back end to rear foot wells, then the floors, then the whole front end/engine bay. Plenty of dirty noisy tedium to look forward to!

Share this post


Link to post
Share on other sites

Thanks to FedEx being a bit poor, I have no primer still after a week. I did get the back end of the underside treated with the Hydrate 80 though - half way through


In the absence of my primer, I'll get stuck in to removing all the sealant off the floor section tomorrow now the back end is ready for primer.


Share this post


Link to post
Share on other sites

A marathon session on the wheel of wires has provided me with this.


The tunnel shouldn't take too long to do as theres no rubbery sealant on it - just a layer of wax over the e-coat. The wax scrapes off pretty easily, so not much to attack with the wire wheel. :)

Share this post


Link to post
Share on other sites

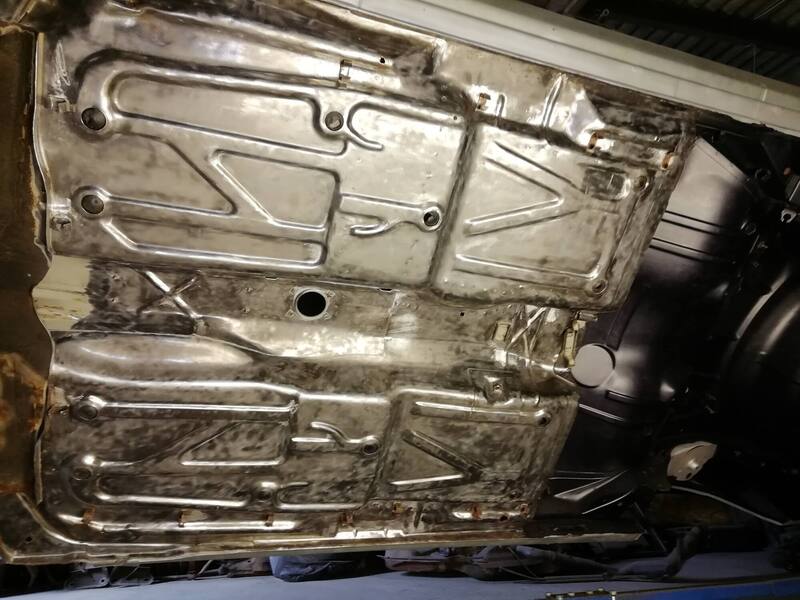

Under floor area now stripped back.


Next job is to repair the frilly bit of the floor + replace one of the brake pipe tags that fell off before giving it all a good clean for the Hydrate 80. Pretty boring stuff, but I reckon that's the bulk of the horrible stuff done now! :)

Share this post


Link to post
Share on other sites

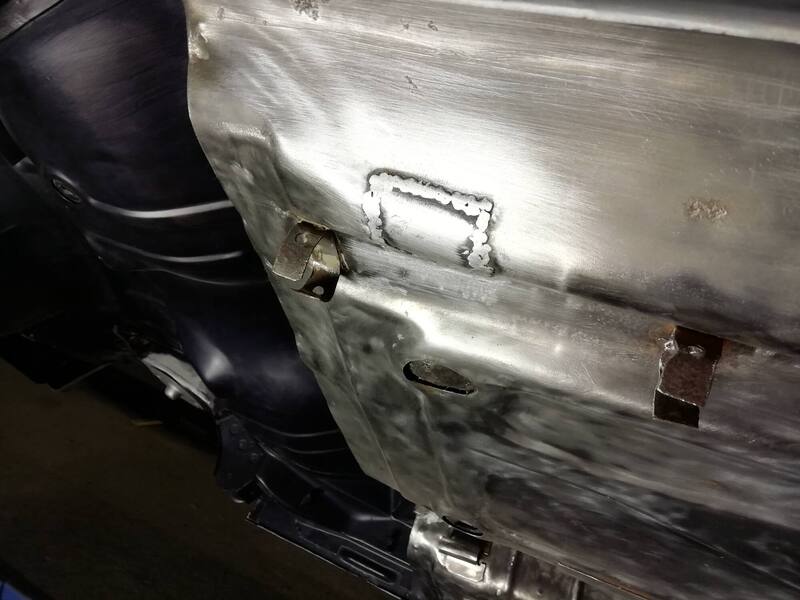

Only managed an hour on it this afternoon. The brake pipe tag that fell off was stuck back on, then the rusty bung hole was cut out.


The repair is only just over an inch square, and somewhere that will not be seen, so not much finesse was necessary.


Job jobbed!

Share this post


Link to post
Share on other sites

Lovely job so far. It’ll be the most minty of mint Cav’s by the time your done!

You must be going through gallons of that hydrate 80 I bet. I’ve been using it on my Capri and other cars and it does seem to be good stuff.

Share this post


Link to post
Share on other sites

Many thanks! I've used about half of a litre bottle so far - I reckon it'll be pretty much done by the time I've finished!

Bulkhead bottom repair now done, no incremental progress pics due to leaving my phone at home!


Back to the noisy, fiddly and dirty joy of stripping the front end back to the metal. :)

Share this post


Link to post
Share on other sites
