1968 MG Midget - Bodywork repair and welding


SiC
 Share

Recommended Posts

On 12/21/2021 at 6:50 PM, SiC said:

Where the door rubs on the body, it's not scraped off filler. Only paint. So this is highly unlikely to be thick with filler.

Just had a thought. Even though I poked it out and made it worse, I wonder if the weakened hinge area is flexing in and why this door was catching the pillar at the bottom. I probably need to remount the door to get the hinge alignment in the right place before fixing a repair piece on the bottom.

Link to comment
Share on other sites

Those close up at the tops when the main structure of the car is unsound, so probably someone has made an attempt to adjust the door in the past and made a hash of it.

Understandable because getting them right is a pig's arse of a job.

Link to comment
Share on other sites

I've been staring at this A-pillar trying to decide the best way to go.

Bought both the bottom hinge and also the full hinge piece from Moss. They offer a 12 month refund period providing the bits are in resalable condition.

After some more staring, I decided that I'd start cutting and see where I get. But before that I undone the dash and stuck a block of wood to brace the dash.
Didn't remove the full dash as that'll be a pain. The loom is all bullet connectors rather than something like the multiway on the Dolomite. Also the oil and temperature gauge, choke/etc cables will all need removing from the engine bay to fully remove it. Something I really didn't want to do.

Lining up the two panels show both to be a good fit

So I got cutting. Firstly chopped the bottom bit off to see how that fits

Which it does quite well.

But in doing this I've found the welds aren't particularly good and just pop off. So I've carried on chopping more out. I think I'll remove the whole panel and put the full piece on.
Just more work in making sure the door is lined up.


Link to comment
Share on other sites

Cut out all of it to put fresh in. Used blocks of wood to help support the dash to stop it sagging too much.
Clamped in the new A-pillar piece

Tacked that into place.

Put the door hinge piece into place to check everything looked good and mark off where the A-pillar fits.


Ground things back

Then clamped in the hinge plate for welding and welded into place based on those previous markers. Also lined up to where it was previously.

Refitted the door to find it didn't fit. Bugger. A couple of millimetre out from that bottom pin being in place.

Some googling found there was adjustment inside the door. Annoying I didn't know this to begin with as I could have moved it in and given more potential movement.

Also notice the missing bolt on the bottom hinge. This explains why the bottom of the door rubbed against the outer a-post panel. No idea where it was or went. New bolt screwed straight in, so wasn't even like the threads had been stripped.

It fits and closes but it is now at the extended limit.

Catches at the top but I think it did this before. I'll grind this back a bit if needed to fit. Only a very slight touch/rub.

More later as I'm just about to get off my train for work...


Link to comment
Share on other sites

I spent a long time agonising over the gaps on this door. Mostly that the catch is on the edge of the striker plate with not much wiggle room.

Tbf I think it might have been like it before looking at the striker plate.

The gaps aren't massive (for 1960s standards) so there isn't actually too much wiggle room.

Even though it's about centred, don't forget some of this is lost by the outer cover that is still to go on. Probably a couple of millimetres. Basically it could go over some more.

The options I could see was to:
- chop out that hinge piece and move it across
- enlarge the door hinge holes to move that out a tad further (remember it's only millimetres I need)
- put more spacers on the striker plate (it's already got two though!)
- spacers behind the door hinges

I spoke to Saabnut about this when he came around to collect the Moggie. His suggestion was to go for spacers. This was the same thing I was siding towards too. Mostly because to cut out those tack welds would have been an almighty pain (I probably tacked them in a bit too good!) and to adjust it by a couple of millimetres then reweld is opened up to a big error margin. I mean it almost fits and cutting out+reweld could easily end up with it like an extra half centimetres or more.

For the shims, I used a ready made piece of metal perfect for it...
The old hinge plate.

I cut these down to size and cleaned them up with the grinder. The one with slots is the piece of metal that holds in the thick threaded mounting plate.

They were about 1.2mm thick for the left and 1mm for the right. I put the thicker one on top.

Re-measuring gave a bit more gap on the hinge pillar side and gave more tolerance for the latch.

It works pretty well now. There is some movement in the A-pillar as that was only tacked in. Plus the outer piece will box it in. This affects it a bit too.



I also ground down a tad on the top of the door. Only a millimetre or so but it's enough. I'll probably level this off along to make it look factory.

I then welded up the rest of it. About 60% done with the inside done

The hinge side is still to finish.

Penetration looks reasonable to my eyes? Certainly better than the previous welds with zero penetration.

Door is now looking good, with the outer panel in place. I did this to double check it doesn't catch when opening the door. Had to move the door out a tad but it's pretty level. Way better than the other side for sure that sticks out a good centimetre! Gaps around the door aren't bad and (tbh) probably the same or better than factory. I'll try realigning that door when I get to that side. Hopefully just a poor refit than something inherently wrong.

Less flex of that post now too
Link to comment
Share on other sites

In other news, the striker plate panel looks to not be welded properly into place. Weirdly, looking from the other side, I don't think this was ever replaced. I wonder if it was like this out of the factory?!

Link to comment
Share on other sites

Very good work SiC, but you'll need the car on its wheels to set the door gaps.

I have Midgets, Bs and TRs on my lift every week, and every single one of them open and close their gaps when the weight comes off, or goes back onto the wheels.

Absolute worst in this respect is the TR6.  You can usually not open the doors when they're on a 2-post lift, seemingly regardless of where you place the ramp arms and the door gap changes by a good cm when you lift it.

Also, Minis had their doors aligned when they had been fitted up with all the trim, window mech, locks etc as a perfectly-fitted bare door would hit the B post when it was assembled!

Link to comment
Share on other sites

12 hours ago, Crackers said:

Even on brand new stuff we do the final door adjustment with the car on its wheels, on the ground.



You mean they don't do it like this in the factory? 🤯


Door will be coming off again to get access for doing the a-post outer piece.

Link to comment
Share on other sites

Top work going on right here it's very satisfying when it all lines up  and shuts cleanly though.

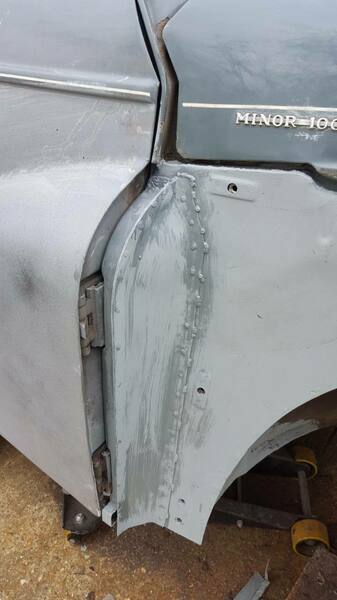

Reminds me of my battle last year I thought I had my hinge panel Bob on but I still needed to add shims behind the hinges and give the door itself a good beating to get it to sit about right.

20210215_155150.thumb.jpg.9505d012ede953ef59353d18e345b07f-1.jpg.e5cb44d72508061ef419b1e1c4c629f2.jpg

20210218_171727.thumb.jpg.1d2cb5dd08af43797465960957657970-1.jpg.82c77752446e0ec9b26b4ecd98d99276.jpg

20210403_140819.thumb.jpg.d66c006f48d63f5e55762fb9a9c0848d-1.jpg.d8a801a1c9af15501a5d674add09b72c.jpg

Link to comment
Share on other sites

I had a complete ballache with the Spitfire - even though I braced it all - it had been all on the wonk from a previous 'restoration' so I ended up all over the place re-aligning it. Most soul destroying bit of the rebuild if I'm honest...... finding newspaper inner sills and chickenwire type floor patches was a honeymoon in comparison!

Link to comment
Share on other sites

Been rather busy the last few evenings and not got much more done. Tbh I'm extremely busy at the moment and this car should be a lower priority than I've made it...

Basically I have just finished welded the other side of the hinge piece onto the pillar. Need to take the door off to grind it all back and then weld on the outer piece. Not sure I'll get time to do that this weekend though.

Also welded on the hinge brace (?) pieces that most often people seem to miss out. I think they originally would have been spot welded onto the other piece. Unlikely I'm going to be able to do that but I may drill some holes on the other side to puddle weld it instead.

I also ordered an original sales brochure the other day. This is dated 1967 and is the right generation. So very likely would have been the same as someone ordering this originally would have read from a dealer.

Uploaded on Tapatalk high Res so hopefully it should be readily zoom-able in if you want to read it.




I didn't know white wall tyres were a genuine optional extra on these. Don't think they were an option on the B?

Link to comment
Share on other sites

Just had a thought. The car search came back when I bought it that the colour changed from (the original factory) Red to the current Iris Blue in 30 June 1992. So not only is the last major restoration likely 30 years ago now, it's actually spent longer on this "non original" colour than what it left the factory with!
I have considered changing it back to the original Red or even Old English White as I'm not a huge fan of (baby) Iris Blue. But the under bonnet being a different colour would annoy me. No intention (just yet!) of doing a full body strip down and repaint.
I got this wrong. It was actually (yucky) Primrose Yellow out of the factory. DVLA has no record of this original colour, only a previous colour of red. Does explain why I've seen some yellow-ish paint when wire wheeling it down in place. When I take some more paint off next, I'll have to remove each skin of the onion carefully and see what colours it has been.
Link to comment
Share on other sites

There should be some original colour paint left under the scuttle behind the dashboard, also inside the gearbox tunnel - even though it is totally enclosed they were fairly thoroughly painted in there.    It's unlikely a colour change would have been taken that far.



Link to comment
Share on other sites

There should be some original colour paint left under the scuttle behind the dashboard, also inside the gearbox tunnel - even though it is totally enclosed they were fairly thoroughly painted in there.    It's unlikely a colour change would have been taken that far.

Plenty of primrose once you start chipping the paint:
Link to comment
Share on other sites

Joined the gym recently to bring my fitness levels back up again. This does mean I have even less spare time. However I can still squeeze in an hour or two noisy work in the evening before a self imposed curfew to not irritate the neighbours too late.

So far I've been grinding back the visible welds on the a-post with the finger grinder. While it's very useful to get in these tight spots, it's very slow at grinding back. This took a good two hours worth to get them back to an acceptable level.

Then paint

After the noise curfew, that's the problem time when I get poking.
Was looking at this rear section. Then got fiddling and prying to see if I could move the panel over a tad.

Useful as I need to weld in the inner arch a bit at the bottom here.


It got a bit out of (in) hand. Another case where a repair panel has been tacked into place with shite quality welds.

Oh man

I was just going to weld up a repair piece on that rear bottom and then patch the arch. My thought now is that it may be quicker and easier to rip this out and replace it with fresh.

Panels are available. While not cheap (but is compared to the Dolomite!), it does speed things up an awful lot.
I think I may be having another trip down to Moss to abuse my flexible friend again.
https://www.moss-europe.co.uk/repair-panel-rear-wing-lower-1-2-lh-ms28l.html

And this is why everyone keeps telling me to finish one of my projects before buying another car! Selling the A4 would be a handy source of funds to fuel this restoration.

Link to comment
Share on other sites

Being able to just go and buy big panels like that is definitely one thing which makes the idea of getting an MGB one day really appealing.  I've never owned a classic car before for which parts were so readily available, especially bits of bodywork.

Link to comment
Share on other sites

Probably due for an update. Done a few bits in a few hours spare I had over this weekend on some evenings.

Decided to drop the tank. A number of reasons to really. Primarily as I will be welding in that area. Also wanted to clean off the underseal and grime to check it out and repaint. Plus have a look at the sender condition to see if that gave a reason why the fuel gauge stopped at quarter rather than empty, even empty.

Removing it straight forward. Top of bolts on the boot floor and nuts on the bottom.

Had one fixing that was a pain. Due to the tank being offset (exhaust goes down one side), the symmetrical locations meant one was under a chassis rail type structure. Of course accessibility was compounded by access covered by filler. I chipped out the filler and got a pair of long nose mole grips to hold it tight.

The nut side wasn't easy either as the car is jacked up on its side. Extensions and impact wrench are the handy tools for this sort of job.

Tank was loose but fixed in place from underseal!

Kick and it was down.

The foam on top thankfully hasn't rotted out the top. Tanks are readily available but I'd rather not spend £150 on a new one unless I really need to.

Drained the last lot of fuel out. This stank.

Inside the tank looked in excellent condition.

Sender looks shot though. I ordered a replacement from Moss but unfortunately it's the wrong one. The one I ordered is correct for the year but this looks to have a later tank on.

I gave the tank a damn good flush through with the hose to try removing any sediment left at the bottom and remove any petrol vapour. Then pressure washed the remains of the underseal.

Using a scraper I removed the worst of the paint and rest of the underseal. Finally gave the rust a scrape with a wire brush. This did reveal a pin hole on the top, made worse by me poking it.

That was the only casualty of the process and seems a shame to scrap a tank because of it. I didn't want to weld it for obvious reasons, so instead I used some steelstik or whatever it's called. Apparently this is petrol safe.

I plan to paint the tank with some Lidl direct onto rust metal paint. But I think its saveable. Potentially may replace it later on once the car is back on the road.


Link to comment
Share on other sites

Clamped up the a-post and got welding.

Welds started to go really spluttery. Flumuxed me for a bit but carried on. A few welds longer and realised the problem...
It's not done too bad though and must be nearly 2yrs out of that reel now. Okay I had big gaps between welding sessions, but it's done a lot of welds. This is a 5kg roll and the biggest my machine can take. But does mean a 15kg would be overkill.

Removed the supporting pillar

And painted.

This panel is warped quite a bit. Mostly because I was running beads and not spending long enough cooling off with the air line. It'll be behind a panel anyway, so won't be seen.
Also these welds were awkward and not the best. But a grinder makes you a welder that you ain't. 😁

Still need to grind these welds back a bit. These actually turned out really nice and almost seems a shame to grind back! But they'll likely get in the way of the wing.

Still need to fold back the other edge. Been looking at door skin folding tools, but they're all blimming expensive for something I'll rarely use. You can get metal folding pliers which are a lot cheaper, so may go down that route instead. Or just hit it with a hammer into place. 🤔

Link to comment
Share on other sites

I've never used door skinning tools and I've reskinned hundreds of doors.
A panel hammer, dolly and patience is all you need to get a perfect result.

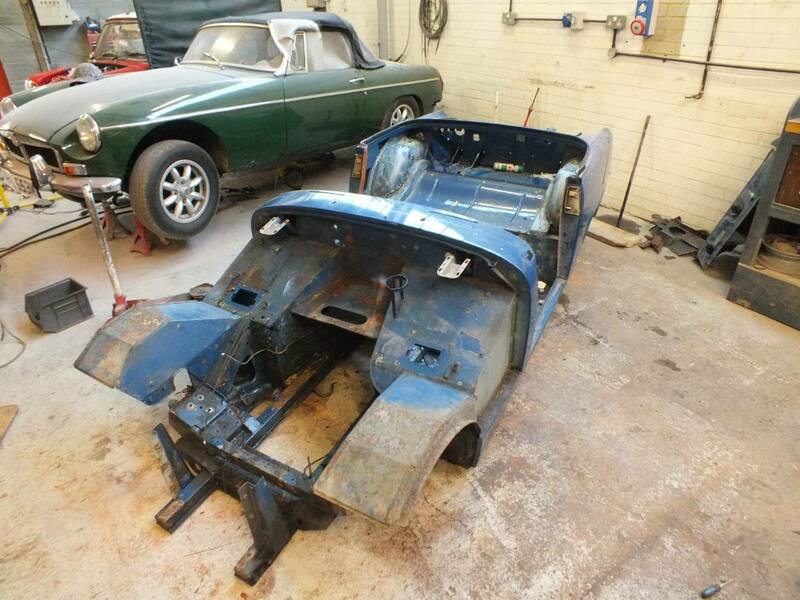

I restored a midget for a customer a few years ago.i throughly enjoyed it.
Have some inspiration

OYiNXF9.thumb.jpg.03f9a2e751e08b3e9cc57021274aa248.jpg61Hzd6r.thumb.jpg.f07257af9433dfcd0cd598538cd1f6e6.jpgDZYYt4o.thumb.jpg.cae635cc11f797d77ccda58c3d5b6075.jpg
Looks great.

I'd love to strip this right back and sort everything out. However I simply don't have the time to do that, not least I really would like it back on the road this season. It'd also mean that the Dolomite would be put back further from completion. Also full resto is going to end up costing more money and this is sucking up quite a bit of cash already.

My plan is still to sort the worst of the bodywork, Rattle Can the scruffiest parts of the paint and then get it on the road. Then crack on with the Dolomite again. If I love the Midget enough, then I would treat it to a full resto after the Dolomite is done.

Tbh though, once I've done the n/s rear arch, the worst is sorted. The same on the other side (A post and read arch.) could well need sorting in similar fashion, but it's not quite in as bad a state.

The paint is probably what is going to let it down the most. But that's also the most expensive thing to sort!
Link to comment
Share on other sites

Ground back the welds.

Then folded back the door side skin lip. I did this with a hammer to start the bend. Once at about a 60degree angle, I used mole grips to bend flat. On the visible side I had the mole grips against a piece of metal to protect the skin. Seemed to work okay.

Quick spray of paint to protect the bare metal.

A-post is now done. Will need some filler at the top to both join on the existing filler and hide the weld join.

Ticked off a bit more on the list.

Then promptly added some new items 😬

The bolt on wing I think I'll do a quick repair on the back section. Apart from it's not a structural part, the front part under the bumper is very thin and crispy. You can't get repair pieces for there and I don't want to fabricate a piece as it's quite a complex curve.

Instead when it comes to proper paint, I'll source a replacement wing. Second hand seems to be around the £200 price point. While not huge amounts, I'm trying to keep a lid on spending. The wing, apart from the rotten rear section, is currently presentable if I'm careful on the crispy front.

Link to comment
Share on other sites

27 minutes ago, GingerNuttz said:

Fill the tank full of water and mig it up, it won't blow up.

It's more that I don't want to be making small holes on the tank into massive ones with my torch! It's quite heavily pitted and likely thin in places on top. Strong enough to keep fuel in but thin enough that it'll likely just end up with even more holes.

Link to comment
Share on other sites

17 hours ago, SiC said:

It's more that I don't want to be making small holes on the tank into massive ones with my torch! It's quite heavily pitted and likely thin in places on top. Strong enough to keep fuel in but thin enough that it'll likely just end up with even more holes.

Time to get a tig torch and some brazing rods for the Pearl 😂

Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
 Share

  • Similar Content

    • By tommotech
      Having fetched this French delight from deepest, darkest Norfolk (well Norwich actually) in an underwhelming collection, for no other reason than the van was scooped up onto a trailer for its journey home, it was time to see what was needed.

      I knew a RH side load door was needed, luckily an item was procured for £20 from a guy breaking a Scudo. I drove across to Swadlincote in the van and it proved to drive well, as expected from wuvvum’s write up. On the way home it started surging when the fuel level dropped below quarter on the gauge, again as expected.

      Door was fitted and adjusted on return, it was even the same colour!

      During the week I looked at the rear doors and fettled and adjusted the locks / latches.

      Today I dropped the fuel tank and found a loose baffle, along with crud in the fuel pick up / tank unit. A road test will be the proof of this repair.

      I also achieved a working temperature gauge today and changed the power steering fluid out.

      The to do list includes a coolant flush, new tyres (cracked side walls), new discs and pads, LH door slider and lock handle, a deep interior clean and removal of the ladder rack. In the meantime have some photos.






    • By rusty_vw_man
      Been a serial lurker and occasional poster of nonsense, but have never quite got round to posting some pictures and the ongoing tribulations of being a serial VW licker.
      First a disclaimer - I like old VWs, partly as I grew up with them and partly because I understand how the work and I can fix* them. I do not like the 'scene' attached to them, it seems to attract too many of a certain type of person I am often allergic to - they bring me out in a shouty rage.
      First car was a'69 beetle in red, driven flat out everywhere  until the rust took it. This was followed by a succession of Mk2 golf , vauxhall omega (vauxhall being close to VW in the sales ads)  a free Mk3 golf which was dire and tried to kill me multiple times. I have no photos of any of these as they were pre-camera phone and mostly awful.
      Then came a T25 camper bought using generous donations from friends and family at our wedding . Bought, and a week later after hovering 15 years of dog hair out of it, we drove it all the way to northern Norway on honeymoon. Used it for a while.
      Bought a vauxhall astra estate (again, it was almost a VW in the sales section). It sucked. It did a year of commuting then it was scrapped. Was gifted a skoda fabia estate by my dad as a sensible run around.
      During this time my wife wanted a sensible runaround for her and the kids, so we bought a bright orange 1971 beetle (rusty of course) which was excellent fun. People were openly critical of apparent lack of regard for our offsprings safety. I pointed out it had seat belts.
       Due to rusting the T25 was sold as a project, the Skoda was sold for being too dull and a T2 purchased.
      Here is the peak of VW ownership, where the beetle, bay and T25 are all in one place just before sale:

      So now we had two aircooled vehicles, the newest of which was  made in 1973.
      This lasted for exactly 9 months., during which I did lots of this:

      to be repeatedly rewarded with this:

      When the breakdown driver asks how the kids are getting on, you know you've seen him too much....
      I also conducted some invisible repairs on the rusty bits of the beetle. I'll point them out if anyone can't see them:

      A promotion and car allowance then allowed me to purchase a C3 Picasso (best not ask, I hate it). Its purple. I feel like a dick when I drive it.
      Beetle then had to go due to third child and not enough seats, but it had the good engine, the van did not. A swap occurred. My neighbors love* me and find my antics endearing*. I clearly have no need for a drive or garage.

      After 1 too many FTPs, I was told van or family. I chose family and the van left.
      I then went a looked at another T25 minibus (three kids now) and was in much trouble for even considering another van.
      Two weeks later, after some small* arguments* we were in total agreement* and the van was purchased.
      Roughly 18 months ago - note lovely laqueer peel, mismatched rear wing and low level tide mark:



      After some light fiddling I have made a very basic day van affair, and we dragged it with camping gear and the three kids all the way up to the arctic circle in Finland last summer (wife has family in that part of the world).
      6 days before departure I noticed the rear suspension had a bit of paint hanging off. I pulled and it showed this below:


      Trip to machine mart, a google of "mig wleding for numpties" and a youtube video later and I'd made this:

      and away we went.
      Here it is in a moody B&W photo  in the land of the midnight sun, which really brings out the high quality paint. the rear suspension is still attached though, so winning.

      That's an epic catch up post really, but will use this space now to document the exciting* repairs and work done on it to keep everything attached .and working....
    • By Broadsword
      I think the Broadsword fleet has become sufficiently complicated to merit a combined thread so that gradually all new additions will appear in one place.

      As of Sunday 17th March the situation is interesting.

      Two Citoren Xantias (remember the white Xantia of Excellence is for sale people!)
      http://autoshite.com/topic/34699-w-reg-citroen-xantia-20-hdi-xantia-of-excellence-%C2%A3999/
      http://autoshite.com/topic/34596-citroen-xantia-double-madness-rust/page-2

      A turquoise XJR6 pending overdue-collection (need that gone now!)
      http://autoshite.com/topic/34003-jaguar-xjr6-double-madness-double-sold

      An XJS 3.6 manual project which will get in high gear soonish. Wont be a keeper but will be fun getting it back to something presentable. Drivers fantastic!
      http://autoshite.com/topic/34664-jaguar-xjs-36-manual

      A Range Rover P38, which is turning out to be really rather good.

      And to mix things up even more I'm off on a collection caper today. Had first refusal on it and was expecting it to come around in a year, but things soon changed and no way was I going to pass up on it. It may well render the second Xantia redundant as I've got a really good feeling about this motor.

      In the meantime here are some snaps of the Range Rover. As usual it was a car I said I would probably never buy due to their reliability*. I have said the same of Jag XJR, XJS, XK8 and I have had all of those now. Basically the moment I declare buying a particular car is impractical or improbable, I end up buying one.

      Things to note on the P38. It's a nice colour with tidy body. The EAS has been removed. It runs and drives lovely and it doesn't have enough electrical problems to hinder progress. The main one is the driver's side window not working, but that should be fixable. I've tried changing the outstation, that didn't fix it. Might be wiring under the seat. Other than that I bought it and took it for an MOT the very next day, and it passed. Since then it had what seemed like a battery drain, but since unplugging the RF thingy for the remote locking and putting on a proper lead-acid battery, which the car can actually charge, unlike the modern lead-calcium batteries, it has been perfect. I will treat it to a full service soon.

      Stay tuned for the latest collection later today!



    • By Zelandeth
      Well I've been meaning to sign up here in forever, but kept forgetting. Thanks to someone over on another forum I frequent poking me about it recently the subject was forced back into my very brief attention span for long enough to get me to act on the instruction.

      I figure that my little varied fleet might bring you lot some amusement...

      So...we've got:

      1993 Lada Riva 1.5E Estate (now fuel injected, as I reckon the later cars should have been from the factory...).
      1989 Saab 900i Automatic.
      1987 Skoda 120LX 21st Anniversary Special Edition.
      1985 Sinclair C5.
      2009 Peugeot 107 Verve.

      Now getting the photos together has taken me far longer than I'd expected...so you're gonna get a couple of photos of each car for now, and I'll come back with some more information tomorrow when I've got a bit more time...

      Firstly...The Lada. Before anyone asks - in response to the single question I get asked about this car: No, it is not for sale. Took me 13 years and my father's inheritance to find the thing.


      Yes, it's got the usual rusty wings...Hoping that will be resolved in the next couple of months.








      Next, a proper old Saab. One of the very last 8 valve cars apparently, and all the better for it. I've driven two 16v autos and they were horrible - the auto box works sooooo much better with the torque curve of the 8 valve engine. Just wish it had an overdrive for motorway cruising...









      Next up a *real* Skoda...back when they put the engine where it belongs, right out the back. In the best possible colour of course...eye-searingly bright orange.







      Seat covers have been added since that photo was taken as it suffers from the usual rotting seat cloth problem that affects virtually all Estelles.

      Then we have possibly the world's scruffiest Sinclair C5...



      Realised when looking for this that I really need to get some more photos of the thing...I use it often enough after all! We have a dog who's half husky, so this is a really good way of getting him some exercise.

      Finally - again, I really need to take more photos of - we have the little Pug 107.



      Included for the sake of variety even if it's a bit mainstream! First (and probably to be the only) new car I've bought, and has been a cracking little motor and has asked for very little in return for putting up with nearly three years of Oxford-Milton Keynes commuter traffic, before finally escaping that fate when my housemate moved to a new job. Now it doesn't do many miles and is my default car for "when I've managed to break everything else."

      I'll fill in some more details tomorrow - I warn you though that I do tend to ramble...
    • By Tickman
      First some background:
      I was brought up with no car interest, a car was transport and nothing more which resulted in a selection of poor cheap cars being the cars of my youth.

      Fast forward many years (just over 9 years ago) and I have a wonderful* Vauxhall Vectra estate to carry us about. Unfortunately it is crap and throws fault codes at us with nothing being there when it is checked (even at Vauxhall)

      As Mrs T is the main pilot of this chariot with the two little miss T's on board, it has to go.
      The hunt is on for the new steed to safely and comfortably carry the family around. I have a company car at the time so big journeys are not an issue.

      ebay is my weapon of choice to find the new family car. It has to be good value cheap for no other reason than I am tight.

      Weeks of research with lots of cars that are too expensive and too far away for easy collection end up in my watch list.
      Finally a possible is spotted in Fife. I go and have a look and find a poor looking but solid car. One previous owner and lots of history.

      The auction was to end on the Saturday at midday, we were going to be out! I decided on how much I was willing to gamble on it and on the Saturday morning I put in my max bid but straight away it went to my max bid, I was winning but it had three hours to go with no room for me to go up! We went out anyway.

      I spent the next three hours kicking myself for not bidding more while we were out as it was the first car I had seen that fitted my criteria. Fate was in charge.

      On returning home I go straight on ebay to find 'Congratulations.............'
      For the grand total of £500 I had just won this fine vehicle!



      It has 5 months MOT and after fitting seat belts in the rear for the girls car seats it is pushed into daily service.
      My gamble and subsequent use results in a perfectly reliable car that actually does what it is supposed to do.

      Even more importantly Mrs T loves it so a win all round.

      All my cars have names (most are earned over a bit of time) and this one is called 'Gwendolen' ( G reg car and from Wales originally. I hate the name but I am not going to argue)

      That sums up part one, more will be along later (probably much later)
×
×
  • Create New...
