Progress yesterday was good.  Got the head rebuilt, and then turned attention to the block.

Can you guess which cylinder had the OMGHGF on it?

Having cleaned up the block face, the old and new head gaskets were checked that they matched.

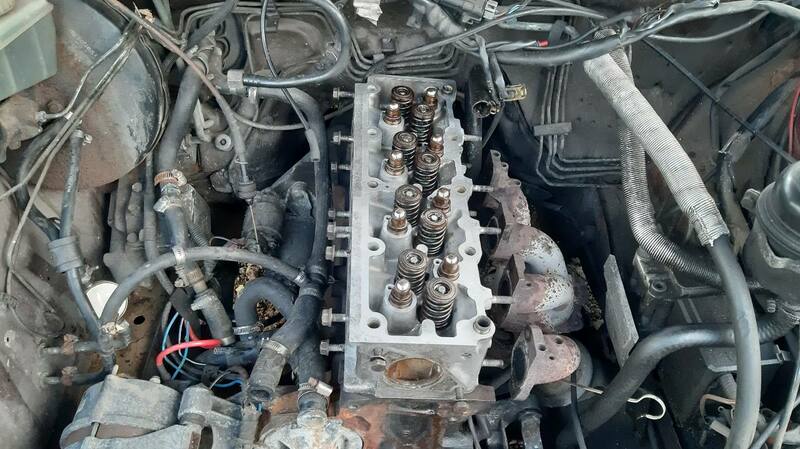

New gasket fitted:

Head on:

Cam followers on, with a smear of grease to hold them all:

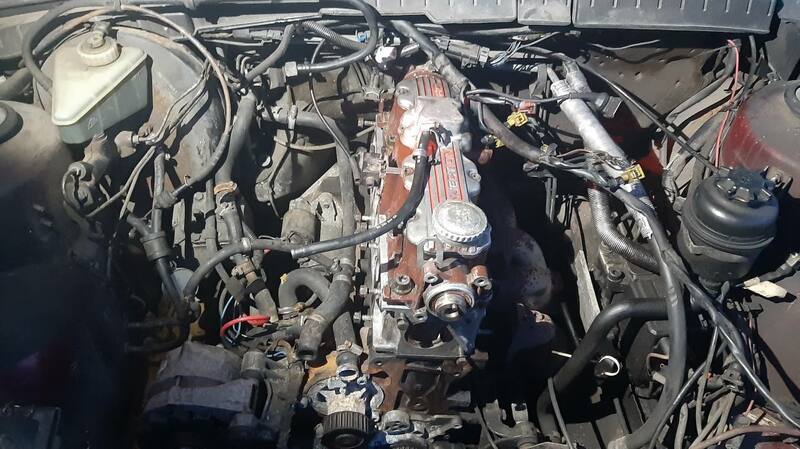

Cam carrier on:

Bolts all in and then torqued.  3 stages of 90° is fairly hard work. All in now, and the rest to re-assemble.



[Andyrew]

A Cracking effort sir.

Well done.





[mitsisigma01]

On 4/12/2021 at 6:31 PM, Talbot said:

Carringdale.

I though that sounded familiar.  I've driven past that site on-and-off for the last two decades.  Here's how it looks now, as seen in 2010:

It's been like that (boarded up with an abandoned filling station out the front) for as long as I can remember.  I can vividly remember driving past there in about 2001 and it being essentially the same, and I'm absolutely sure it had been like that for several years beforehand, so that Carlton was purchased there not that long (likely only a few years) before it closed down.

It was a fishing tackle shop on the front and a body repair shop in the old workshops at the rear for a while

[Talbot]

The amazing* all new* next adventures of reassembling a woefully under-cylindered Carlton:

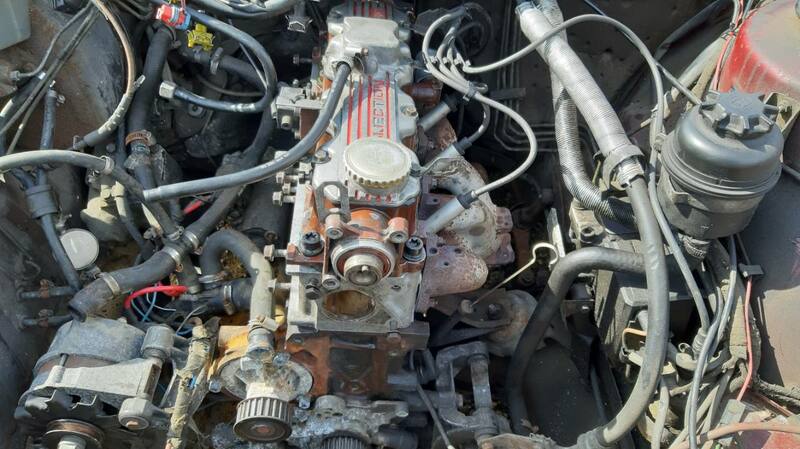

With fresh eyes this morning, I looked at the engine bay and though "which buffoon pulled this lot apart?  Oh yes, that would be me.  Best start shoving it back together:

Exhaust mainfold back on.



Next was the timing covers, timing belt and inlet manifold.  The old belt has been re-used as this is a non-interference engine, so it's not so much "Cambelt routlette" as "Cambelt snapped.  Meh, shove another one on."  Also, the cambelt on these is tensioned by rotating the water pump, as the drive is eccentric, which pulls harder against a spring-loaded idler wheel.  Looking at the water pump, I don't think I really wanted to disturb it, so it was much more sensible* to just shove the old belt straight back on along with the auto-spring-tensioner.  The handy little pointer on the spring tensioner was fairly close to the marker where's supposed to be, so I didn't worry about it:



Next problem.  The sump is still full of mayonnaise, but I can't get under it far enough to reach the sump plug.  I need the car in the air, but have very little to work with.  So, using some drive-on ramps, a hand-ratchet and the Merc as an anchor, this happened:

So then this happened:

(I was moving the camera about to try to get it to see what I was seeing.  Initially it looks not too bad, but eventually the angle/light is right and it's fairly clear how bad the OMGHGF was)

After a quick dribble through of some fresh oil to sluice a bit more of the ick out of the sump it was in with 4 litres of sacrificial oil, a new oil filter, the "fake" water pump nose, rad, hoses, and anything else needed to get it to run.  (eg fuel!) Actually looks like an engine bay again:

At which point there was both good news and bad news.  The good news:  It started and ran on the first turn of the key.  Bleddy amazing!

The bad news:  It's got a bad misfire, which is causing a fairly nasty knocking sound.  It sounds *exactly* like pre-ignition, just while the engine is idling and being gently revved.  However, it's not regular, and it's not a heavy metallic noise. Initially it sounded like the hydraulic tappets needed to fill with oil.  It's not that.  Then we looked at firing order and any other ignition related issues.  None found.  Next was to see if it's cylinder-specific, and it IS.  Pulled the lead off cylinder 1, and sure enough it runs on 3 cylinders, but the intermittent knock is gone.  It revs up smoothly on 3, no issues.  Re-connect plug lead 1, and sure enough it's still running on about 3.2 cylinders, with various random knocks and bangs coming from it.  While the lead to Cyl 1 was disconnected, it was sparking against grounded bits nearby where it was hanging, so I don't think there's any issue at all with the ignition.  I also had all the plugs back out again, cleaned and gapped them and played mix-n-match with them, so I don't think the plugs are an issue.

Next test was to unplug the injector for cylinder 1.  Sure enough, again, it runs smoothly on 3.  Reconnect it and the knock is back.  We *think* that it's a blocked injector on cyl 1 which is causing a very weak mixture, which only burns every now and then, and when it does it pre-ignites rather than burning in a controlled manner.  I'm not entirely sure how to confirm that diagnosis and would welcome any advice.  This is a very simple/basic injection engine, and as far as I know, whilst it is multipoint injection, the injectors all fire together.  Other than that, it's just an 8V OHC engine with just a crank position sensor to drive the ignition system.  Nothing fancy at all.

The other thing to note is that when it's knocking, if you rev the engine up to 2500rpm, it knocks on the way up and while holding, but when you release the throttle (and hence the injection stops injecting), the knock is gone, only for it to come back again when the engine starts to add fuel again to control it's idle speed.

Initially I was really worried I'd done something horribly mechanically wrong, but it appears not, and would seem to be some issue with the fuelling on Cyl 1.  Possibly.

so... PARTIAL SUCCESS!



[Zelandeth]

Pull the injector and swap it to another cylinder...see if the symptom follows it.  Wouldn't surprise me if some gunk has been dislodged while the head work was ongoing.

[Talbot]

7 hours ago, Zelandeth said:

Pull the injector and swap it to another cylinder...see if the symptom follows it.

That was/is going to be my next diagnostic move.  Unfortunately we ran out of weekend to do any more on it.

[Andyrew]

8 hours ago, Talbot said:

 It sounds *exactly* like pre-ignition, just while the engine is idling and being gently revved.

*VIVID FLASHBACKS*

AHHHHHHHHHHHHHHHHHH

(That was exactly why i sold this Carlton to ian the previous owner of the carlton you are working on!)

[Talbot]

... did you find out what was wrong with it?

[Six-cylinder]

A big thanks to Talbot for all his efforts.

How tight.

It is good to have a ride aboard Mechanic who can double as a bonnet emblem!



Yes there was tea drinking.

[Andyrew]

The carlton above would knock/clatter if you built up the revs slowly.  Blip the throttle and it was perfect and idled okay.

Even tho it was really a good car id just had enough at this point and ian purchased it.  He stripped the top end down and it was a stuck lifter. It was gummed up and keeping the valve open.

He cleaned out the lifters and reassembled them and the top end and it was perfect.  So based on that id pop the rocker off and see if you can compress the lifters. Maybe a few taps may free it up.

[Andyrew]

10 minutes ago, Talbot said:

... did you find out what was wrong with it?

We had also changed the injectors from the donor car we had and put them into that blue one and the noise had still persisted,

Id definately start with the lifter myself.

The blue carlton had about 33k on the clock, and ran lovely. But had spent alot of time sitting in barns etc etc The rattle just devoloped after i had racked up a few thousand miles of daily driving.

[Talbot]

I'm not sure that's the issue here, as this one will not idle smoothly, nor will it rev up smoothly when you blip the throttle.

I did have all the lifters out, cleaned them out and re-lubricated them, so I very much hope that they're all working OK.  If you take the oil cap off when the engine is running, the cam and followers are quiet and look to be working properly.

Also, I really don't want to be investigating that, as taking the cam carrier off means undoing the head bolts.

[Talbot]

Thinking about it... a compression test would find that immediately wouldnt it?  That might be one of the next tests to do.

[Talbot]

35 minutes ago, Talbot said:

I really don't want to be investigating that, as taking the cam carrier off means undoing the head bolts.

... but what I wasn't aware of is that there are camshaft removal tools that (I assume) push all the valves open at the same time, thereby allowing the camshaft to be removed without affecting the head bolts.  With the camshaft out, the followers and lifters can come out.

Edit:  No.  None of this can be done on this engine, as it has to come out on the distributor end of the engine.  On a FWD car that means across the top of the gearbox, where space can be made.  In this, it would have to go through the bulkhead.  Arse.

I hope not to have to do that, but it does sound better than having to take the cam carrier off.  The lifters were all working correctly beforehand, and the followers all had barely any wear to them at all.  I'm still leaning towards a fuelling issue at the moment, although can't quite rationalise why that's making it knock.

[Andyrew]

[Andyrew]

Thats the tool i used when i done it before.  Fiddly but possible.

If nothing looks a miss under the rocker cover, id probably try a few cheeky taps on the lifter and given the oils going to be contaminated from any left over water i dont feel a engine flush would be much risk on an engine like this one.



[beko1987]

Have you tried the patented FOD Vauxhall repair method (tm) for 45 miles or is the main field out of bounds now?

[Six-cylinder]

14 minutes ago, beko1987 said:

Have you tried the patented FOD Vauxhall repair method (tm) for 45 miles or is the main field out of bounds now?

The knock is too harsh to want to do that to it.

[hairnet]

did the bloke in the hat furnish you with biccies??



[Talbot]

Ok,  I'm beginning to doubt myself on this one.  The knock is playing on my mind.  Here's everything that has been done on this head so far.  Can anyone with experience of this engine spot anything wrong:

1. Head removed, as per pictures.  Cam carrier removed.  Followers collected, but not kept in order.  Similarly the end caps that sit on top of the valves were not kept in order, mainly as they'd all fallen out.  I wasn't concerned about this as the hydraulic adjusters should be able to allow for the very minor variances in the cam followers.
2. Valves removed and kept in order.  Springs all kept in order.  Collets not kept valve specific.. as they're collets.  Hydraulic adjusters removed and all kept in order.
3. Head welded and skimmed.  And a nice job done of it.  Head also had a caustic wash and was lovely and clean.
4. Valves all ground in with fine grinding paste.   Cleaned off with brake cleaner, both the valve and the head.
5. Valve stems oiled.  Fitted in order with their original springs, seats and top caps and new stem seals.  All valves went in smoothly, no binding.  As much mayo cleaned off the springs and seats as possible, then re-lubricated with fresh oil on assembly.
6. Hydraulic adjusters all cleaned up, checked for movement (the ball end rotates freely within the body)  Cleaned off, lubricated and fitted back into their original positions.
7. Head re-fitted (as per picture).  Followers and stem caps fitted with a swipe of grease to hold them in place.
8. Cam carrier fitted.  This sits up on the lobes of the cam initially.  Even knowing this is a non-interference engine, the pistons were all put mid-bore while the head bolts were fitted and tightened down, thus opening valves at the same time. (force of habit from working on interference engines)
9. Everything else re-fitted, as per pictures.  Nothing is tight/binds up/causes any concerns.
10. Once the cambelt was on, the engine was rotated over 2 turns to ensure no issues.  Every cylinder gave resistance to turining over on the compression stroke, so no valves were obviously sticking open.  When cranked over, the engine gives a regular roop-roop-roop-roop noise as the (rather noisy) starter battles with the compression.  No individual cylinder sounds "faster" indicating poorer compression.

So the knocking has slightly taken me by surprise.  Clearly we need to play swapsies with the injectors to see if it's not injecting properly, but I can't quite work out how or why that might make it knock.  The knock is absolutely related to combustion in cylnder 1, as with either the plug lead or the injector disconnected from that cylinder, it stops knocking, runs on 3 cylinders and there's nothing obviosuly wrong (other than running on 3 cylinders, clearly!).  If there was a valve sticking or something similar, I'd expect to hear it knocking and sticking even if there isn't combustion occuring in that cylinder.

With the oil cap removed, it's very visible that there is good oiling to the camshaft, and there's no untoward noises from in the cam area.  It all sounded very smooth in there.

The other thing to bear in mind is that the knock is NOT regular.  it doesn't happen on every combustion cycle, just randomly and unevenly, but it doesn't ever stop. It's most definitely not a deep thumping/thudding or rumbling that you'd associate with bottom end, but it's not quite as light and tinkly as pre-ignition.  It's most definitely coming from the head.

Dafuq?
