1974 Dolomite Sprint


Recommended Posts

With the windscreen area done, the A-Pillar is next.

After cleaning up with the wire wheel I could clearly see the old repairs.

These were cut out.

New metal put in and welded up. The gap at the pillar looks way too big, but it matches the otherside. I guess standard BL varying panel gaps!

Then painted.

The reverse I made up new metal from templates

But after a lot of attempts, I couldn't get anything that worked properly. So ended up going freestyle and hammering into shape.

Ended up alright, except I struggled to get the paint to stick. Ended up using a heatgun to try getting some heat in

Didn't help that the garage has been pretty chilly! Thankfully I've got a new diesel heater to replace the one I broke (filler dust killed it).

Today has been tackling the base of the a-pillar

The underneath looked pretty funky under there, so I knew I needed to cut the bottom off. It's gone like this as the water from the channel between the wing above goes down the A-Pillar and settles here. Unfortunately its just another rot trap.

So it had to be cut off.

After a session with the wire wheel, it doesn't look so bad.

But pitted and thin in areas, it had to be cut out. This left me with a rather large hole.

At which point my diesel heater ran out of cherry and the temperature was dropping rapidly, I decided to call it a day for tonight.

Link to post
Share on other sites

What diesel heater you using?

I'm using a wee 2800w ceramic heater I drag around the garage with me, but doesn't do anything except use leccy like it's going out of fashion.

Me in the garage just now:




Link to post
Share on other sites
31 minutes ago, Gerrymcd said:
What diesel heater you using?
I'm using a wee 2800w ceramic heater I drag around the garage with me, but doesn't do anything except use leccy like it's going out of fashion.
Me in the garage just now:


I've ended up making 7 pages on the subject 😂
https://autoshite.com/topic/42725-heating-a-cold-garage/

TL;DR I'm using a Chinese Diesel heater designed for vans

Link to post
Share on other sites

I had hoped to have a whole day working on this but unfortunately sorting out tax and my tax return took most of it. Got the week off, so I want to make as much progress as possible.

However this evening I got on with making a replacement for this piece. I haven't fabricated for quite a while and always find it's very time consuming. I don't have any proper shrinker, dollies or wheels. So instead I make it up of smaller sections that can be bent into shape. This is a pretty simple piece so possible to do it like this without it looking messy.

From this piece I made up some templates and transferred to metal.

Some bending and then many clamps over the old and new piece later, I had everything in place.

With this all in place, I turned my welder down right low. I wanted to tack things in place enough to hold without clamps, but I didn't want to attach to the old piece underneath!

Thankfully no penetration into the old piece.

Then welded up the seam and ground back for a nice finish. Got pretty darn close to the original. It's a bit bigger as I having to replace metal that's missing. Lumpy bit at the bottom actually shouldn't have been welded up, that was accidental. I'll have to cut that apart and then use the excess to bend into shape on the sill.

Mostly fits into place. Still a bit more to do filling the side you can't see. A triangle piece needs to go in so it fits the sill properly. Also the pillar itself needs some more metal as it's double lined.

Link to post
Share on other sites

Busy fitting my diesel heater in today. This should help improve the motivation in getting the car done. I find nothing worse than working somewhere cold that chills to the bone.

However I did get a chance for a few hours on the car. Welded in a new piece on the A-Pillar, to fill the hole before.

Then started tacking and then welding my new fabricated piece in. The edge to the inside was a bit tricky at the metal is thin in placed and blew thru at the slightest chance.

It still requires the other side doing but decided to do that once this is in. That way I can make it fit properly at the time rather than having to keep readjusting until I can weld it as one whole thing.

Link to post
Share on other sites

Finished the base of the A-Pillar. A lot of welding and even more grinding. Actually quite pleased how it's turned out, given my limited tools, experience and skills.

Not many words apart from that, so I'll do a complete picture history of the job to see the transition.



Next up is to finish a small section in the front wheel arch and bottom of the front wing. After that it's the B-Pillar and continue going backwards!

Link to post
Share on other sites

We haven't had any rusty photos for a few weeks, so I thought I'd put that right.

Put the front end up on stands so I can tackle this wheel arch.

While I was there, I took out it's eyeballs

Reflector is buggered and the lights will need to be replaced.

Started tapping with the little hammer and got carried away

Decided at this point to attack it with the wire wheel. Can tell this is another one if those areas that has been previously "repaired". No surprise really as TADIS.

Filler bloody everywhere again.

Light mounts will need attention. I knew this when looking inside the wheel arch. Again TADIS.

Decided to cheer myself up by looking at the other wing while I was there. Doesn't look too bad.

Again with the wire wheel. Much less filler this side and previously repaired. Not as bad though.

At least these bits aren't structural this time! Club I think does GRP replacements but I reckon these can be fixed up and I'd prefer to have metal rather than GRP wings. Certainly the nearside, offside possibly a bit more work to do though.

Link to post
Share on other sites
8 minutes ago, GingerNuttz said:

Just repair them in 0.8mm and save yourself some time, the shapes are easy to make if you just lay the new 0.8 on top of what you have left and beat the shit out of it.

I've got plenty of 0.9mm steel, reckon that is ok or is 0.8mm a lot easier to work with? Didn't think there would be much difference between the two but I haven't tried working with thinner steel.

Did consider previously getting 0.6mm stuff for non structural but thought it might be a bit too thin.

Link to post
Share on other sites
1 minute ago, SiC said:

I've got plenty of 0.9mm steel, reckon that is ok or is 0.8mm a lot easier to work with? Didn't think there would be much difference between the two but I haven't tried working with thinner steel.

Did consider previously getting 0.6mm stuff for non structural but thought it might be a bit too thin.

0.9 will be identical to 0.8 in how it can be worked, welding it I run about 30 - 50 amps doing start stop as it tends to warp very easy. If you have air use a blow gun from the compressor and cool each weld and it should stop all warping but if you go slow at a low power it's usually just as good

Link to post
Share on other sites

This is the usual settings that I run my machine on. I'd have to double check what it uses as a starting voltage and wire speed. The trim setting seems to tweak the voltage and thus heat to the weld. The amps and volts on the display are the actual values when loaded down in circuit.


Link to post
Share on other sites
48 minutes ago, SiC said:

This is the usual settings that I run my machine on. I'd have to double check what it uses as a starting voltage and wire speed. The trim setting seems to tweak the voltage and thus heat to the weld. The amps and volts on the display are the actual values when loaded down in circuit.


I run a little hotter and go faster in and out the puddle as it gives far better penetration and a flatter weld.

Penetration isn't an issue on 0.8 anyway but a flatter weld is less grinding

Link to post
Share on other sites

Just noticed you're using a synergic MIG rather than a "normal" one.  My intial reaction was "cheat!".

Actually, they're brilliant.  How do you find it in comparison to a normal dip-transfer weld?

Link to post
Share on other sites

I find that mine is less forgiving of a less than perfect surface than a transformer based MIG welder. A couple of occasions I've attempted to strike an arc, and instead of doing so I've ended up with a coil of red-hot wire piling up on the surface, which I've never had before in 20 years of welding. Its only been when I really should have ground the surface back further, so I suspect they have something of a soft start compared with the transient inrush current of a transformer circuit - hence unable to penetrate the surface resistance and strike an arc.

That's not really a failing though, and I really rate mine. Much easier to carry around, and the ability to infinitely vary the weld current is very useful.

Link to post
Share on other sites

This is all excellent reading and amazing work. I am highly envious of your heated garage!

In my experience 0.8 is a million times easier to shape than even 1mm, I wouldn't hesitate to just use that and make your life easier. In some cases I found I could make accurate shapes just bending by hand.

0.6 seems a bit on the thin side though.

I've found welding 0.8 to be ok. I use the settings for 1mm and back it off a bit. Then I slowly join it up with lots of tacks about 1 second in duration with the nozzle rested on the metal and a longer pause than normal. Zap, move, wait zap, move, wait, then stop and jump to a different location to prevent warping, and repeat. With the longer pause I usually don't need to cool it.

Link to post
Share on other sites
On 1/11/2021 at 9:55 PM, mat_the_cat said:

I find that mine is less forgiving of a less than perfect surface than a transformer based MIG welder.

Are you referring to a synergic welder or an inverter welder?   I've known inverter-type ones do that "I can't strike an arc" issue, but never heard of a synergic one doing that.

Link to post
Share on other sites
On 1/11/2021 at 10:29 AM, Talbot said:

Just noticed you're using a synergic MIG rather than a "normal" one.  My intial reaction was "cheat!".

Actually, they're brilliant.  How do you find it in comparison to a normal dip-transfer weld?

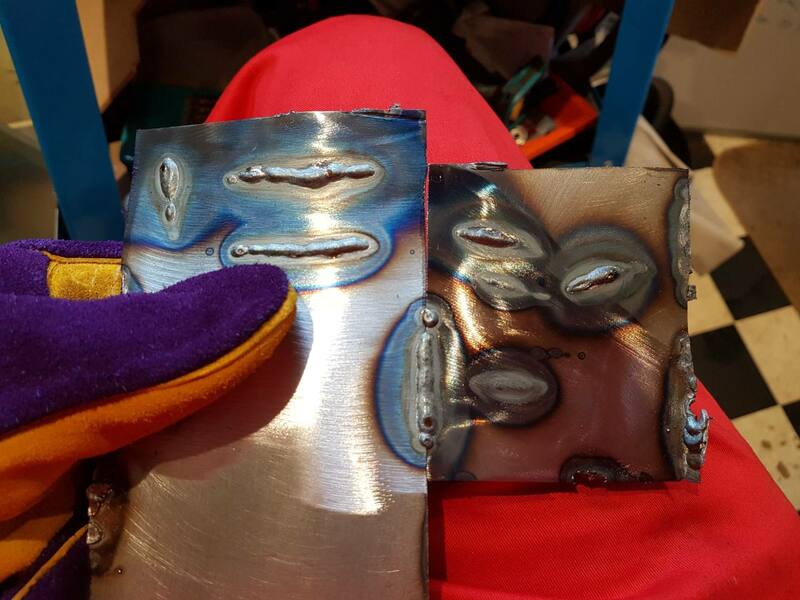

I genuinely don't know how it compares to a transformer based set as this is the only one I've ever used. I wanted a inverter machine for lightness and one that had the synergic capabilities as I'll be extremely unlikely to do this professionally. So wanted to get up to speed welding as quickly as possible. My first 1100 thread you can see how I did my first welds and progression through.

They actually look neater than I do now 😆


In synergic mode, it's still an inverter machine but it's essentially is converting the parameters you dial in and setting up the voltage and wire speed at that essentially using a big table. Parameters you dial in are Gas type, wire thickness, wire type, weld type (butt, tee, vertical corner), metal thickness and trim (seems to tweak the voltage up or down). You can switch into manual mode and it'll show you the wire speed and voltage settings it figured it should use. I believe it tweaks itself as you're going along welding too.

It certainly is cheating, but it's allowed me to get down to the business of doing the welding, without having to go through the process of setting up a machine. Only the art of moving the weld pool about, torch position and the like. I rarely get a bad weld out of the machine with this metal thickness. If anything, it can blow holes through steel quite a bit, so I sometimes have to trim it down a tad - but that's probably just the rusty shit I weld!

I bought the machine second hand. I did want one of the Esab rebels and I believe they're a bit more refined. Especially in regards to the multi process facilities. However I got this for (iirc) like £450 for a 2 year old machine at the time. List price iirc was just a grand. For the money I paid, I'd been in the transformer big brand names or a cheaper inverter set like the R-tech. An Esab would have been significantly more and also go second hand for way more too - probably because of the brand. They come with a genuine Binzel Euro torch too. I've actually bought a brand new one - nothing wrong with the old except I found the new design more comfortable in the hand and the torch base ball joint better.

Only thing is I wished I had the 4 roller version as the feeder is better. That can take the 15KG reels and 4m long torches. I've got a 4m torch but on mine you have to make sure the rollers are super clean, otherwise it struggles.

At some point I'll get a euro TIG torch and try out the multi process part of it. It's Lift TIG (not scratch) which I believe is actually safer for car use than HF start. Also can do stick, but the guy I bought it off couldn't find the stick holder. It has standard connectors on the front panel though, so I imagine I can just use any standard one anyway.



On 1/11/2021 at 9:55 PM, mat_the_cat said:

I find that mine is less forgiving of a less than perfect surface than a transformer based MIG welder. A couple of occasions I've attempted to strike an arc, and instead of doing so I've ended up with a coil of red-hot wire piling up on the surface, which I've never had before in 20 years of welding. Its only been when I really should have ground the surface back further, so I suspect they have something of a soft start compared with the transient inrush current of a transformer circuit - hence unable to penetrate the surface resistance and strike an arc.

Again, I can't compare to a transformer unit as I've never used one. However I haven't found my set struggle to strike an arc and usually weld through any surface rust too. If it's really rusty, it seems to try but you end up with an explosion of molten steel everywhere. Never had the wire coil up on the surface like you mention on mine.

I know mine has PFC (Power Factor Correction) and also is specced that it can run off up to a 100m power extension without any loss in performance. Being inverter based, it simply boosts the power at the output to match the requested levels. Maybe this extra level of control over the power helps prevent what you are describing?

This was something quite important in my old house as the power was at the back of the garage, so ended up attaching it with a 20m extension lead. Likewise the weight at the time as I'd have to haul it in and out of the garage for each welding session. Also as inverter based is far more efficient, so it can go up to the full 200A while still running off a 13A plug - no need for a 16A Commando plug. Admittedly I've never had to go to those power levels yet.

Link to post
Share on other sites

Started last Sunday getting the back of the front wheel arch finished.

This is pretty much how I left it last year bar cleaning up again ready for this welding.

That was an awkward shape to get in, so I cut a bit more off to get more room the other side.

Made a patch that fitted. Easier when you have access the other side as I could roughly get to shape and put the otherside and mark off a more exact measurement.

A lot of fiddling to get into place and held.

The light area made a handy earthing point.

Then a couple of tacks to hold in place as it was getting late and I wouldn't finish it that day. Leaving a few days would likely leave it ending up on the floor.

Fast forward to yesterday evening when I had some more time to get on with this. Hellish first week back affected my mojo for getting on with welding in the evenings and I suspect it's not going to get any better, so progress from now is likely to be slow again.

Anyhow finished welding it up and took off the top of the welds. I'm not going to grind all the way back as it's an awkward place to work and its not really visible normally either.

Then painted. Which has just reminded me, I need to put paint on the inside...!

Not sure if I want to tackle the front of the car just yet. I might put some paint over to protect it and then come back later for it. Feel that it's probably one of those faffy jobs that will take forever to get right. Also need to get some thinner steel and try out seeing if that's easier to shape than the stuff I have at the moment. I can shape the 0.9mm/20 gauge stuff I have, but it's not the most pliable. For the front end wing, it's not structural but it is quite shaped. So thinner stuff should be ok here.

Also need to either repair or replace the light holders. I really don't want to cut the wing or front valance off as I think it's a bit unnecessary for the work that needs doing there. Cutting them off will be a right faff in getting them back on and they risk never be right. Not that they probably were out of the factory anyway!

Link to post
Share on other sites
