AS Communal MK4&5 Mondeo Thread

[Cord Fourteener]

28 minutes ago, Cookiesouwest said:

Probably. Her back is quite particular about car seats. MGR ok. Honda ok. Fords a big no. BMWs a big no. Mercs ok. VAGs ok. Vauxhalls are model dependent. She suffers from crumbling vertebrae.

Sadly I've got terrible back pain today. Hoping its a coincidence.

Fan control module turned up today, so will get that put in tomorrow, then MOT Monday.

That all sounds painful! I wish you both comfy and supportive seats.

[sierraman]

13 hours ago, Cord Fourteener said:

So the EMIL light is now telling me it needs an oil service. Its only just had one.

I've just dipped the oil, two or three weeks post oil service and the level is really really high.

This, I understand, means the oil is diluted with diesel.

Is the Dpf still trying to regenerate? Didn't this happen to you @wuvvum?



It would suggest so. A dodgy MAF on those can interfere with DPF regeneration, clean that out and drop a bit of oil. Definitely run it through Forscan though.

[Cookiesouwest]

Fitted new fan control module.

Fan works and does not keep spinning, when engine is off.

But, fan does move. See vid.

Any ideas?

[sierraman]

Sounds like an issue possibly with the shutters for the rad that sit behind the bumper.

[wuvvum]

On 8/14/2021 at 8:12 PM, Cord Fourteener said:

So the EMIL light is now telling me it needs an oil service. Its only just had one.

I've just dipped the oil, two or three weeks post oil service and the level is really really high.

This, I understand, means the oil is diluted with diesel.

Is the Dpf still trying to regenerate? Didn't this happen to you @wuvvum?



It did - when I first got the car it was trying to regen constantly, I reset it with Forscan and it was fine for a while but I had to do it again after the car had been stood during lockdown - I assumed it was because the battery had gone flat but it may be to do with mileage (I'm assuming you're putting a lot more miles on the car than I ever did...).  Forscan is your friend - you can select Reset DPF Parameters (or something along those lines) and it stops the regen.  You can also do a forced regen but I never tried that as the DPF was fairly new - that may be what it needs though.

When you order the ELM327 cable, make sure to get a switchable one - that will allow you to monitor / amend a lot more parameters on the car.  You can get them for under 20 quid on eBay and Forscan is free to download, and relatively easy to install as these things go.

[Cord Fourteener]

1 hour ago, wuvvum said:

It did - when I first got the car it was trying to regen constantly, I reset it with Forscan and it was fine for a while but I had to do it again after the car had been stood during lockdown - I assumed it was because the battery had gone flat but it may be to do with mileage (I'm assuming you're putting a lot more miles on the car than I ever did...).  Forscan is your friend - you can select Reset DPF Parameters (or something along those lines) and it stops the regen.  You can also do a forced regen but I never tried that as the DPF was fairly new - that may be what it needs though.

When you order the ELM327 cable, make sure to get a switchable one - that will allow you to monitor / amend a lot more parameters on the car.  You can get them for under 20 quid on eBay and Forscan is free to download, and relatively easy to install as these things go.

I only have Linux, fingers crossed there's a Linux version!

I'm not endowed with patience when it comes to downloading and using new software, are there any how-to videos you recommend for using it?

[wuvvum]

Looks like you have to install an emulator to run it on Linux, but it is possible.  Or do what I did, buy a cheap Windows notebook to use solely for diagnostics - you don't need anything fancy, it's not resource-hungry software.

I didn't actually watch any instruction videos, I just played around with the software and found things fairly easily.  It's more intuitive to use than a lot of diagnostic software I've seen, and there's an active forum where you will probably find the answer to any issues you may encounter.

[Cord Fourteener]

10 hours ago, wuvvum said:

Looks like you have to install an emulator to run it on Linux, but it is possible.  Or do what I did, buy a cheap Windows notebook to use solely for diagnostics - you don't need anything fancy, it's not resource-hungry software.

I didn't actually watch any instruction videos, I just played around with the software and found things fairly easily.  It's more intuitive to use than a lot of diagnostic software I've seen, and there's an active forum where you will probably find the answer to any issues you may encounter.

Next no9by question, forscan.org warns that there are many elm327 interface clones that don't work.

Which one did you buy?

Also, I notice Forscan do an Android version, maybe I'll try that first.

[wuvvum]

This is the one I bought:

https://www.ebay.co.uk/itm/162199978849



[Cord Fourteener]

49 minutes ago, wuvvum said:

This is the one I bought:

https://www.ebay.co.uk/itm/162199978849



Boughtd

I just need a Windows laptop and internet that actually works now...

[Cookiesouwest]

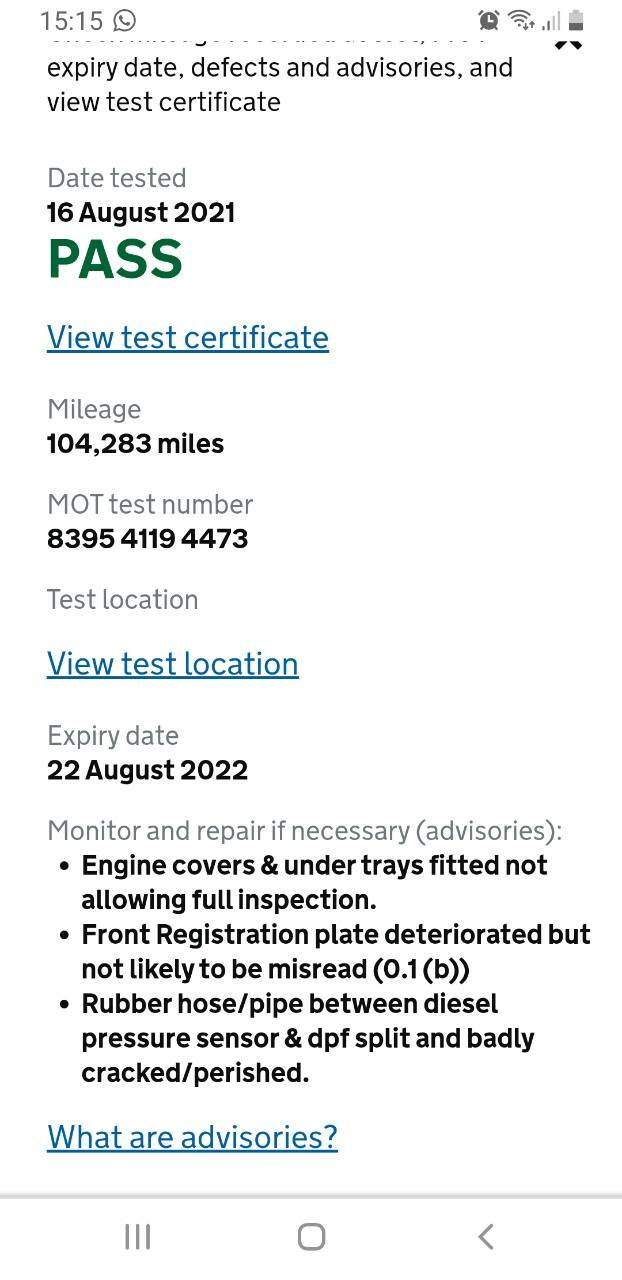

And the cheapo mk4 passed with 3 advisories, only one of which really matters

[junkyarddog]

Get that perished pipe replaced asap.

Otherwise it won't regen and you'll run into dpf trouble.

[Cookiesouwest]

54 minutes ago, junkyarddog said:

Get that perished pipe replaced asap.

Otherwise it won't regen and you'll run into dpf trouble.

I will. I'm hoping it will last a week, because garage can't fit it in till then.

[warren t claim]

On 8/15/2021 at 4:18 PM, sierraman said:

Sounds like an issue possibly with the shutters for the rad that sit behind the bumper.

This 100%. Probably the top shutter on the lower grille.

[Cord Fourteener]

Oil level two weeks after it was at Max...

[sierraman]

Failed regen. I’m assuming yours is the Euro 4? If so I’d suspect possibly the MAF, clean that out. You can do a forced regen through Forscan but I wouldn’t recommend it unless it’s absolutely necessary. Your neighbours won’t be overjoyed either with 20 minutes of it revving it’s twat off on the drive. Reset the parameters as above then give it a good hammering down the motorway. Be sure to drain the excess oil off otherwise it could run away if it gets excessive.

[junkyarddog]

If the oil is diluted that much it needs to be changed,it's fucked.

[Cord Fourteener]

21 minutes ago, sierraman said:

Failed regen. I’m assuming yours is the Euro 4? If so I’d suspect possibly the MAF, clean that out. You can do a forced regen through Forscan but I wouldn’t recommend it unless it’s absolutely necessary. Your neighbours won’t be overjoyed either with 20 minutes of it revving it’s twat off on the drive. Reset the parameters as above then give it a good hammering down the motorway. Be sure to drain the excess oil off otherwise it could run away if it gets excessive.

I'm waiting for the ForeSkin adapter to arrive, then I have to figure out how to run the software from my laptop or acquire a Windows laptop then I can do all that.

I've just now drained and refilled the oil so it's half way up the dipstick and drowned the MAF in gin contact cleaner so at least she can drive without it blowing up.

I have been asking her what she would do in the event of a run away. Apparently I've been wasting my time so I showed her the film of the Freelander in Ireland running away, maybe she'll remember now.

Hand and foot brake on full,  5th gear, dump clutch.

If that fails walk away and call brakedown.

[Cord Fourteener]

2 minutes ago, junkyarddog said:

If the oil is diluted that much it needs to be changed,it's fucked.

It was changed.

[junkyarddog]

Mine started to do frequent regens,it was the EGR valve slightly jammed open,

So I blanked it off,quite easy to do,and doesn't light up the EML.

So far so good.

[Cord Fourteener]

1 hour ago, junkyarddog said:

Mine started to do frequent regens,it was the EGR valve slightly jammed open,

So I blanked it off,quite easy to do,and doesn't light up the EML.

So far so good.

I guess I just need the codes off Forscan to know what's playing up, paleobrain here needs to work out how to install Forscan first.

Ug.

[Fraz]

Treated mine to a wash and a new magic tree… tropical 👍



timing belt kit and rear brakes ready to be fitted when I can be arsed

[Cord Fourteener]

Update:

I've ordered a Windows laptop after trying and failing with Wine and PlayonLinux. Maybe it's possible, I can't make it work. Given Wifey is always saying that MS PowerPoint is what she uses at work and moans about formatting issues on Libreoffice I thought that buying an old Windows machine for £72 posted off ebay isn't the worst idea.

The elm327 modified connector is here, so I downloaded OBD Autodoctor to see if I can talk to my Passat in the mean time.

Anyway, just need the new old laptop to arrive then I can see if I can talk to the Ford with ForScan and slap the dpf around a bit.

[Cookiesouwest]

Hi. Advice please. Mk4 mondeo 59 plate. 2.0 tdci auto.
Was driving tonight and all warning lights came on and rev / speedo dropped to zero. Car kept running ok. 3 secs later, lights went out, rev/speedo started working.

Anyone ever had this?

[Mr Pastry]

I know nothing about Mondeos, but that sort of thing is possibly a bad/intermittent earth - either battery terminal, or engine to body.

[Barry Cade]

On 8/19/2021 at 12:12 AM, Fraz said:

Treated mine to a wash and a new magic tree… tropical 👍



timing belt kit and rear brakes ready to be fitted when I can be arsed

That is THE exact car and spec I wanted before I bought the Focus.. I think these, especially in white,  are a very handsome car.

[warren t claim]

3 hours ago, Cookiesouwest said:

Hi. Advice please. Mk4 mondeo 59 plate. 2.0 tdci auto.
Was driving tonight and all warning lights came on and rev / speedo dropped to zero. Car kept running ok. 3 secs later, lights went out, rev/speedo started working.

Anyone ever had this?

Isn't an intermittent cluster failure common with the Mk1 Focus?

Do you have the basic instruments or that Converse pack?

[Cookiesouwest]

7 hours ago, warren t claim said:

Isn't an intermittent cluster failure common with the Mk1 Focus?

Do you have the basic instruments or that Converse pack?

Its a zetec, so the basic cluster.

Yes Mk1 focus did have that issue.

[junkyarddog]

Battery could be on the way out?

[sierraman]

15 hours ago, Cookiesouwest said:

Hi. Advice please. Mk4 mondeo 59 plate. 2.0 tdci auto.
Was driving tonight and all warning lights came on and rev / speedo dropped to zero. Car kept running ok. 3 secs later, lights went out, rev/speedo started working.

Anyone ever had this?

Cluster can and does fail on them, it’s a £200 refurb job or find a used one and code it to the car.

Could also be the VSS.

Before you start with all that check if it has a tow bar, the canbus to trailer wiring interface causes all sorts of random shit like that.

Honestly if it was a one off random occurrence then I’d leave be to be honest.
