Sold Saving an Audi 80. Saved und Sold.

[Vantman]

Would this company be of any help?

http://www.simonbbc.com/distributors

[BorniteIdentity]

Would this company be of any help?

http://www.simonbbc.com/distributors

Nice one. I'll give both of these companies a ring on Monday when they reopen.



Hopefully we can get this old lady back on the road without too much hassle.

[BorniteIdentity]

Right.



This is still bubbling away.  I've had nothing short of a fucking nightmare trying to locate a Distributor, as the 1.6 einspritzung was so rare here in the UK.  I have a lead on one from scandinavia which is £100 - Bosch can get me a new one for £200 with the VAT on - but Powerspark et al can not help.



I found myself nearby earlier on so gave the lady a call and went to visit.  Very nice.  Very nice indeed.  The car was alright too.

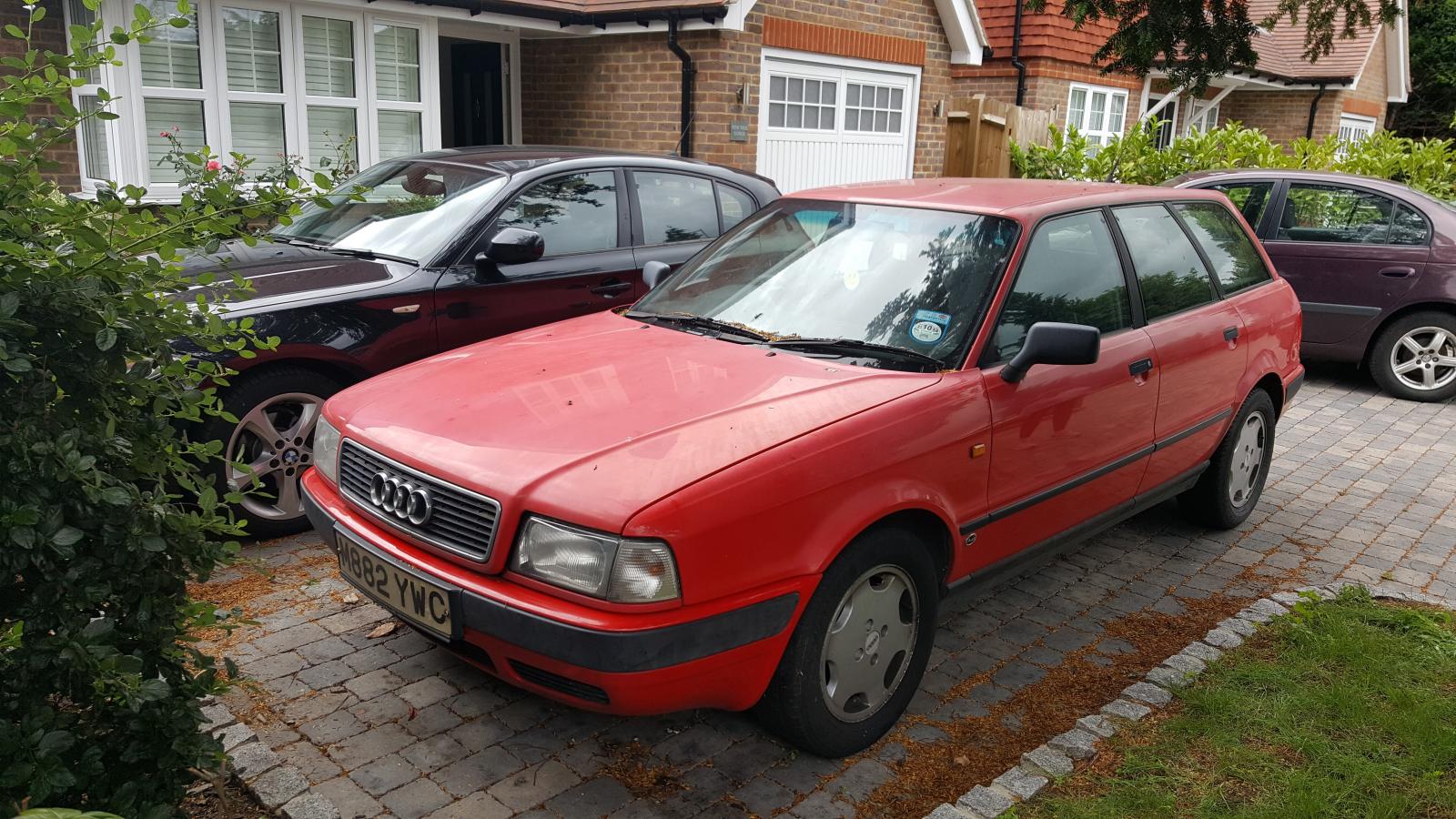

Have some pics.





From what I gather this lady inherited the car from her Dad who was a long term owner.  They used it up until December 2016 when an FTP was diagnosed by the AA as a kippered hall sensor in the dizzy.  It has full service history from what I'm told and, despite being very pink and not actually working, looks very nice.  It will definitely polish up well, because the door shuts etc are very red still.



They don't want any money from me, only for it to live.  So that's the intention.

[trigger]

Look does look a cracking car to be fair and will look a million times nicer after a buff up.

[Guest Hooli]

That looks disgustingly solid, good luck fixing it.

[Guest Hooli]

Hopefully someone with a better knowledge of these engines can confirm, but this looks like a hall sensor that'd fit in a dizzy to me...





https://www.gsfcarparts.com/923vg0180



£76 new.

[alf892]

The local Bosch place reckon they could match something for about 35/40 quid......but not totally straight forward as while it is easy to ID the distributor that should be fitted........it may not be the one actually fitted.

[Shep Shepherd]

This needs to be fixed!

[Christine]

Innit the same as a late golf mk21600 ?



I've got HBOL for Aldi 80 if you want it

[Christine]

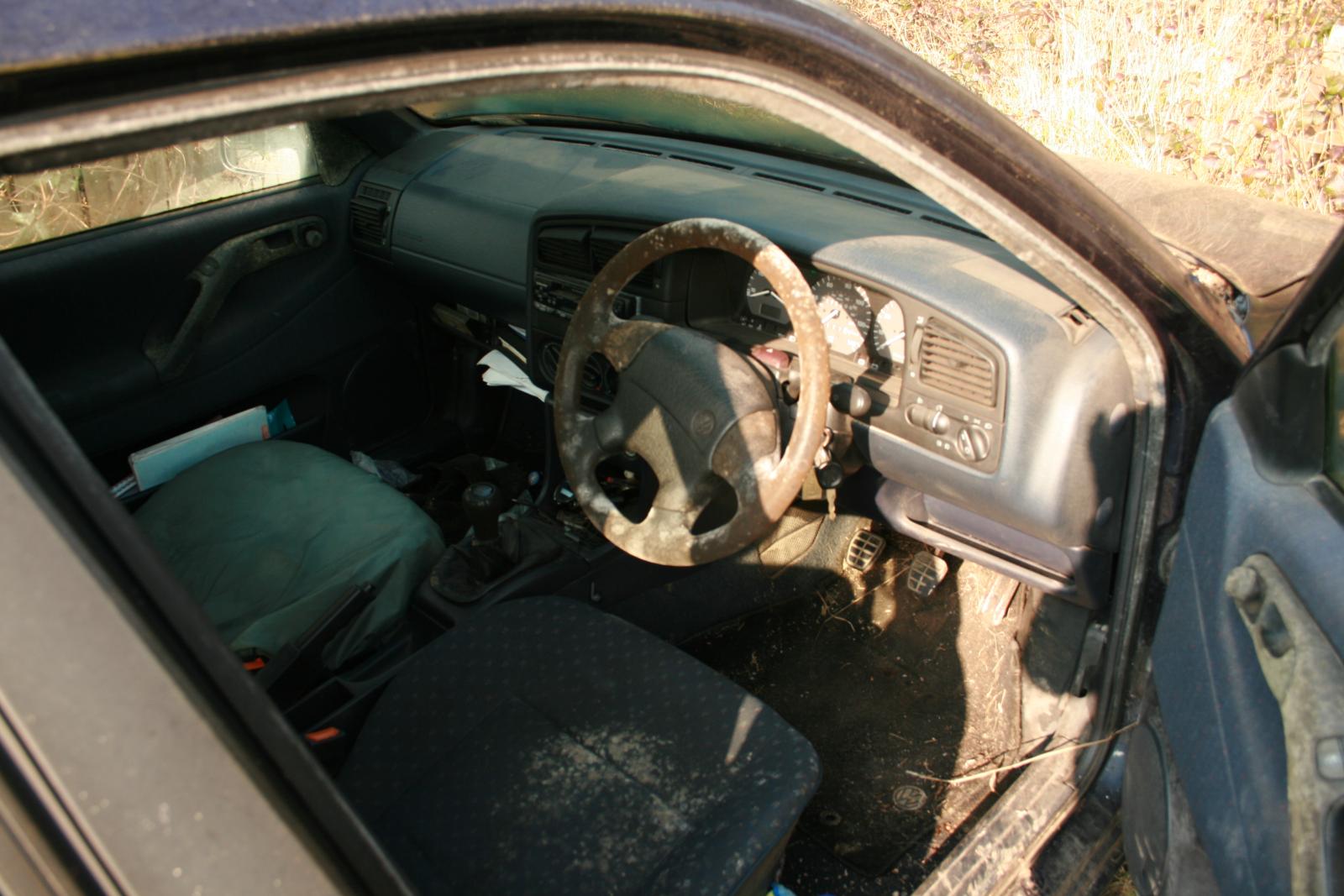

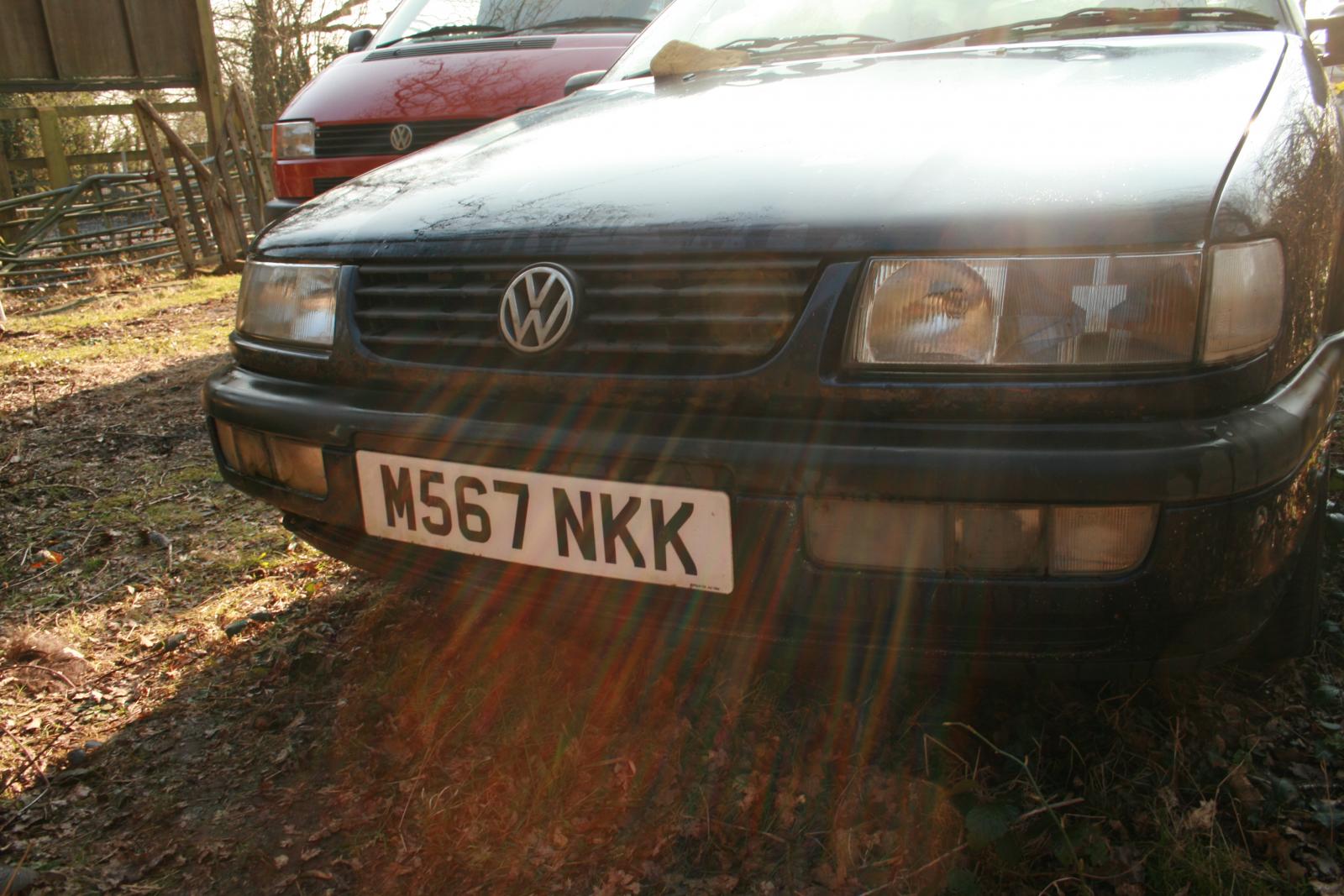

This is 1800 and free to collector ..any good for parts ?   I'm going there tomoz . Starts drives stops . good engine ,inside gone mouldy..good tyres  ,  I reckon it would pass mot.







[oldcars]

I so want to polish that 80.

[BorniteIdentity]

Innit the same as a late golf mk21600 ?



I've got HBOL for Aldi 80 if you want it

Possibly. But possibly not. Info is so vague. It is certainly not the same as a Seat 1.6 which, weirdly, used the same dizzy as the 1.8 Audis.



Not sure anything on that Vohksvargen would be of any help apart from steels and tyres (if they're good and match).

[Lacquer Peel]

Not sure anything on that Vohksvargen would be of any help apart from steels and tyres (if they're good and match).



They don't, I think the Audi has a PCD of 4x108, the VW 4x100

[BorniteIdentity]

Bum.



I prefer the classic Audi trims to these big alloys. That would be my goal with better tyres than already exist.



Sent from my SM-G920F using Tapatalk

[Christine]

Looked at the passat.  Only 14" wheels too .



 Wiper blades gone rotten,   interior ok    but mouldy  and o/s rear light lens got a small  hole in it now . Well developed stone chip rust on o/s windscreen pillar ...not holed though . Cambelt done at 154 k



[BorniteIdentity]

When do you collect it?

[Christine]

 Asbestos protection suit ready...







Actually, all those white germs just wiped off , easy as wink

[Guest Hooli]

Hopefully someone with a better knowledge of these engines can confirm, but this looks like a hall sensor that'd fit in a dizzy to me...





https://www.gsfcarparts.com/923vg0180



£76 new.



Reposting this as it still looks like a hall effect sensor to me, anyone know the engines well enough to confirm?

[BorniteIdentity]

Use an anti mould spray from the supermarket. Unless you kill the spores, it'll come back x



Sent from my SM-G920F using Tapatalk

[Grundig]

That could be a 2.0 engine (ABK) code - The size is usually on the engine block same side as the alternator  and is cast in raised numbers



That sticker on the timing belt cover should have the engine code on it too

[BorniteIdentity]

Here's the ridiculous solution.



http://m.ebay.co.uk/itm/192284733990?_mwBanner=1



How do I tell Alf892 about collection?(!)

[M'coli]

Reposting this as it still looks like a hall effect sensor to me, anyone know the engines well enough to confirm?

It does look like a Hall sensor, and GSF have a 50% off weekend so it'll be cheaper than another engine.

[BorniteIdentity]

This year has just flown. Genuinely. Can’t believe this saga started in July!



I can’t thank Alf892 enough; he’s been a legend. Sadly, the AA diagnosis appears to be incorrect. The distributor has now been tested up and is ok.



Time is running out for the little wagon, and it needs to be moved in the next couple of weeks.



We now suspect the ignition module and or crank sensor. If anyone spots any bits going cheap for a 1.6e Audi 80, please holler.



The ignition bit looks like this. There are plenty on eBay that look wrong. https://m.buycarparts.co.uk/vemo/7079025



Any help appreciated.

[Asimo]

Why not use a points-style distributor and coil from an older VAG mobile? Not as common as they were but they made millions and millions of these engines and one can't be far away.

If it only needs a spark, points and coil will get it running.

[DaveDorson]

It'll be the TCH ignition module me reckons.



Have you got access to an oscillascope and can you check the output of the hall in the dissy?



If that's working, it'll be the TCH, which I think is bulkhead mounted on these.



The 1.8 and 1.6 engines use the same stuff, I believe it'll be the same Digifant injection system as used on the MK2 Golf 8v engine as well.

[DaveDorson]

Just seen the dissy is OK.

Right, well that's cool.



Am I right to assume you're getting power to the coil, and that you're getting an output from it too?

[Coprolalia]

What else did they come in?

I've got some old VAG parts stashed, and I'm going to see a mate who breaks VAG next week.



Are you talking of any of these? Parts no?

[DaveDorson]

Crank sensor at GSF is listed as P/N 929VG0780 for that car.



Distributor Cap is 921VG0040



Rotor arm is  922VG0070



Hell sensor (Ignition Pulse sensor) is 923VG0180



You can probably cross refernce those GSF part numbers against OEM ones, and that'll give you a clue what cars you need to be robbing from.



Hope that's helpful.

[alf892]

Just to add......



Coil does not switch.........but dizzy OK.



Dizzy has single cut out on rotor so creates 1 pulse per rotation......so crank sensor used with early ecu to do the sums.



I'd happily put in a points dizzy in BUT don't know what effect it would have on other systems........



The Bosch place I used to test the dizzy is quite old school but no longer has the kit to test the module/switch. I'll get a picture of the this to see if anyone has one.......



Best plan at the moment is to buy the crank sensor and module secondhand........mainly because although we can find correct new ones listed we cannot find stock.

[BorniteIdentity]

Yesterday... Autoshite Hero Alf892 and I went to rake this up, as the owner’s husband was all up for scrapping it this side of Christmas.



Alf managed to blag an Ifor trailer for the cost of a bottle of whiskey, and his sister is generously allowing it to rest at her place for a short space of time. We’ve now managed to get the parts required, but it felt easier to pull it rather than fix it and drive off into the sunset.



This isn’t it.

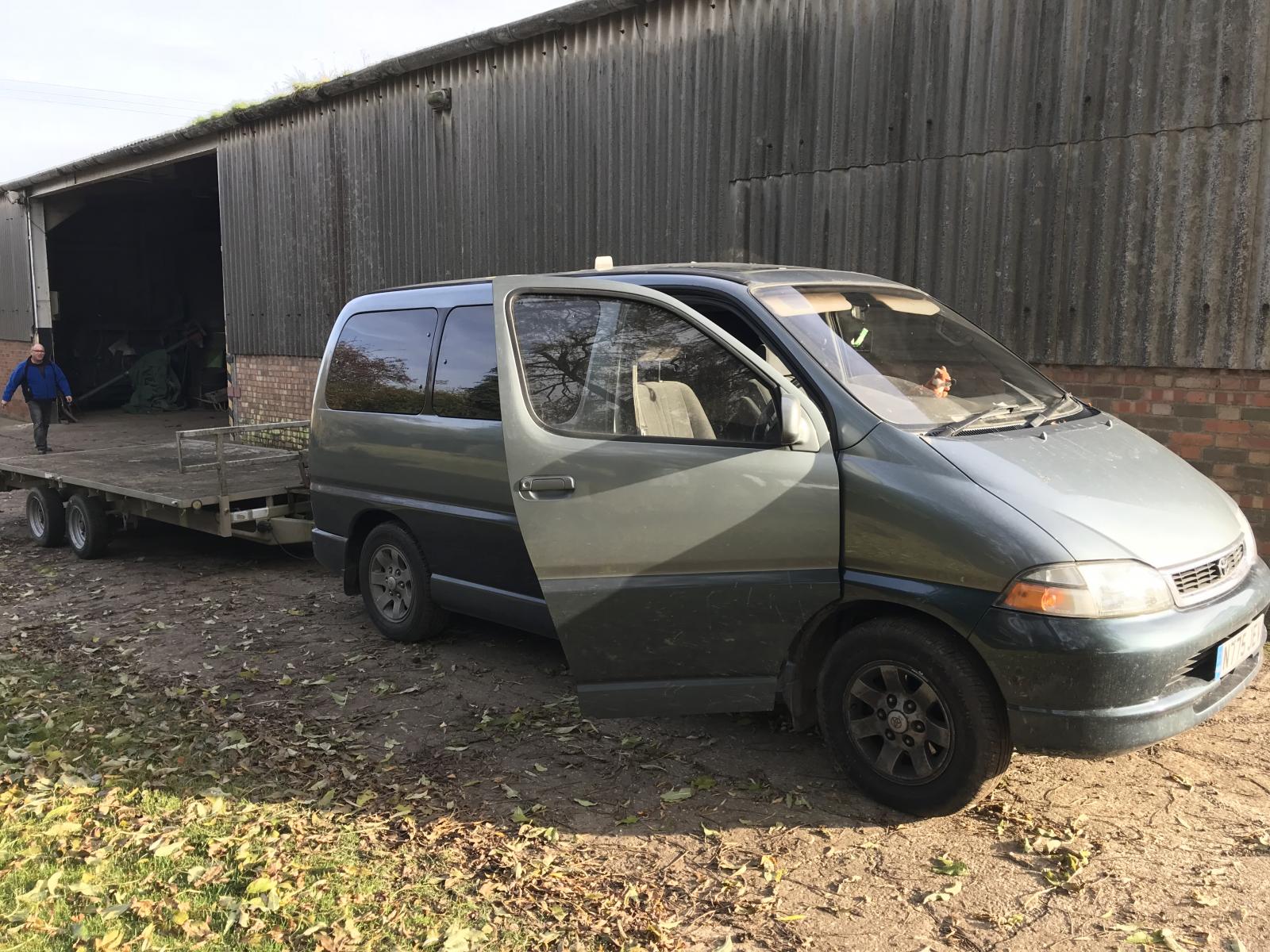

Check my rig yo!





The Granvia is a proper good at towing. Much displacement coupled with an auto box made very light work of the task. The trailer was so well behaved that we arrived with ease at Farnham Common.

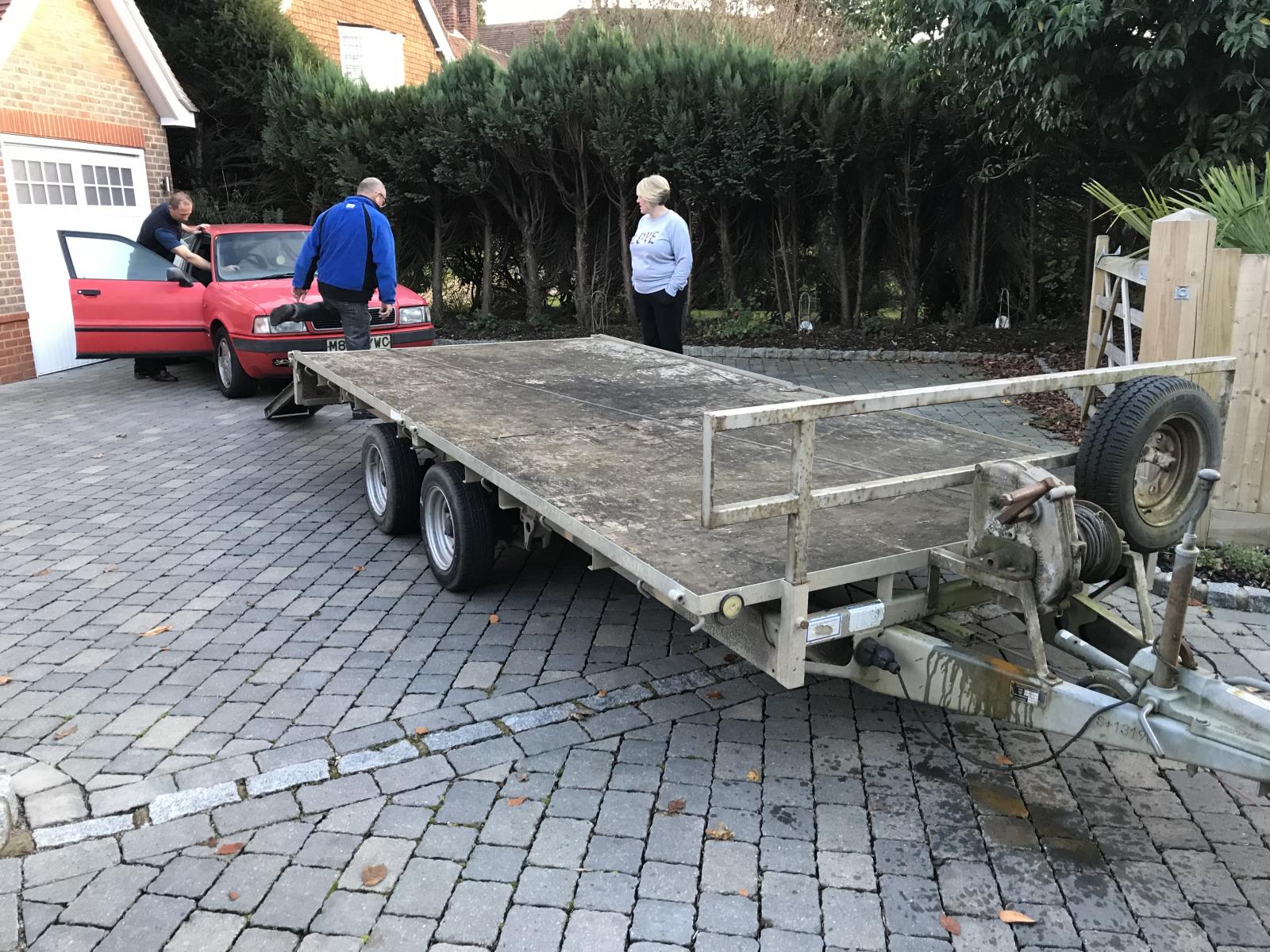

Reversing across a live lane of traffic on an A Road was pretty unnerving; especially as I’ve only ever pulled a hobby trailer before. We pushed the Audi onto the neighbours driveway and I backed up to collect it.







At this stage... we got beached. A quick jack up of the trailer front got us moving again.

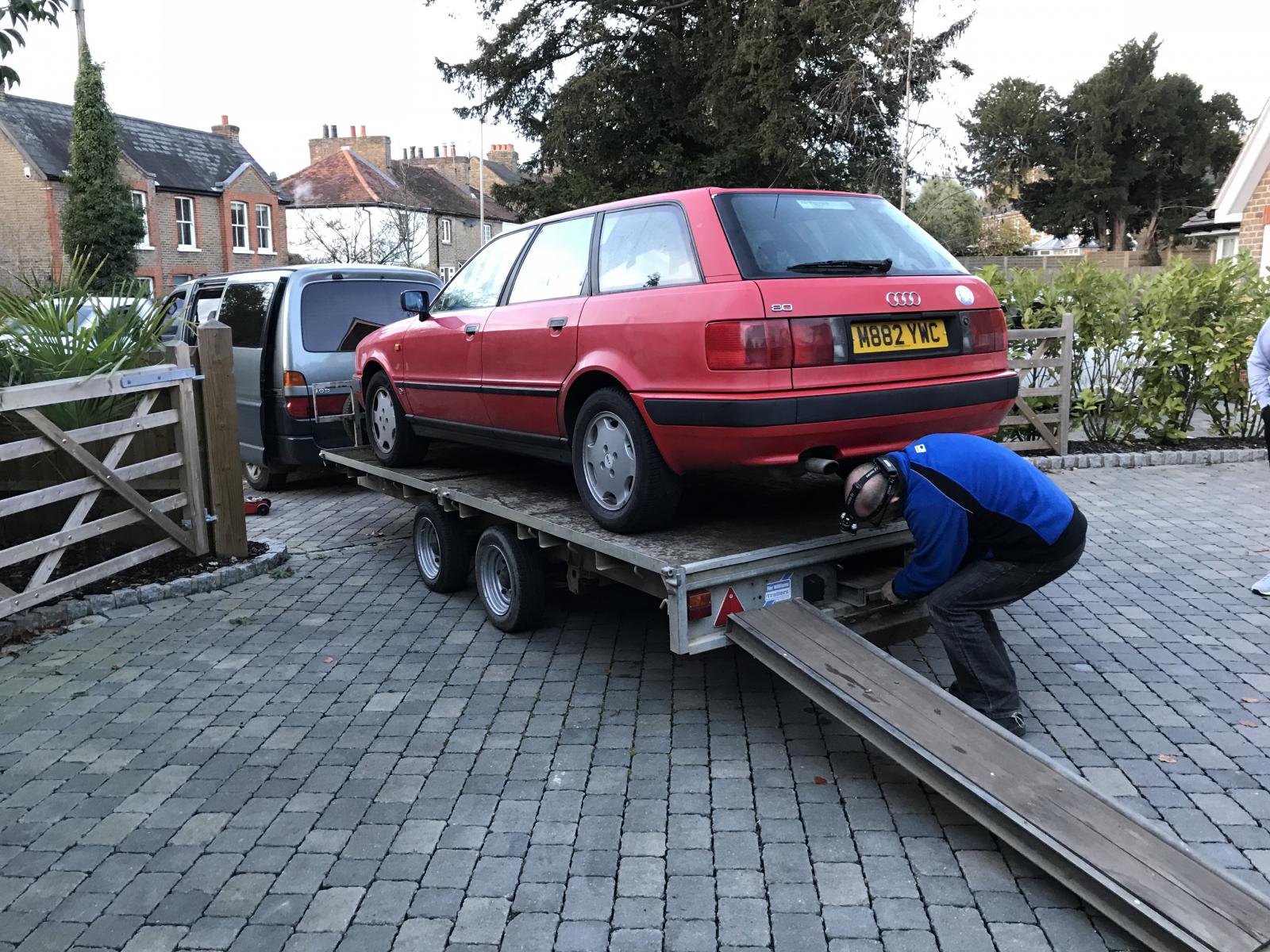

And off we went!



I’ve left out all of the scary shit for the protection of the innocent.



Here it is, back home!
