Recommended Posts

Posted

I'd not be popular on here if that was mine, I'd be rolling about in it as a rally replica in no time.



709_machacek_(Skoda_130_lr)_52d9b61550.j

You are John Haughland!



Sent from my Redmi 4 using Tapatalk

  • Like 2
Posted

Troo Stories...



Skoda bend pushrod on RAC ..shock..horror..



Man sent into nearest town to procure said, from scrappy..



Car roars on to be placed..



Aye ;)

  • Like 3
Posted

Oh...and I meant to add earlier.  First thing you should change when you get it: Coolant expansion bottle cap.  If that doesn't hold pressure the first time you hit a long hill it will boil in the head, cause the water pump to air lock and the engine to overheat.  That will most likely see off the chocolate head gasket.  For the sake of a couple of quid they cost it would be daft not to.  I don't imagine any of the old fabric braided coolant hoses will be left by now, but if there are any just change them...they're the invention of the devil and were decomposing 20 years ago...

  • Like 2
Posted

Bargain Skoda, I had a Rapid as my first car about 25 years ago and haven't seen a rear engines Skoda for years! You have a spare fiat twin cam engine laying around - I have seen Skodas with a fiat twin cam in the past, that would be fun!

Posted

I think fitting anything that doesn't just bolt straight in is above my skill level...

Posted

I think fitting anything that doesn't just bolt straight in is above my skill level...

I'm sweating out my exhaust fit :(

Posted

I managed to get it up on the ramp, it looks fairly solid underneath. There's a few areas of surface rust in places, one of the inner sills looks to have been welded in the past but looks like it might get away with cleaning up and treating rather than any welding.







45296414031_eb876a1b90_c.jpgRJC_4931 by srblythe, on Flickr



45296410441_5a63b6e2aa_c.jpgRJC_4933 by srblythe, on Flickr



45296408491_7c1afce980_c.jpgRJC_4934 by srblythe, on Flickr



45296406321_42c08f163a_c.jpgRJC_4935 by srblythe, on Flickr



45296402231_42684aecf1_c.jpgRJC_4937 by srblythe, on Flickr



45296400441_e886bf7731_c.jpgRJC_4938 by srblythe, on Flickr



45296393151_30d998e94a_c.jpgRJC_4939 by srblythe, on Flickr



45296392321_48f7d9e885_c.jpgRJC_4940 by srblythe, on Flickr



44574009684_5fa5e77cee_c.jpgRJC_4941 by srblythe, on Flickr



44574008594_371bd9501c_c.jpgRJC_4942 by srblythe, on Flickr





It's been here two days and already people have been asking if its for sale, one guy wanted to swap a mk3 Escort ghia for it and someone else said it was worth £2k as it sits. I'm not really seeing it somehow.



We had a go at starting it by hitting the starter with a hammer until it started turning, yesterday it was just clicking so getting it to just turn over was a step in the right direction. It isn't getting a spark at the leads, there's power to the coil and there's a spark at the points, the previous owner said it was the condenser at fault so will need to order one and see what happens.



I got a couple of other things done on other cars, I fitted a pair of tyres to the front of the Proton, it no longer wheelspins in the wet and I fitted a starter motor to the mk2 Polo, it now seems to start and run ok. There's still a few bits it will need for an mot but it's not far off.

Posted

Fantastic. I borrowed a 120 for a week 'back in the day' when I run out of cars. Brilliantly fun things to drive.

Posted

30485691217_91963abfc5_c.jpgRJC_4990 by srblythe, on Flickr





The grey 305 has been losing brake fluid up until the point that brakes barely worked so I had a look at the rear cylinders as I suspected that they were leaking.





45374524042_52daa06d81_c.jpgRJC_4992 by srblythe, on Flickr



The inside of the drum was pretty greasy so I fitted a new cylinder on each side and cleaned the shoes and drums with brake cleaner.



The gold 305 was also having brake issues but the fluid would disappear over a longer period of time and the brakes sometimes stuck on a little, I checked one cylinder which was completely dry and never got around to checking the other cylinder because I noticed that the rear arches were looking a bit crap and decided to tap them with a hammer...



45374521342_caa83bd40e_c.jpgRJC_4995 by srblythe, on Flickr



45374520212_ca13071209_c.jpgRJC_4996 by srblythe, on Flickr



43608819930_dde2733c16_c.jpgRJC_5001 by srblythe, on Flickr



43608819070_5c4fd3ea1d_c.jpgRJC_5002 by srblythe, on Flickr



43608818060_521115a2aa_c.jpgRJC_5003 by srblythe, on Flickr



43608816480_22b42d6bf1_c.jpgRJC_5004 by srblythe, on Flickr



Both sides are quite frilly but they've looked the same for the last couple of years, I had always disliked the look of them and knew that they would need done at some point. They were full of filler and expanding foam.

I managed to save some offcuts from the inner and outer wheel arches on that red 305 so plan is to weld them in and make the rest myself.



44701816264_523fbb8fbd_c.jpgRJC_5005 by srblythe, on Flickr

Posted

Liked - but fuuukking hell - tapped with which hammer? Thors?

Posted

That Estelle looks like a good one. Should clean up well.



While you're under there, get that hose that links the bottom of the fuel tank halves together changed - it's still the original self-destructing green fabric covered stuff.



Oh, also don't knackered the inner CV joints... they've been made of unobtanium since before I got my first Estelle in 2005.



These cars seem to eat distributor condensers, so always keep a spare in the car. My money would that being the reason it's not starting.



When set right and in good health these should start virtually instantly, the last one I had you could almost invariably start it by just touching the key to the start position for a fraction of a second.



I do miss my one. I don't miss the pain getting bits for it was though, or the endless faffing around replacing knackered rubber parts that had perished.

  • Like 2
Posted

^^ Agreed - above - Starting. Never faltered and made a fantastic 'thra..chaa..fff...froochhh...' upon firing up and thence emitted a kind of 'hi frequency jar of marbles' sound..



Fucking loved mine [jumped straight into the 130LSE from the 998 Imp] ;)

Posted

Aye, the starter motor on these doesn't sound like anything else.



Good game is in the supermarket car park, waiting until someone is walking behind the car before starting it and seeing how far you can make them jump...

  • Like 2
Posted

I've never really seen a 305 rust that bad I always thought they where quite rust resistant really

Posted

Still can't get the skoda to run. Replaced the points, condenser, ht leads, rotor arm, distributor cap. Getting spark and fuel, pops and bangs when tow starting it. Have set the firing order according to the manual and tried numerous variations but still no luck.



Sent from my G3311 using Tapatalk

Posted

They can be a sod for fouling plugs when sitting for a while.



Get them all out, hit them with the torch so they're cherry red, then throw them back in and start it as if flooded.



In my experience, it'll go first try.

  • Like 2
Posted

I've never really seen a 305 rust that bad I always thought they where quite rust resistant really





37896291192_d9138d947f_c.jpgDSC_0191 by srblythe, on Flickr



37217618064_7a35131725_c.jpgDSC_0194 by srblythe, on Flickr



38265703706_8c7eed4232_c.jpgDSC_0300 by srblythe, on Flickr



41155534054_c7163985b9_c.jpgRJC_1320 by srblythe, on Flickr



40064982170_25a1d89cf4_c.jpgRJC_1328 by srblythe, on Flickr





In hindsight I should have just fixed this one.



29475671290_0c6ca0aa1d_c.jpgDSC_0841 by srblythe, on Flickr



Instead I used bits from this one to fix 4 other 305's.

Posted

Still can't get the skoda to run. Replaced the points, condenser, ht leads, rotor arm, distributor cap. Getting spark and fuel, pops and bangs when tow starting it. Have set the firing order according to the manual and tried numerous variations but still no luck.



Sent from my G3311 using Tapatalk

That's definitely a timing/firing order issue. Set the crank to TDC and post up a pic of the distributor with cap off and also of the order the HT leads are fitted

Posted

Found your Skoda from a few years back. There's also a photo of it on a trailer three years ago, which I guess is when it went into storage.




  • Like 2
Posted

45567827411_c450b9ac26_c.jpgRJC_5093 by srblythe, on Flickr



31695278808_332ecf79ca_c.jpgRJC_5094 by srblythe, on Flickr



45567825131_16e8a7fe8e_c.jpgRJC_5095 by srblythe, on Flickr



I swapped the carb over from my spare engine which seemed to help it run better. Before it was starting and running for a short time then would suddenly cut out and start running lumpy.



45567823931_ea6ebbdc01_c.jpgRJC_5096 by srblythe, on Flickr



30626666207_0986f4cd93_c.jpgRJC_5097 by srblythe, on Flickr



30626664467_dcf1d4f725_c.jpgRJC_5099 by srblythe, on Flickr



Still got a few bits to do, I need to drop the fuel tank and fit the breather hoses, replace the fuel hoses on the tank, make a manual choke cable etc.

  • Like 4
Posted







It's been here two days and already people have been asking if its for sale, one guy wanted to swap a mk3 Escort ghia for it and someone else said it was worth £2k as it sits. I'm not really seeing it somehow.

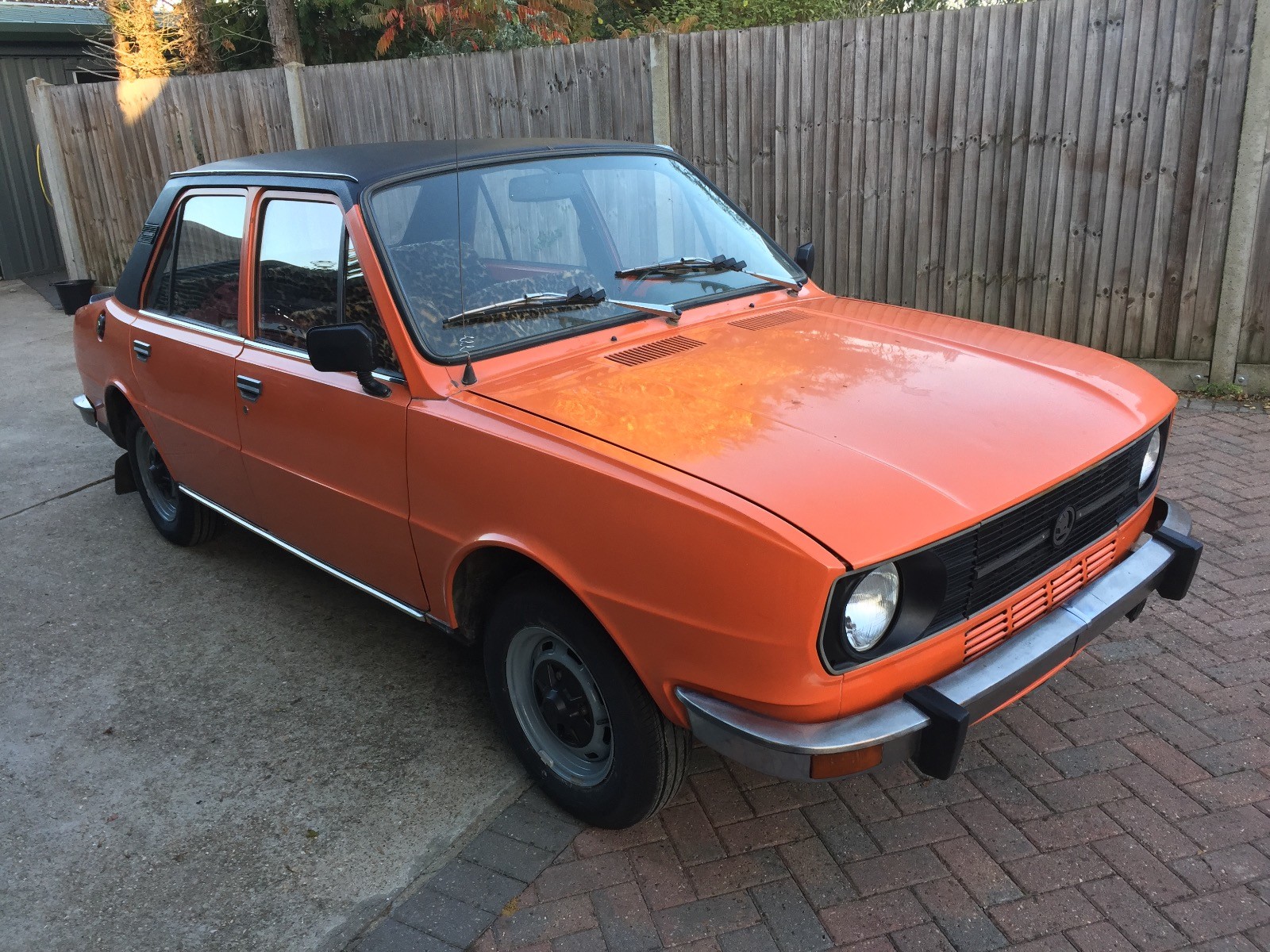

Buy this one






https://www.ebay.co.uk/itm/1980-Skoda-120L-Estelle/163331084470?hash=item26074a90b6:g:tcAAAOSwjNdbz1Ho:rk:1:pf:0



and you'll be on the new series of Flipping Bangers, by the looks of it.



Estelles have a following, it seems.

Posted

45271740192_aa7a295df5_c.jpgRJC_4970 by srblythe, on Flickr





Derskine came round and gave me a hand trying to start the Skoda, I took the rocker cover off and got it to tdc on cylinder one then put the leads in the correct order. It sounded like it was close to firing but backfired out the carb. Derskine reset the points gap then started to adjust the valve clearances when he discovered that the 5th pushrod wasn't moving at all when turning the engine over.

I removed the rockers and side cover of the engine and discovered that one of the followers was seized, I tried tapping the pushrod which moved the follower down but then when I turned the engine over the pushrod would go up but wouldn't got back down. I had hoped that doing this a few times would free it off but didn't have much luck.

Now I need to work out how to remove the follower. If it's an engine out job then I'm probably going to try and find a 1.3 Favorit engine.

  • Like 3
Posted

Odd one that!



Luckily engine out is probably less than an hour's work with the gear you have there.



Two things...Number one, the top bolts on the bell housing as I recall are a total, absolute swine to get to. Two: the engine will try to flip itself upside down the moment it's freed from the car thanks to the way it's balanced.



While it's out, you'd be a fool not to change the clutch release bearing. They are made of cheese and like to fail at the drop of a hat. I've had four engines out of Estelles - every single sodding one to change that five quid bearing.



Biggest headache to sticking the later engine in is the mods needed to the sump and oil pick up as I remember, other than that it should be pretty much plug and play. Exhaust manifold may also be an issue, but I'd be surprised if there's not someone in Eastern Europe these days that doesn't have a kit on the shelf to do the job. These cars do have quite a strong following these days.

  • Like 3
