Many reasons NOT to buy a discovery 2. Tinkering.

[sutty2006]

I’ve bitten the bullet and bought a genuine pipe. £184 delivered. Money I can’t afford to spend after launching 400 on pipes etc. but you live and learn. My own fault.


so new pipe arrived. And I fitted it this evening. Easy enough job, but I had to get another 10mm nut n olive fitting and cut the brand new pipe up.




ouch. But it’s now fitted. Working. And quiet.


Next job is to get a nanocom and bleed the system.

[Minimad5]

Well done for keeping this on the road.

Quite rare now to see a standard example still on the road.

👏

[sutty2006]

Today I have finally achieved replacing the rear trailing arm bushes. Something my MOT man picked up on at mot.


The use of a hydraulic press is essential.




new bush going in



lovely jubbley





done both sides. The passenger side level sensor bolt snapped off so had to be drilled out and replaced.




and the shockers had had it, due to the poor state of the roads on my way to work (thanks stoke on Trent council) the suspension has been taking a beating.




drives perfect again.



until next time!!!

[sutty2006]

I went to LRO at the weekend with the response group, the family and the wobbly box.










I actually really enjoyed it. Dare I say it, more than the Vauxhall show. Shame, but it is what it is!


I went with the intention of having the discovery remapped, as three main tuners were on site all weekend. I ended up having Empire Tuning remap my ecu for a bargain price of £200. Discussions were had with the agent on the stand who I actually knew from years ago! I explained that while towing, I need to be able to maintain 60, as it was dropping to 50 on hills. A stage 2 progressive towing map was installed and I refitted it Sunday before we left for home. The discovery is a completely different drive now, it changes gear better and can maintain 56 on hills without dropping a gear and screaming it’s rusty nuts off.


while I was at LRO, the auto jumble was huge, and lots of defender/discovery/series parts on offer, including rear stowage boxes for the D2 in good condition which I’d been after for a while! Even better that the chap selling them was (again) someone I knew! Bargain for £40 the pair!

tonight in the dark I took the 6/7 seats out.



and removed the bowl





fitted the stowage box on right.






much better. I’ve tucked the rear seat belt into the pillar to keep it local.


the boxes will be so much more useful to keep straps, first aid kit, useful stuff in, instead of seats that don’t get used.

[sutty2006]

More general maintenance done today.


Auto box oil and filter change





nice n coffee like.

removing the pan left this lovely piece of metal if I know origins.






no idea what that’s for, but because it works just fine, I’ll pretend I didn’t see it.


new vs old filter



yummy.


all clean

fill er up



sorted.


now to drain the diffs.


rear. Ooo that’s clean! Nice.

front. Ooo err, that’s not good.




I’ve history to say the front diff was brand new a few years before I bought it. And it looked new too. good job it’s got fresh oil in it now.




nice useable work shop, but no oil draining facilities. Had to deal with the Tip Nazis to dump all my oil. They really are cunts.

[robthedonkey]

More general maintenance done today.

Auto box oil and filter change



nice n coffee like.
removing the pan left this lovely piece of metal if I know origins.





no idea what that’s for, but because it works just fine, I’ll pretend I didn’t see it.

new vs old filter


yummy.

all clean


fill er up


sorted.

now to drain the diffs.

rear. Ooo that’s clean! Nice.


front. Ooo err, that’s not good.




I’ve history to say the front diff was brand new a few years before I bought it. And it looked new too. good job it’s got fresh oil in it now.



nice useable work shop, but no oil draining facilities. Had to deal with the Tip Nazis to dump all my oil. They really are cunts.

Most of ours are the same ... Trailers don't have oil lol

Although we do have oil barrels that are collected as we do our own shunter servicing

Sent from my Pixel 8 using Tapatalk

[Andyrew]

@sutty2006

Asked a mate whos built hundreds of these boxes.



[24vdiamond]

6 hours ago, sutty2006 said:

More general maintenance done today.


Auto box oil and filter change





nice n coffee like.

removing the pan left this lovely piece of metal if I know origins.






no idea what that’s for, but because it works just fine, I’ll pretend I didn’t see it.


new vs old filter



yummy.


all clean

fill er up



sorted.


now to drain the diffs.


rear. Ooo that’s clean! Nice.

front. Ooo err, that’s not good.




I’ve history to say the front diff was brand new a few years before I bought it. And it looked new too. good job it’s got fresh oil in it now.




nice useable work shop, but no oil draining facilities. Had to deal with the Tip Nazis to dump all my oil. They really are cunts.

With the power steering and ACE system on these do you have to use that green oil or is there an equivalent?

[somewhatfoolish]

On 10/09/2024 at 21:52, sutty2006 said:



Whassat?

[sutty2006]

1 hour ago, Andyrew said:

@sutty2006

Asked a mate whos built hundreds of these boxes.



Entirely possible it’s been there a while then, I can’t go through the gears hard as it’s an auto and it changes when IT wants to lol.

[sutty2006]

39 minutes ago, 24vdiamond said:

With the power steering and ACE system on these do you have to use that green oil or is there an equivalent?

Ace uses Central Hydraulic Fluid which isn’t pentosin but is green. Power steering is still atf

[sutty2006]

So, there’s never an east month.



started to notice occasional air suspension fault popping up on the dash when dropping off the kerb at work. So I had a good mate plug it in with nanocom. No faults.


we attempted to calibrate the height, which didn’t work. Sensors are sensing, so maybe a lack of air? Compressor is cutting in and out as normal.


How it sits now.




I took the filter out for the compressor, which disintegrated on removal.








ordered new, and also ordered a new piston ring and seal kit for the compressor. See how that goes.

[sutty2006]

Inlet air temp sensor replaced tonight. Takes about 30 seconds. Infact, it takes longer to get the cover off and make a brew.



hopefully the active fault will now go away.

[sutty2006]

IAT sensor replaced and that has cured the rad fan being on ALL THE TIME. Old Sensor was reading 120 degrees so probably thought it was always hot. Fault now cleared and live data say 43 degrees at operating temperature. ☑️



now, I replaced that compressor filter last night. I drove to work this morning and when I arrived, the suspension was suspensioning again. Ride height back, extended ride height working.




I didn’t bother overhauling the compressor. It’s working as it should now.




so this afternoon we recalibrated the height. Now it handles likes it’s on rails again.

[ianbmw]

These are sooo much better in air than springs

[Minimad5]

Well done for keeping this on the road, becoming increasingly harder to find a non molested Disco 2 (Hence why i went for a L322).
The Td5 even produces a good sound when not restricted.

[sutty2006]

This is how it sits now. Much better. Need to raise headlight aim.




[sutty2006]

I bought some new headlight bulbs in an attempt to blind oncoming traffic*.




osram night breaker 200+++++s.


It has been noted that the previous bulbs are a different colour between dip and high beam. Which was weird. On removing the old bulbs, they appear to be “Alite 150%+++” bulbs! Ahhh. Lol.

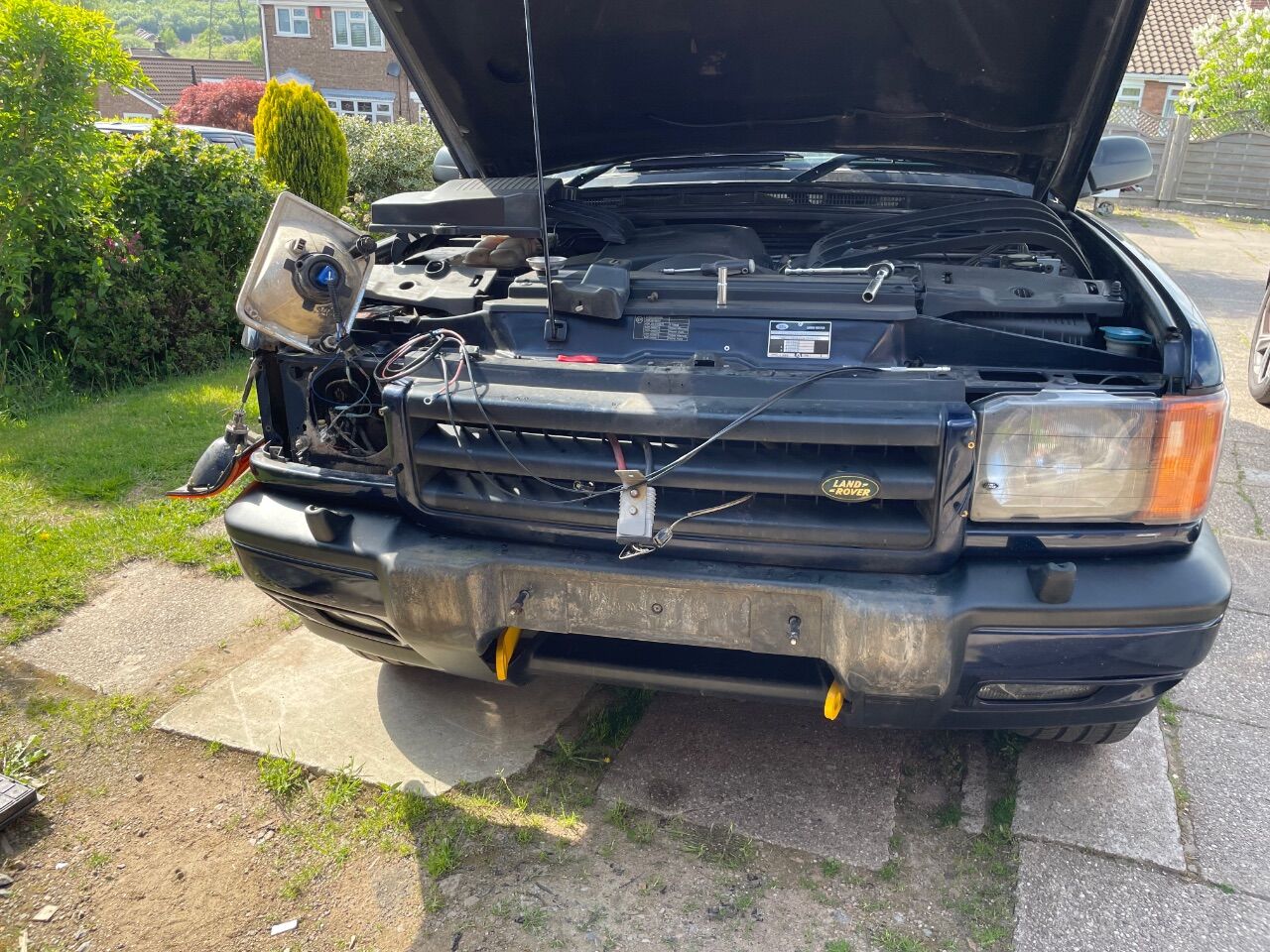

got the drivers side in, what a faff. But just check out that difference!!




not much is there? Maybe a little. We will see when I go to work tomorrow.

[Zelandeth]

3 hours ago, sutty2006 said:

I bought some new headlight bulbs in an attempt to blind oncoming traffic*.




osram night breaker 200+++++s.


It has been noted that the previous bulbs are a different colour between dip and high beam. Which was weird. On removing the old bulbs, they appear to be “Alite 150%+++” bulbs! Ahhh. Lol.




got the drivers side in, what a faff. But just check out that difference!!




not much is there? Maybe a little. We will see when I go to work tomorrow.

Halogen bulbs do lose performance over time.  Not so much in terms of total light output, but tiny changes in the filament geometry will have a disproportionate effect given how precisely designed the optics in vehicle lighting are designed.

Ideally you want bulbs without any coloured coatings on as any filter like that is essentially leaving performance on the table... especially given the shape of the distribution curve, the last thing you want to be doing is filtering out yellow!

If you can find a good quality OEM spec lamp from the likes of Philips or Osram without all the supposed whizz-bang blue nonsense all over the bulb you may well find it performs better.

Osram Night breakers used to be my go to, but definitely went backwards when they started sticking blue bits on them rather than just running the filament a bit hotter at expense of service life.

[sutty2006]

15 hours ago, Zelandeth said:

Halogen bulbs do lose performance over time.  Not so much in terms of total light output, but tiny changes in the filament geometry will have a disproportionate effect given how precisely designed the optics in vehicle lighting are designed.

Ideally you want bulbs without any coloured coatings on as any filter like that is essentially leaving performance on the table... especially given the shape of the distribution curve, the last thing you want to be doing is filtering out yellow!

If you can find a good quality OEM spec lamp from the likes of Philips or Osram without all the supposed whizz-bang blue nonsense all over the bulb you may well find it performs better.

Osram Night breakers used to be my go to, but definitely went backwards when they started sticking blue bits on them rather than just running the filament a bit hotter at expense of service life.

Yeah I noticed blue on these!

[N Dentressangle]

I sometimes get thoughts of swapping my cobby old 300TDI Disco for a comfy, powerful Disco 2 TD5.

Then I read this thread 😉

[sutty2006]

Happy new year etc etc. discovery has been battling though the winter without a hitch until Sunday afternoon. I had a meeting down In Birmingham and on my return noticed a grumbling at low speed braking. Turned out to be shot pads.


Definitely something amiss

on a Sunday afternoon the only sensible option is to go to euro car parts for £15 pads. I needed this back on the road for Monday morning without fail.





Monday afternoon after work I picked my lad up from nursery, on arrival I could smell burning brakes. Great. Caliper or hose has failed, no smell or hot brake on Sunday though?


ordered new caliper and hose Monday evening and got the wife to collect them today.




the brake pipe came apart without fail. Infact, dead easy.




new hose and caliper fitted. Wife got back from nursery at 5pm and it was bled up by 10 past. Easiest caliper/hose replacement ever.


[comfortablynumb]

On 29/11/2024 at 16:49, N Dentressangle said:

I sometimes get thoughts of swapping my cobby old 300TDI Disco for a comfy, powerful Disco 2 TD5.

Then I read this thread 😉

Had numerous 200 and 300tdis, and two disco td5.

Suffice to say I run a 200 now 😁

[sutty2006]

A few jobs done today.


the D2 is notorious for not having any decent towing points. You can buy these bolt on tow points that bolt directly to the chassis. Some cutting is required.


and copper grease added for durability.



they were painted in 2 pack yellow for visibility reasons.


Needs a clean



[N Dentressangle]

Still a great looking truck.

I'm never really tempted by a Disco 3 or 4, mostly because I'd feel a bit of a dick and I'm too tight to pay for all the repairs, but there's still something nice about the 2 despite all its 'issues'.
