Help please. 1.1 Tu engine in a 205 timing

[Tickman]

Currently fucking about attempting to do the timing belt on an F reg Peugeot 205 belonging to @stereotype basically had a bit of a mare so need to find tdc on cylinder 1. Anyone know where the place for locking the flywheel on this engine is?

Please?

[twosmoke300]

At the front of the engine on the flywheel end . 8mm hole . Be aware that this will be no1 and 4 tdc not no1 tdc firing . So you may need to turn it over twice to get it right . Oh and no1 is flywheel end

[Tickman]

I cannot find this hole! Is it where the crank position sensor is fitted?

That is the only thing I can find!

[ruffgeezer]

Hang fire, I'll try and get a picture of my 1.6 tu if i can.

[cobblers]

5 minutes ago, Tickman said:

I cannot find this hole! Is it where the crank position sensor is fitted?

That is the only thing I can find!

its been 15 years since I did one, but it's not the crank sensor hole. Further inboard and lower IIRC

[Tickman]

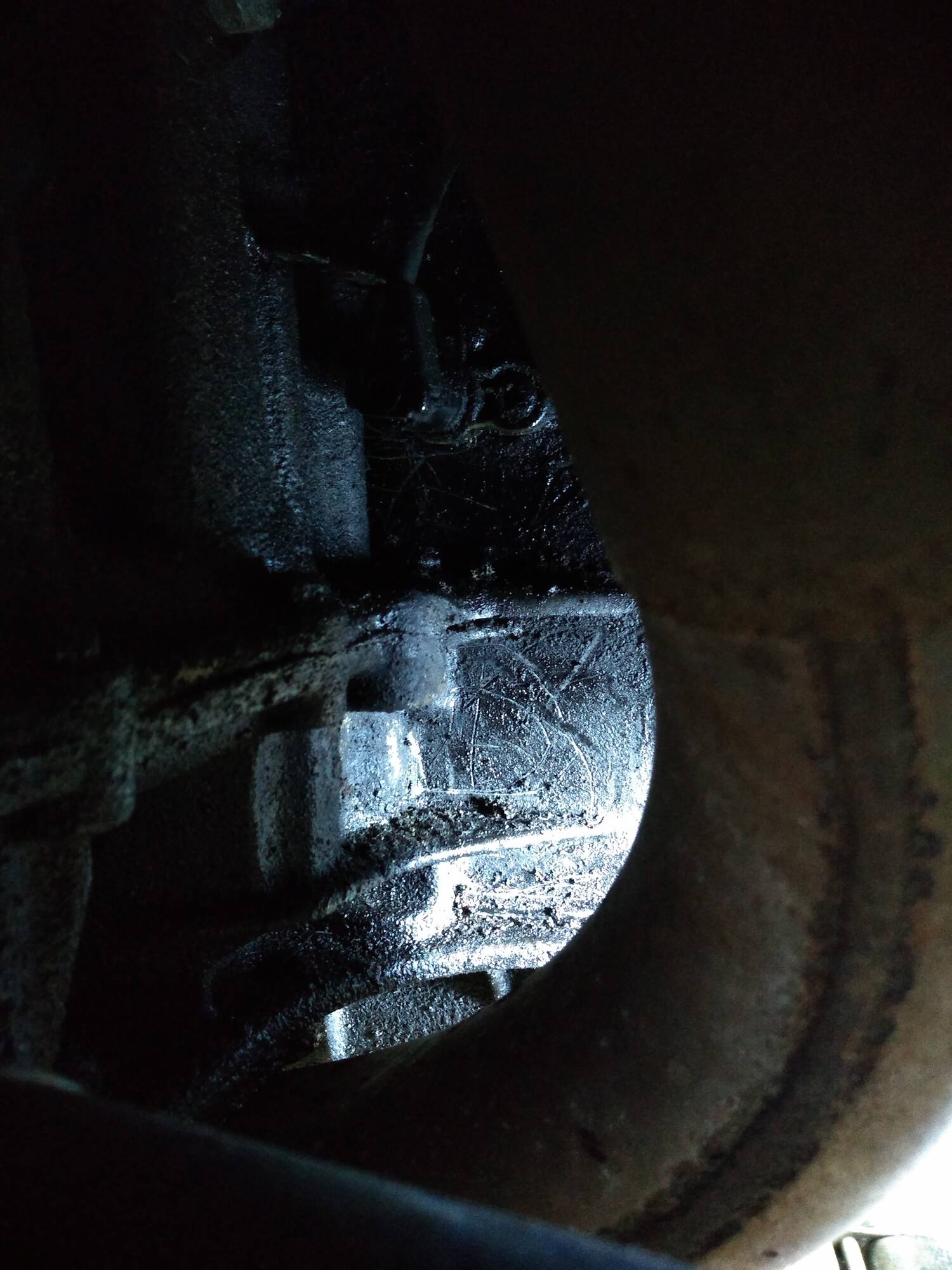

Picture from next to the oil filter

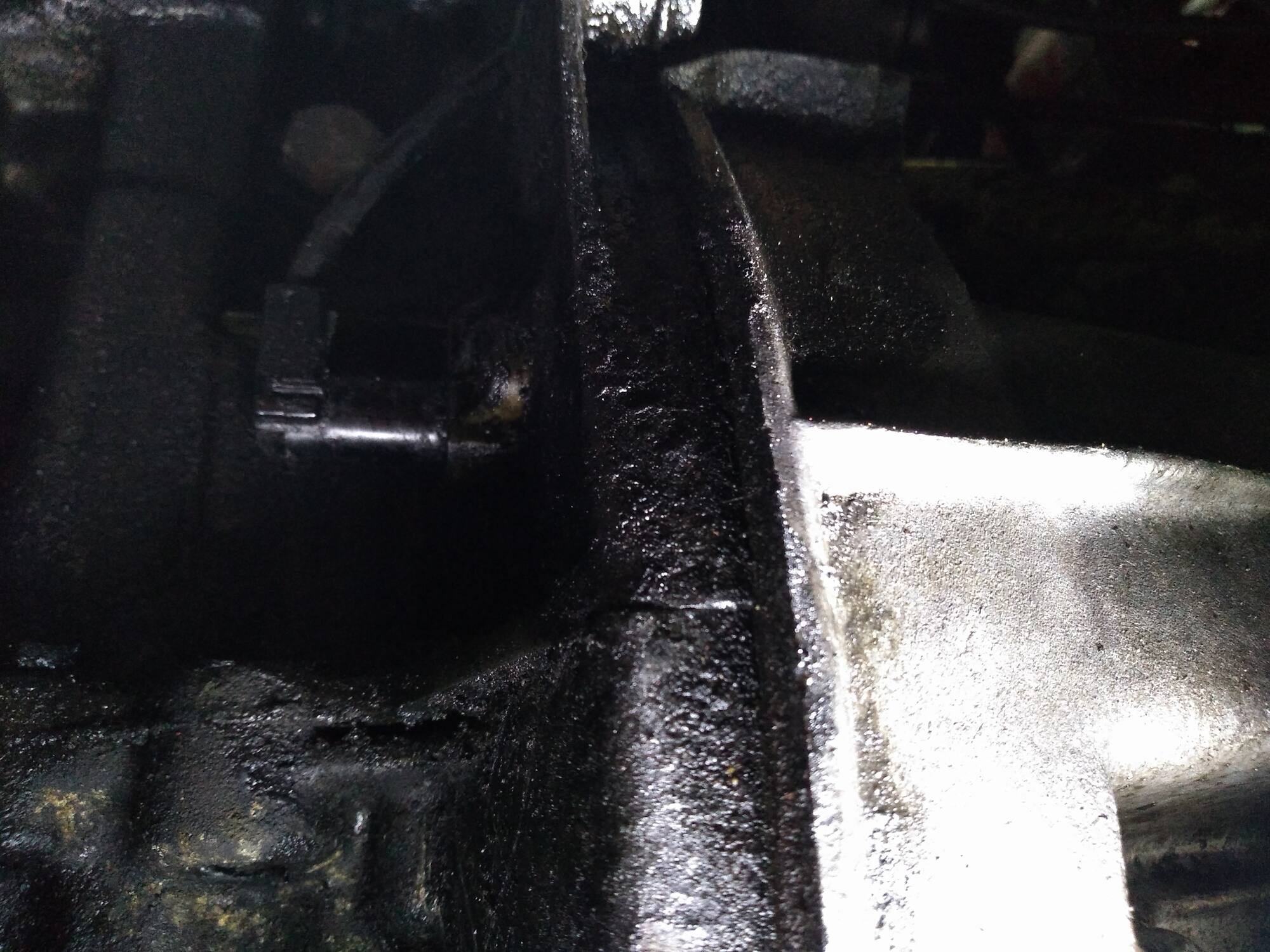

[Tickman]

Same thing, different angle

[Tickman]

My 10mm drill bit is too long for locking the cam so making a pin it is.

[ruffgeezer]

Sorry, I thought I'd replied earlier with a shit pic, but I hadn't.



This is far clearer than my effort.





Crank sensor hole is lower and further forward in this example.

[Tickman]

Thanks to @ruffgeezer I found the hole, made up a little locking pin and reassembled.

I've just done the first fire after winding the engine over a couple of time and checking the pins went back in.

Now to put the covers and stuff back together and fill with water for a flush!

[Jim Bell]

Well done man, that's mega news.



[Tickman]

Such relief!

[ruffgeezer]

They're a bastard when the hole is a bit corroded, I usually end up with a slightly undersized pin.
