Broadsword's Fleet Thread


Recommended Posts

The fortunes in Shite are subject to rapid change. That was certainly the case today when I got a call that the Rover had expired in the middle of York. Clutch pedal jumped all the way up and the engine sounds like it's about to explode. I'll assume the DMF has grenaded without warning and taken out the clutch. Not a good start to the week. :(

Link to comment
Share on other sites

  • Broadsword changed the title to Broadsword's Fleet Thread - Rover Dead

Things unravelled with the Rover upon digging into the FTP. First I noticed no fuel was getting through and the tank is full off rust/debris, all the way to the injector pump (so there is debris past the fuel filter). Then looking at the timing belt is has slipped and shredded partially along with the auxiliary belt. There is loud clack noise from the head when you rotate the engine by hand so there is major engine damage for sure. The little bit it did run sounded like 1 cylinder.. Anyway I need a car that I can rely on and given the Rover has already had a new head, I think some underlying issue was not figured out when it got worked on by a previous owner. It's going to get scrapped. Shame really it was spot on right up till the moment it grenaded, and was a nice drive.


Link to comment
Share on other sites

In the aftermath of the Rover’s demise, this is my analysis of the sequence of events.. Either one of the engine accessories or the auxiliary belt tensioner locked up leading to partial shredding of the the auxiliary belt. Parts of the auxiliary belt found their way into the cam belt housing, locking it up and partially damaging the cam belt. This immediately bounced the valves and trashed the head, possibly the pistons too. Incidentally the fuel system is full of rust but this wasn’t actually causing a running issue. Whoever did the major work on then car knew the fuel tank was rusty and cleaned it up as best they could but it deteriorated. It just isn’t worth the time and money to try and put it right. It will just get messier and messier. I’ve booked the car to get to get collected for scrap next Wednesday. Disappointing, but one has to take the tougher with the smooth.

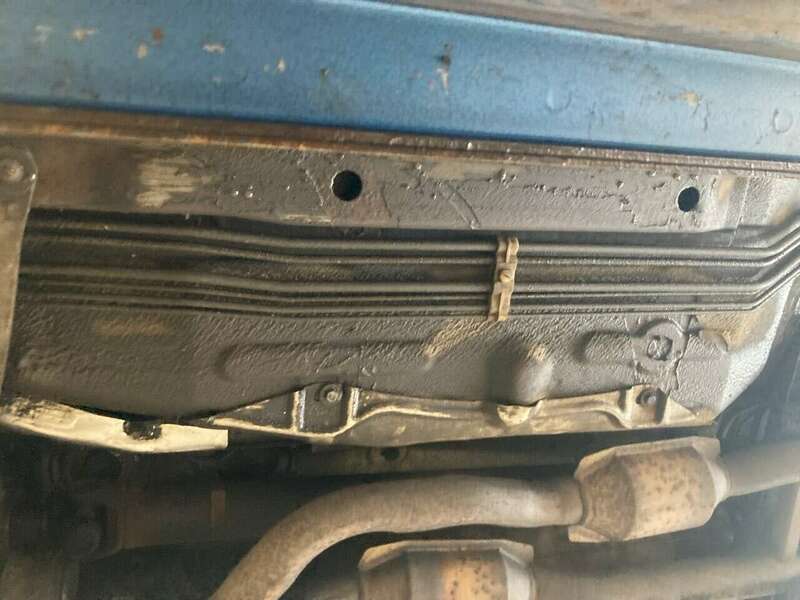

Speaking of which. I took the latest XJR manual in for an MOT. Boy oh boy does it look incongruous. The story underneath is quite different though. No rust, no problems at all really. It doesn’t even leak. It passed easily, which was a delight on a Friday afternoon.

Next job for the red shed Jag is to get the gearbox out and assess the clutch. At the very least it needs a release bearing but probably a whole clutch. You can’t buy a direct fit clutch kit for these anymore. More on that later.









Link to comment
Share on other sites

  • Broadsword changed the title to Broadsword's Fleet Thread

The Rover was towed away this moring for scrap. Sad times. I kind of don't have a daily at the moment, which will become more of a headache as time goes on. The MX-5 can serve as a runabout while the weather is nice, but it doesn't do a good job at transporting people and/or stuff. An estate car would be good.. or and XJR6 auto.

Not wanting the demise of a fleet member to get things down, I pushed on hard with the red Jag immediately after the MOT.  The next morning I took the car to be evaluated for a full respray. This is convenient now that I have a rapport with the place on the back of NLW being done and the shop is only a mile or so from home. I will have the estimate soon, but it will be a fairly similar job to NLW bar we will keep to the exact factory colour, which is Flamenco Red.

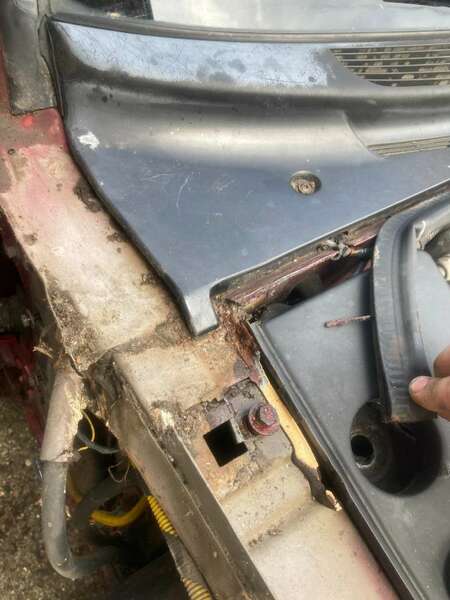

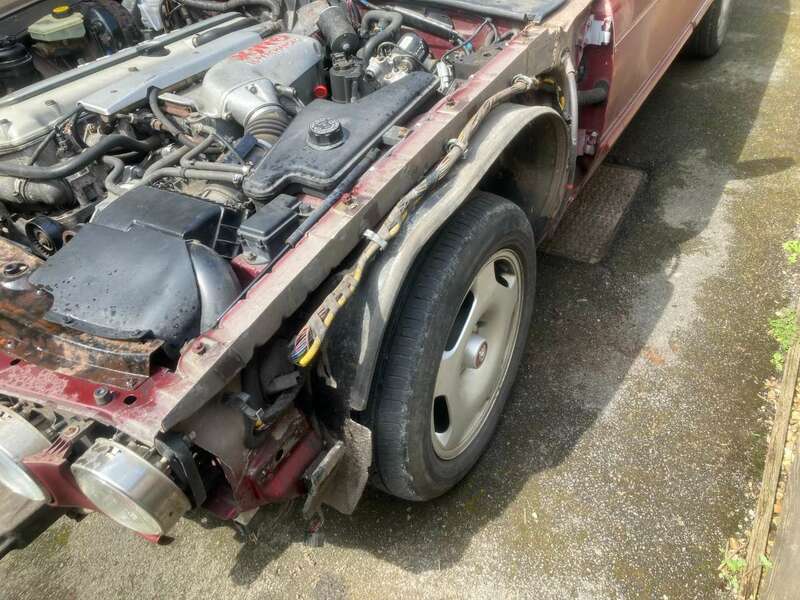

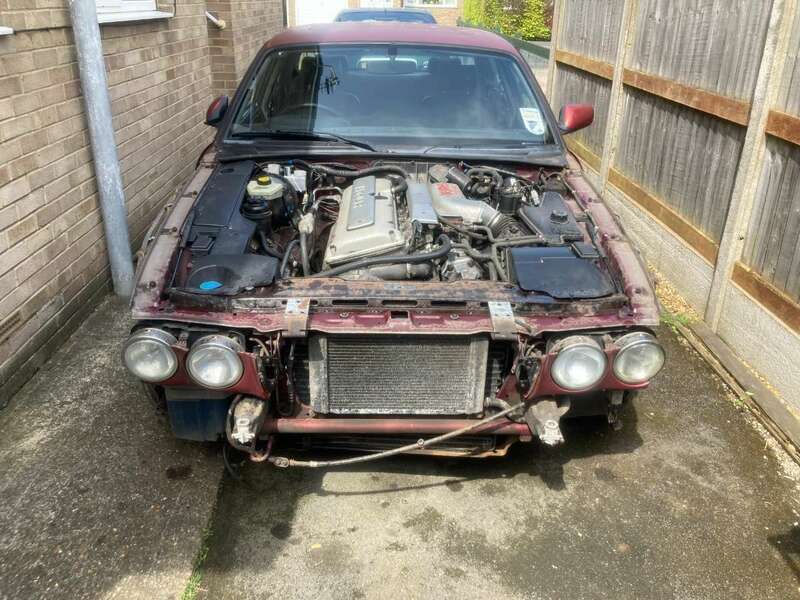

What with things going well I immediately started to tear the red Jag down. First I wanted as many body panels off as convenient to see if there is any structural rot and also to facilitate disassembly for the respray. I don't want to land them with a load of seized bolts. Again the car continues to surprise. Every nut and bolt was easy to remove. Only one snapped little bolt on the front wing, which is a no headache at all. The bumpers came off in moments as did the bonnet. Later I'll have the full interior out and the sunroof (it's stuck). There are a few bits of rust on the bodywork, but they seem fixable and I have spare front wings to go.

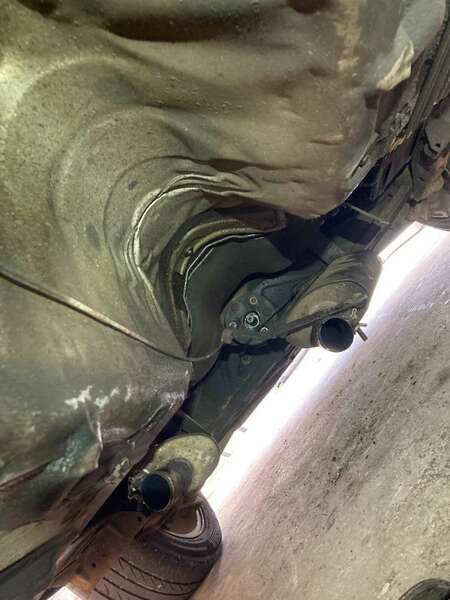

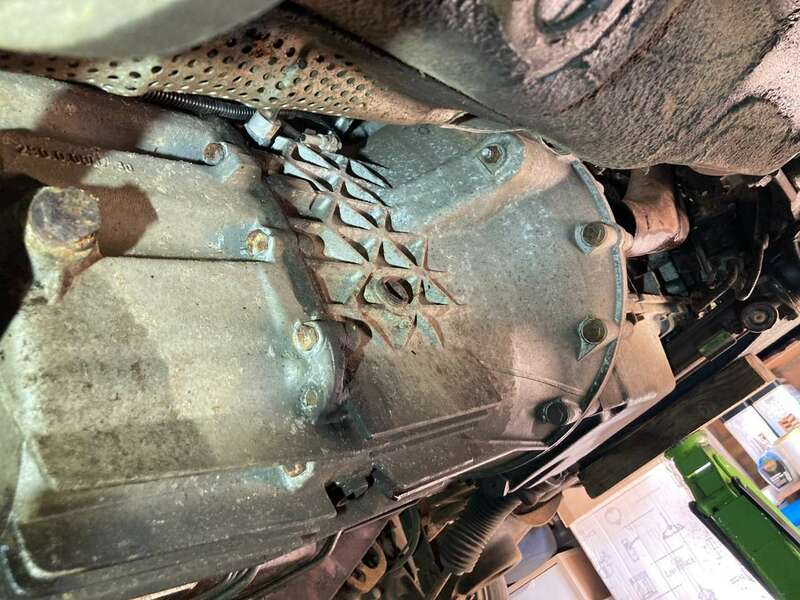

Next I wheeled the somewhat stripped Jag into the garage for the beginnings of the big job... the gearbox. This one will take me some time, but long story short, everything was dead easy from removing the exhaust, prop, clutch hydraulics, gearbox mount and most of the bellhousing bolts. I'm currently stuck with two bellhousing bolts. One is right at the very top and one holds the top of the starter in. I'll need many more extension bars and an excellent impact swivel stocket to get me over the line. Once the box is off I can assess what manner of clutch overhaul I'll be doing. One extreme is just chaning the release bearing if by some miracle the clutch had little wear (remember you can't by a new one OEM spec), the other possibility is conversion to single mass flywheel and using and XJS clutch kit. I've removed the intake system too for a whole lot of tidying up. Of course the throttle is sticking as it is on most XJR6s. Working on this one has been a pleasure. Bar those two difficult bellhousing bolts the car hasn't been fighting me at all. It wants to live. Much more to come!
















Link to comment
Share on other sites

  • 2 weeks later...

That’s it, we’re out! The weighty Getrag lump is free of the red Jag. In the end what I needed was a 50 cm extension bar and a shallow impact swivel socket to get the harder to reach bellhousing bolts out. After that the final challenge was teasing the gearbox off the locating dowels, since it was seized on.

Before too long the gearbox popped off and there was ample room to push back, lower on my little motorcycle jack and drag it out from the side. Doing this job in a small single garage on axle stands is only just about doable. It’s not terribly complicated but I really had very, very little space to manoeuvre.

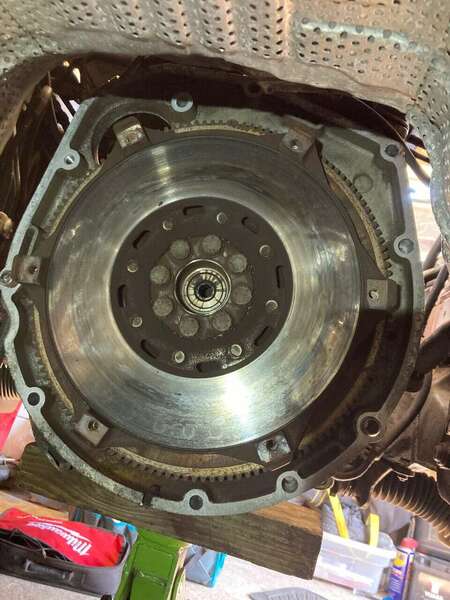

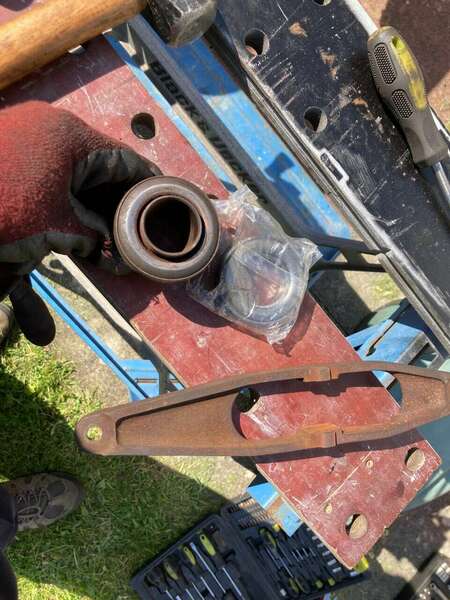

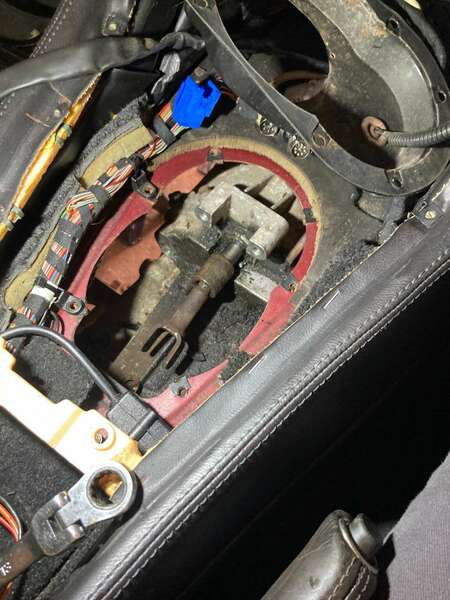

It was exciting to see how how bad things were inside. The release bearing is absolutely shot. How it didn’t disintegrate is a minor miracle. More impressive than that is how the pivot on the fork was seized solid and the fork was seized on the input shaft. It would barely move. How the clutch didn’t stick is beyond me. For a moment I wondered if the car had been in a flood. There was watery rusty residue in the bellhousing. Soon I realised what had really happened. Water has dropped from the air box drain direct to the top of the bellhousing and leaked into the transmission. Condensation attacked the pivot and release bearing in particular. In short, with a good clean up and the new bearing fitted it will be fine. To my surprise the clutch itself is in good condition. I know this sounds unconventional but I’m not going to change the clutch, just the release bearing, selector mount bushings and just clean everything up. New fluid of course, but that’s it. I’m certain it will be great after that. If the clutch was smooth (but heavy) in this state it will be fine with this work done. By the way the clutch is BEEFY! It weighs an absolute tonne!











Link to comment
Share on other sites

  • 7 months later...

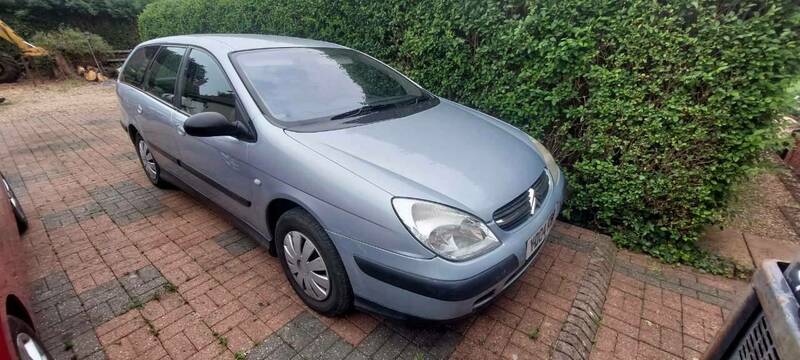

It has been an exceedingly busy autumn. The main fleet workhorse is currently a Mk. 1 Citroen C5 estate diesel, which has proven very useful at shifting just about anything you choose to throw at it. MUCH roomier than a Volvo V70, the ultimate tip run car. It will probably be up for sale soon though with a new MOT as the fleet gets rationalised to a slighly more modern estate car and probably a small Punto or equivalent for bombing around town.

The red Jag XJR manual is now in the bodyshop for sorting out all the many dents, sunroof, cracked plastics and then a full respray. It is currently in the job queue, but the dents are gone at least. I'm not in a rush. It will probably come back late spring. I'm going with the original Flamenco Red. One thing I'm struggling to get for the XJR is a working sunroof casette. Any X300 or X308 sunroof mechanism would do. If anyone here has a source, let me know.

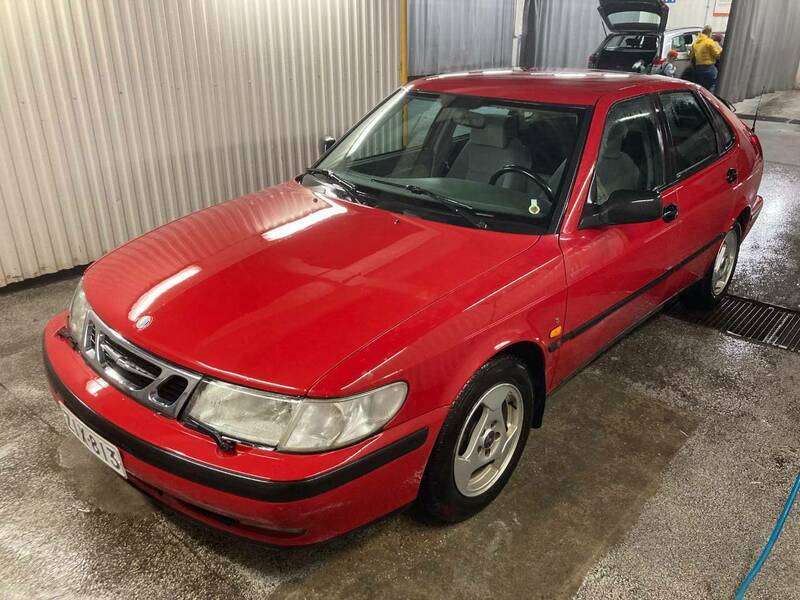

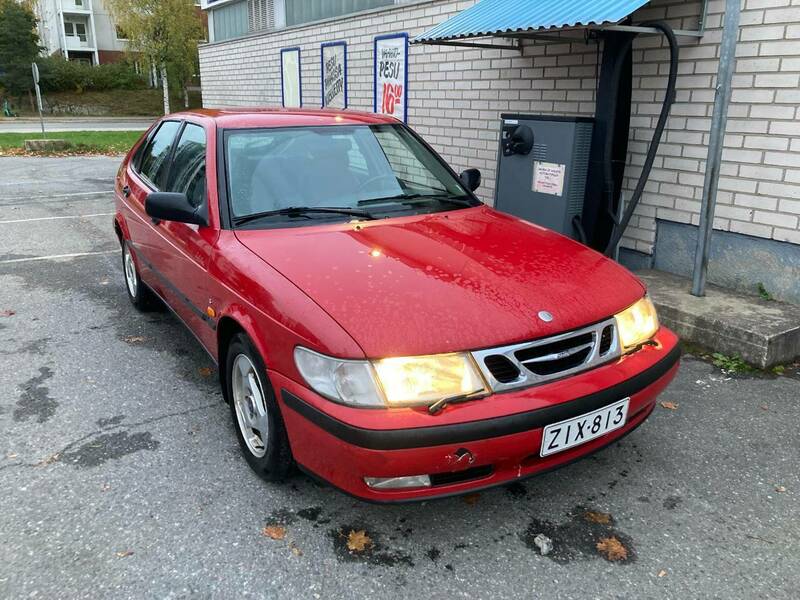

An update from the nordic fleet. For three years I have run a 2002 Fiat Punto in Finland. It has been utterly reliable, but I fancied something bigger, faster and better on the frozen winter roads. I also wanted to do this with zero budget. Amazingly I was able to sell the Punto (with a fresh MOT) for what it cost to get a MY 2000 Saab 9-3 2.0i. It was a probate car, which had been standing for a couple years, but came with a new MOT. It took about 150 euros worth of parts from the Finnish equivalent of Eurocarparts "Motonet". I love Motonet. It needed a full service, belts, tensioners, coolant sensor, thermostat and a few small things just before the temperatures got too cold to work outside. It got some proper Hancook studded winter tyres and was pressed into immediate service. 3000 kilometers in all is well apart from a broken HVAC panel. Again if anyone here has a manual HVAC panel for an OG Saab 9-3, please let me know!!! I have a soft spot for OG Saab 9-3. I love the comfy seats, nice interior and mahoosive boot. If only this one had a turbo!

Finally I've just finished editing up the footage from the summer I did on the red XJR. Check it out.








Link to comment
Share on other sites

  • 3 weeks later...

It was really too much to take on in a cold single garage over the holiday period, but the deed is done... NLW the Jag now has a new head gasket and the clutch replaced. Happily this fixed both the problems I was aiming to resolve. 1. clutch judder and slipping when provoked hard. This was caused as far as I can see by some contamination on the remanufactured clutch friction material, so I felt vindicated. I was very lucky to have a spare clutch disc, which although used works perfectly and I'm very happy with the result. One day it will get a single mass flywheel conversion, so I'm not so fussed using a spare since original clutch kits are NLA.

2. The head gasket replacement did indeed fix the oil leak out the side of the head, near the secondary timing chain tensioner. This was a sure bet as it's a known X300 weakness. The rest of the gasket was fine, but the high pressure oil feed to the head has a rubber O-ring, which will fail eventually.

There was a bonus fix. The rich running appears to be fixed now for whatever reason. You can really tell it by smell since it no longer wiffs of petrol. I knew there were some pinholes in the intake hose to the throttle body. It was replaced with a good used part and now all perfect. Fuel trims look better too.

All in all a very productive Christmas!

Head gasket oil O-ring.png
