Dave repairs a snapped headlight mount. Many photos.

[dave21478]

Snapping a headlight mounting lug is a bit of a disaster...it leaves the light flopping about not supported properly and will likely screw up the headlights aim.

I have seen allsorts of repairs in the past, usually involving a massive blob of Araldite and some cableties, but its rarely that strong and just leaning your beer gut against it while fiddling in the engine bay will likely burst it again.



Ah piss....

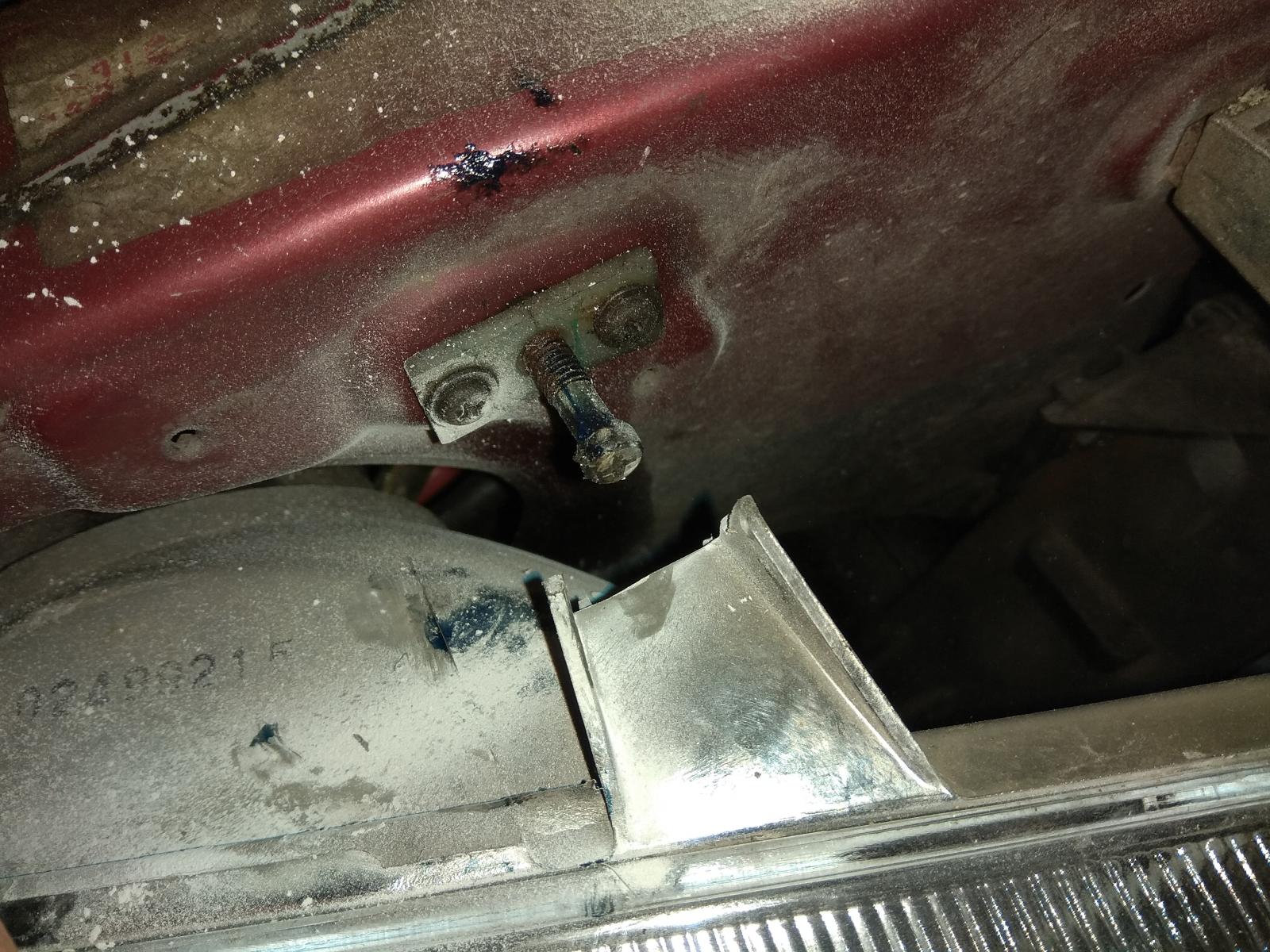

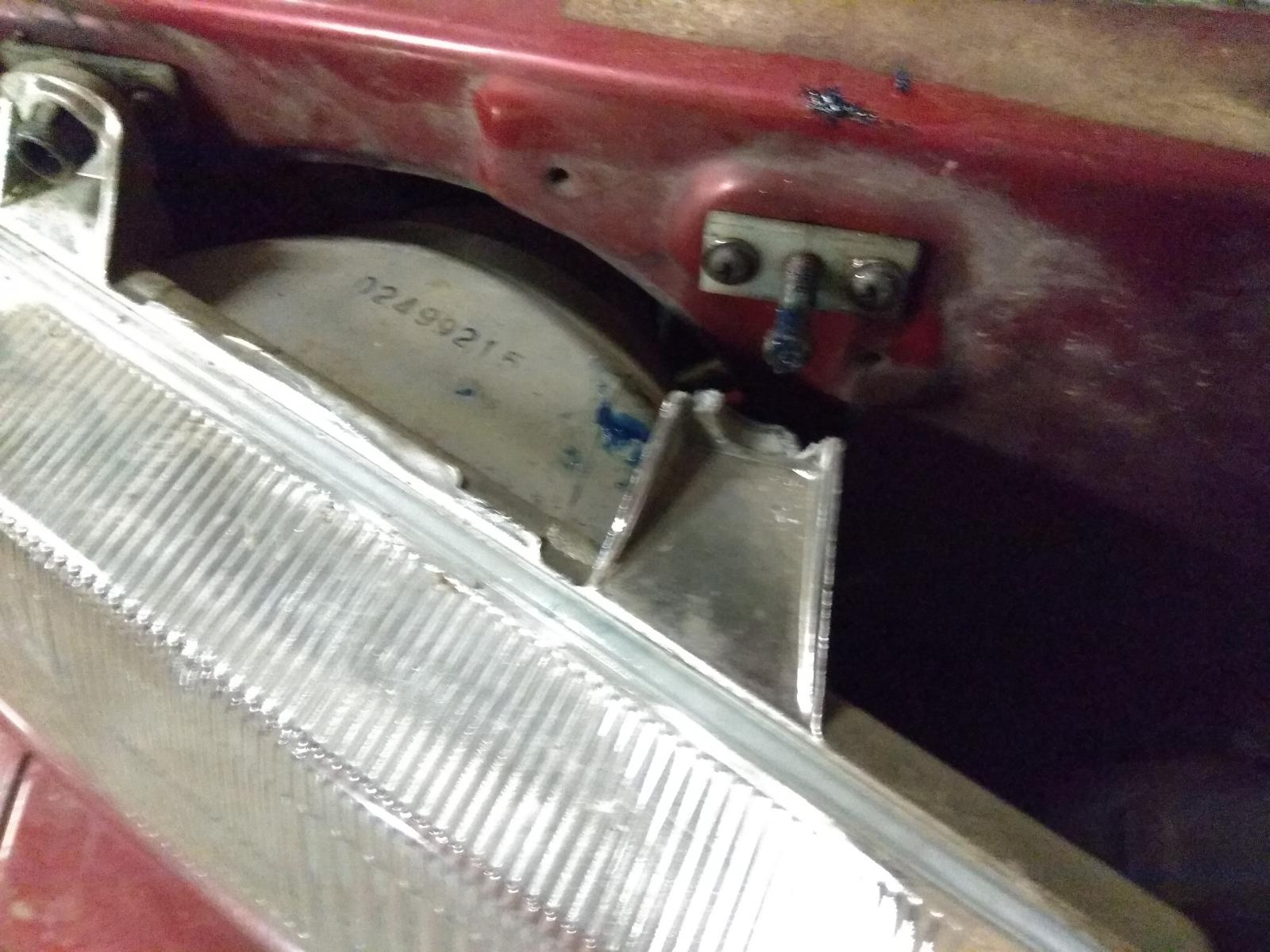

There is supposed to be a split plastic bush on the end of the ball that clips into a round hole in the headlight. You can just see the good one on the top left. After half an hours rummaging on the floor I eventually found the broken bit to rescue the plastic bush.

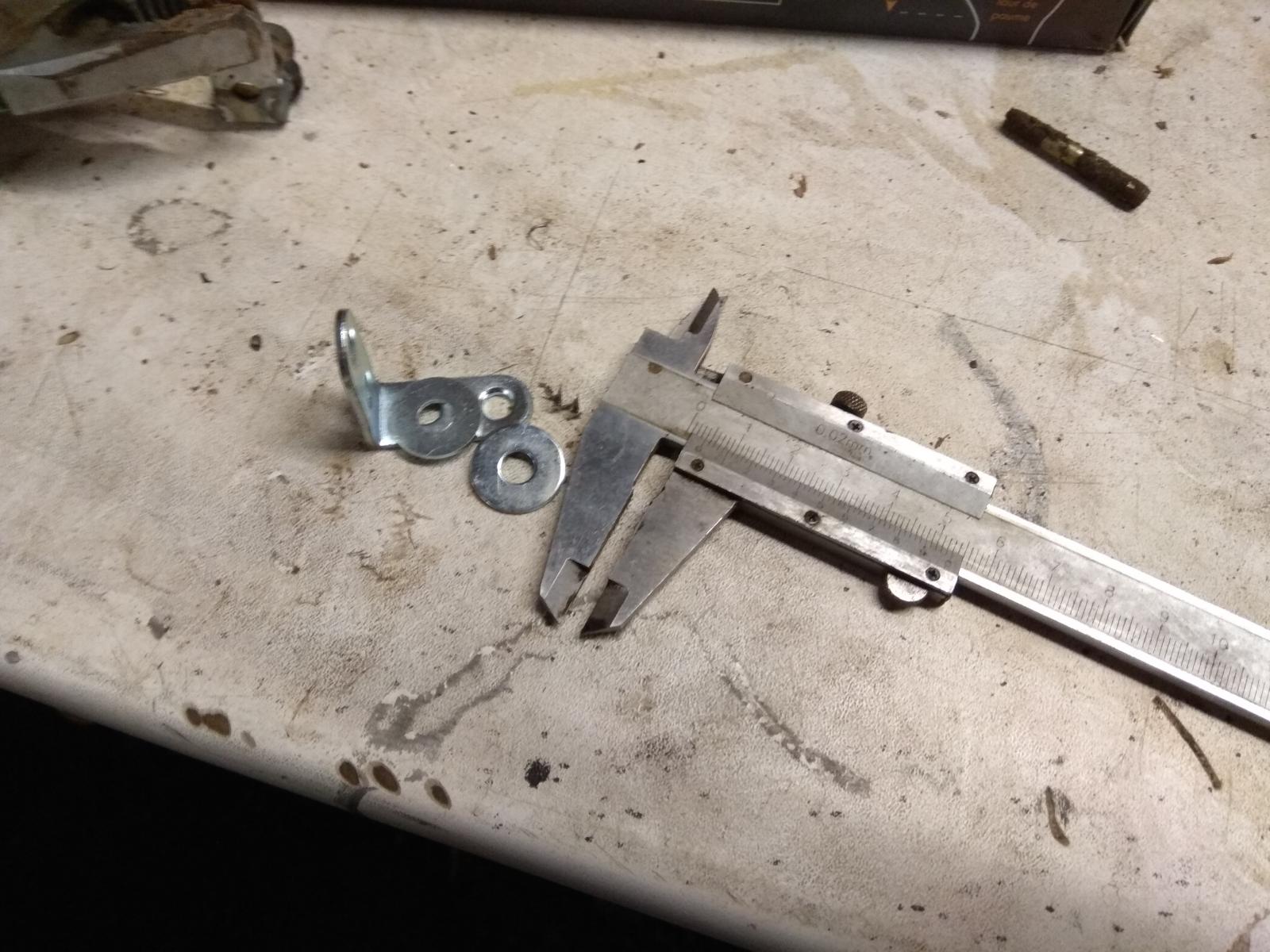

Measuring up the hardware for replacement....

As a side note, a set of sliding calipers like those are a handy thing for a shiter to have. No need to spend big dollah on a fancy set of Mitutoyos from Japan, these are cheapos from the DIY shop for under a tenner and are accurate to 0.02mm I think, which is more than good enough for DIY use.



A couple of wee dabs with the MIG to stick the washers to the bracket.

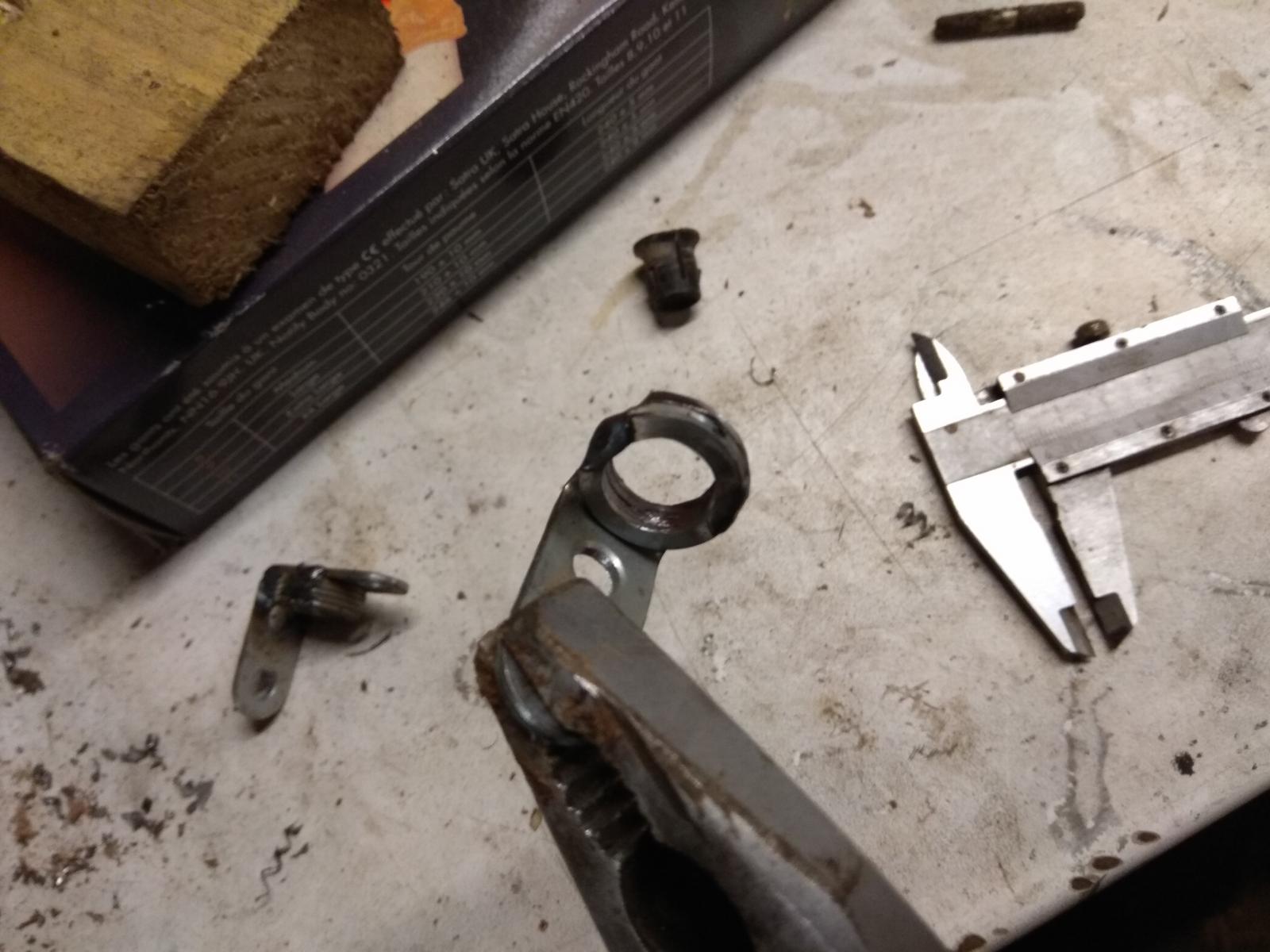

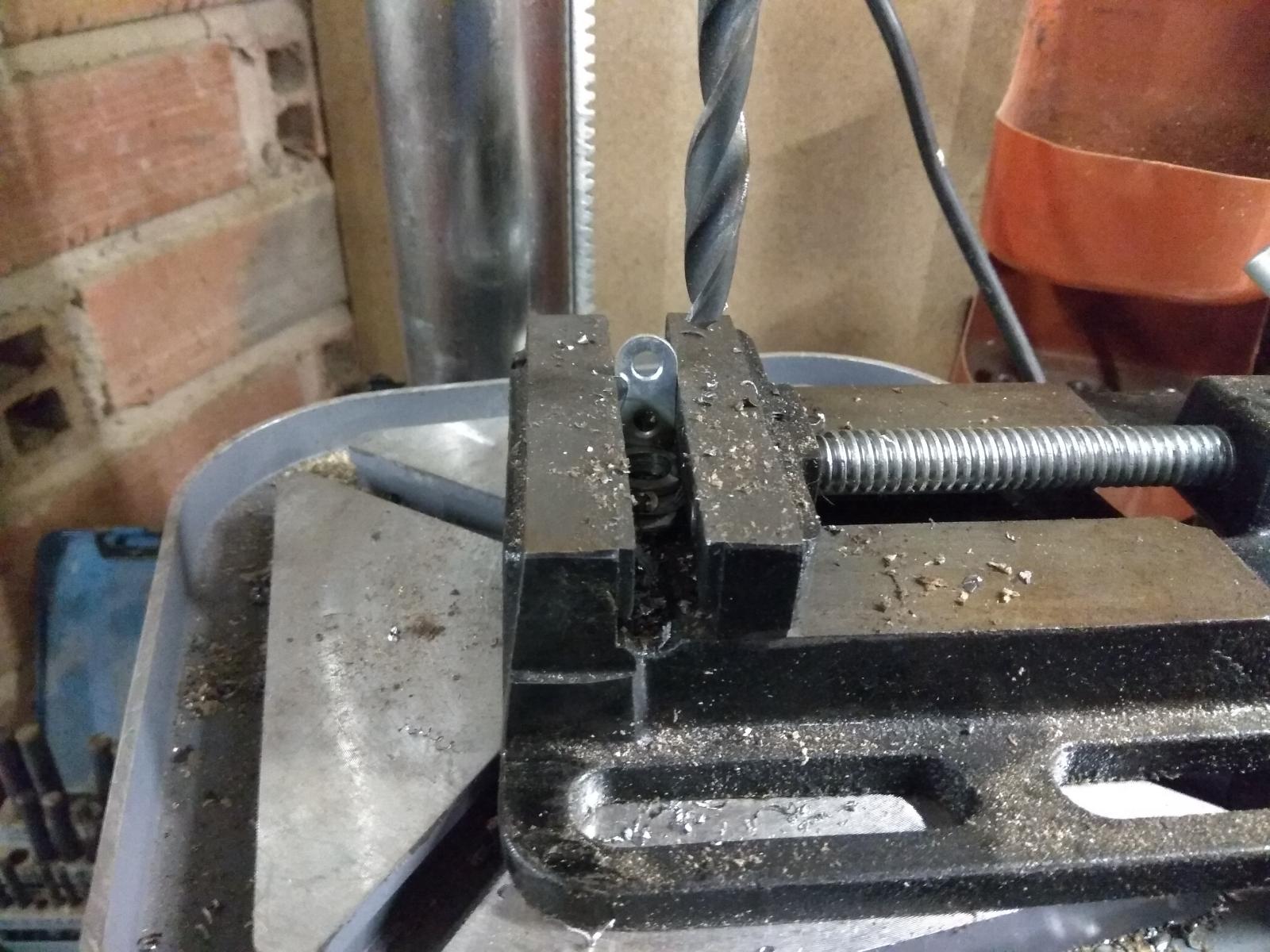

Bore it out to 12mm.



Remove the excess length from the top of the "L"

the astute observer will spot the mkI version in the background - I fucked up the measurements and made it far too thick.

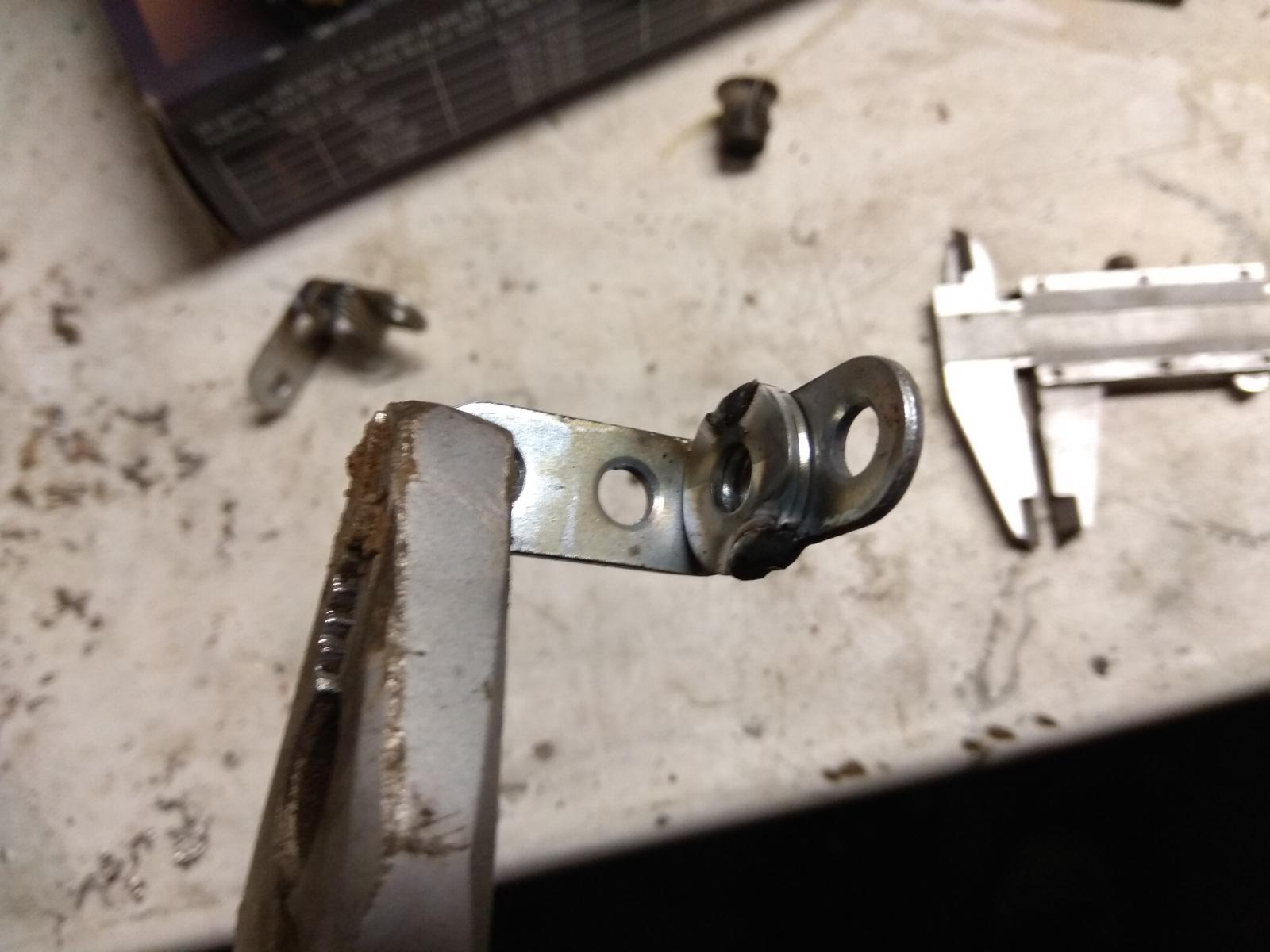

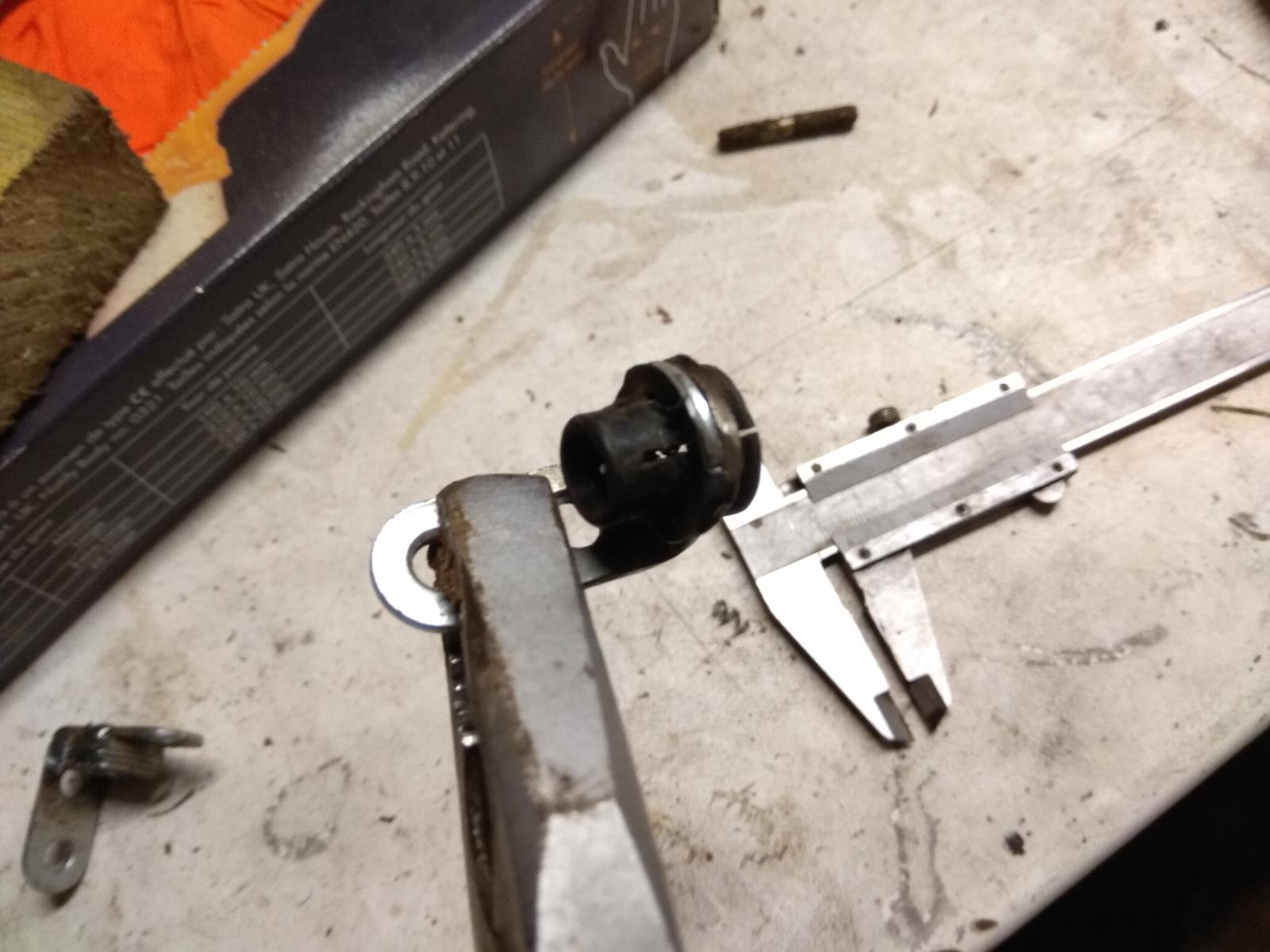

Buff it smooth and trial-fit the bush. The wee tabs have to spring out once its pushed through...thats what holds the light in place.



A quick buzz with the grinder to get rid of the old plastic bits.



Drill some holes.

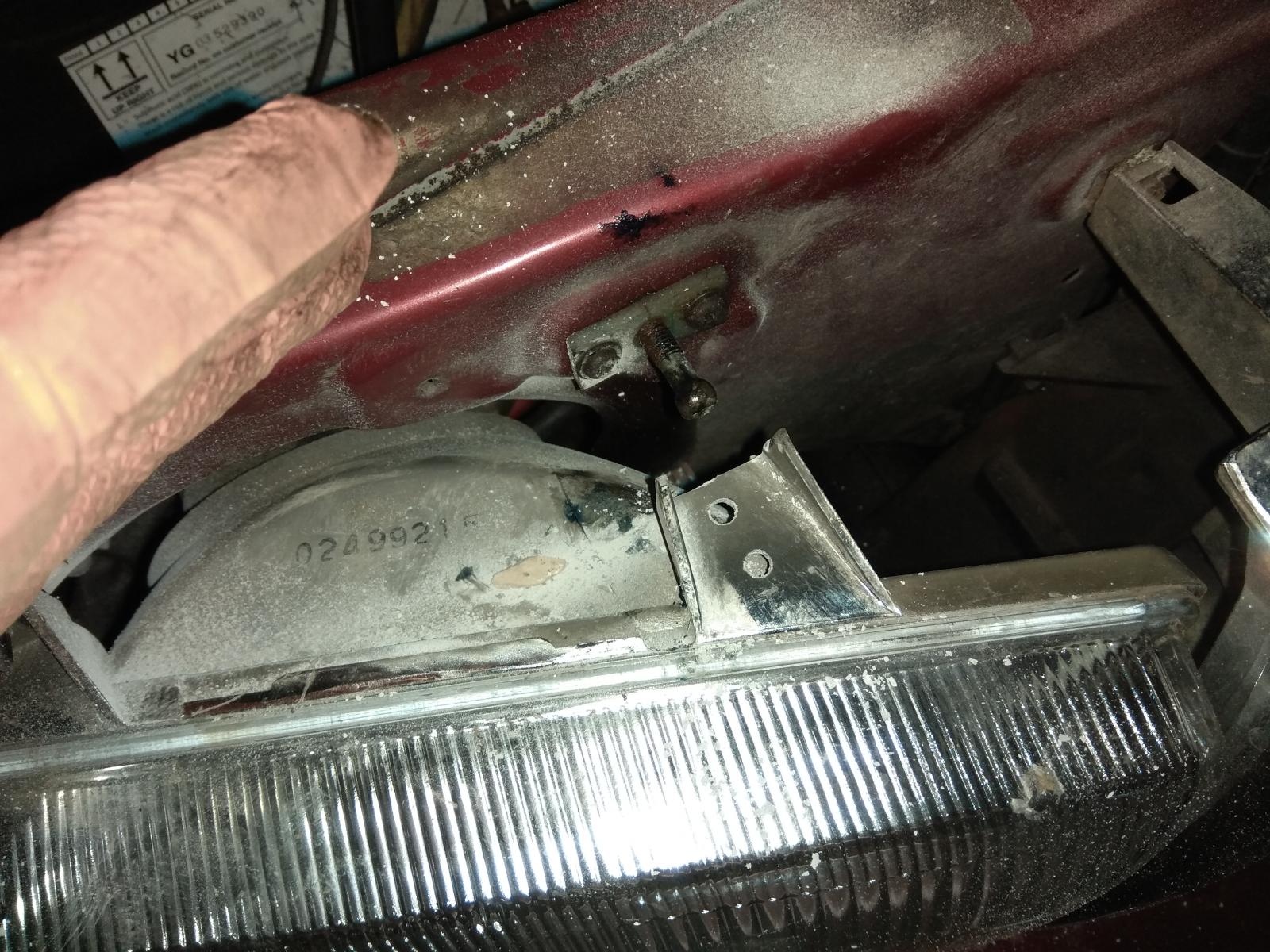

Put the bracket on the bottom of the mounting leg and use pop rivits to hold it.



Fit the bush to the ball and clip the headlight back in place.



Finished.
