Those tiny wiper arm pullers are pennies.

[egg]

Those tiny wiper arm pullers are pennies.



Cheers. I got one - and did the wiper/scuttle removal and clean as below.

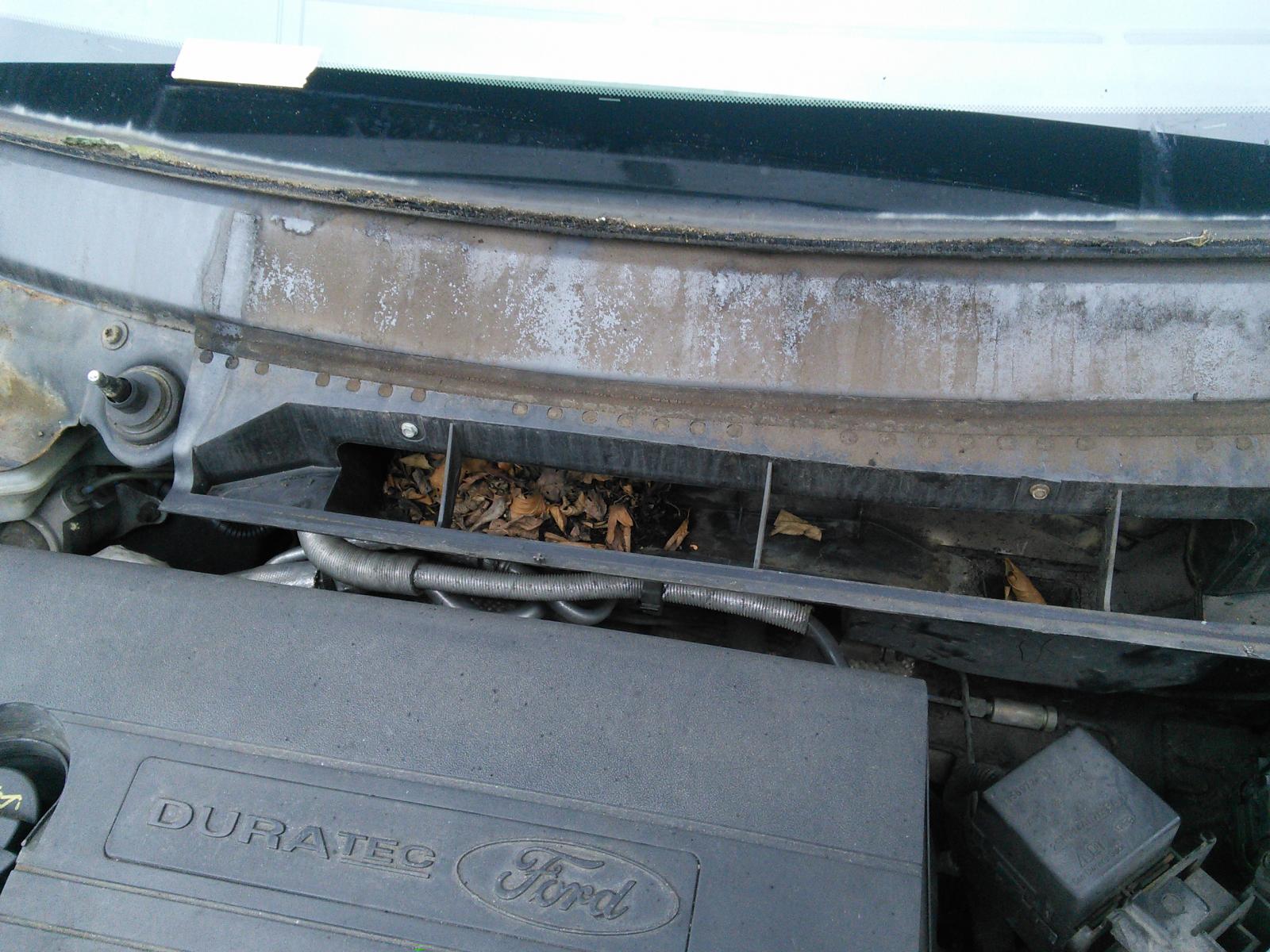

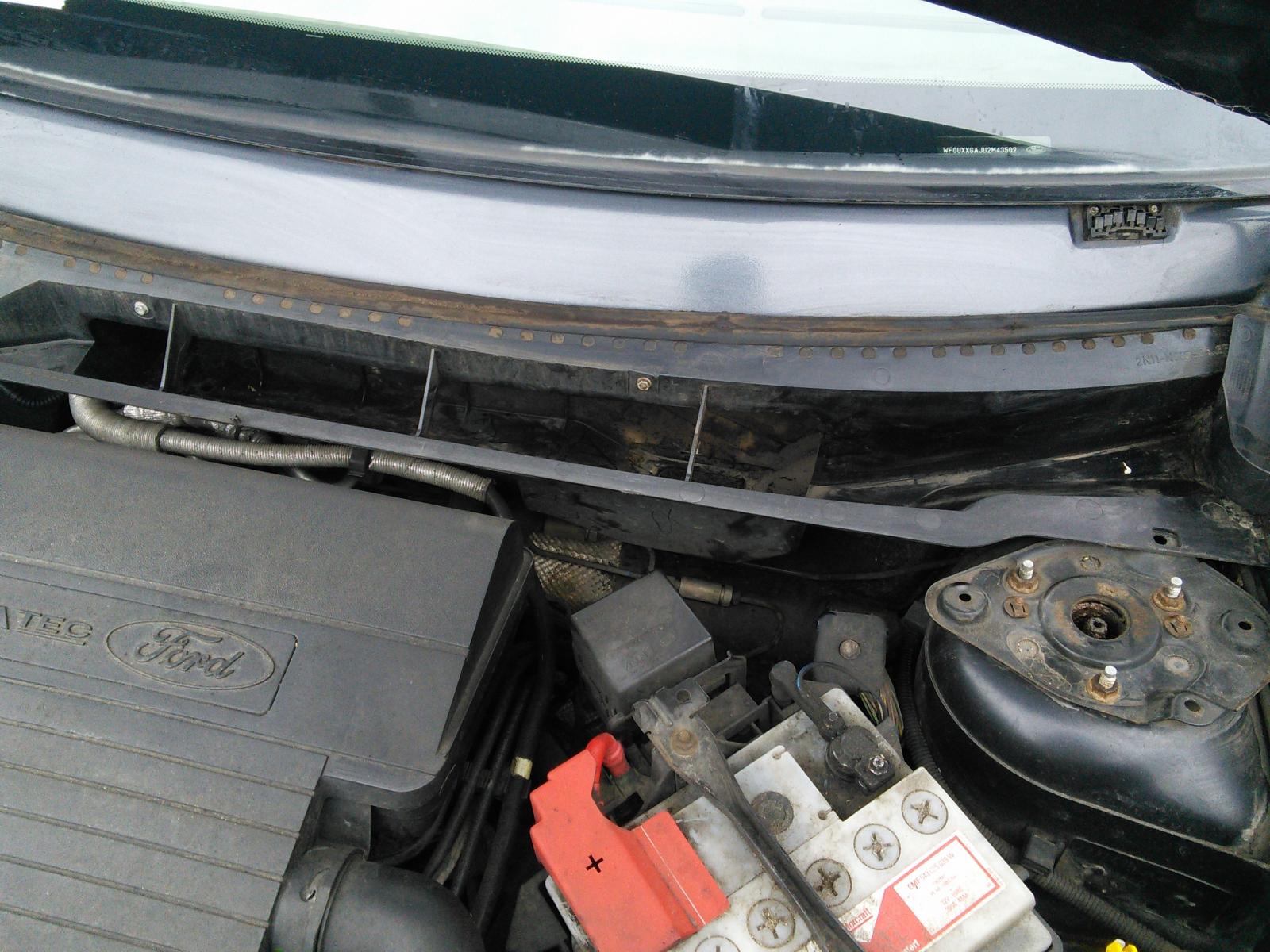

Before and after pics, not sure if had any real value and danger of it just being a detailing job really!! Oh, and one of the wipers drags now, so probably not quite well aligned!! Win.



Bottom of screen has a kind of white fuzziness too it as in pics - possibly linked to heated screen fail. Multimeter fun coming soon...

[egg]

If there's 0V at all points then you have a dodgy 12v feed - it could be the relay - they'll still make a click even if the contacts are paggered. Maybe crap wiring somewhere or a baggy connector. 2x30A fuses makes me think this runs two separate circuits though so again you'd probably only lose one side at a time.



Thanks to Cobblers advice I have finally tested this. I have 0V at all points on both sides of the screen (assuming I can handle a multimeter correctly - set at 20v DC). So maybe try a new relay - or as spring is pretty much here, and I intend to sell the Fusion this year, give up!



edit - there are still 71 ohms across the two smaller connectors on the relay - so in theory, it is not the relay either

[oldford]

Did you test it with the engine running?, the one in my Sierra is wired so that it only works with the engine running.

[egg]

Yes, I did - same as Sierra, has to be running.

[Pillock]

Are you sure it's 12v at the side? As that looks like a brown wire connecting to the ribbon, surely that's earth.

[egg]

Are you sure it's 12v at the side? As that looks like a brown wire connecting to the ribbon, surely that's earth.



Earth at the top live at the bottom in this pic. Two connectors on each side. I was testing the earth to a door handle. Should I have just been testing across the two connectors?
