AVAS.. Poor Yorick! ♥️🎱

[tooSavvy]

All sorted... 😎

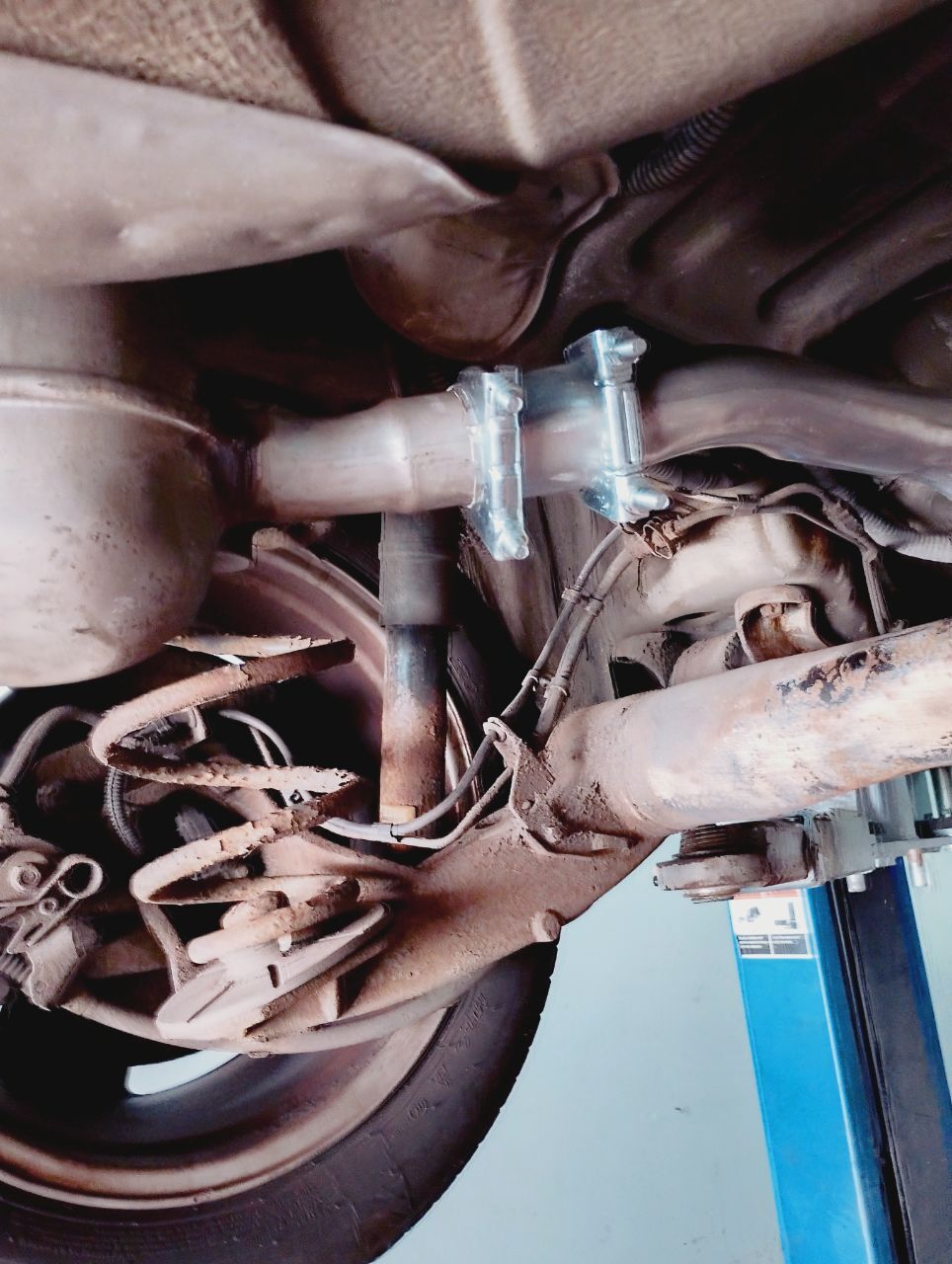

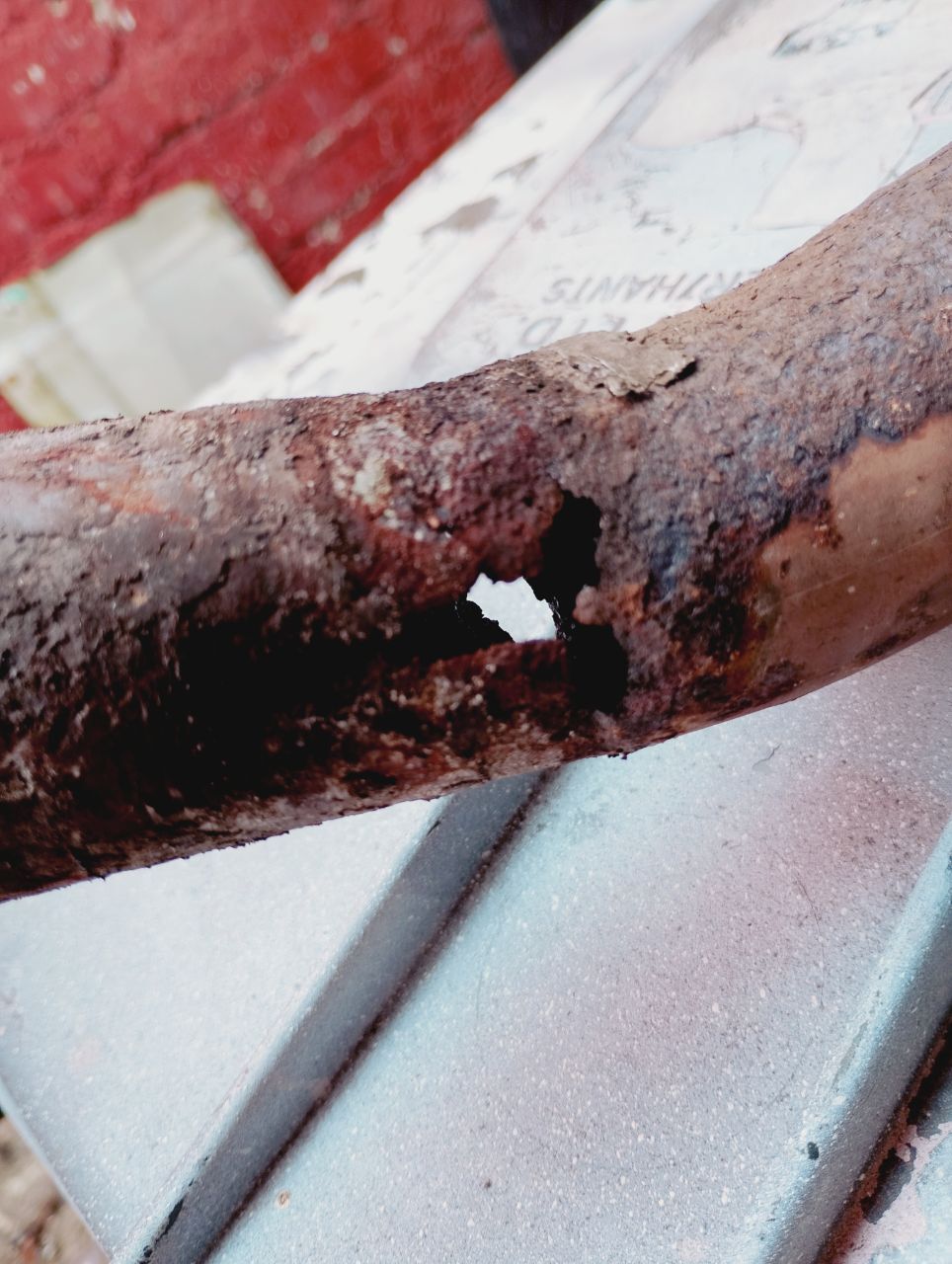

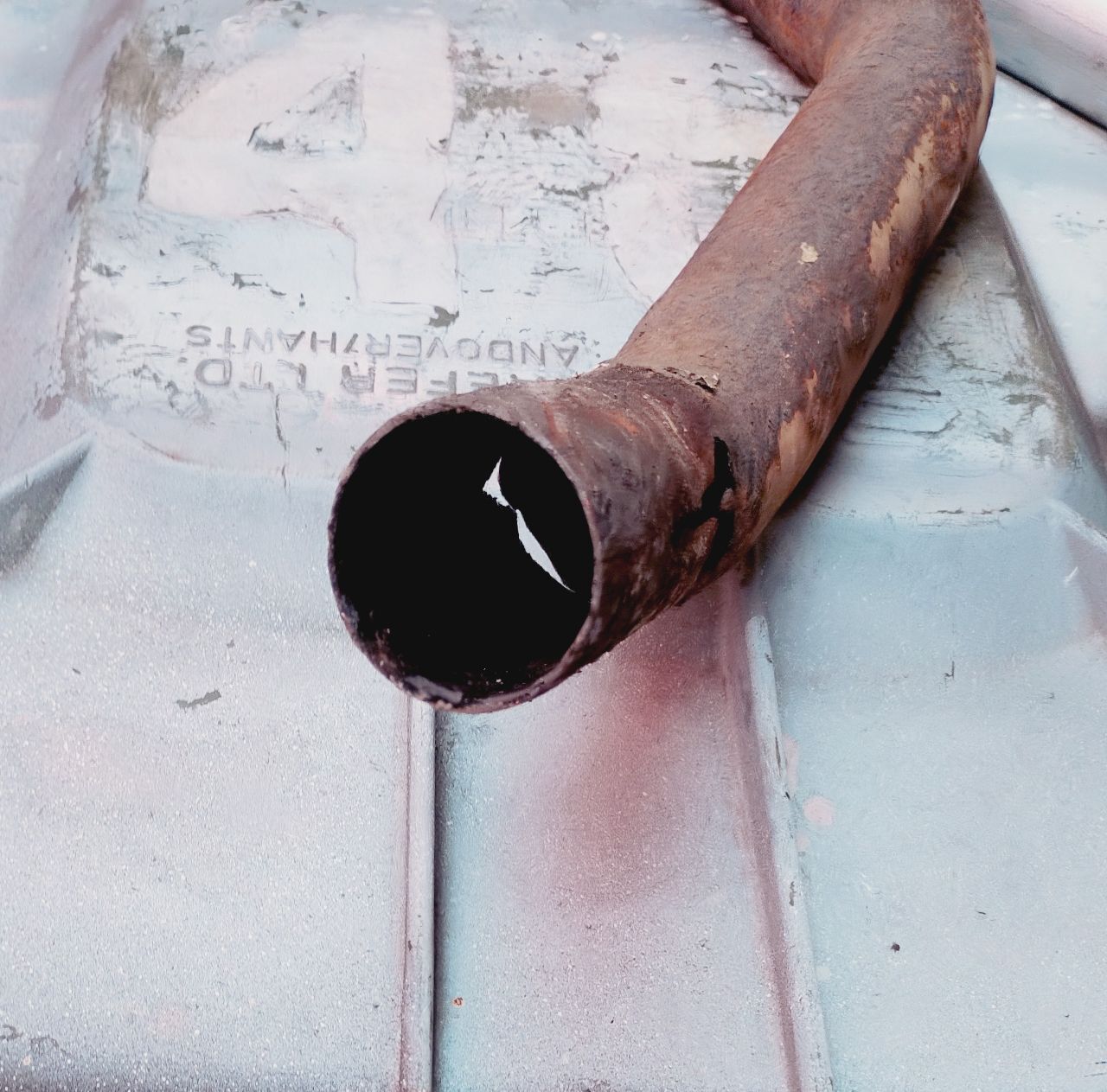

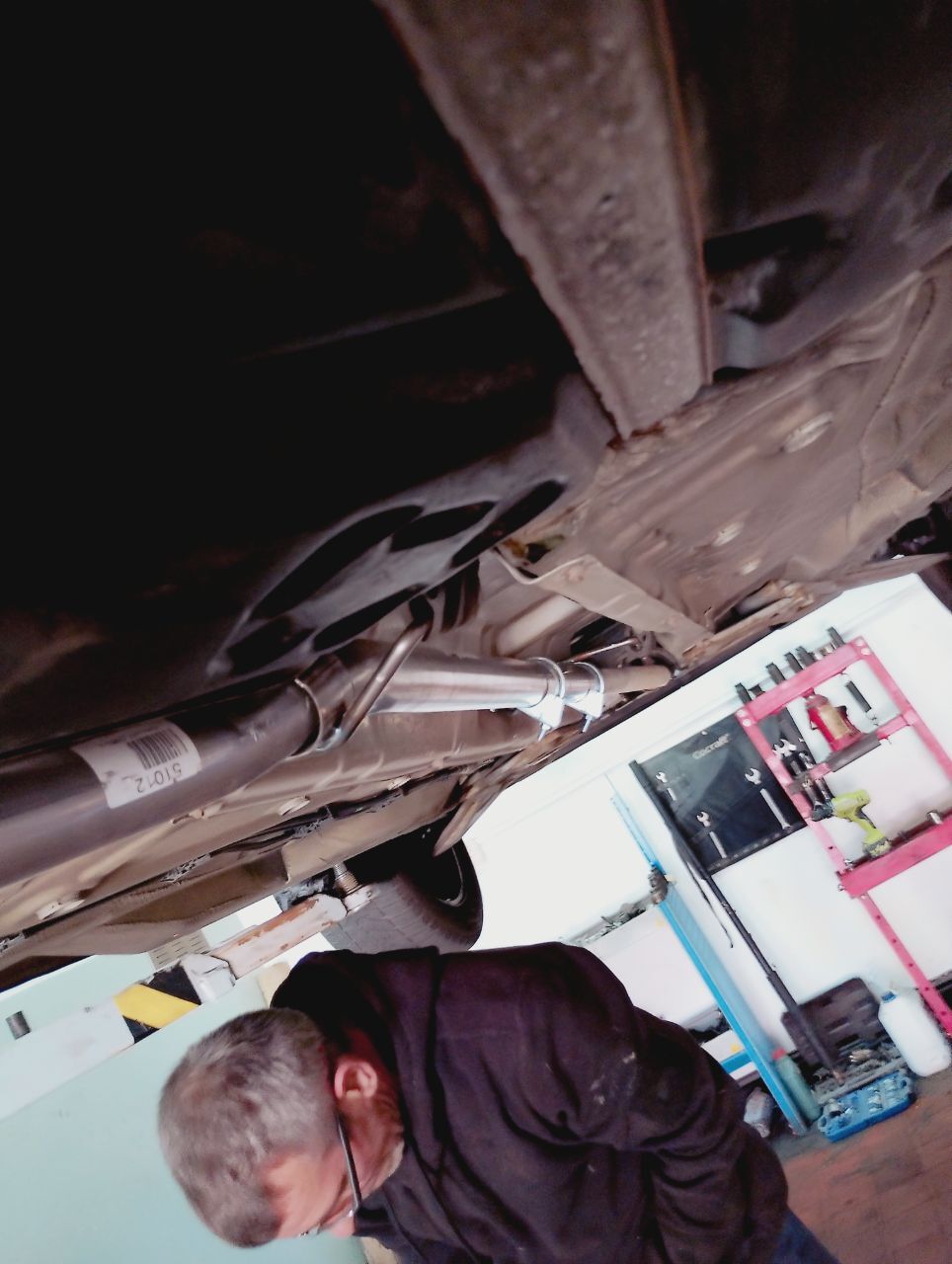

.... Up n Over was *holed 🫤

Resonance *enhanced = Savv in search of 'back to front' NYC cap 😶‍🌫️

😋

🚙💨

[tooSavvy]

Carlisle for lunch.....

Startled a *few sheep, with a stomping kick-down 😎

I'm now setting out my plans for *stick welding a new pipe [onto the Mazda box] and sorting a bracket to allow the box to sit on the two Vx rubber bobbins >> per standard.

🚙💨

[tooSavvy]

Cracked 91k..... in a biblical deluge, on Tyneside 🫤

However will be sparkly tomozz (until lunchtime) so Oil + Filter is GO🚀

I shall get the back end up the ramps, after the front for oil, and do some measuring for the back-box bobbin looping brackets + link pipe length 📏

🚙💨

[tooSavvy]

Oil + filter >> sunny, yay 🌤️

*NEW O-ring fitted 😁

SavvSafety™ 'ramp extenders' for low skirts 🛠️

Studied my back box, for reference to the Mazda fitting

Looks like we have space  >> both depth & width. Link pipe will be about a foot long.

🚙💨

[tooSavvy]

Been doing the annual Good Citizen routine 👀👍

The 'empties' flip bin is groaning with the 6x 5L bottles I took in..... 😮

The cloud you see ^^ arrived around 1pm... Absolutely pelting down [..for 3 min] then Sun >> rinse repeat 🫤

🚙💨

[tooSavvy]

Re:.Back-box shenanigans 📏🛠️

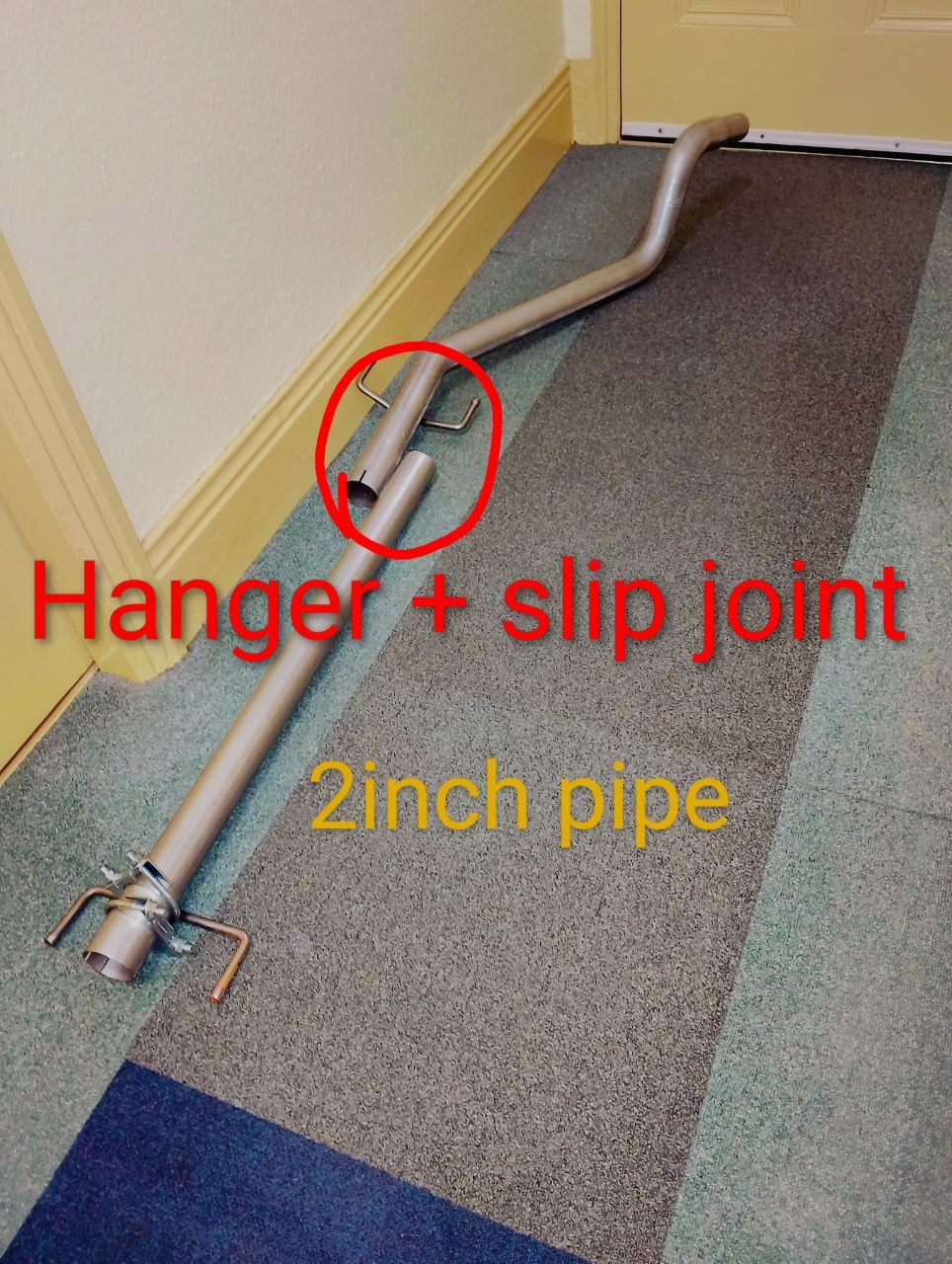

I have this >>

.... at the top of pic you see the 'unused bit' of the car pipe [no good for Estate car]....

So I reckon just one more piece of 2", kinked a bit, will fix it all. Lobbed a cheeky offer 😁✔️

Accepted 🎉

It's about getting the ducks in a row.....

🚙💨

[tooSavvy]

Interesting discovery.... 🔧

I have noticed when cranking from cold the oil light goes out instantly - then blinks for a fraction of a second after about 5 seconds.... There was a comment on Astra forum about using Vx original oil filters, not cheappo knockoffs 😶‍🌫️

Can't say my [.. cough] value oil filters were anything but a good fit >> snap on/DROP straight in...  *note DROP!

I got the latest Bosch and when I attempted to fit it it was difficult to slot it down the cannister, over the centre pin.... I looked carefully at the filter and it has a soft rubber sealing ring which must be fed squarely down on fitting >> Ah Haa 👀 = drain back seal 😮.

Obviously my oil filter has been draining away when parked up and must refill.... Since the oil change NO flicker 🎉

🚙💨

[tooSavvy]

Since the incident with my NSF flat tyre/space saver fitted....

I chucked the saver back in the back, when the P/Worns were fitted, and [layzee me...] I didn't put it back under the floorboards.

Yesterday I put everything back right.... and discovered the PO had been in before 😲

Wrapped in a piece of cloth was a 1/2" t-bar with 17mm socket on. And a short trolley jack tube handle [scaffy-esque].... Annnd a Towrope. 😉

Weyyyheyy

🚙💨

[tooSavvy]

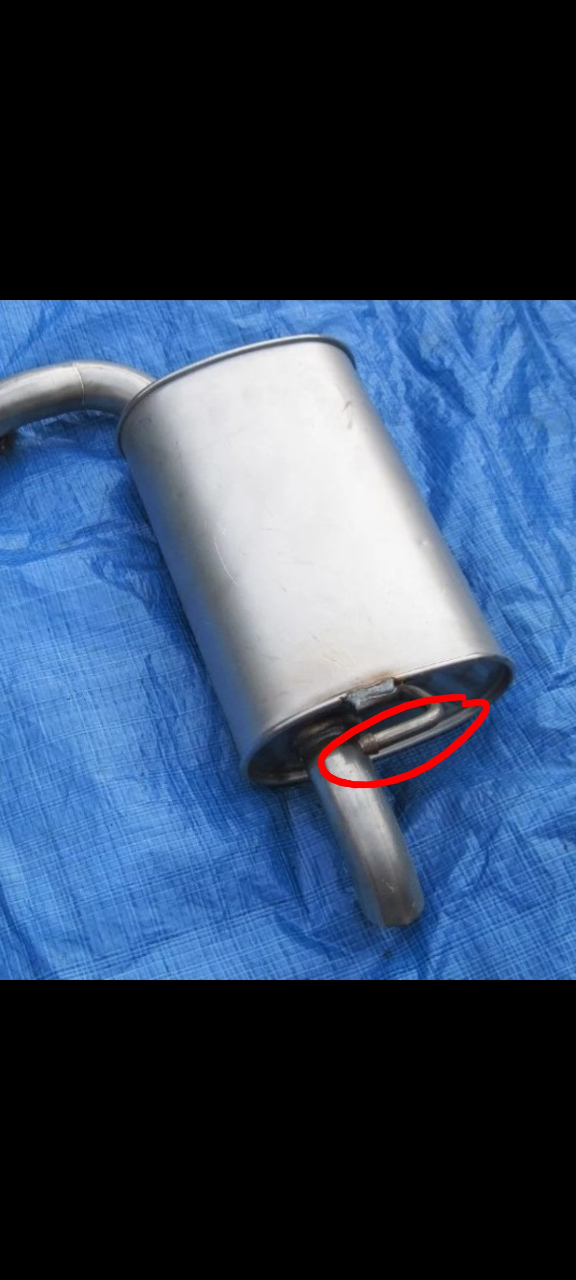

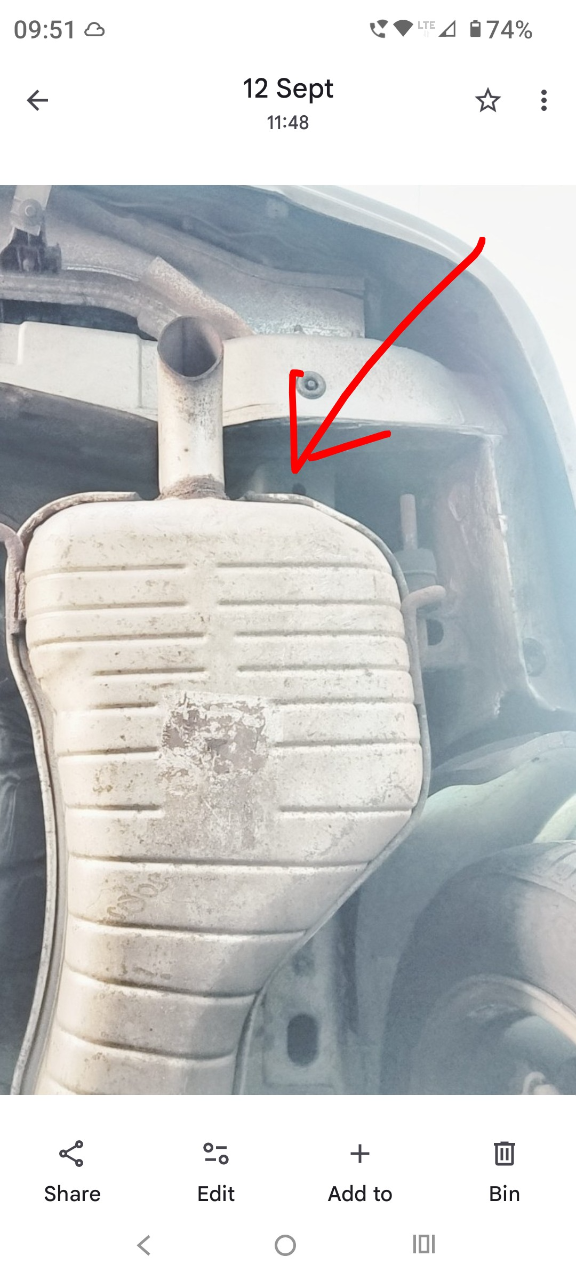

I have turned around my back box problem - the box not being suitable for the Vx bobbin mounts.

The box has a top-mount hanger fitted...

.... and (having checked space + clearance) the chassis above the back box has a preformed hole ....

I will fabb up a bracket, with a long bolt coming off at 90°, and the two bobbins....

.... will keep everything suspended ✔️👍

An elegant + simple solution.

🚙💨

[tooSavvy]

What a lovely day [.... where it isn't raining☔]

Meadows Edge, looking west.

Bracing 'gliders breeze' .....

🚙💨

[tooSavvy]

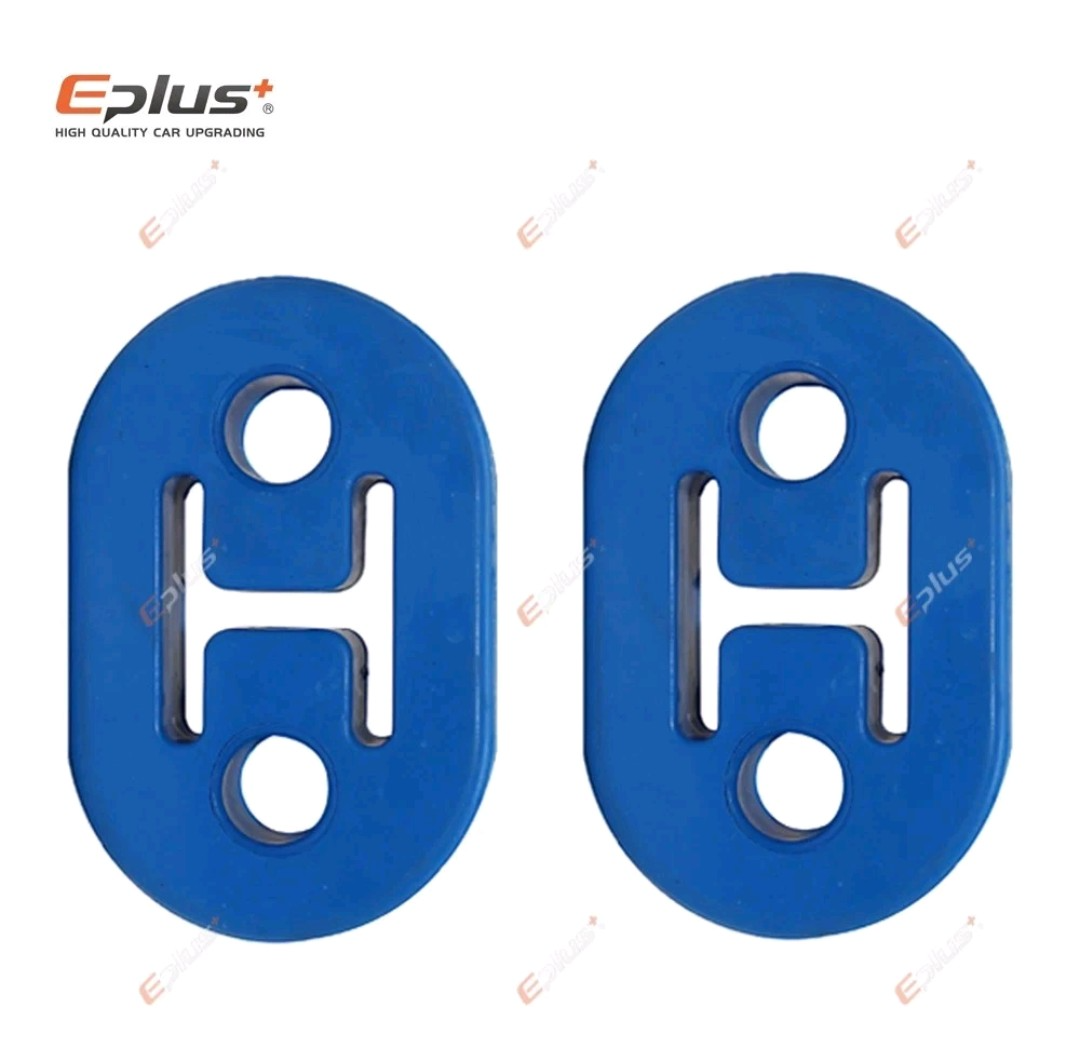

Checked out the Mazda box rubber....

Thought best get the proper one, for stability.

£5.30 del

🚙💨

[tooSavvy]

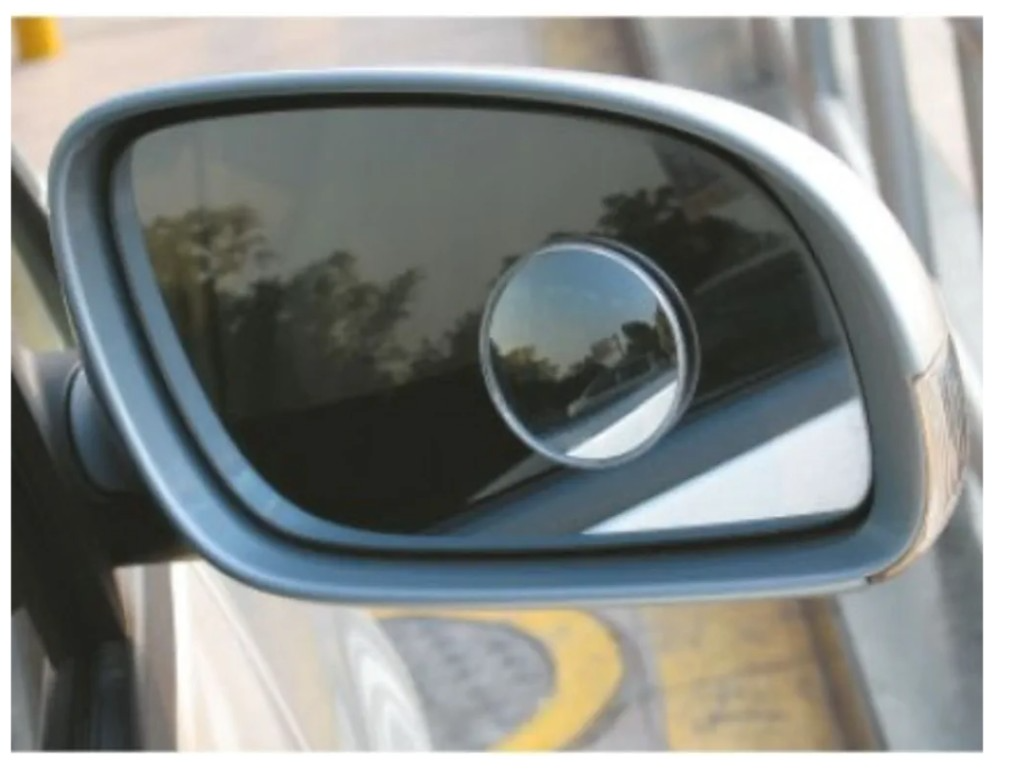

Dunno if it's extreme old age or dithering...

.... but the curvy slip of mirror on AVAS, outer edge, just doesn't seem to be highlighting my *blind spot 😮

This should fix it 😎

🚙💨

[tooSavvy]

Get Bent!!

..... small steps.

Creeping up on this baby 📏🔧✔️

🚙💨

[tooSavvy]

Ooooh.... Posties Knox 😋

🚙💨

[tooSavvy]

Little more lying under the car....

Suspending the back box, on the bobbin, we need >>

A flanged plate, bolted to the chassis, with a cross rod bolted through it to hang the bobbin....

The M8 furniture nut will go through the blind 14mm chassis hole and tip across (with some thread to retain it) and take a securing bolt for the flanged plate.

Once all secured it will be time to fit the box 👍

🚙💨

[tooSavvy]

Why buy..... When you can 'bash up'! 😁

Nice bit of 12MM m/s.... My lathe keeps giving! 😶‍🌫️

All set up now....

Sunny all day tomorrow so 📏🔧🚀

🚙💨

[tooSavvy]

🌞....

Cometh the dawn, cometh the man....

📏🔧🪓🩹 .. 👍

🚙💨💨

[tooSavvy]

5 hours ago, tooSavvy said:

🌞....

Cometh the dawn, cometh the man....

📏🔧🪓🩹 .. 👍

🚙💨💨

Ship was lost.... with all hands 🫤

Using an axle stand I managed to stop the stock box landing on my head ✔️

Success with barrel nut + bracket attachment...

...... Insurmountable differences between the Vx pipe and the Mazda box 'orientation' = the 30° inter pipe is too much >> needed 15° 🙄.

Great fun was had with my spanking new Buzz-Box, however..

65A running on the brand new extension ✔️

Auto dim mask is GR9.. 🤣.. you see where you are going to weld then it goes BLACK and you get a fiery yellow glow.. as you carve wildly through your base metal.

I'll revisit the areas later 🤣🩹

Ordering a 15° bend..... Tally Ho 👍

🚙💨

[tooSavvy]

The reason for *attempted welding of back box pipe...

.... the stub I had clamped on was squashed out of shape and I couldn't get a pipe to insert.

Scrub that and *weld a nice sweet stub on 😵‍💫

I just lashed the Vx box back on with tywraps around the rubber bobbins (cut to remove).

🚙💨

[tooSavvy]

Ahhh.... 😶‍🌫️

I will try it that way round next time....

#Homer 'Doh!'

🤣🤣🤣🤣

🚙💨

[tooSavvy]

I've had a chipboard screw winking at me, from the inner track of o/s/r, for some time but no leak down.. until today 🫤

Our friendly 'englis spoked eer' taxi driver friendly PW outfit sorted me >> on the spot 😮👀

He lay down and luckily the head was at 9 o'clock, facing him. He hoiked the screw out and lashed a liquorice bootlace in, cropped the tail with a scarfing knife >>> squeezy bottle of washup liquid for testing... 👍

£7:00 😋

Does for me

🚙💨

[tooSavvy]

..... my liquorice*enhanced tyre remains firm = long may it remain so 👍

🚙💨

[tooSavvy]

Sunday Lunch @Ashington.....

Off into the boonies, via Pigdon then along the 'three fords' Rothbury road....

.... turn towards Scots Gap and back to the coast by Seaton Sluice.

Fab weather 🌤️

🚙💨

[Matty]

Starting to understand how you put 30k miles a year on a car now Savv. Bloody hell we only manage about 14 a year over 3 cars 🤣

[tooSavvy]

Posties Knox.... (Actually, I redirected it to the Local high st PO & collect 👍)

30° [top] too much kink 🫤

15° looks to be on the money.....

...... dry bright day required 🛠️✔️

🚙💨

[tooSavvy]

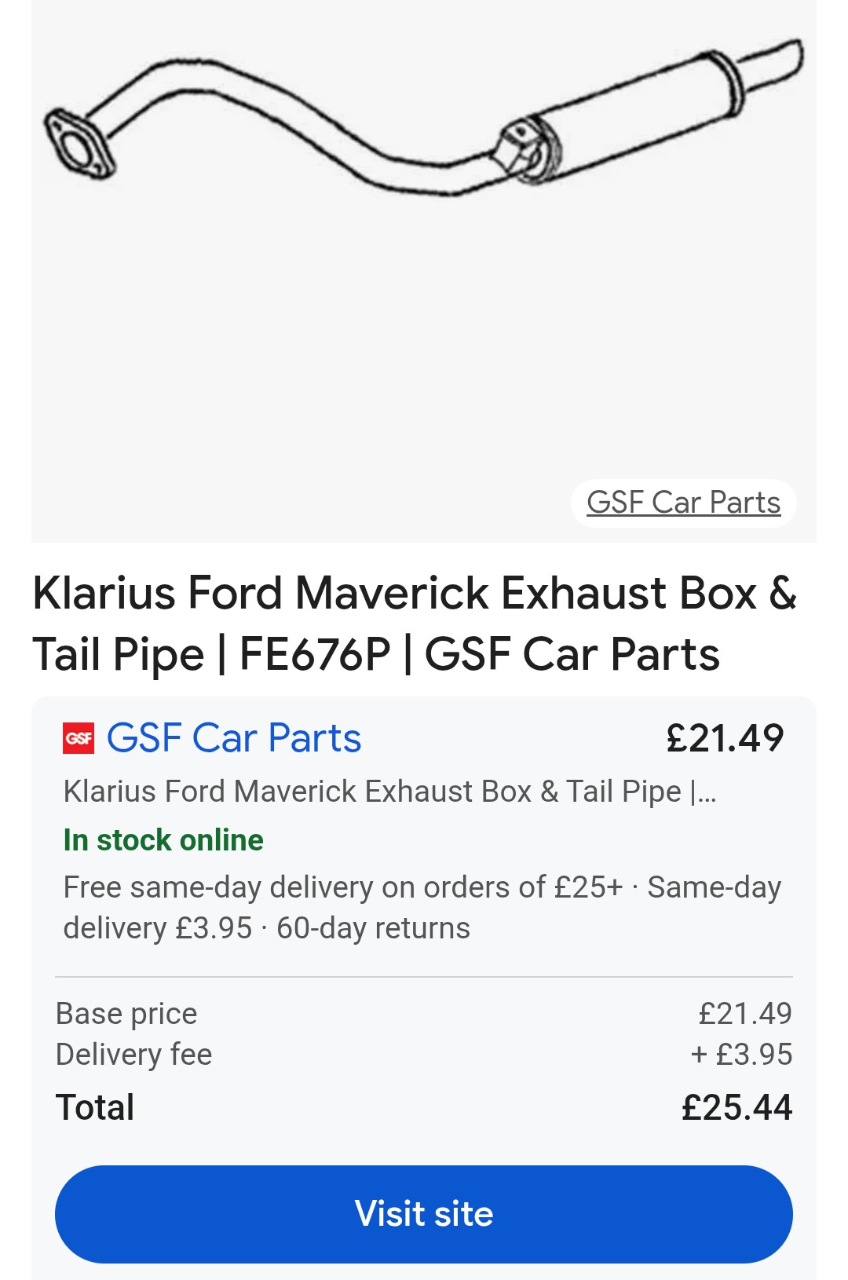

..... should I be less than impressed with my Mazda box 😶‍🌫️

THIS is a 2" pea shooter 👀

🤣🤣

🚙💨

[tooSavvy]

Itchy trigger finger... PULLED 👀

It's a 2" pipe.....

£26 delivered!

Yupp.... I'm crackers.... 😉

🚙💨

[tooSavvy]

One of the gkids gave us a funfair toy gift.....

...... Of course, I'm going to put it on the *rear shelf

*actually the roller cover [estate!]

Some stability required or it pingpongs around 🤔

Bit of 2pak ✔️

The rubber/flock mat is dense + not slippy 👍

Sorted 👀

🚙💨

[tooSavvy]

On 04/10/2025 at 11:58, tooSavvy said:

Itchy trigger finger... PULLED 👀

It's a 2" pipe.....

£26 delivered!

Yupp.... I'm crackers.... 😉

🚙💨

I am blessed with inordinate good fortune 😮....

I'm informed that the courier 'have damaged the package' and it is karkked = offered my money back 🎉🍻 .... 😁

I shall evaluate my Mazda back box before considering other options.

🚙💨

[tooSavvy]

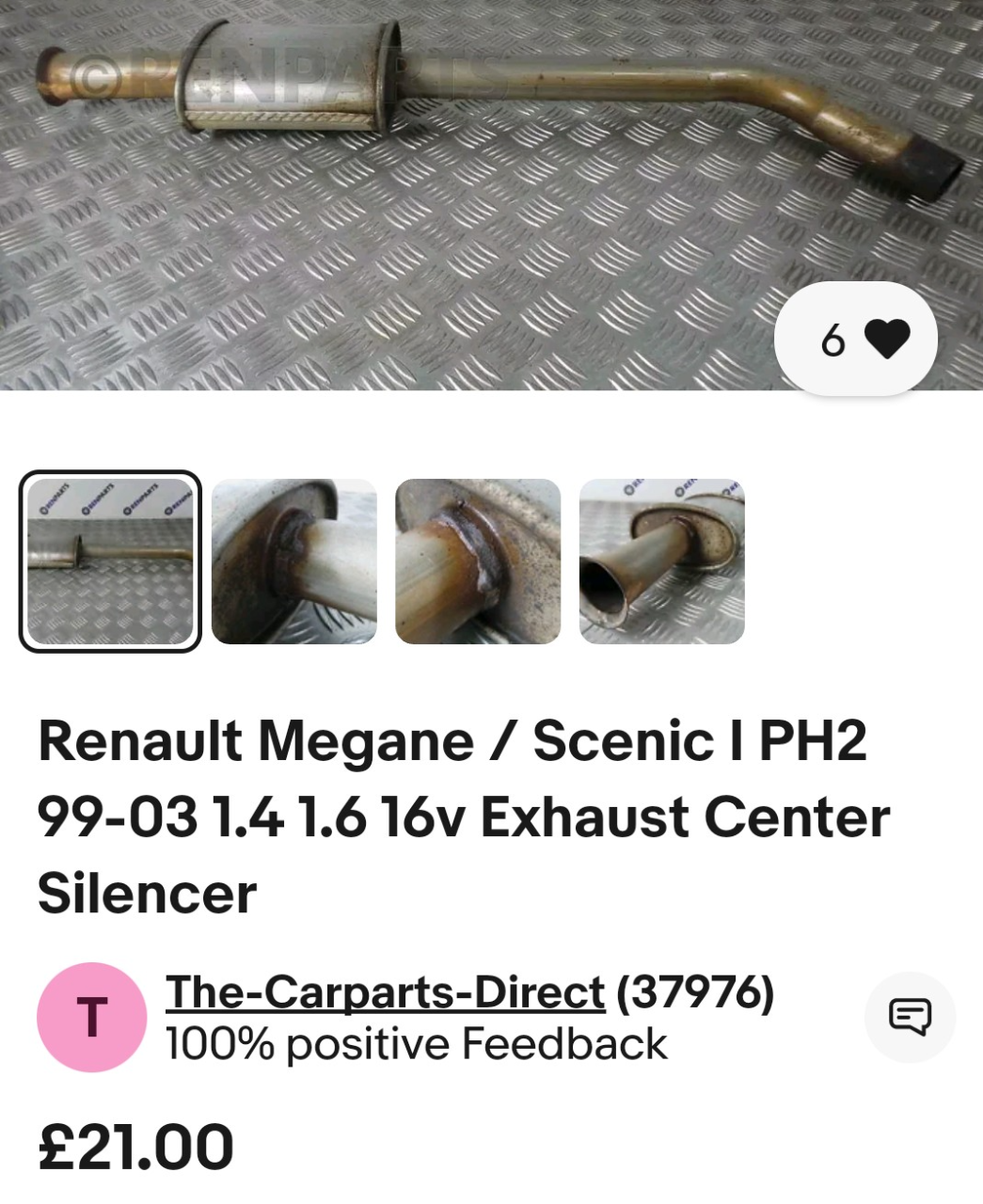

OK..OK.. I'm certifiable 🤫

I simply could not pass up this....

£31..... It'll happily sit in my 'tomorrow pile'..

🚙💨
