I'll get round to it at some point - XM MOT Finally Passed!

[Rust Collector]

Well, I finally have some good news.

Today I decided to back probe the power connector to the ECU; 2.5v anaemic bolts were present. It was showing battery voltage when disconnected, so it appeared to be an issue with the circuit under load.

I soldered some wires to a 5w bulb to make a test lamp, removed the pin from the connector and tested it with the lamp; this confirmed that there was no power at all under load.

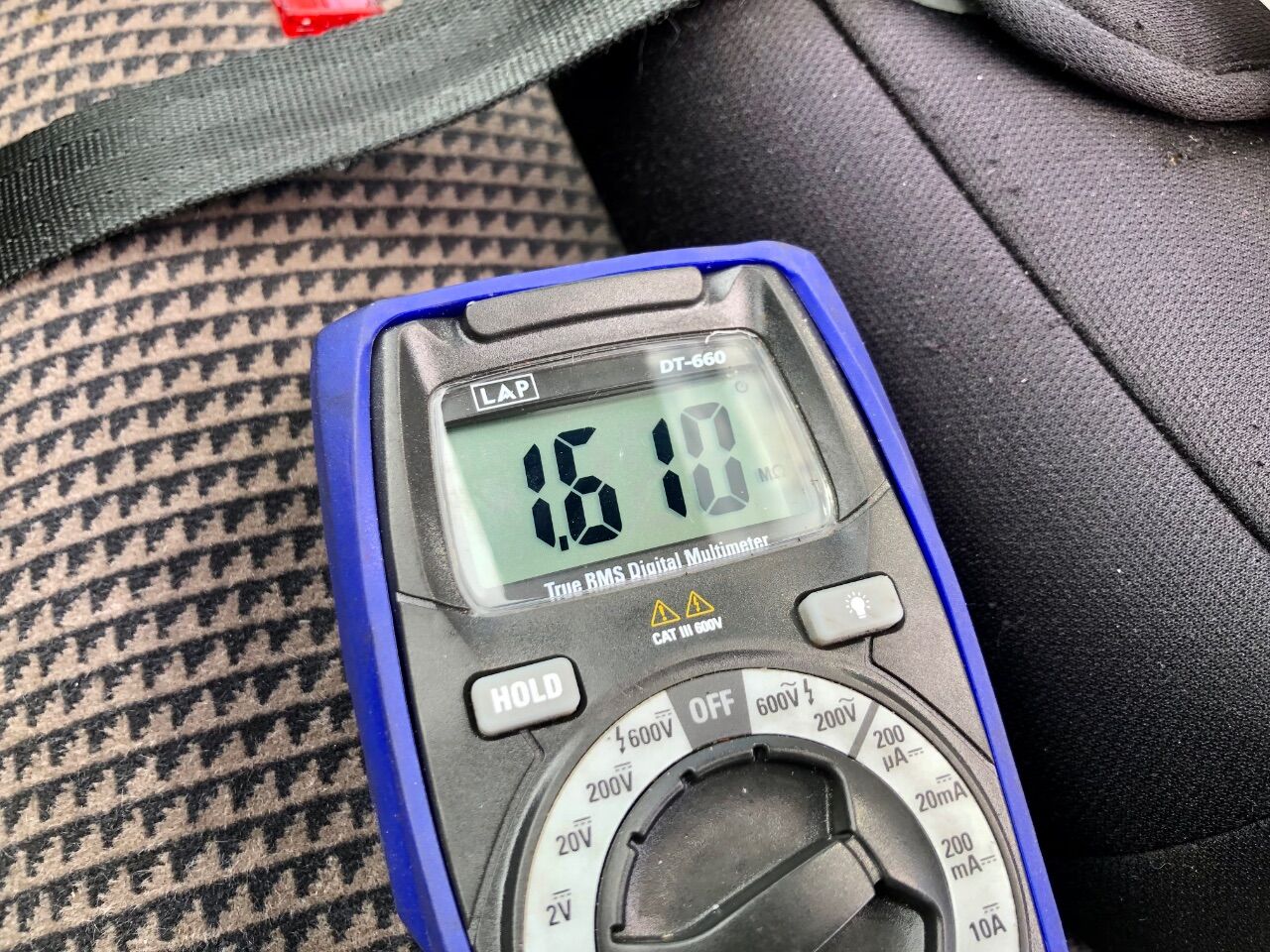

I dutifully set about measuring the resistance between the fuse box and the ECU connector.

Yep, that’ll do it.

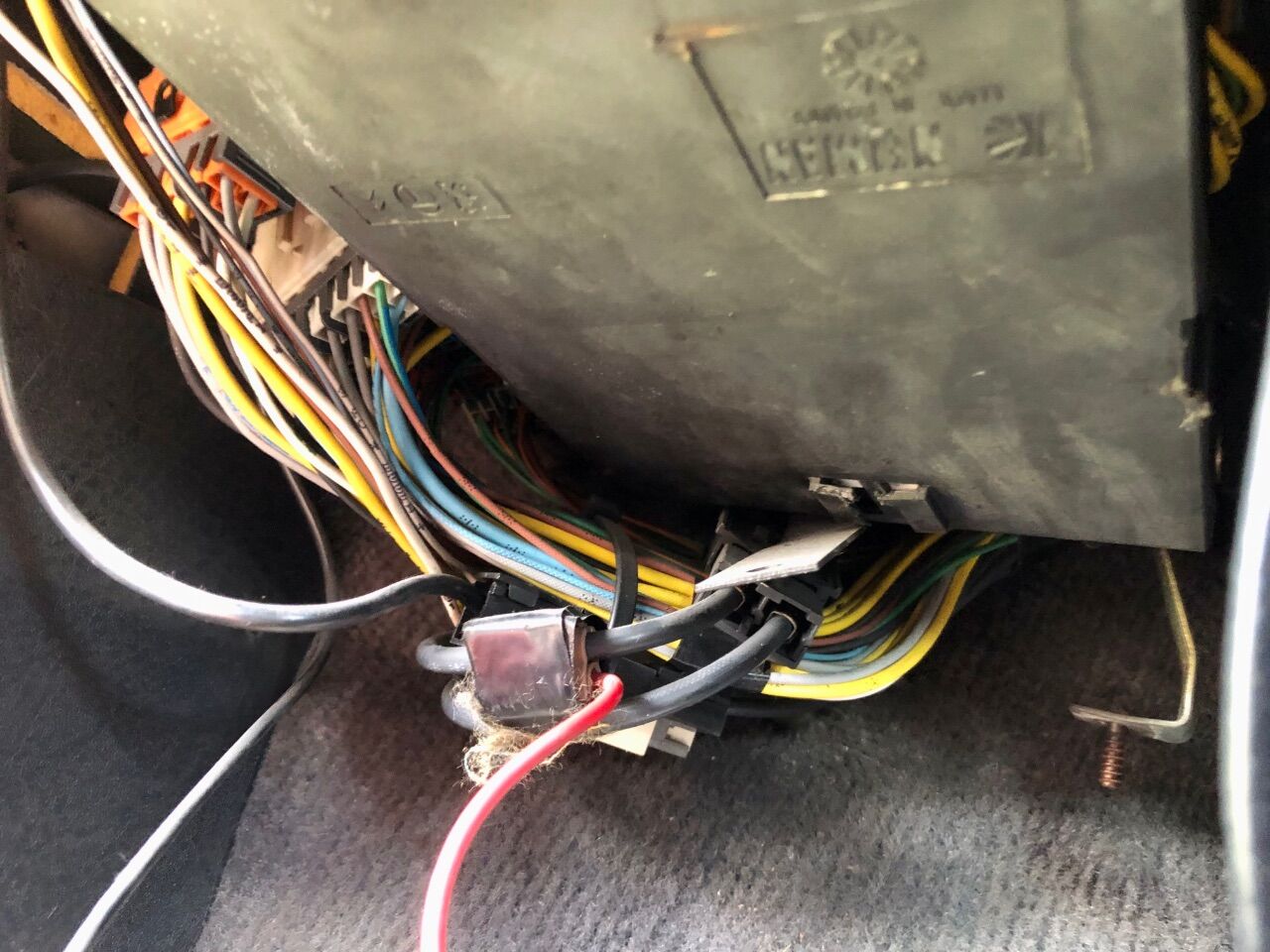

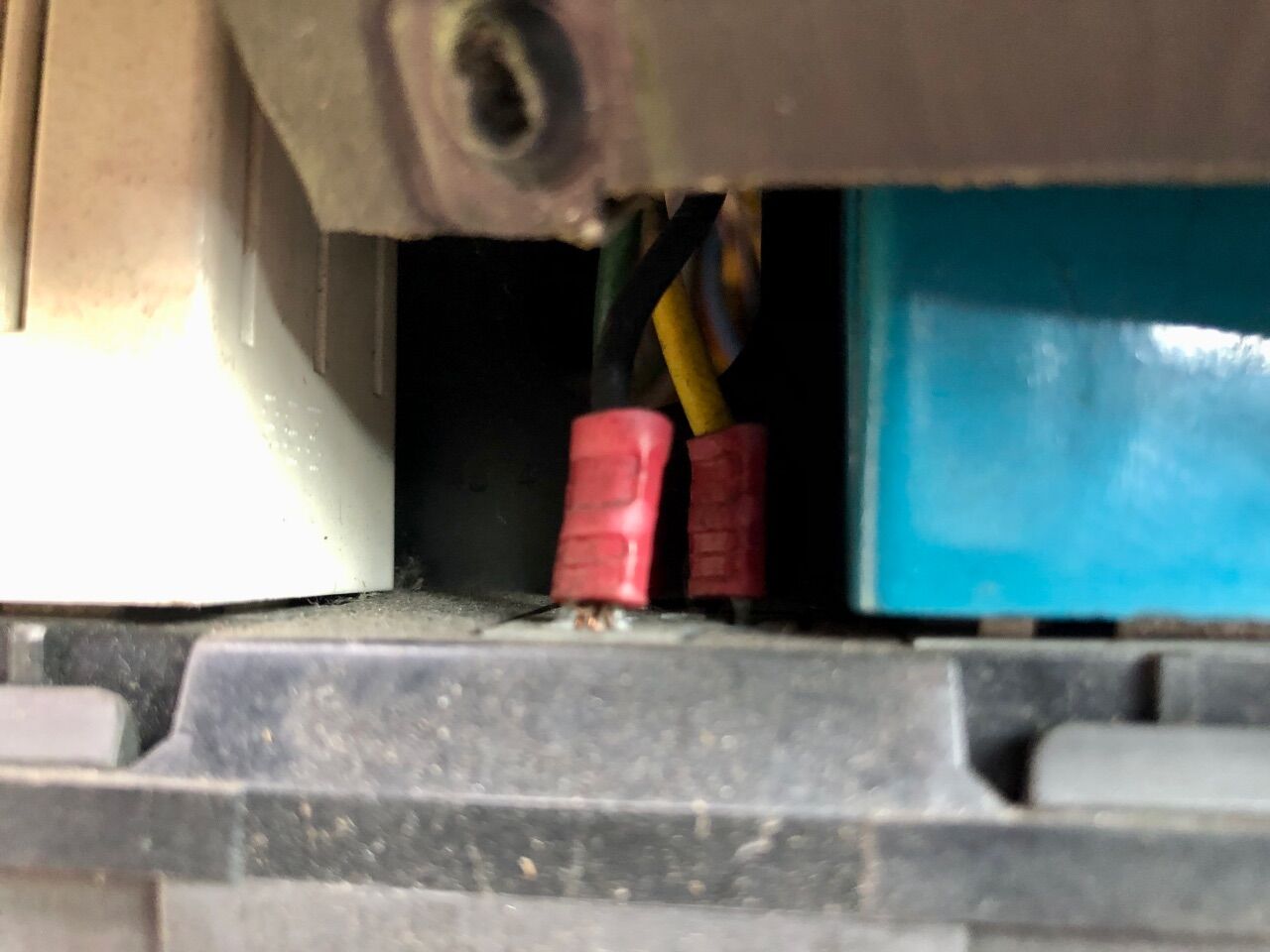

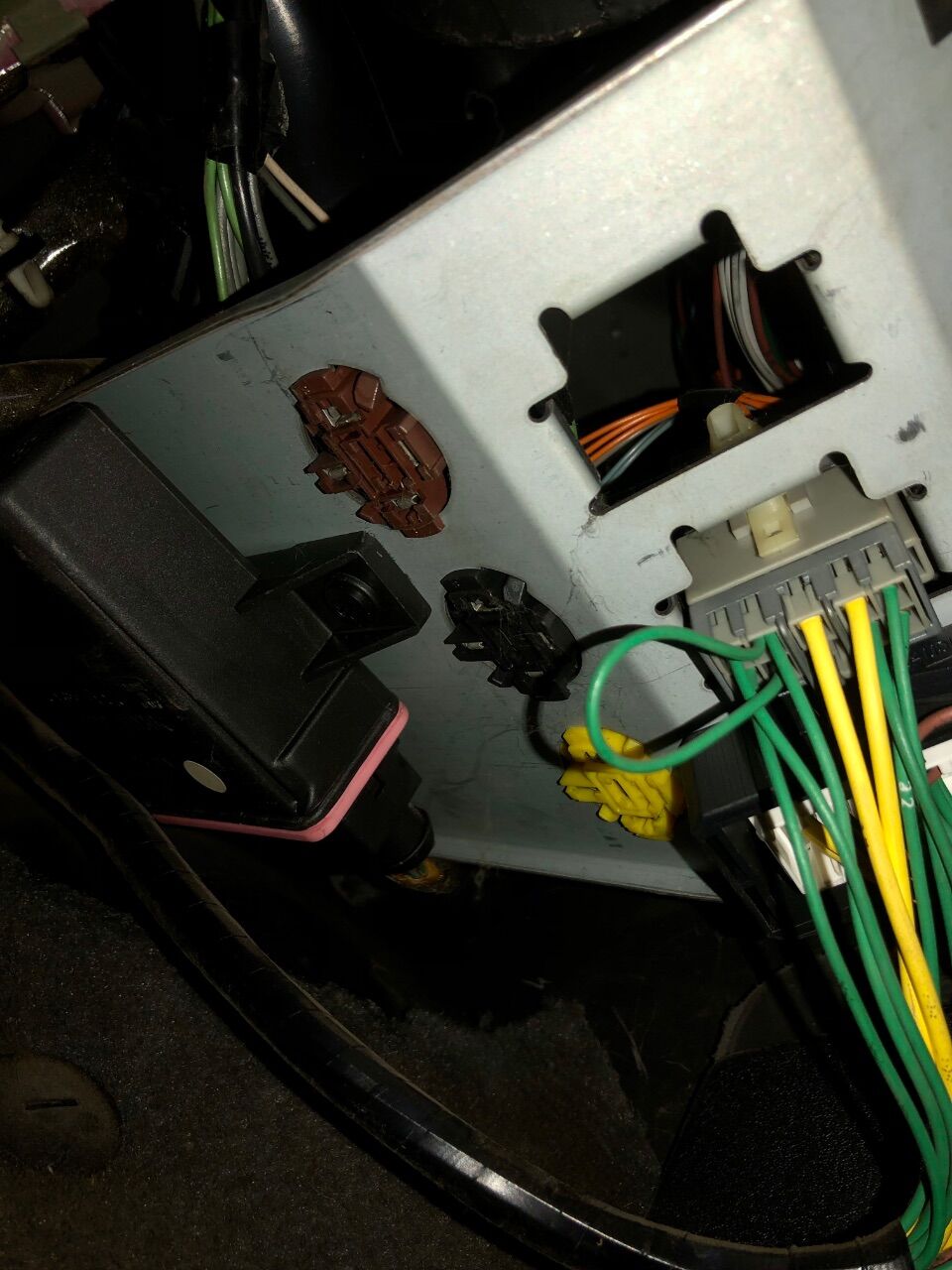

Sniffing around the fuse box revealed that I was not the first one in here.

Hmm…

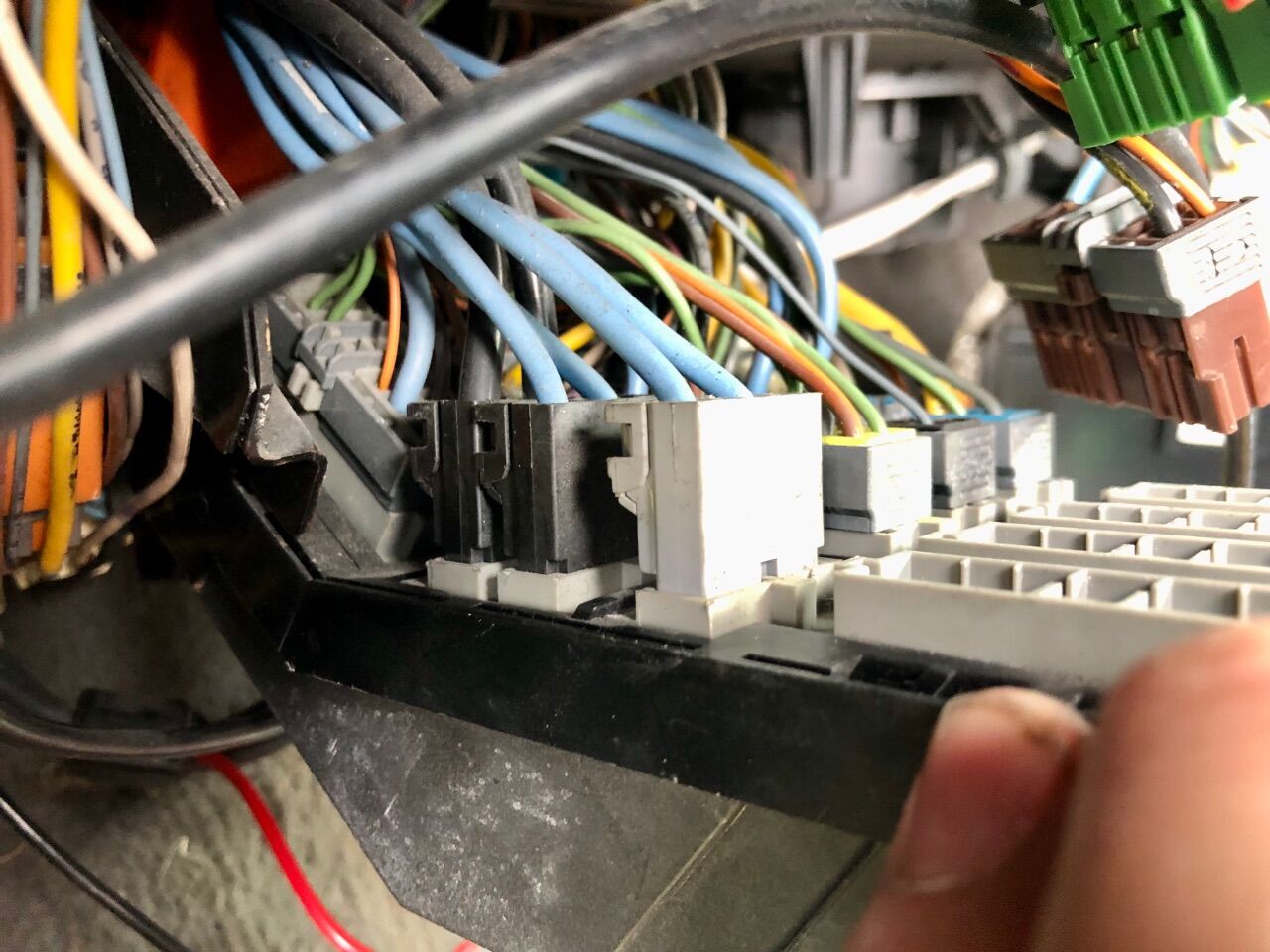

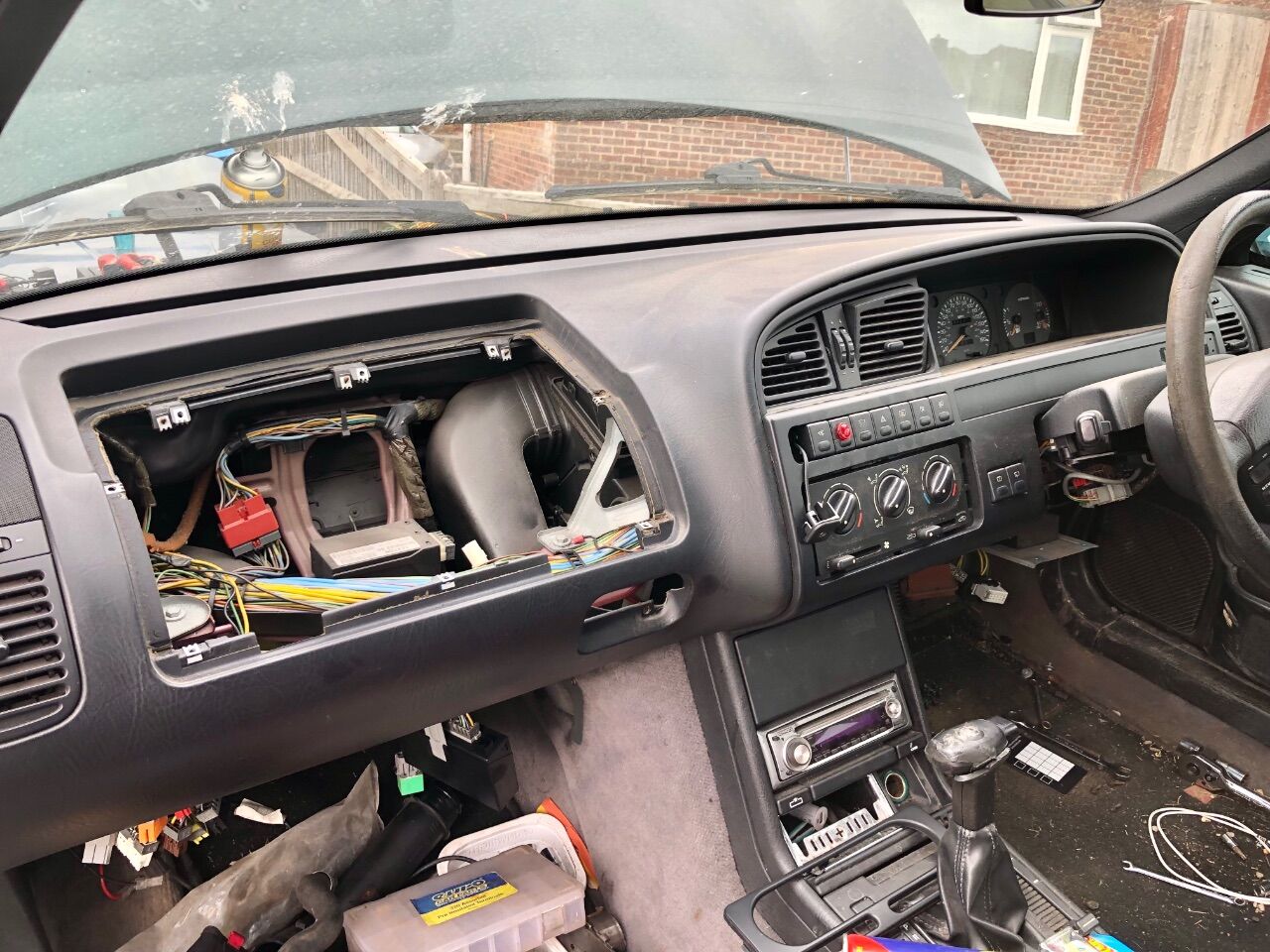

I decided to pull the fuse box out, and test the wiring from connector to connector.

Whilst removing the fuse box, I was reminded that I ducking hate removing fuse boxes.

When I began refitting it later, I was reminded that I fucking hate refitting them even more.

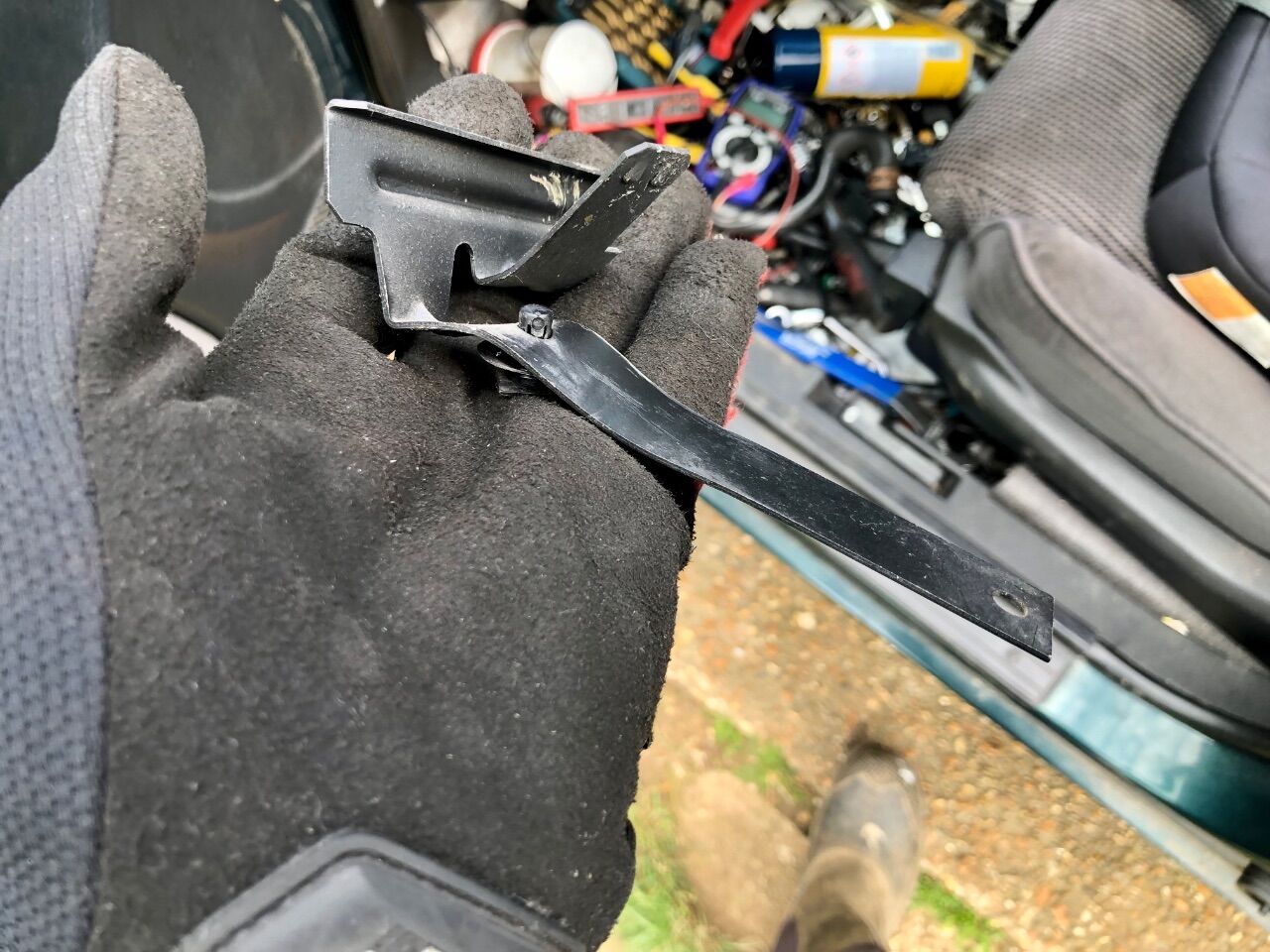

This bracket was flapping in the breeze and bent, which is possibly why I can’t access the top row of uses normally. I’ve hammered it flat and have realised that refitting this is awful too.

It’s definitely been one of those ‘it has to get worse before it can get better’ sessions.

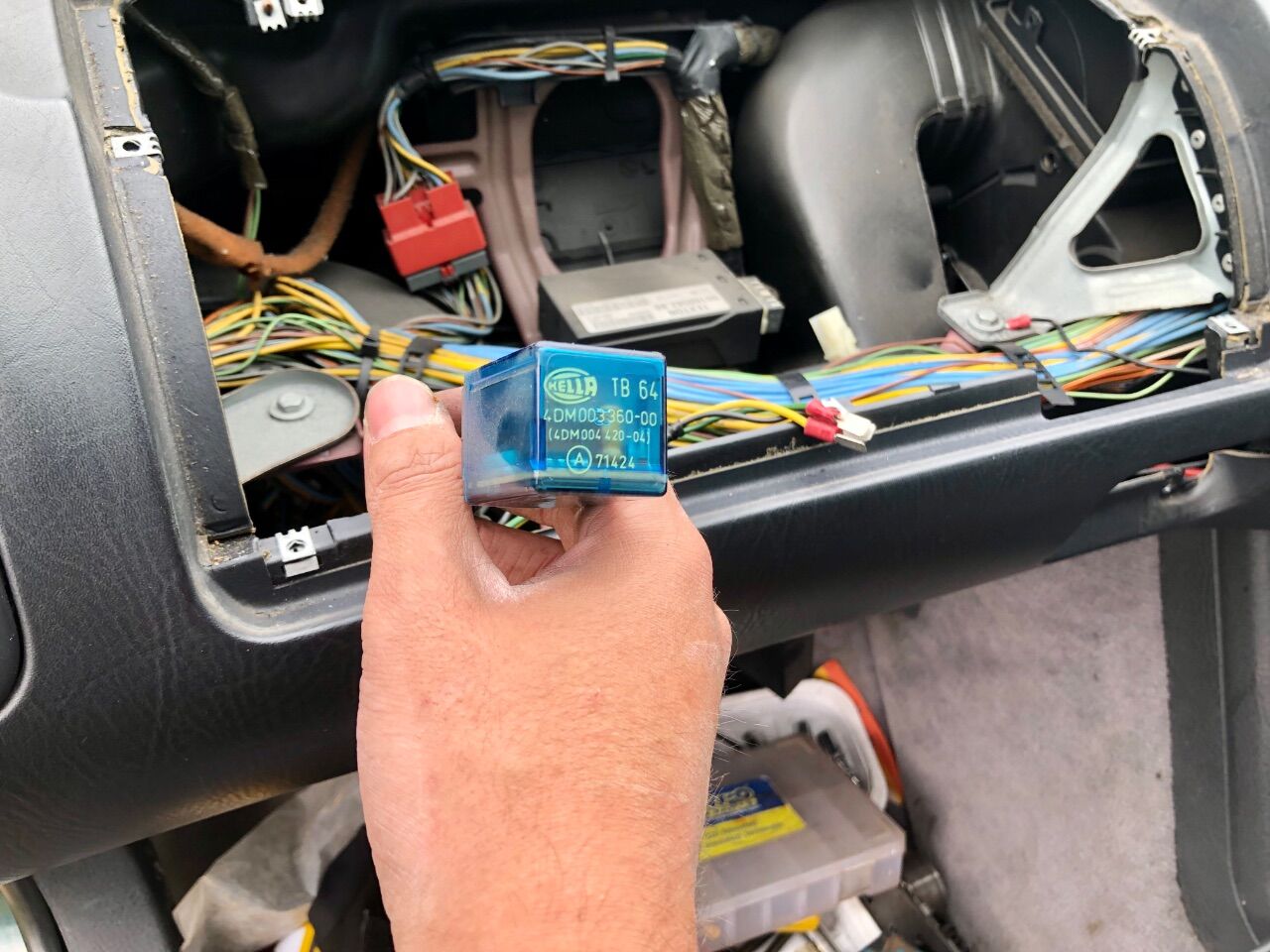

This revealed that the previous attack on the fuse box had been a result of installing the tow bar electrics, the indicator relay had to be replaced for a 4 pin relay.

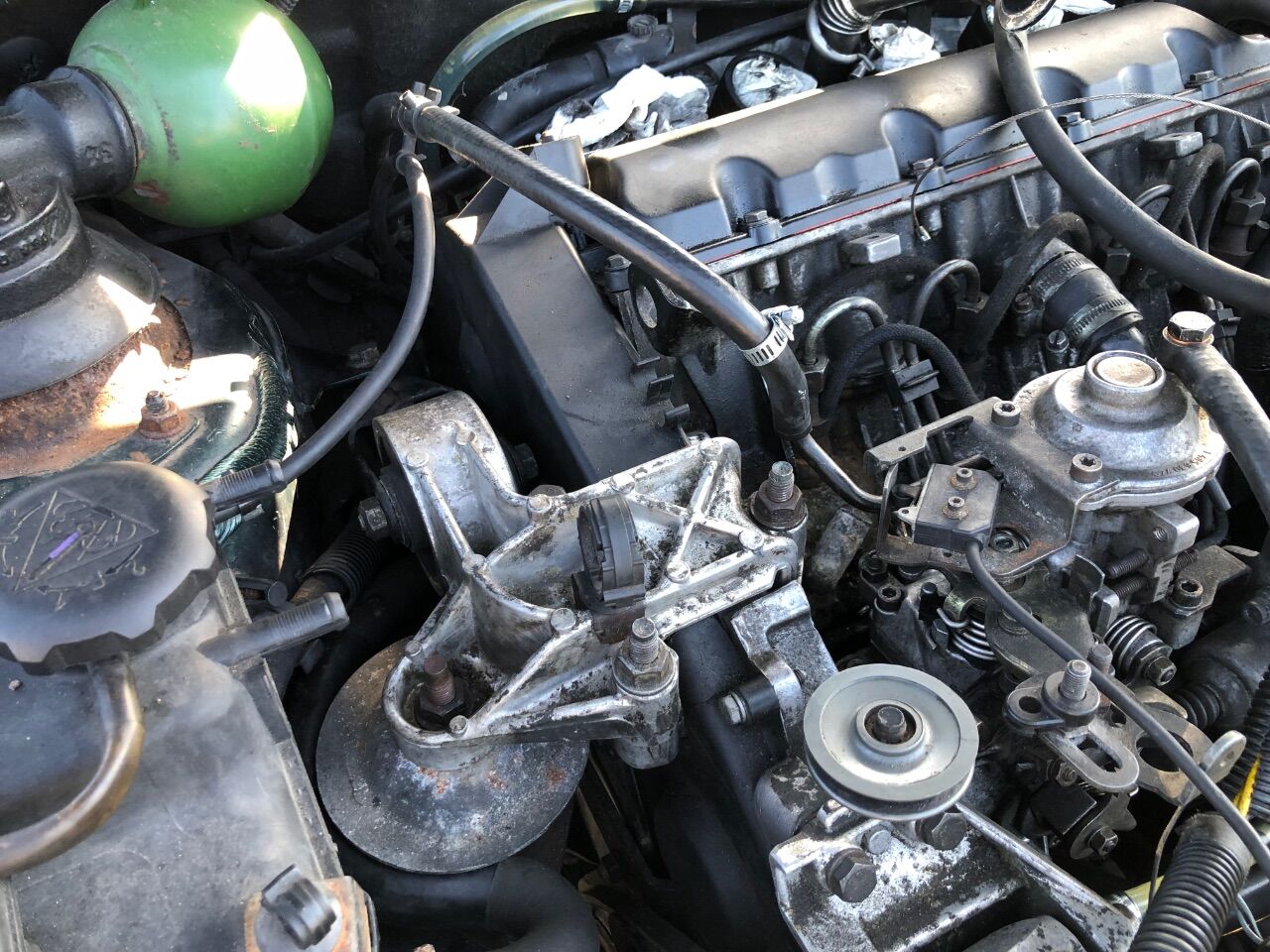

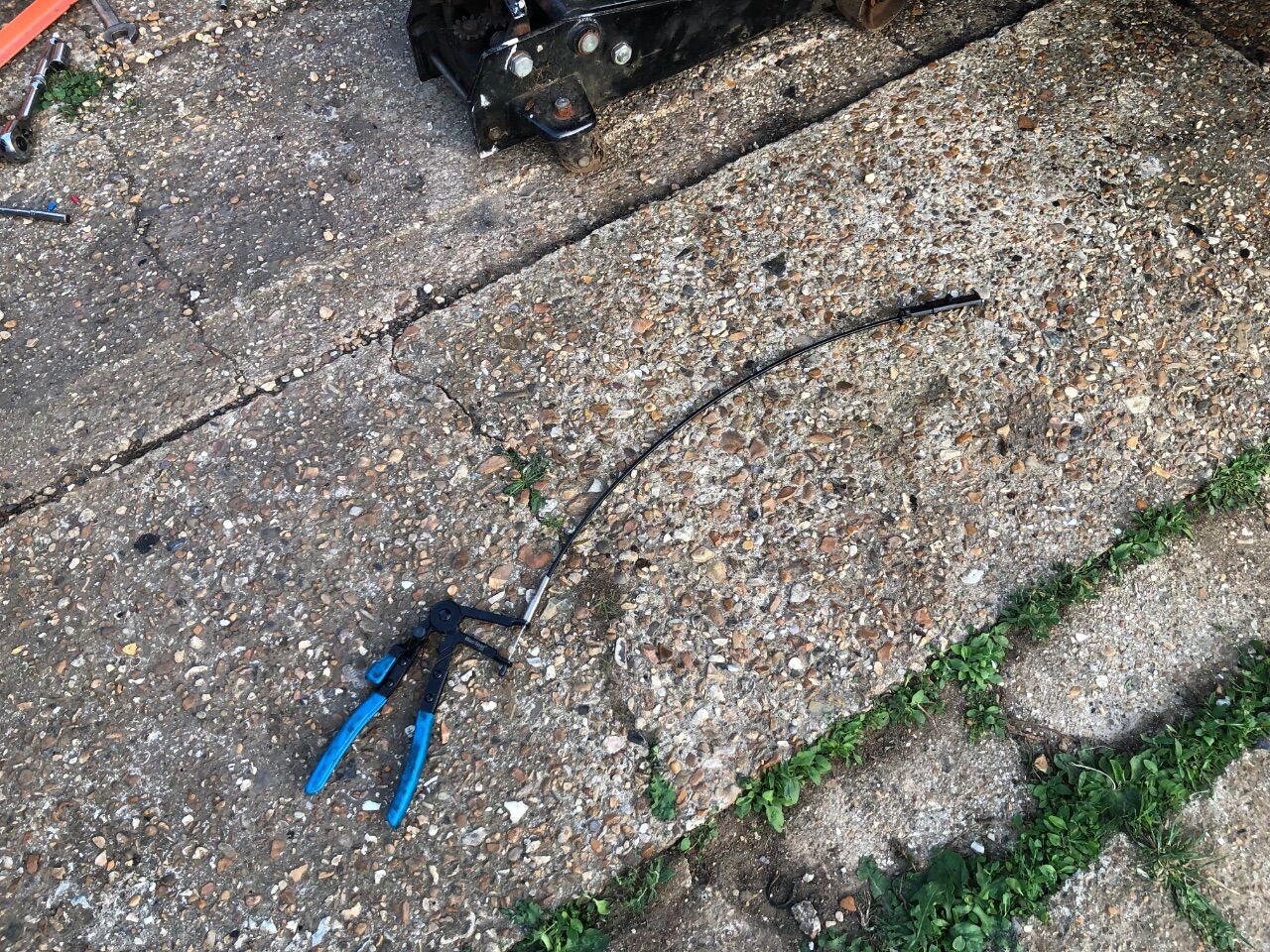

To follow the loom out the bulkhead, I had to remove all of these bastard hoses and the LHM tank again; at least they’re fairly free moving as a result of me being in here a few months ago.

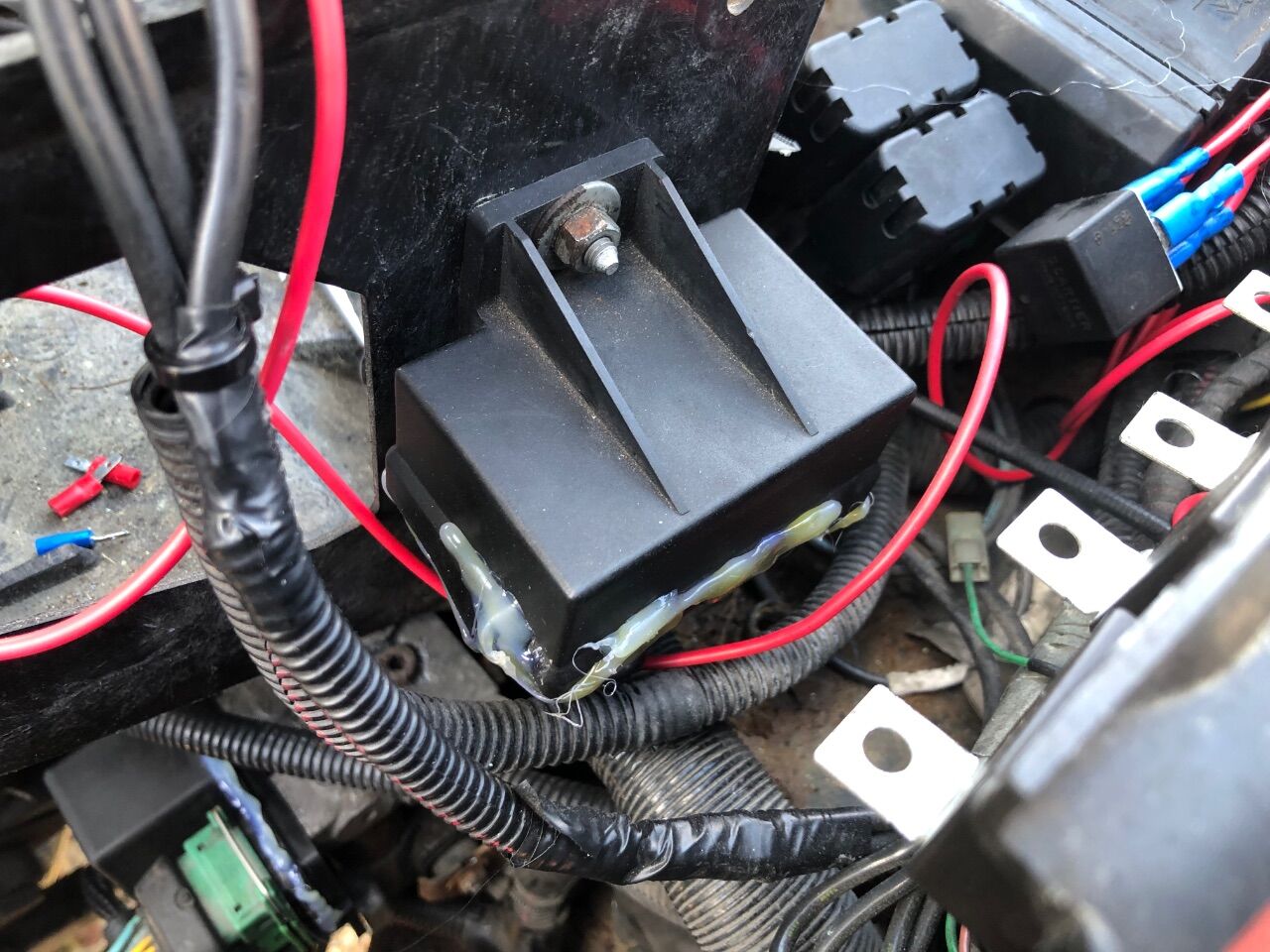

I then got distracted, and found the ECU that controls the cooling fans.

More on that in a bit…

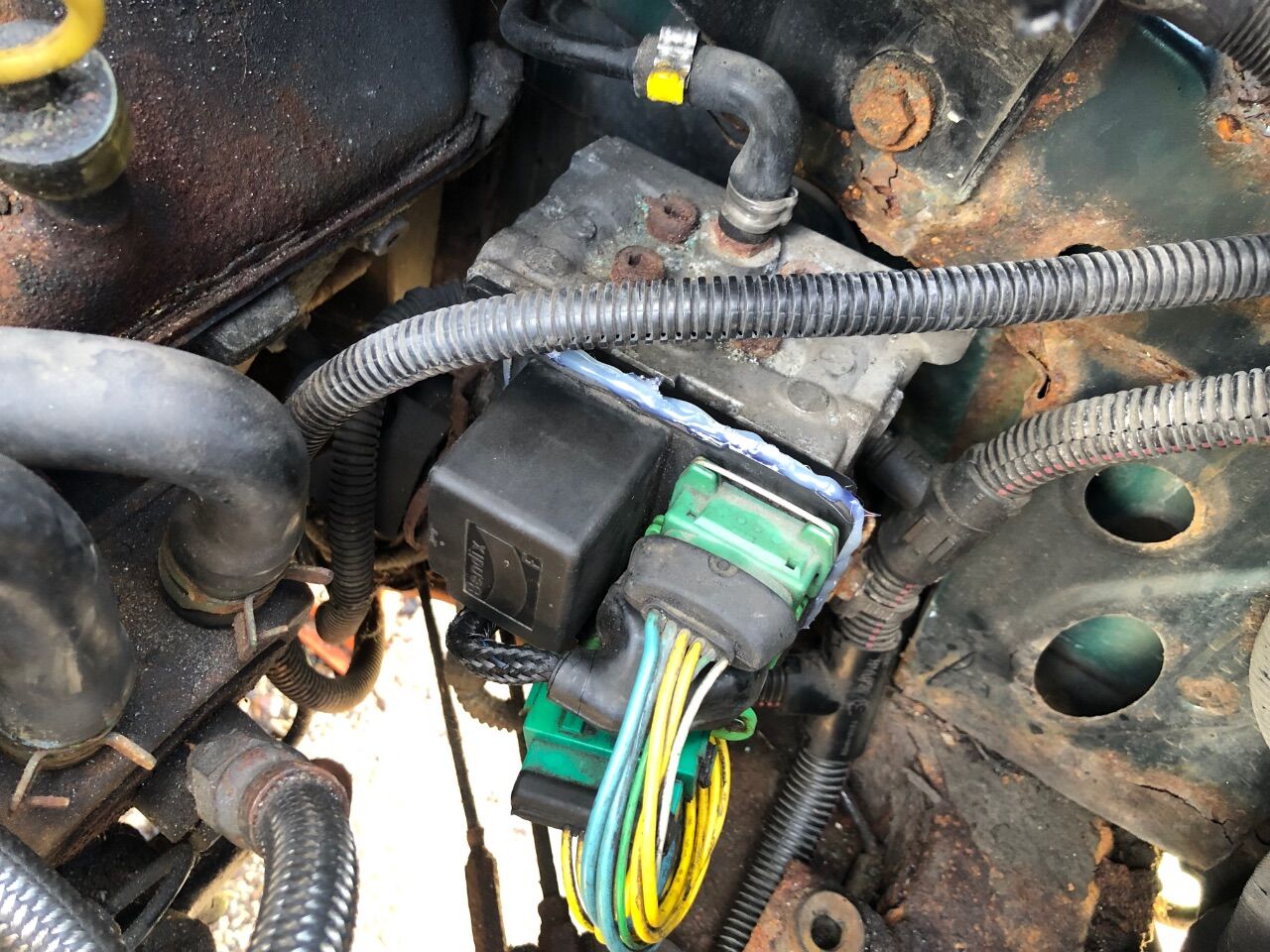

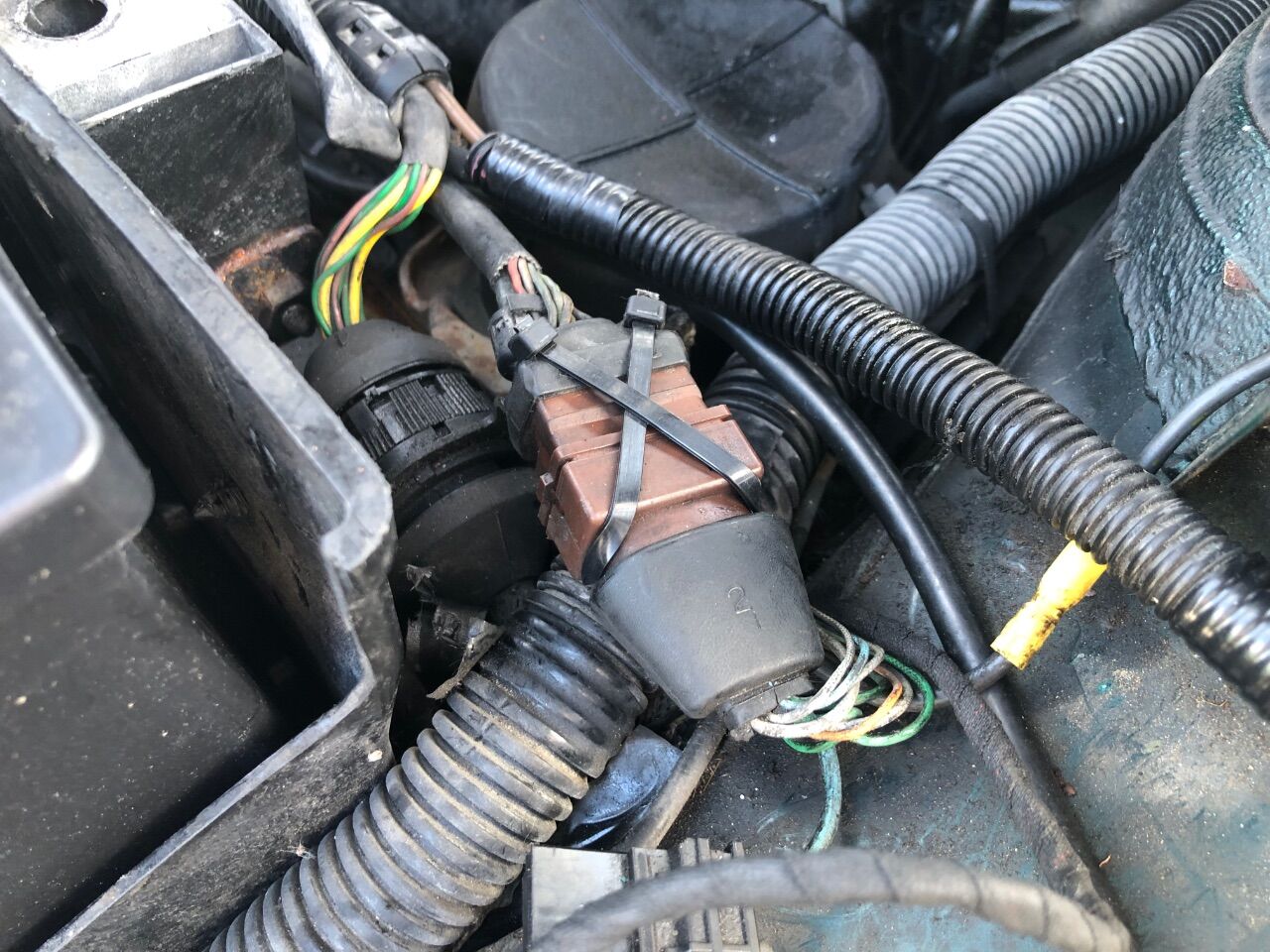

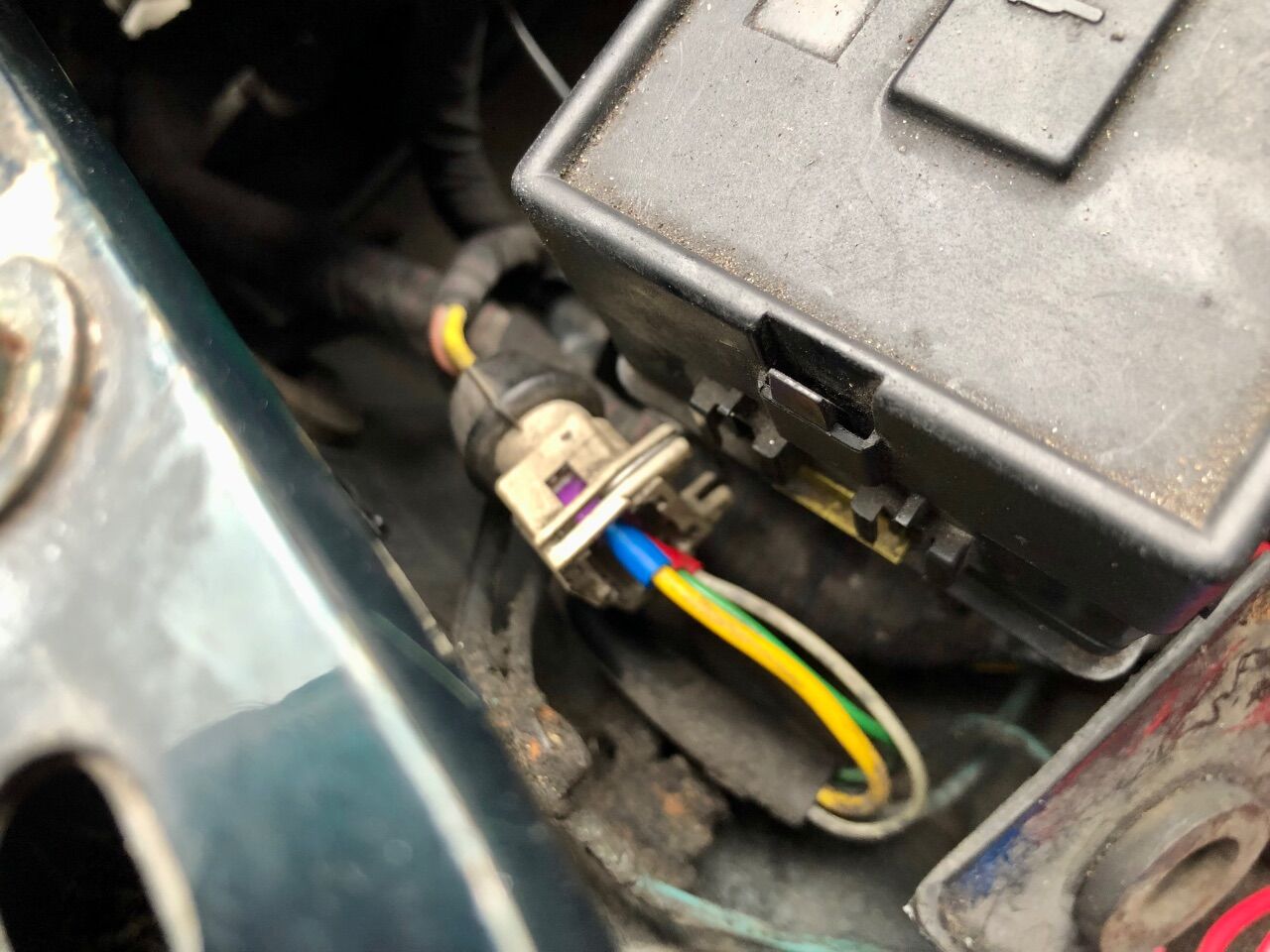

Tracing through the wiring loom for the main ABS power feed led me to this connector - it looks ok visually, but appears to have broken down internally.

I didn’t have a proper connector spare, so did a quick proof of concept mock up with crimp connectors.

This got the ABS ECU to power on and self test, but the lamp stayed on. I then read the codes, cleared them and cycled the ignition:

Success! The light came on, the ECU did the self test, and the light went out. I’ve ordered some waterproof connectors and a new terminal crimping tool, so I can do a proper-ish repair.

Shame that I’ve pretty much literally had to tear the whole car apart to get here.

Moving on to the cooling fan issue, it turns out that the ECU for these is sealed. Luckily I own a hacksaw, and give zero fucks about anything on this car that already doesn’t work - it can’t get any more broken, right?!

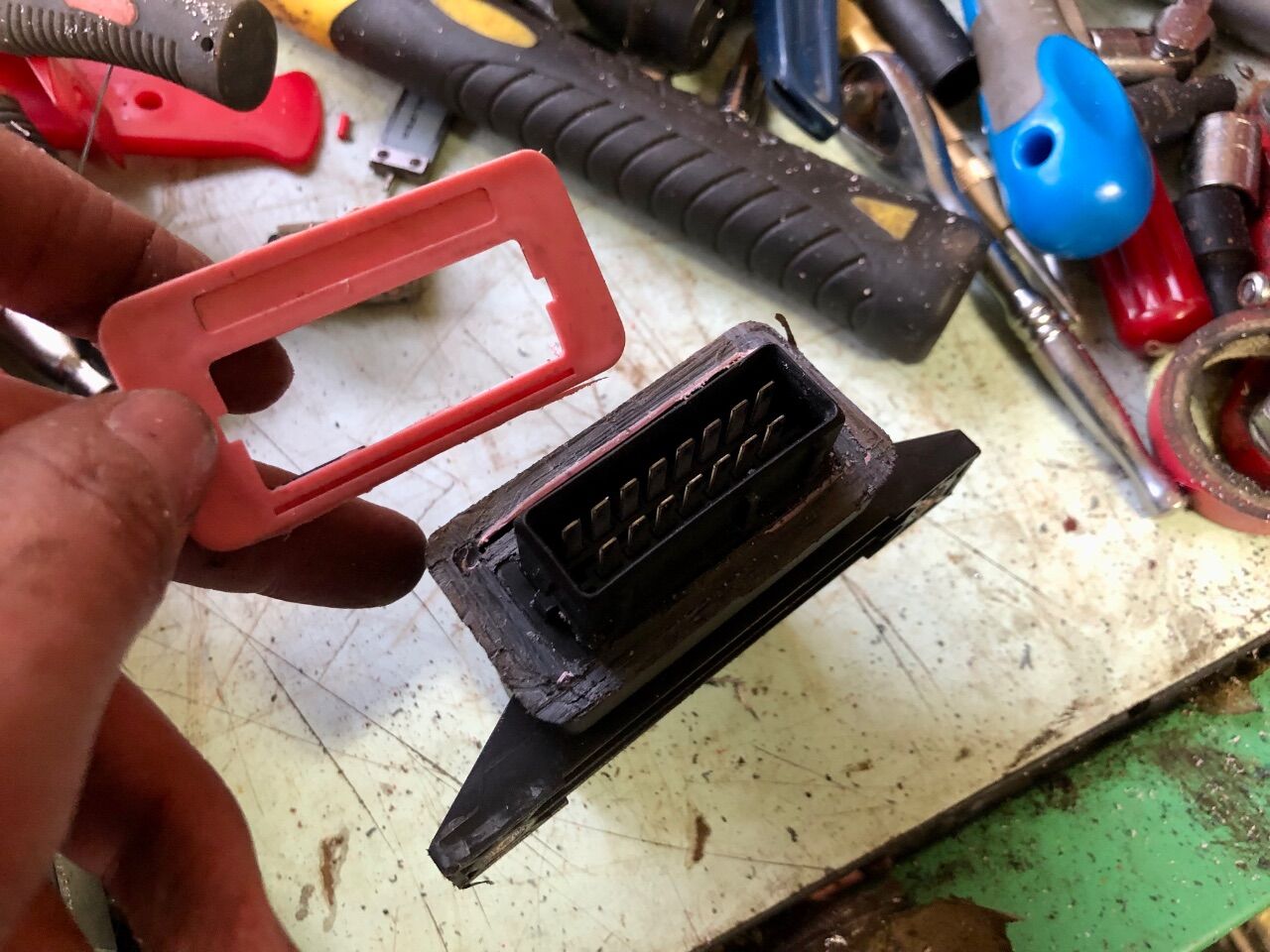

After cutting the link faceplate off, I was able to pry the guts out of it with a couple of picks. They did not want you getting in here apparently.

Anyway, I liked what I saw: even a moron like me can figure out that burnt bits on a circuit board are probably broken.

That diode was immolated for its sins, apparently.

I can’t find a matching part number, so I reckon I’m going to be doing an arse load of soldering in the near future. I’ve tested that diode, and obviously it’s mega fucked. I’ve tested the others, and one is definitely bad and one or two read a bit high. The capacitors all seemed ok, so that’s something at least.

Did I mention that I’m really not looking forward to putting all of this back together again?

Whilst I’m pleased that it looks like the two main electrical problems are now sorted, this does mean it’s nearly time to try and remember what order the whole car has to go back together in…

[GagaStan]

1 hour ago, Rust Collector said:

I can’t find a matching part number

This fan control box looks very similar to the unit used on earlier 306s and Xsaras - could be worth digging around at a scrapyard for one? They're located just in front of the passenger side wheel arch.

[High Jetter]

1 hour ago, Rust Collector said:

Well, I finally have some good news.

Today I decided to back probe the power connector to the ECU; 2.5v anaemic bolts were present. It was showing battery voltage when disconnected, so it appeared to be an issue with the circuit under load.

I soldered some wires to a 5w bulb to make a test lamp, removed the pin from the connector and tested it with the lamp; this confirmed that there was no power at all under load.

I dutifully set about measuring the resistance between the fuse box and the ECU connector.

Yep, that’ll do it.

Sniffing around the fuse box revealed that I was not the first one in here.

Hmm…

I decided to pull the fuse box out, and test the wiring from connector to connector.

Whilst removing the fuse box, I was reminded that I ducking hate removing fuse boxes.

When I began refitting it later, I was reminded that I fucking hate refitting them even more.

This bracket was flapping in the breeze and bent, which is possibly why I can’t access the top row of uses normally. I’ve hammered it flat and have realised that refitting this is awful too.

It’s definitely been one of those ‘it has to get worse before it can get better’ sessions.

This revealed that the previous attack on the fuse box had been a result of installing the tow bar electrics, the indicator relay had to be replaced for a 4 pin relay.

To follow the loom out the bulkhead, I had to remove all of these bastard hoses and the LHM tank again; at least they’re fairly free moving as a result of me being in here a few months ago.

I then got distracted, and found the ECU that controls the cooling fans.

More on that in a bit…

Tracing through the wiring loom for the main ABS power feed led me to this connector - it looks ok visually, but appears to have broken down internally.

I didn’t have a proper connector spare, so did a quick proof of concept mock up with crimp connectors.

This got the ABS ECU to power on and self test, but the lamp stayed on. I then read the codes, cleared them and cycled the ignition:

Success! The light came on, the ECU did the self test, and the light went out. I’ve ordered some waterproof connectors and a new terminal crimping tool, so I can do a proper-ish repair.

Shame that I’ve pretty much literally had to tear the whole car apart to get here.

Moving on to the cooling fan issue, it turns out that the ECU for these is sealed. Luckily I own a hacksaw, and give zero fucks about anything on this car that already doesn’t work - it can’t get any more broken, right?!

After cutting the link faceplate off, I was able to pry the guts out of it with a couple of picks. They did not want you getting in here apparently.

Anyway, I liked what I saw: even a moron like me can figure out that burnt bits on a circuit board are probably broken.

That diode was immolated for its sins, apparently.

I can’t find a matching part number, so I reckon I’m going to be doing an arse load of soldering in the near future. I’ve tested that diode, and obviously it’s mega fucked. I’ve tested the others, and one is definitely bad and one or two read a bit high. The capacitors all seemed ok, so that’s something at least.

Did I mention that I’m really not looking forward to putting all of this back together again?

Whilst I’m pleased that it looks like the two main electrical problems are now sorted, this does mean it’s nearly time to try and remember what order the whole car has to go back together in…

Proper work. Hope you're enjoying a beer now.

[rob88h]

2 hours ago, Rust Collector said:

That footwell 😆 - it’s an Auto Shite work of art.
(Good work, impressive tenacious diagnostics going on here)

[Matty]

I do hope you get somewhere with this. You bloody deserve to.

[Rust Collector]

8 hours ago, GagaStan said:

This fan control box looks very similar to the unit used on earlier 306s and Xsaras - could be worth digging around at a scrapyard for one? They're located just in front of the passenger side wheel arch.

I have seen some for sale from other cars, but I’m aware that there are differences in the built in logic regarding the temps that the fans run at based on car and engine fitted - so really I’d like a unit from a 2.1td XM. I reckon with a bit of patience I can potentially repair this one one though.

8 hours ago, rob88h said:

That footwell 😆 - it’s an Auto Shite work of art.
(Good work, impressive tenacious diagnostics going on here)

I’ve been using the organisational method of ‘throw it in the footwell, because you’ll need it to put it back together again’. I can’t recommend it 😂

7 hours ago, Matty said:

I do hope you get somewhere with this. You bloody deserve to.

Thanks mate - I’m looking forward to getting it put back together and having a (hopefully) more functional car than I had before this work started.

[Rust Collector]

8 hours ago, High Jetter said:

Proper work. Hope you're enjoying a beer now.

I was ahead of the curve, and had a gin and tonic or two whilst getting the work done 😂

[Split_Pin]

Absolute Biblical levels of patience there. I'm like this:

..when it comes to wiring and electrics.

Very impressive man.

[Sigmund Fraud]

50 minutes ago, Rust Collector said:

I was ahead of the curve, and had a gin and tonic or two whilst getting the work done 😂

If AS ever publishes a workshop manual, I reckon it should have G&T ratings instead of the quaint Haynes spanner ratings.

"Yeah, that was a proper five G&T job, that was !"

[Tickman]

Fantastic levels of work there.

This is the sort of work I see in my future, finding faults like this. However I know nothing of how to test electronics so I will not even start stuff like this.

[Rust Collector]

4 hours ago, Sigmund Fraud said:

If AS ever publishes a workshop manual, I reckon it should have G&T ratings instead of the quaint Haynes spanner ratings.

"Yeah, that was a proper five G&T job, that was !"

The XM manual should come with a warning that ownership may cause liver damage 😂

4 hours ago, Split_Pin said:

Absolute Biblical levels of patience there. I'm like this:

..when it comes to wiring and electrics.

Very impressive man.



4 hours ago, Tickman said:

Fantastic levels of work there.

This is the sort of work I see in my future, finding faults like this. However I know nothing of how to test electronics so I will not even start stuff like this.

Thanks chaps - I’m sure someone who knew their way around car electrics properly would’ve sorted this in no time compared to my backwards and forwards method of trouble shooting though 😅

I was really lucky that the circuit diagrams are readily available for this car, so I could take my time and poke around with a multimeter and power probe - if I had of been going in blind then I think I’d still be chasing my own tail at this point.

I also can’t afford to pay someone to do this work, so there’s no other choice but to get stuck in 🤣

[Rust Collector]

There’s been some silence on this thread, as mother-in-law descended upon the house and so I have been otherwise engaged. Luckily I have recently been able to put her on a plane and return her to whence she came, so I’m now left with only one old lady who insists on spoiling any attempt at achieving joy: the XM, of course.

As ever, only the finest restoration techniques have been employed, to ensure a perfect* finish:

I forgot to take a photo, but I wrapped all the loom I removed from the wings and subframe whilst earlier tracing it for a break… that sucked.

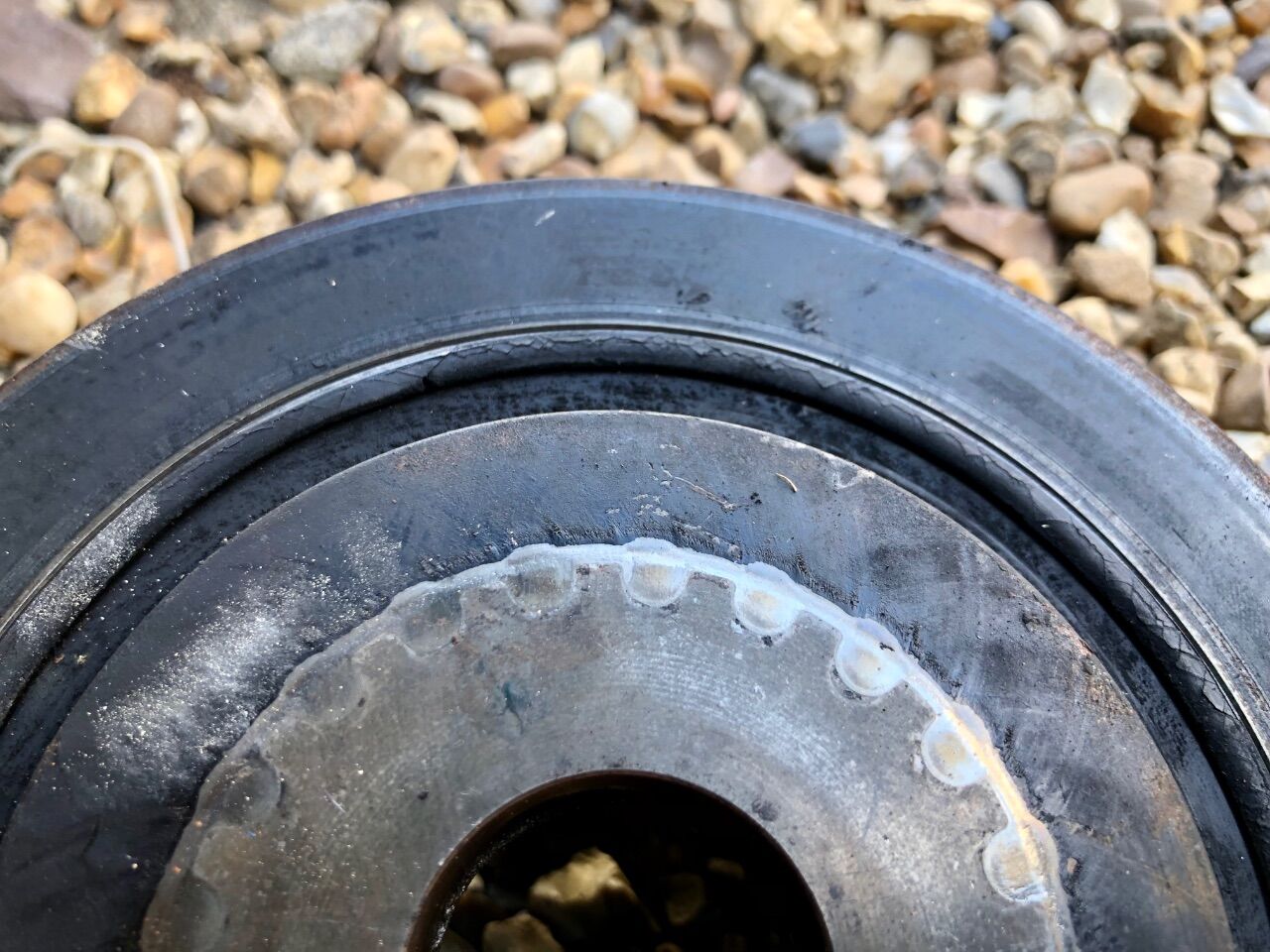

The rubber in my crank pulley looked a bit sad:

The one on the spare engine had no cracking, so I fitted that one. I hope I don’t find a reason to regret that 😅 I swapped the lower timing covers too, as the spare one was free from cracks whereas the one on the car originally was battered.

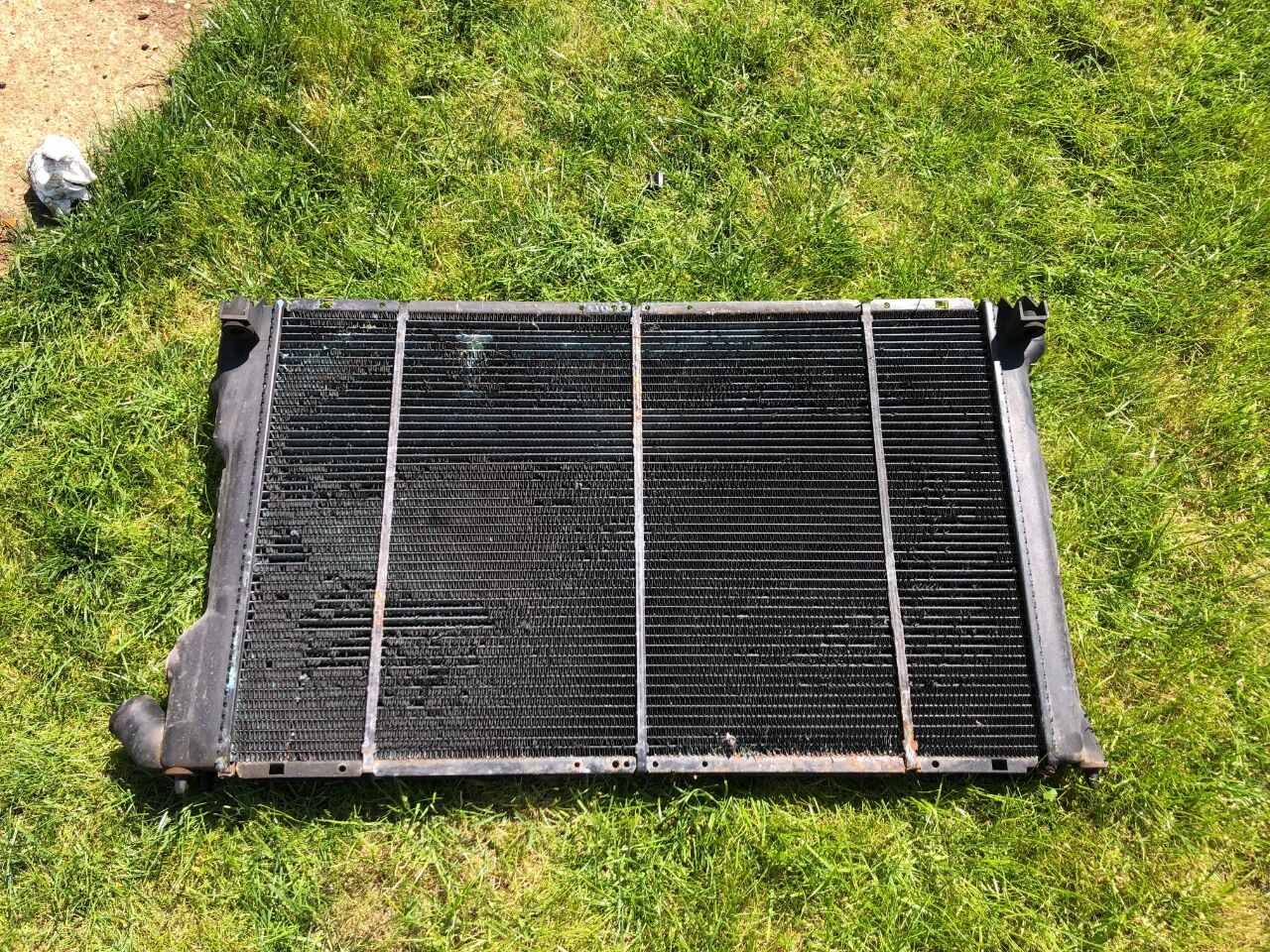

It turned out the spare radiator I have is for a BX, which is a shame as the XM radiator is really tired.

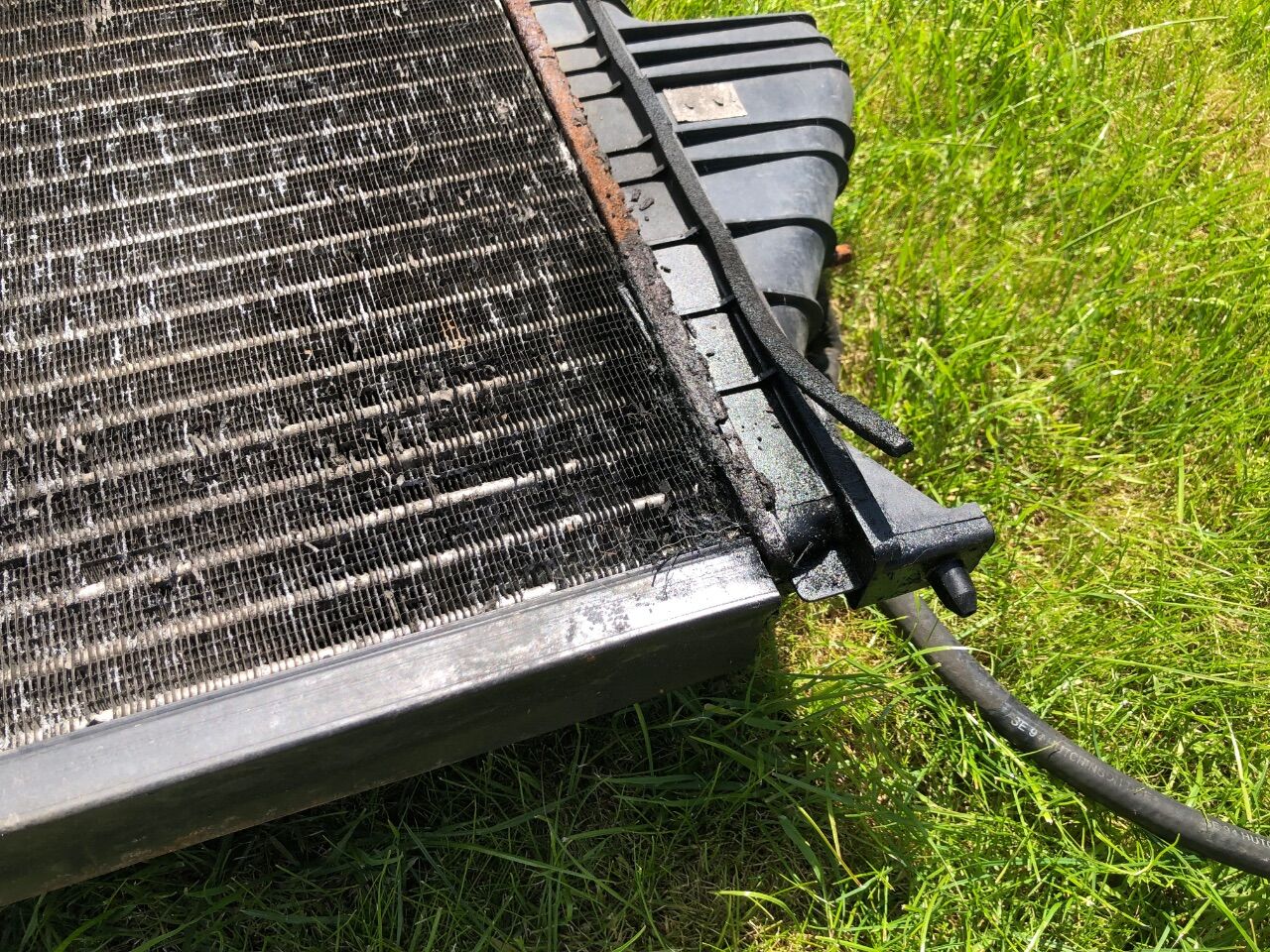

The fins are badly corroded. If the car passes its next MOT, I might treat it to a new radiator as a bit of preventative maintenance.
