Lacquer Peel Posted July 18, 2017 Share Posted July 18, 2017 The block and head castings are the same. Machining is different, and the cam cover is a different shape, but in the same way a 1769cc XUD and a 2088cc XUD are not the same engine but are part of the same family, this is part of that same family of engines. Which does matter, as it means that things like starter motors, alternators, water pump, cam belt, tensioners and other ancilliary devices are interchangeable with other XUD series engines. Have you been deep inside the Tata engine to prove it? I'm only familiar with XUDs. I'm genuinely curious about this and would love to be proven wrong. Tata XUD Cross checking cambelts, water pumps and alternators, they don't even share these parts. Link to comment Share on other sites More sharing options...
cobblers Posted July 18, 2017 Share Posted July 18, 2017 Rocker covers and manifolds are interchangeable cos some lad with a lotus 7 has an XUD in one with tata bits on it. I think he even swapped the head? I have no idea where I read this, it might even have been on here! tooSavvy 1 Link to comment Share on other sites More sharing options...
Pillock Posted July 18, 2017 Share Posted July 18, 2017 A Lotus 7 with bits of Tata engine?He needs to be on here if he's not already! Sent from my Pixel XL using Tapatalk michael1703, Arthur Foxhake, mat_the_cat and 3 others 6 Link to comment Share on other sites More sharing options...
Dirk Diggler Posted July 18, 2017 Share Posted July 18, 2017 I'm interested in this topic; when I was a little boy there was a 204 1.3 diesel and a 305 wih a 1.6, then a 504 with a 2.3; they all seemed to me at the time to be smooth Link to comment Share on other sites More sharing options...
tooSavvy Posted July 18, 2017 Share Posted July 18, 2017 Rocker covers and manifolds are interchangeable cos some lad with a lotus 7 has an XUD in one with tata bits on it. I think he even swapped the head? I have no idea where I read this, it might even have been on here!RR... 'Fake 7' or somesuch... anti-se7en ! http://retrorides.proboards.com/thread/163442/diesel-kit-car-anti-se7en TS cobblers 1 Link to comment Share on other sites More sharing options...
Arthur Foxhake Posted July 18, 2017 Share Posted July 18, 2017 http://www.306oc.co.uk/forum/showthread.php?tid=6559Still an active thread. Has a standard XUD in at the moment while the Tata headed, supercharged/turbo compound engine is being rebuilt. I'm sure Photobucket have ruined the pics but he has some amusing videos to watch as well.Edit. Pics seem to work on the first page. Lacquer Peel 1 Link to comment Share on other sites More sharing options...

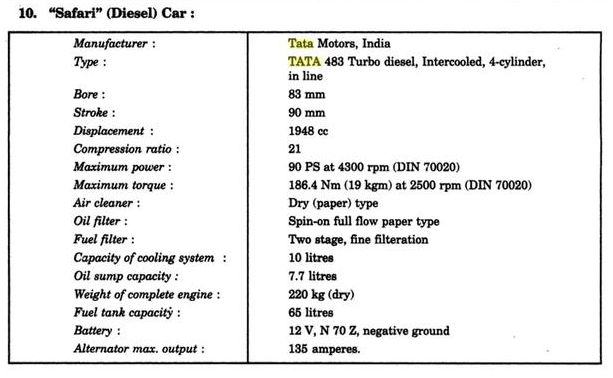

Cleon-Fonte Posted July 18, 2017 Share Posted July 18, 2017 I'd always assumed the Tata diesel was nothing more than a reworked 1948cc Indenor XD88 block, but looking at the table above the bore/stroke are completely different (the Indenor is 88mmx80mm), the identical capacities being merely coincidental. The Tata shares its 83mm bore with the XUD9 (with a slightly longer stroke), giving some credence to the theory that it's XUD-based. But it weighs 80kg more than an XUD9TE which would suggest some serious beefing up has taken place, and that the blocks/heads are not identical castings. Lacquer Peel 1 Link to comment Share on other sites More sharing options...
castros_bro Posted July 18, 2017 Share Posted July 18, 2017 http://www.306oc.co.uk/forum/showthread.php?tid=6559Still an active thread. Has a standard XUD in at the moment while the Tata headed, supercharged/turbo compound engine is being rebuilt.I'm sure Photobucket have ruined the pics but he has some amusing videos to watch as well.Edit. Pics seem to work on the first page. You utter bastaaaard. There's a link on there to Arduino controlled huge turbo'd XUD'd ZX and I can see the next year at work may not be too productive for my employer. chodweaver, The Moog, Arthur Foxhake and 2 others 5 Link to comment Share on other sites More sharing options...
Arthur Foxhake Posted July 18, 2017 Share Posted July 18, 2017 That ZX managed 260 odd BHP on the dyno. Mad. Link to comment Share on other sites More sharing options...
Lacquer Peel Posted July 18, 2017 Author Share Posted July 18, 2017 TUD-powered Premier Rio anyone? Bosch pump and turbo. Lovely. Supernaut 1 Link to comment Share on other sites More sharing options...
somewhatfoolish Posted July 19, 2017 Share Posted July 19, 2017 The Tata shares its 83mm bore with the XUD9 (with a slightly longer stroke), giving some credence to the theory that it's XUD-based. But it weighs 80kg more than an XUD9TE which would suggest some serious beefing up has taken place, and that the blocks/heads are not identical castings.That would suggest the indians have substituted cast iron for alloy in at least one of the major castings. Link to comment Share on other sites More sharing options...
tooSavvy Posted July 19, 2017 Share Posted July 19, 2017 anti-se7en http://retrorides.proboards.com/thread/163442/diesel-kit-car-anti-se7en TS Lacquer Peel 1 Link to comment Share on other sites More sharing options...
Talbot Posted September 1, 2017 Share Posted September 1, 2017 Reading through threads like the ones linked above, all I can ever think is "where the hell do you get the time to do this???!" He even commented at one point that things got put on hold when his son was born, so he clearly has a family. I'm lucky if I get a couple of hours a week to do stuff for myself! Link to comment Share on other sites More sharing options...
chaseracer Posted September 1, 2017 Share Posted September 1, 2017 That would suggest the indians have substituted cast iron for alloy in at least one of the major castings. Or lead. Link to comment Share on other sites More sharing options...
Lacquer Peel Posted September 1, 2017 Author Share Posted September 1, 2017 Bit racist Link to comment Share on other sites More sharing options...
