Magnificent Rustbucket Posted July 9, 2017 Share Posted July 9, 2017 A constant annoying one, which gave up after a while but was replaced by the ABS light. The buzz will be the brake accumulator sphere pump. If the sphere is no longer holding pressure, the pump will run much longer that it is supposed to do. The pump is supposed to run for about 30 seconds at start up, the you shouldn't hear it again. When working properly you're supposed to have something like 50 stops even if the engine has stalled. If you were keeping the car longer, then it is worth fixing, since the pump can sometimes fail if it is overworked. This is more work/expense than simply replacing the sphere. A bit of glue will stick the veneer back on. The veneers round the side air vents are one of the few bits of veneer on substrate in the car - along with the centre console top. Most of it is traditional veneered ply RobT 1 Link to comment Share on other sites More sharing options...
Magnificent Rustbucket Posted July 9, 2017 Share Posted July 9, 2017 Your under-bonnet sphere is for the braking system, acting as an accumulator for that. Bosch as I recall, but clearly influenced by a certain French manufacturer... It is a Citroen based design, built under licence from Citroen. Link to comment Share on other sites More sharing options...
dollywobbler Posted July 9, 2017 Share Posted July 9, 2017 Thanks DW, I did wonder if it was brake related, and I've just googled the hydraulic system and the accumulator appears to be buried deep down somewhere else. Hmm. Mine had the 'sphere' where yours is, as did my Range Rover. Not that I'm an expert on these systems! Link to comment Share on other sites More sharing options...
Magnificent Rustbucket Posted July 9, 2017 Share Posted July 9, 2017 There is more than one kind of sphere used on the XJ40. I don't know that they are incompatible with each other, but I assume they are incompatible. This one looks to use JLM1907 https://www.jaguarclassicparts.com/uk/part/JLM1907 This can be bought more cheaply than this - sometimes on Ebay. The unit is made by several companies. I will have a look later to see if I can find the list of compatible part numbers, since it is used by other manufacturers including GM. I believe they can also be recharged for a lot less money than a new one - one of the Citroen enthusiasts will be able to tell you more about this I'm sure! I am rather amazed that the self levelling is still fitted. Nearly everybody just removes it, replacing the self raising strut units with the non-SLS type at the rear with second hand units and then removes the hydraulic pump from the front of the engine, replacing it with the blanking plate from a non-SLS car. The plate is available new fro a couple of quid, but an old one will be near-free. All the parts for the job are cheap and easily available second hand, since the vast majority of XJ40s have the conventional set up and the springs/conventional shocks bolt on to the car in the same way as the SLS struts and springs do. The SLS springs cannot be reused though - they're shorter. You need the whole units. This isn't an especially difficult or complex job if you are used to working on cars, though it does involve removing the rear springs, so it (for me at least) is a bit scary... There is loads on the internet about SLS replacement with standard springs - I can link 'how to' guides and post up the workshop manual pages if you like. I will also find the relevant page detailing the replacement of the sphere, though again, this is a job I would probably leave to a garage myself (the sphere is under vast pressure). No doubt, many on AS would replace it themselves, but I tend towards the anxious and am over careful. If you intend to keep the SLS - and it is excellent when working, we will need to have a go at fault finding it. Sitting high at the back like that would lead me to think it may be the attitude sensor switches on the rear suspension. IIRC they can be troublesome. I don't know that much about the SLS - I will have a look online later for a troubleshooting guide and will see if I can find a repair plan! RobT 1 Link to comment Share on other sites More sharing options...
Magnificent Rustbucket Posted July 9, 2017 Share Posted July 9, 2017 getPart-46.jpeg The brake accumulator sphere is the black spherical thing by the brake reservoir on the picture in the bottom left of the photo - the one with "Warning!" written on it. The bulkhead looks OK to me - rust like this rarely goes all the way through both panels, it looks much worse on the surface when it does that. if you put/pour/spray some rustproofing cavity wax type stuff on it on the plenum side, it'll probably not develop further. What's it like at the corners? RobT 1 Link to comment Share on other sites More sharing options...
RobT Posted July 9, 2017 Author Share Posted July 9, 2017 Thanks for all the information MR, but don't go to too much trouble with regards to researching the SLS. This is very much a temporary member of the fleet, so I will live with the faults then sell it on. It managed a trip to Eastbourne fine today, 140 miles at 27mpg which isn't bad, but the bouncy ride was getting a bit tiring on the way home. I'd liken it to an enormous Metro with knackered displacers the way it was bobbing along. Magnificent Rustbucket, Rusty_Rocket and Dave_Q 3 Link to comment Share on other sites More sharing options...
Broadsword Posted July 10, 2017 Share Posted July 10, 2017 Fab colour. What's all this nonsense about breaking down when the mileage is so low? Of course it isn't going to break down. The bodywork looks relatively tidy. Are the front wings rotten? That's a strange place for a hole in the boot, it doesn't look like a water trap or anything like that. Anyway it's well clear of a suspension component so a bit of aluminium tape an all is well again. Most important question. Which engine is it? RobT 1 Link to comment Share on other sites More sharing options...
jonny69 Posted July 10, 2017 Share Posted July 10, 2017 I'm off to Reims next weekend, and I'm tempted to book this on le shuttle for next Friday. But once this bottle of Côtes du Rhône wears off I'll probably see sense and take the trusty Astra dizzler instead! A drunk man's words are his thoughts while sober. inconsistant, BorniteIdentity and RobT 3 Link to comment Share on other sites More sharing options...
Magnificent Rustbucket Posted July 10, 2017 Share Posted July 10, 2017 The Champagne you bring back is likely to be a bit explosive after the Jag's cocktail shaker ride! RobT 1 Link to comment Share on other sites More sharing options...

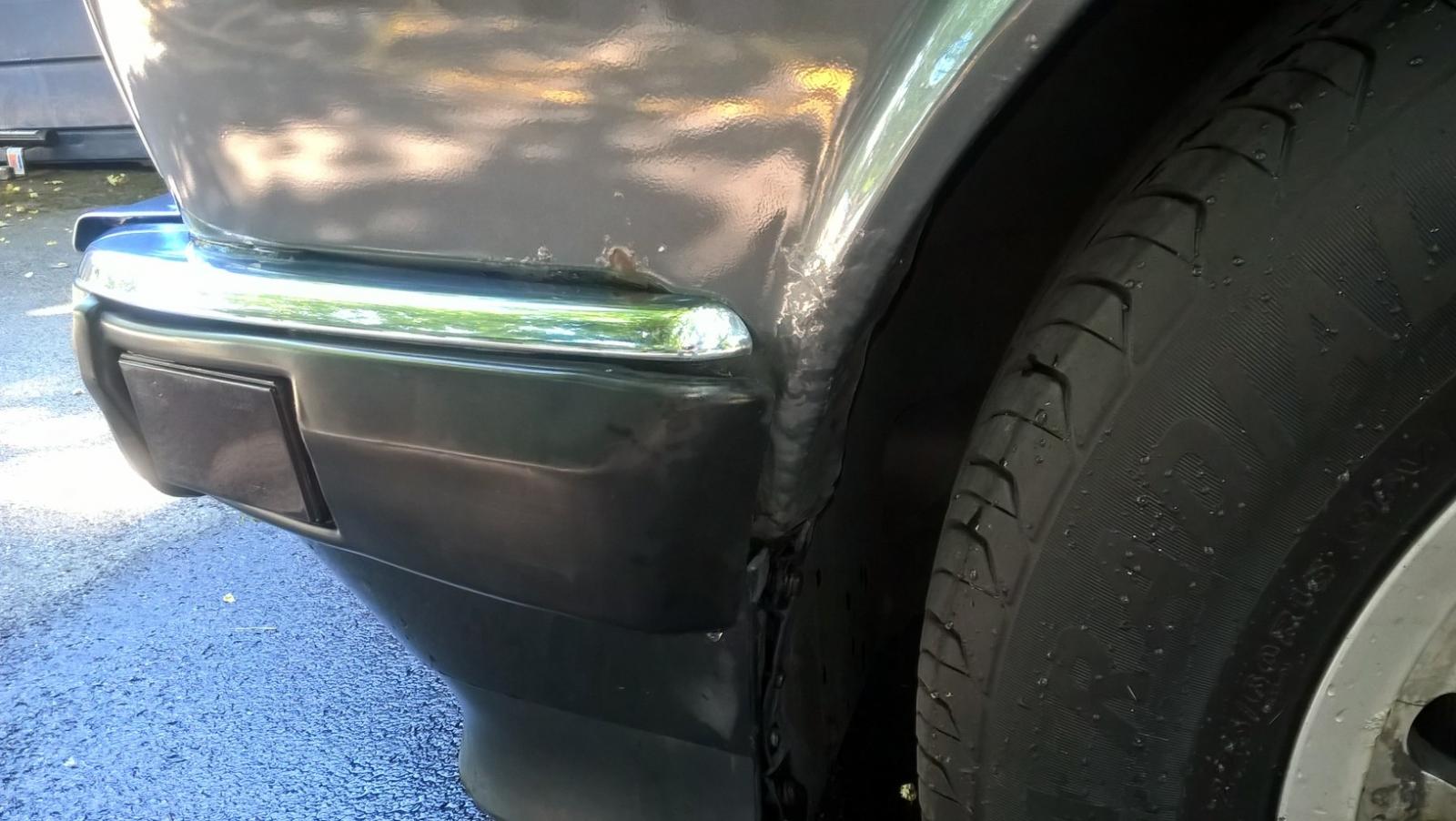

RobT Posted July 10, 2017 Author Share Posted July 10, 2017 Are the front wings rotten? Most important question. Which engine is it? Yes. The sill is of more concern though. How it passed an MoT I've no idea, as there's also holes just forward of the jacking point in this pic. They look to have been there a while. It's a 3.2, so no sports 'box and not as rapid as the 4.0 litre, but as proved yesterday it's quick enough! Link to comment Share on other sites More sharing options...
RobT Posted July 10, 2017 Author Share Posted July 10, 2017 Ensure you visit the derelict main straight/pit complex of Reims-Gueux while you're there https://en.wikipedia.org/wiki/Reims-Gueux That's the reason for the trip, re-reading your holiday thread gave me the inspiration! I wanted a road trip but was also after a worthwhile destination. I'll be staying overnight in Dunkerque and driving down and back to Calais the next day, so is a short visit. CGSB 1 Link to comment Share on other sites More sharing options...
phil_lihp Posted July 10, 2017 Share Posted July 10, 2017 That's the reason for the trip, re-reading your holiday thread gave me the inspiration! I wanted a road trip but was also after a worthwhile destination. I'll be staying overnight in Dunkerque and driving down and back to Calais the next day, so is a short visit. Noted and added to my itinerary - alas, reliving the golden days of racing won't be happening in a diesel Hiace but I can dream. I'm not sure I could cope without the sports box in one of those now, having had a 4.0 with Sport mode it was one of the most amusing ways to burn money I've yet come across. Might explain why I never saw more than 21MPG out of it, mind. RobT 1 Link to comment Share on other sites More sharing options...
hairnet Posted July 10, 2017 Share Posted July 10, 2017 If I had moobsnotic3e no pics of said robt Link to comment Share on other sites More sharing options...
RobT Posted July 10, 2017 Author Share Posted July 10, 2017 I'm camera shy hairnet, and have managed to remain a weedy fecker despite hitting middle age (hence lack of moobage!). Link to comment Share on other sites More sharing options...
RobT Posted July 18, 2017 Author Share Posted July 18, 2017 Beating yourself with a stick would be cheaper, but if anyone fancies some vehicular flagellation I've bunged this on eBay. Shiters discount applies. http://www.ebay.co.uk/itm/282574185215?ssPageName=STRK:MESELX:IT&_trksid=p3984.m1555.l2649 I'm tempted to see if I can sort the ride issues out cheaply, but I doubt it... Link to comment Share on other sites More sharing options...
Conrad D. Conelrad Posted July 18, 2017 Share Posted July 18, 2017 Noted and added to my itinerary - alas, reliving the golden days of racing won't be happening in a diesel Hiace but I can dream. I'm not sure I could cope without the sports box in one of those now, having had a 4.0 with Sport mode it was one of the most amusing ways to burn money I've yet come across. Might explain why I never saw more than 21MPG out of it, mind. Sport mode FTW! It's a different car with that button pressed. Link to comment Share on other sites More sharing options...
flat4alfa Posted July 18, 2017 Share Posted July 18, 2017 How it passed an MoT I've no idea Because Luton RobT 1 Link to comment Share on other sites More sharing options...
flat4alfa Posted July 18, 2017 Share Posted July 18, 2017 Beating yourself with a stick would be cheaper, but if anyone fancies some vehicular flagellation I've bunged this on eBay. Shiters discount applies. http://www.ebay.co.uk/itm/282574185215?ssPageName=STRK:MESELX:IT&_trksid=p3984.m1555.l2649 I'm tempted to see if I can sort the ride issues out cheaply, but I doubt it... Wot, already? #32 please Link to comment Share on other sites More sharing options...
