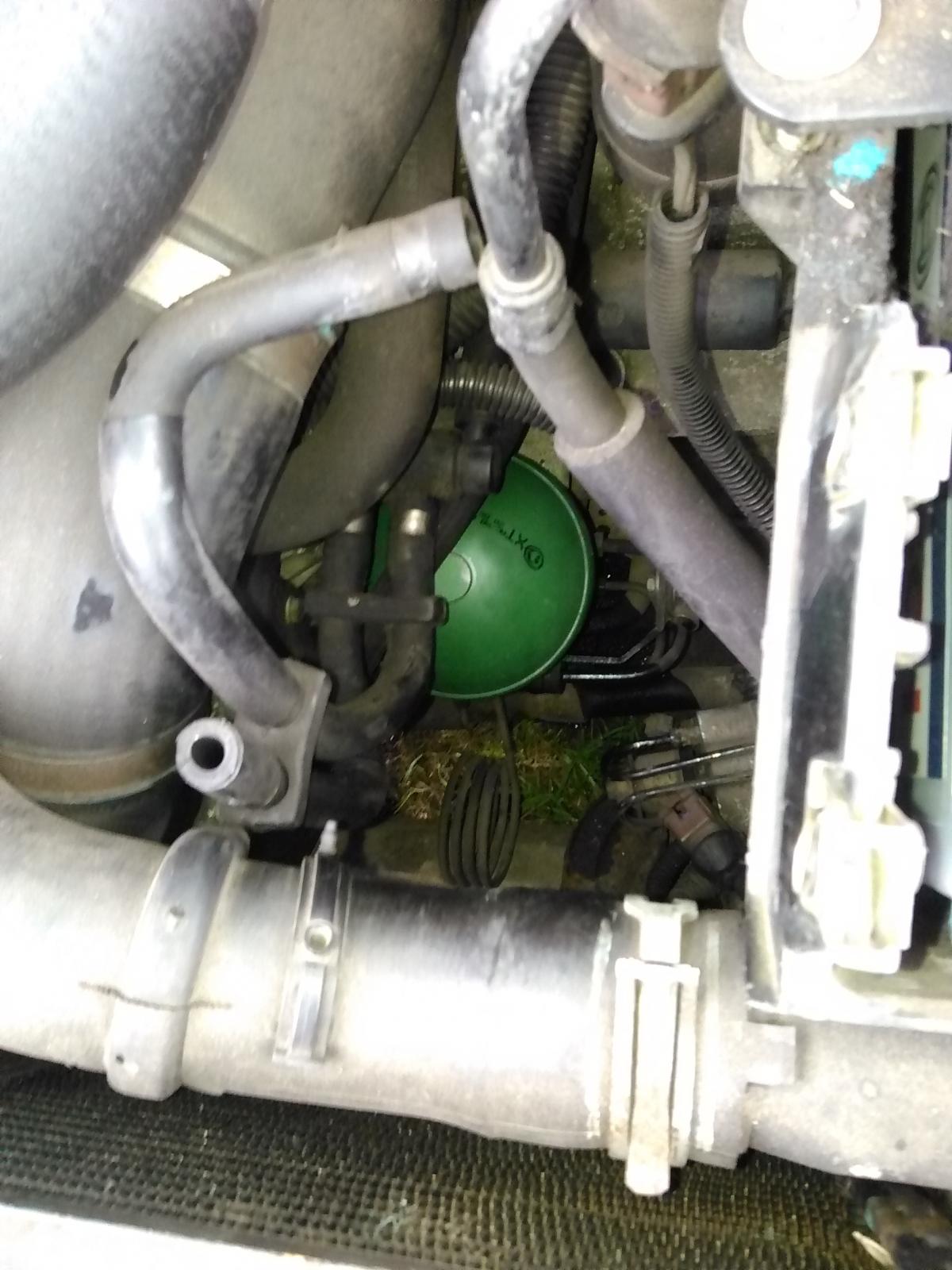

Frogchod Posted April 24, 2016 Share Posted April 24, 2016 Last weekend I attempted to change the accumulator sphere on my XM, it's a right pig to get to, you can just get yourhand on it and slip a chain wrench on. But there appeared to be no way of applying leverage without removing the rads.So I blagged this used from French ebayReally easy to use, slip it over the sphere, 19mm socket on an extension bar and bingo one sphere changed in about 10 mins60 euro well spent I thinkNo idea who made it. It's got DAMS-197 stamped on it. willswitchengage, michael1703, Heidel_Kakao and 6 others 9 Link to comment Share on other sites More sharing options...
tooSavvy Posted April 24, 2016 Share Posted April 24, 2016 French... NOT made of cheese... Shock! Good catch M8 TS Link to comment Share on other sites More sharing options...
djimbob Posted April 24, 2016 Share Posted April 24, 2016 Looks very much like an oil filter removal tool, good spot and thanks for sharing Link to comment Share on other sites More sharing options...
Sigmund Fraud Posted April 24, 2016 Share Posted April 24, 2016 Brilliant, but expensive. IIRC, the proper Citroen tool is/was made by Facom and looked like a very heavy duty oil filter chain wrench. The AS-approved removal procedure involves a cold chisel and BFO hammer - equally effective, unless one needs to re-use the sphere. Link to comment Share on other sites More sharing options...
Frogchod Posted April 24, 2016 Author Share Posted April 24, 2016 BFO hammer and chisel method was tried But there's just not the room to give it a proper thwacking Sigmund Fraud 1 Link to comment Share on other sites More sharing options...
forddeliveryboy Posted April 24, 2016 Share Posted April 24, 2016 Even the Pleiades tool would have struggled to beat that! Good purchase, any more pics - esp of the bits which move/articulate. Link to comment Share on other sites More sharing options...
mrcitroen Posted April 24, 2016 Share Posted April 24, 2016 I have the Pliaedes tool which always seems to do the trick. I have owned Hydro Cits over 20 years, it has paid more than its way! That French job looks good! Link to comment Share on other sites More sharing options...

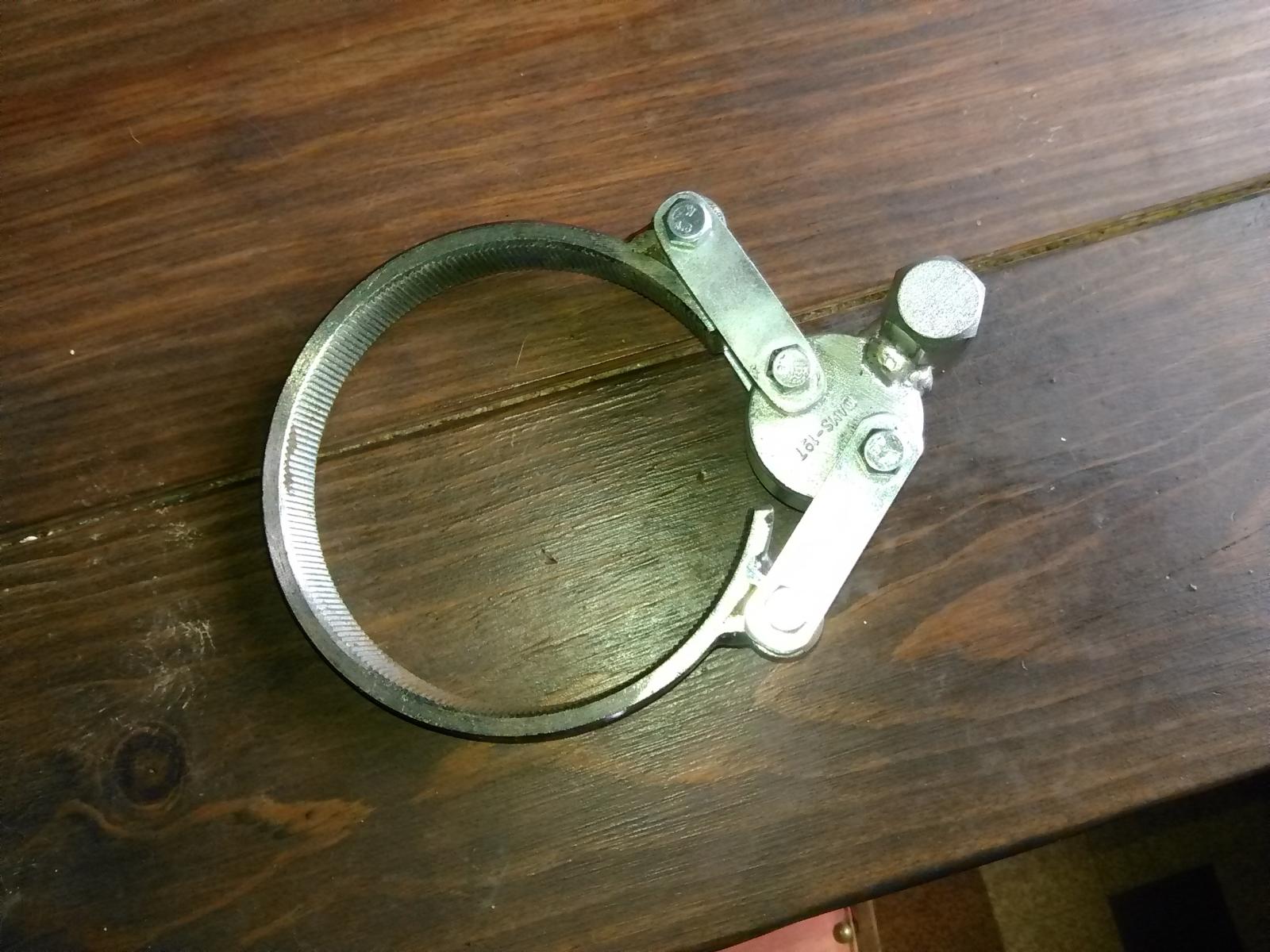

Frogchod Posted April 24, 2016 Author Share Posted April 24, 2016 I've never seen one like this before.It's quite chunky but slipped into position ok.It slips over the sphere and holds itself in place on the ridge around the extremity of the sphere.Then the sloppiness of the cam arrangement on the tool tightens up as you apply torque and jobs a goodun.Hopefully this pic is clearer. forddeliveryboy and Bamboocarman 2 Link to comment Share on other sites More sharing options...
myglaren Posted April 24, 2016 Share Posted April 24, 2016 A bit expensive but cheap if it works! tooSavvy 1 Link to comment Share on other sites More sharing options...
explosive-cabbage Posted April 24, 2016 Share Posted April 24, 2016 Do you have a link please? Link to comment Share on other sites More sharing options...
Frogchod Posted April 25, 2016 Author Share Posted April 25, 2016 No links, I just searched "outil sphere" on French ebayHowever I have just emailed the seller asking where he got it from.He was a perfect seller so I hope for a reply. Google might yield some results if you're creative and know a bit of French lingo. "DAMS-197" is stamped on it Link to comment Share on other sites More sharing options...
Eddie Honda Posted April 25, 2016 Share Posted April 25, 2016 I believe that tool was made by WANODA Bamboocarman and Lacquer Peel 2 Link to comment Share on other sites More sharing options...

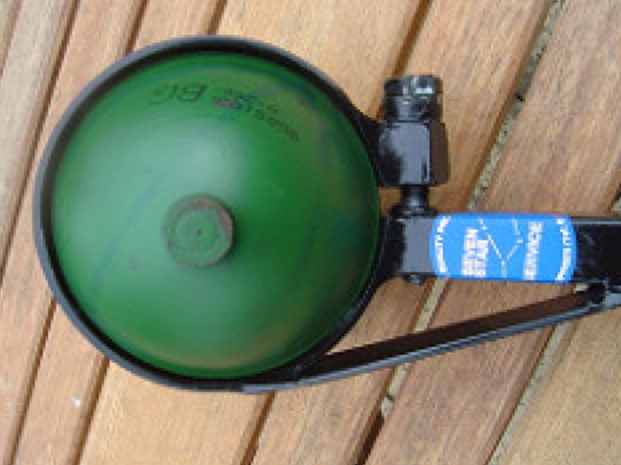

forddeliveryboy Posted April 25, 2016 Share Posted April 25, 2016 The Pleiades one is v good, angled to reach all the awkward to reach sphere on the Hydractive models - but I do like the design of the one above. http://www.mycitroen.dk/library/ds/red/Parts%20Suppliers%20etc/Pleiades.pdf Or you can easily make your own, with a length of inch square bar and some M8 threaded bar. Bend the bar to a semi-circle to fit round a sphere, drill two holes at one end of the bar to take the two ends of bar, thread nuts on, cut off excess thread, use nuts to tighten round sphere, bar to crack the sphere's thread. When cracking the threads, do it with the suspension on high to prevent the cylinders from moving. (And don't lie under an unsupported car). http://www.telegraph.co.uk/news/uknews/1471753/Gripping-yarn-of-man-who-thought-hed-found-a-bomb.html Lacquer Peel and Bamboocarman 2 Link to comment Share on other sites More sharing options...
Frogchod Posted April 27, 2016 Author Share Posted April 27, 2016 Ebay seller has been most helpful and replied to my query. No website. Address is : Outillage Dams, St Daimas de Tende, 22 avenue Martyrs de la Resistance, 06430, Tende, Alps Maritimes. Phone is 04 93 04 60 44 or fax 04 93 04 62 72. He said it was around 90 euros new. That Wanoda one above looks identical apart from the different markings on the cam. Bamboocarman and Eddie Honda 2 Link to comment Share on other sites More sharing options...
Heidel_Kakao Posted September 7, 2017 Share Posted September 7, 2017 I may as well bump this thread rather than starting a new one. I will probably need to change my XM's accumulator sphere in the near future and was wondering if anyone has a removal tool like Frogchod's that I could borrow. That type looks much better than the kind with a normal handle as I don't want to remove the radiators to get enough room to swing the tool. I was going to attempt to just use an oil filter wrench removal tool initially but the forums seem to suggest this is rarely successful. beko1987 1 Link to comment Share on other sites More sharing options...
dollywobbler Posted September 7, 2017 Share Posted September 7, 2017 I've only got the long type so space might be a struggle. An oil filter wrench stands pretty much no chance. Heidel_Kakao 1 Link to comment Share on other sites More sharing options...
Heidel_Kakao Posted September 7, 2017 Share Posted September 7, 2017 I am almost tempted to pay a garage to change it for me but I really resent paying labour charges for something that I could probably do myself. Link to comment Share on other sites More sharing options...

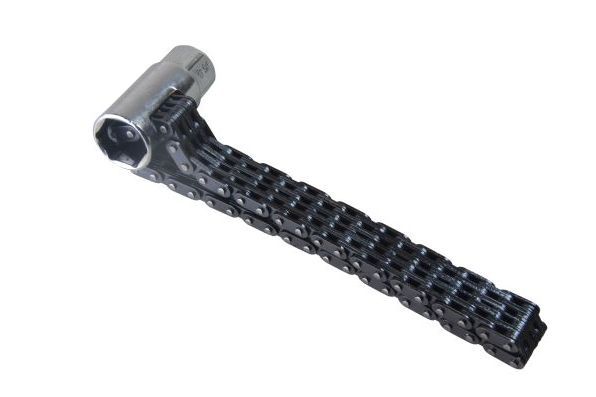

Heidel_Kakao Posted September 7, 2017 Share Posted September 7, 2017 Would not even something like this double chain filter wrench have a chance? I am probably vastly underestimating the force required to remove a sphere but I will most likely realise when I come to have a go at it myself. Link to comment Share on other sites More sharing options...
beko1987 Posted September 7, 2017 Share Posted September 7, 2017 No chance. I had use of a proper tool when I had the spheres on my xm checked, and it took doing the bolts up so they dug into the sphere slightly, then a fair bit of smacking with a big hammer to undo. Or it'll be like the beige bx and be barely hand tight... There were some on ebay for £15 when I had my xantia, don't know of the quality though Heidel_Kakao 1 Link to comment Share on other sites More sharing options...
dean36014 Posted September 7, 2017 Share Posted September 7, 2017 I brought a 15 quid one on ebay, do the bolts up tight and it works perfectly. Link to comment Share on other sites More sharing options...
Frogchod Posted September 8, 2017 Author Share Posted September 8, 2017 I may as well bump this thread rather than starting a new one. I will probably need to change my XM's accumulator sphere in the near future and was wondering if anyone has a removal tool like Frogchod's that I could borrow. That type looks much better than the kind with a normal handle as I don't want to remove the radiators to get enough room to swing the tool. I was going to attempt to just use an oil filter wrench removal tool initially but the forums seem to suggest this is rarely successful.Pop over tomorrow (with sausages and bacon) and I'll change the sphere for you.Or if you're near Reading I can get my sister to take the tool back with her for you to borrow. forddeliveryboy, Heidel_Kakao and strangeangel 3 Link to comment Share on other sites More sharing options...
Heidel_Kakao Posted September 8, 2017 Share Posted September 8, 2017 Pop over tomorrow (with sausages and bacon) and I'll change the sphere for you.Or if you're near Reading I can get my sister to take the tool back with her for you to borrow.Are you not based in France? It would be tempting to have an excuse to pop over to the XM's homeland but I wouldn't be able to do so for quite a few weeks as I have a fair amount of stuff going on at the moment. Reading though is two hours (100 miles) from me so much more manageable. Link to comment Share on other sites More sharing options...
Frogchod Posted September 9, 2017 Author Share Posted September 9, 2017 Yes I'm in Normandie about an hour from Caen. I could maybe get my sister to post in on from Reading. Postage from France is mega euros... Or maybe a shite relay up to you ? Link to comment Share on other sites More sharing options...
forddeliveryboy Posted September 9, 2017 Share Posted September 9, 2017 Something improvised can sometimes work if locked threads are able to be shocked free with a heavy hammer on a length of substantial ally bar connecting with where the sphere screws in. I've known rear spheres which have been solid with corrosion undo by hand using this technique, which isn't to say it's a definite. There have been those which have needed a hefty blow to the lever on the Pleiades tool, even after thread-shocking. There are people, presumably used to non-Citroën engineering, who tighten the things up with as vigour as they need to remove them. Hand-tight is enuff, it's the condition and correct positioning of the rubber seal which counts, as with the pipe connections. Lacquer Peel 1 Link to comment Share on other sites More sharing options...
eifion Posted September 9, 2017 Share Posted September 9, 2017 I have a Pleiades removal tool you're welcome to borrow, but I'm up in North Wales. I'm not sure how it could be got to you cheaply. Link to comment Share on other sites More sharing options...
steveo3002 Posted September 9, 2017 Share Posted September 9, 2017 I have a Pleiades removal tool you're welcome to borrow, but I'm up in North Wales. I'm not sure how it could be got to you cheaply. hermes will deliver for £3-4 Link to comment Share on other sites More sharing options...

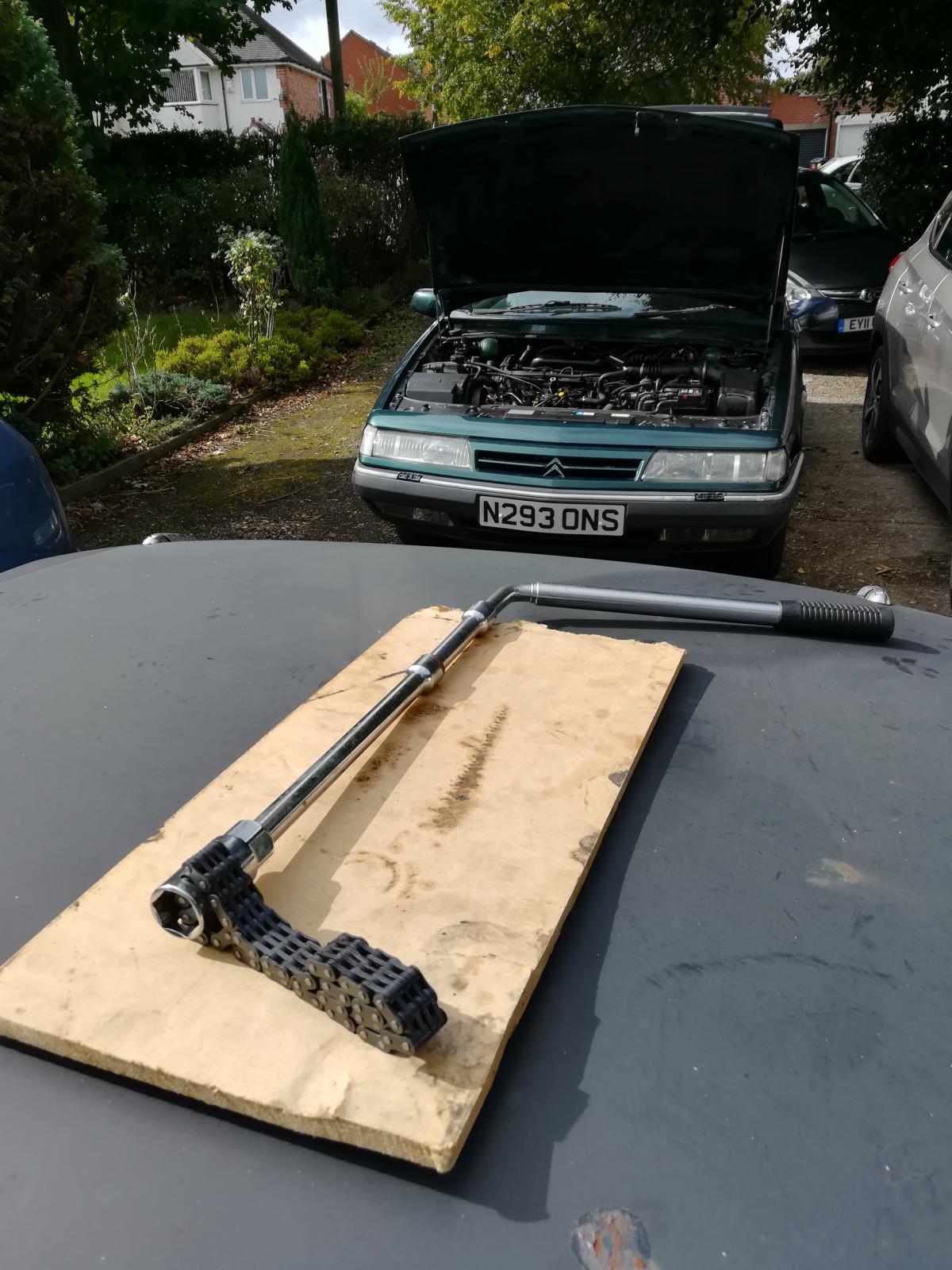

Heidel_Kakao Posted September 15, 2017 Share Posted September 15, 2017 Problem solved! I had to be stubborn and try it for myself and the above rig complete with bit of wood to protect the radiator from accidental damage has easily loosened my accumulator sphere. Thanks to everyone that offered to lend me a tool but I should be ok now. Just got to buy a new sphere. Frogchod and forddeliveryboy 2 Link to comment Share on other sites More sharing options...
