Cars with strange mechanics


  • Please log in to reply
175 replies to this topic

#1 OFFLINE   pshome

pshome

    =^..^=

  • Full Members
  • 4,024 posts
  • 30 thanks
  • Country : Country Flag

Posted 09 October 2018 - 06:47 PM

I can't find a thread for this...



Cars with odd ways to do mechanics, engine, drivetrain, electrics etc.  show them here.



Let me start with Peugeot running a belt around the corner.





  • chaseracer, Ross_K, privatewire and 16 others like this

1978 504 GL
1977 504 V6 Convertible
1986 505 Turbo Injection

1982 Tagora 2.2 Automatic
2002 Zafira Diesel
2004 Corolla Diesel
2017 Duster 1.2
1981 Talbot Tagora Dinin replica
1983 Talbot Tagora SX
1981 Talbot Tagora GLS

1984 505 Turbo Injection
1989 505 SX
1982 Talbot Tagora SX
http://www.altefranzosen.de
http://www.504cc.de
http://www.talbot-tagora.com
http://www.504forum.de
http://www.talbot-tagora.de


#2 OFFLINE   dollywobbler

dollywobbler

    Mr HubNut

  • Full Members
  • 27,480 posts
  • 77 thanks
  • Country : Country Flag

Posted 09 October 2018 - 06:52 PM

Honda Z600 did that too.



  • pshome, Junkman, dome and 1 other like this

1972 Invacar Model 70, 1984 Reliant Fox

1986 Citroen 2CV6, 1990 Dacia 1310

1999 Daewoo Matiz, 2000 Rover 45 V6, 2001 Perodua Nippa
HubNut Blog      HubNut Vids    Twitter


#3 OFFLINE   pshome

pshome

    =^..^=

  • Full Members
  • 4,024 posts
  • 30 thanks
  • Country : Country Flag

Posted 09 October 2018 - 06:55 PM

Mr. Ben Gregory not only turned the engine around,


he also build several rear engined cars with front wheel drive.


gregory_sedan_1947_web1_20671263d6b798fe

  • garethj, privatewire, forddeliveryboy and 6 others like this

1978 504 GL
1977 504 V6 Convertible
1986 505 Turbo Injection

1982 Tagora 2.2 Automatic
2002 Zafira Diesel
2004 Corolla Diesel
2017 Duster 1.2
1981 Talbot Tagora Dinin replica
1983 Talbot Tagora SX
1981 Talbot Tagora GLS

1984 505 Turbo Injection
1989 505 SX
1982 Talbot Tagora SX
http://www.altefranzosen.de
http://www.504cc.de
http://www.talbot-tagora.com
http://www.504forum.de
http://www.talbot-tagora.de


#4 OFFLINE   Bianconeri

Bianconeri

    Rank: BL Wedge

  • Full Members
  • 677 posts
  • 2 thanks
  • LocationEngland
  • Country : Country Flag

Posted 09 October 2018 - 06:55 PM

I can't find a thread for this...



Cars with odd ways to do mechanics, engine, drivetrain, electrics etc.  show them here.



Let me start with Peugeot running a belt around the corner.



http://i297.photobucket.com/albums/mm232...





204 and maybe the 304? I seem to remember that my 204 used the alternator pulley as the 'top' 90 degree turn.



The 404 had a peculiar back axle arrangement too, put the wrong oil in it and it 'chopped' at 30mph in top.


Currently carless, which is weird
Citroen DS23 - sold 2018
Austin A110 - sold 2017
Jaguar Mk 2 - sold 2015

#5 OFFLINE   Asimo

Asimo

    Hondamatic

  • Full Members
  • 5,183 posts
  • 35 thanks
  • LocationRe-booting....
  • Country : Country Flag

Posted 09 October 2018 - 07:02 PM

^^^^Worm gear final drive in the 404?

Odder than the 204/304's round-the-corner belt drive is that the final drive/driveshafts are at the front of the gearbox. Long wheelbase win!

A feature also to be seen on the Toyota IQ I believe. Short wheelbase win?

#6 ONLINE   Conan

Conan

    Rank: Austin Maxi

  • Full Members
  • 118 posts
  • 3 thanks
  • LocationBangkok
  • Country : Country Flag

Posted 09 October 2018 - 07:10 PM

Some that came off the top of my head.



Cars with bass ackward gearbox; Saab 900, various old Citroen.

BMW M70 V12 which have 2 of every electronic engine components. Because having to fix only one BMW component is too easy.

Honda S600 had chain drive like motorcycle.

Honda 1300 was a little 1960's saloon powered by air-cooled engine equipped with 4 carburettors and dry sump system powering the front wheel.

Toyota Hybrid "Power Spilter" Gearbox, after many years of trying to understand it I'm now convinced it's witchcraft.



There'll be more, but I need sleep badly.


  • Datsuncog, Nibblet and nebuchenezer like this

#7 OFFLINE   Skut

Skut

    Rank: Austin Maxi

  • Full Members
  • 312 posts
  • 1 thanks

Posted 09 October 2018 - 07:11 PM

Always thought the Mk2 Pandas and Y10s Omega beam rear suspension a little strange.  Partly a trailing arm, partly torsion beam.

Attached Images

  • Omega.jpg

  • Vin, Lacquer Peel, Nibblet and 1 other like this

#8 OFFLINE   pshome

pshome

    =^..^=

  • Full Members
  • 4,024 posts
  • 30 thanks
  • Country : Country Flag

Posted 09 October 2018 - 07:15 PM




The first turbo charged passenger car.

It was not happy with just fuel, it needed this as well:

a water-alcohol mix that was injected to control knock of the 10,25-compression V-8.


  • garethj, Lacquer Peel, Junkman and 5 others like this

1978 504 GL
1977 504 V6 Convertible
1986 505 Turbo Injection

1982 Tagora 2.2 Automatic
2002 Zafira Diesel
2004 Corolla Diesel
2017 Duster 1.2
1981 Talbot Tagora Dinin replica
1983 Talbot Tagora SX
1981 Talbot Tagora GLS

1984 505 Turbo Injection
1989 505 SX
1982 Talbot Tagora SX
http://www.altefranzosen.de
http://www.504cc.de
http://www.talbot-tagora.com
http://www.504forum.de
http://www.talbot-tagora.de


#9 OFFLINE   Timewaster

Timewaster

    Yeah, yeah.. I'll do it in a minute....

  • Full Members
  • 5,582 posts
  • 20 thanks
  • LocationThe sticks
  • Country : Country Flag

Posted 09 October 2018 - 07:16 PM

Renault 4 and 5 with the gearbox infront of the engine.

Spitfire single transverse leaf spring rear suspension.

Sorry for lack of pics. Phone, see.
Pete M wrote:
Jesus H. Tapdancing Christ, I can't believe I'm sad enough as to post on the interweb

Des wrote:
the fine art that is welding, like trying to shovel butter into a badgers arse with a soldering iron.

Don't suffer in silence. Samaritans 116 123

#10 OFFLINE   Aston Martin

Aston Martin

    Rank: Renault 16

  • Full Members
  • 2,070 posts
  • 10 thanks
  • LocationHull

Posted 09 October 2018 - 07:17 PM

Alfa twin spark?

Attached Images

  • 45E0540A-0643-4BA1-8925-FA22A7BB202D.jpeg

  • crapcarcollector likes this
1993 Fiat Panda Parade
2016 Cactus
2006 Fiat Panda Alessi


If you're going to have a funky car, have it in a funky colour.


#11 ONLINE   Conan

Conan

    Rank: Austin Maxi

  • Full Members
  • 118 posts
  • 3 thanks
  • LocationBangkok
  • Country : Country Flag

Posted 09 October 2018 - 07:19 PM

Spitfire single transverse leaf spring rear suspension.


Add Corvette, Volvo 960 and Smart car to the example list too.

#12 OFFLINE   Lacquer Peel

Lacquer Peel

    Rank: Talbot Matra Rancho

  • Full Members
  • 10,188 posts
  • 34 thanks
  • Country : Country Flag

Posted 09 October 2018 - 07:29 PM

Add Corvette, Volvo 960 and Smart car to the example list too.

Nissan Serena 2.0 petrol too.

#13 OFFLINE   pshome

pshome

    =^..^=

  • Full Members
  • 4,024 posts
  • 30 thanks
  • Country : Country Flag

Posted 09 October 2018 - 07:30 PM

^^^^Worm gear final drive in the 404?



 yep and don't dare putting anything but castor oil in.


  • Bianconeri likes this

1978 504 GL
1977 504 V6 Convertible
1986 505 Turbo Injection

1982 Tagora 2.2 Automatic
2002 Zafira Diesel
2004 Corolla Diesel
2017 Duster 1.2
1981 Talbot Tagora Dinin replica
1983 Talbot Tagora SX
1981 Talbot Tagora GLS

1984 505 Turbo Injection
1989 505 SX
1982 Talbot Tagora SX
http://www.altefranzosen.de
http://www.504cc.de
http://www.talbot-tagora.com
http://www.504forum.de
http://www.talbot-tagora.de


#14 OFFLINE   Mrcento

Mrcento

    Rank: Austin Maxi

  • Full Members
  • 115 posts
  • 0 thanks
  • LocationDundee
  • Country : Country Flag

Posted 09 October 2018 - 07:37 PM

Land Rover TD5 engines that ran part of the engine loom through the oily bits.



I also find BMW E36 rear brakes a bit of an odder than standard design, the rear calipers are pretty standard, but don't have a handbrake mechanism. Instead they use the inside of the disc as a drum handbrake, complete with shoes and all supporting drum hardware.



The Fiat 1.2 and 1.4 16v engines don't have a rocker cover as such, instead they run their cams through a "cambox" rather than cams carried on the head itself, so only one cam is actually driven by the timing belt, the other is gear driven of the first one. If, for any reason you need into it (such as to replace a seal of leaking cambox gasket), it therefore becomes a full timing belt job.


Fiat Cinquecento Sporting 1.2 16v conversion, Land Rover Discovery 300tdi


#15 OFFLINE   Bianconeri

Bianconeri

    Rank: BL Wedge

  • Full Members
  • 677 posts
  • 2 thanks
  • LocationEngland
  • Country : Country Flag

Posted 09 October 2018 - 07:39 PM

Renault 4 and 5 with the gearbox infront of the engine.






Both had unequal left and right wheelbases too I think.


  • Paul Dupart and MiniMort like this
Currently carless, which is weird
Citroen DS23 - sold 2018
Austin A110 - sold 2017
Jaguar Mk 2 - sold 2015

#16 OFFLINE   Bianconeri

Bianconeri

    Rank: BL Wedge

  • Full Members
  • 677 posts
  • 2 thanks
  • LocationEngland
  • Country : Country Flag

Posted 09 October 2018 - 07:40 PM

 yep and don't dare putting anything but castor oil in.



Inherited one that was 'chopping' and my Dad fixed it in 15 minutes, very impressive!


Currently carless, which is weird
Citroen DS23 - sold 2018
Austin A110 - sold 2017
Jaguar Mk 2 - sold 2015

#17 OFFLINE   pshome

pshome

    =^..^=

  • Full Members
  • 4,024 posts
  • 30 thanks
  • Country : Country Flag

Posted 09 October 2018 - 07:41 PM


I also find BMW E36 rear brakes a bit of an odder than standard design, the rear calipers are pretty standard, but don't have a handbrake mechanism. Instead they use the inside of the disc as a drum handbrake, complete with shoes and all supporting drum hardware.



My Corolla has that as well, i was quite surprised when changing rear pads.


1978 504 GL
1977 504 V6 Convertible
1986 505 Turbo Injection

1982 Tagora 2.2 Automatic
2002 Zafira Diesel
2004 Corolla Diesel
2017 Duster 1.2
1981 Talbot Tagora Dinin replica
1983 Talbot Tagora SX
1981 Talbot Tagora GLS

1984 505 Turbo Injection
1989 505 SX
1982 Talbot Tagora SX
http://www.altefranzosen.de
http://www.504cc.de
http://www.talbot-tagora.com
http://www.504forum.de
http://www.talbot-tagora.de


#18 OFFLINE   Asimo

Asimo

    Hondamatic

  • Full Members
  • 5,183 posts
  • 35 thanks
  • LocationRe-booting....
  • Country : Country Flag

Posted 09 October 2018 - 07:43 PM

Always thought the Mk2 Pandas and Y10s Omega beam rear suspension a little strange.  Partly a trailing arm, partly torsion beam.


See also SaaB 96 and close relatives.
  • Nibblet likes this

#19 OFFLINE   Timewaster

Timewaster

    Yeah, yeah.. I'll do it in a minute....

  • Full Members
  • 5,582 posts
  • 20 thanks
  • LocationThe sticks
  • Country : Country Flag

Posted 09 October 2018 - 07:45 PM

BMW E36 rear brakes use the inside of the disc as a drum handbrake, complete with shoes and all supporting drum hardware.


Also mk3 Cavalier and others I can't think of right now.
  • Talbot likes this
Pete M wrote:
Jesus H. Tapdancing Christ, I can't believe I'm sad enough as to post on the interweb

Des wrote:
the fine art that is welding, like trying to shovel butter into a badgers arse with a soldering iron.

Don't suffer in silence. Samaritans 116 123

#20 OFFLINE   TripleRich

TripleRich

    Rank: Austin Maxi

  • Full Members
  • 242 posts
  • 9 thanks
  • LocationWelding the Granada
  • Country : Country Flag

Posted 09 October 2018 - 07:46 PM

Tatra 603 2.JPG






  • Stinkwheel and Hooli like this

#21 OFFLINE   Asimo

Asimo

    Hondamatic

  • Full Members
  • 5,183 posts
  • 35 thanks
  • LocationRe-booting....
  • Country : Country Flag

Posted 09 October 2018 - 07:51 PM

Add Corvette, Volvo 960 and Smart car to the example list too.

Also Fiat 128, 127, and possibly Ritmo/Strada. Mounted to the body in two places, the springs act also as anti-roll springs.

See also countless GM USA models of the recent past such as the autoshite Oldsmobile.
Like Smarts, Sprinter / Lt vans have transverse leaf springs at the front.
  • cobblers and Lacquer Peel like this

#22 OFFLINE   Mrcento

Mrcento

    Rank: Austin Maxi

  • Full Members
  • 115 posts
  • 0 thanks
  • LocationDundee
  • Country : Country Flag

Posted 09 October 2018 - 07:51 PM

My Corolla has that as well, i was quite surprised when changing rear pads.



Same, my e36 was squealing on one rear side, thought it was a stone on the disc backing plate, stripped down the rear brake and it turned out it was a snapped retaining pin on one of the shoes inside the disc, something i didn't know it even had until i got the disc off!



Was a surprise!


Fiat Cinquecento Sporting 1.2 16v conversion, Land Rover Discovery 300tdi


#23 OFFLINE   BoggyMires

BoggyMires

    Rank: BL Wedge

  • Full Members
  • 665 posts
  • 8 thanks
  • LocationThe A14
  • Country : Country Flag

Posted 09 October 2018 - 08:00 PM

I'll just leave this here:






Why?



My 635 has the internal handbrake shoes, and why wouldn't it when it has all that extra bollocks above? It relies on the brake backplate to mount it all. They rot quicker than the car!


1986 BMW 635CSi - TOTALLY ROT AND FAULT FREE. SEE THREAD FOR LISTS OF ROT AND FAULTS. http://autoshite.com...ry-in-progress/

1998 BMW E36 318i Touring, wurth about ten grand in 7 years time classic investment mate- 4 sayle. http://autoshite.com...-retro-artizan/
2001 Land Rover Discovery V8 - POTENTIAL FUTURE BARN FIND THESE r GETTING REAR NOW







#24 OFFLINE   MikeR

MikeR

    Rank: Citroen Ami

  • Full Members
  • 1,140 posts
  • 17 thanks
  • LocationFormby
  • Country : Country Flag

Posted 09 October 2018 - 08:00 PM

single transverse leaf spring on the
Fiat 126 front suspension and the rear driveshaft couplings . sloppy spline fitting ...
  • M'coli likes this

Tottering Information Terminals Seriously Upset Passengers


#25 OFFLINE   BoggyMires

BoggyMires

    Rank: BL Wedge

  • Full Members
  • 665 posts
  • 8 thanks
  • LocationThe A14
  • Country : Country Flag

Posted 09 October 2018 - 08:06 PM

Funky tubes...





1986 BMW 635CSi - TOTALLY ROT AND FAULT FREE. SEE THREAD FOR LISTS OF ROT AND FAULTS. http://autoshite.com...ry-in-progress/

1998 BMW E36 318i Touring, wurth about ten grand in 7 years time classic investment mate- 4 sayle. http://autoshite.com...-retro-artizan/
2001 Land Rover Discovery V8 - POTENTIAL FUTURE BARN FIND THESE r GETTING REAR NOW







#26 OFFLINE   Paul Dupart

Paul Dupart

    Rank: BL Wedge

  • Full Members
  • 554 posts
  • 3 thanks
  • LocationI started out with nothing and I've still got most of it left
  • Country : Country Flag

Posted 09 October 2018 - 08:07 PM

Viva/Bedford HA van had single transverse leaf spring front suspension also.



P6 front suspension set up with springs pressing against the bulkhead.



#27 OFFLINE   pshome

pshome

    =^..^=

  • Full Members
  • 4,024 posts
  • 30 thanks
  • Country : Country Flag

Posted 09 October 2018 - 08:20 PM

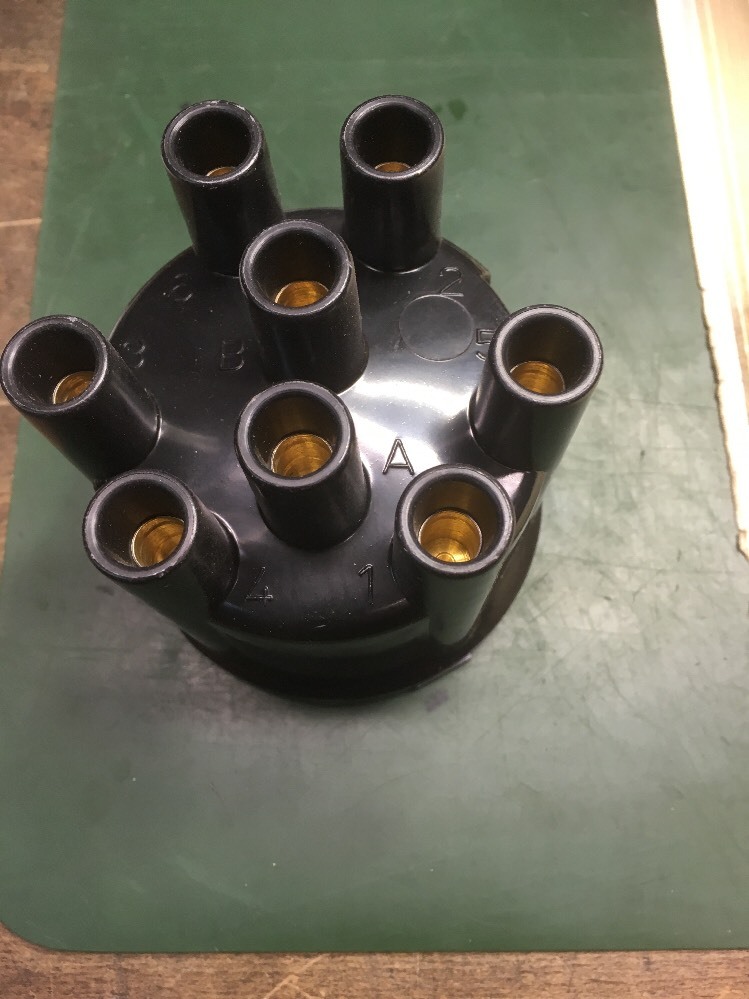

Peugeot again, this time ignition:





  • garethj, Nibblet and Bianconeri like this

1978 504 GL
1977 504 V6 Convertible
1986 505 Turbo Injection

1982 Tagora 2.2 Automatic
2002 Zafira Diesel
2004 Corolla Diesel
2017 Duster 1.2
1981 Talbot Tagora Dinin replica
1983 Talbot Tagora SX
1981 Talbot Tagora GLS

1984 505 Turbo Injection
1989 505 SX
1982 Talbot Tagora SX
http://www.altefranzosen.de
http://www.504cc.de
http://www.talbot-tagora.com
http://www.504forum.de
http://www.talbot-tagora.de


#28 OFFLINE   Bianconeri

Bianconeri

    Rank: BL Wedge

  • Full Members
  • 677 posts
  • 2 thanks
  • LocationEngland
  • Country : Country Flag

Posted 09 October 2018 - 08:20 PM





Marvellous! Saw some in Czecho in the mid 80s, they were bloody huge!


Currently carless, which is weird
Citroen DS23 - sold 2018
Austin A110 - sold 2017
Jaguar Mk 2 - sold 2015

#29 OFFLINE   pshome

pshome

    =^..^=

  • Full Members
  • 4,024 posts
  • 30 thanks
  • Country : Country Flag

Posted 09 October 2018 - 08:30 PM

Peugeot spark extenders, why not use a longer cable?

lot-4-rallonges-prolongateurs-de-bougie-


1978 504 GL
1977 504 V6 Convertible
1986 505 Turbo Injection

1982 Tagora 2.2 Automatic
2002 Zafira Diesel
2004 Corolla Diesel
2017 Duster 1.2
1981 Talbot Tagora Dinin replica
1983 Talbot Tagora SX
1981 Talbot Tagora GLS

1984 505 Turbo Injection
1989 505 SX
1982 Talbot Tagora SX
http://www.altefranzosen.de
http://www.504cc.de
http://www.talbot-tagora.com
http://www.504forum.de
http://www.talbot-tagora.de


#30 OFFLINE   Matty

Matty

    Rank: Austin Maxi

  • Full Members
  • 137 posts
  • 0 thanks
  • LocationHaslingden
  • Country : Country Flag

Posted 09 October 2018 - 08:35 PM

Same, my e36 was squealing on one rear side, thought it was a stone on the disc backing plate, stripped down the rear brake and it turned out it was a snapped retaining pin on one of the shoes inside the disc, something i didn't know it even had until i got the disc off!

Was a surprise!

E39 and E46 too. Cos it's not dear enough buying bits for the feckers anyway. Mines sticking on at the moment. Grrr
  • Mrcento likes this




0 user(s) are reading this topic

0 members, 0 guests, 0 anonymous users
