Project

1951 Pontiac Chieftain - Radio conversion

Project

  • Please log in to reply
1442 replies to this topic

#1411 OFFLINE   PhilA

PhilA

    Rank: Renault 16

  • Full Members
  • 3,176 posts
  • 32 thanks
  • LocationLarose, Louisiana
  • Country : Country Flag

Posted 15 April 2019 - 12:43 PM

Well, I was doing a little reading and research between circuit phase inversion and transformer phase inversion.

Seems there's two schools of thought going on here. Some people prefer a transformer design, claiming superiority because it has a very low input impedance and means you can run in class AB2 ("grid current") mode and make the very most of the capabilities of the power output tubes.
Using a circuit to do the same is a cheaper alternative because it uses a few electronic components. It however recreates a more honest representation of the original signal with less distortion, class AB1.



Blah blah blah electronics. The '56 radio is louder and uses a more reliable method of phase inversion.

Phase whatnow?

I am going to make the assumption most of you know how a loudspeaker recreates sounds from an electrical current. Connect a battery across a speaker and it pushes out, turn it around and it pulls down the opposite way, right? Okay good.
So the principle of the audio output stage is the same. A single tube (or indeed transistor) can only push the speaker in one direction, much like connecting a battery one way can make the speaker push out and then return under the spring of its suspension to it's resting position.
While this works (single-ended operation) it is far from hi-fi audio. A lot of cheap transistor radios use this design (see: cheap) because it's simple and doesn't require many electronic components.
So, what's done is to take the audio signal, split it into two paths, and by some mechanism turn the signal on one path "upside down"- that is, alter it's phase by 180 degrees.

That is then fed into two tubes (or transistors) and that means then that the circuit can both push AND pull on the loudspeaker, meaning that instead of the speaker cone having to bounce back under it's suspension when it's in a negative position, it's actually being put there by an electrical current (push-pull configuration).

Okay, right. Uhm.

Imagine a swing in a park. You stand on one side and give it a push. It swings away from you, then back again. At the point where it comes back to you is the only time you can push it and control how high it swings.
Now add someone on the other side- you push to them, they push to you. Between you, there is much greater control over the swing's position. That's open-ended versus push-pull operation.
The person on the other side needs to be doing exactly the opposite to you (push when you would be pulling) and the way to do that is what's being decided on here.

Got it? Good.

Phil
  • tooSavvy, mercedade, Frogchod and 4 others like this
I'm a Byte Wizard. I've been told so.

Thanked by 1 Member:
mat_the_cat

#1412 OFFLINE   Exiled_Tat_Gatherer

Exiled_Tat_Gatherer

    Fly in the ointment

  • Full Members
  • 1,396 posts
  • 34 thanks
  • Country : Country Flag

Posted 15 April 2019 - 01:27 PM

So the chuckle brothers were in fact, phase invertion pioneers!!!! Whodathunkit!



I am simply gobsmacked every time I see this car……. I can't help going through the photo's over and over again. I am a properly jealous guy. You are a lucky fella.

I also learn - which is a bonus for a thicko like myself. Appreciated





EDIT - Meant to say - apart from THIS






This gives me the cold sweats……. fuck that for a game of soldiers.


  • tooSavvy, mercedade, PhilA and 2 others like this

#1413 ONLINE   tooSavvy

tooSavvy

    JussSoOZ!

  • Full Members
  • 6,950 posts
  • 11 thanks
  • LocationWallsend on Tyne
  • Country : Country Flag

Posted 15 April 2019 - 03:01 PM

Ha.... Segue!

Wallsend?.....it's not the End of the Walled ;<)

35942490325_0815d58667.jpgSUCKS


#1414 OFFLINE   hairnet

hairnet

    Rank: Organisation

  • Full Members
  • 9,955 posts
  • 23 thanks

Posted 15 April 2019 - 04:26 PM

*brainmelt



Can we have pics of the car please



#1415 OFFLINE   Asimo

Asimo

    Bugatti 251

  • Full Members
  • 5,510 posts
  • 38 thanks
  • LocationBehind the curve...
  • Country : Country Flag

Posted 15 April 2019 - 04:50 PM

Ahem, point of order from the audio-nerd at the back.

Pushing and pulling is quite ok with just one tube or transistor. Just don't let it ever turn right off, so keep it in class A and the speaker will be pushed and pulled just fine.

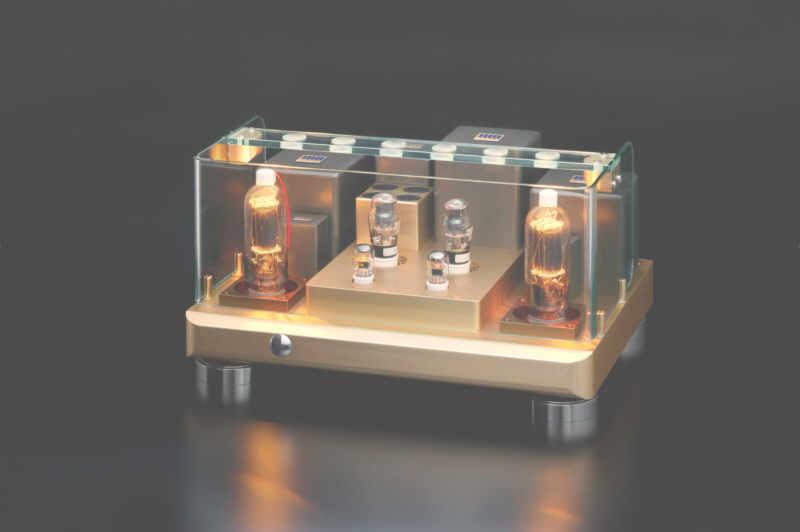

All those cranky audiophiles spending car$$$$ on amplifiers like these image.jpeg aren't wrong, because such amps are lovely to listen to.
Despite measuring badly and being very inefficient. The straight-eight flathead of amplifiers so to speak.
It's not what it does but how it does it that matters.
  • loserone, tooSavvy and mercedade like this

#1416 OFFLINE   PhilA

PhilA

    Rank: Renault 16

  • Full Members
  • 3,176 posts
  • 32 thanks
  • LocationLarose, Louisiana
  • Country : Country Flag

Posted 15 April 2019 - 05:47 PM

Yeeeessss, but I wanted a bit of clarity for the description.

"Oh but this guy is always pushing just a bit and halfway up is actually zero and that's why your HiFi goes POP when you turn it on. Etc

Figured I'd already lost half of the crowd :P
  • mercedade and Asimo like this
I'm a Byte Wizard. I've been told so.

#1417 OFFLINE   Momentary Lapse Of Reason

Momentary Lapse Of Reason

    Rank: Austin Maxi

  • Full Members
  • 412 posts
  • 11 thanks
  • LocationLlaniog Parkway
  • Country : Country Flag

Posted 15 April 2019 - 05:55 PM

Here's some electronics you can watch working

(Those with short attention spans should jump to ~2.45)


  • tooSavvy, mat_the_cat and LightBulbFun like this

#1418 OFFLINE   LightBulbFun

LightBulbFun

    Rank: Invacar Model 70

  • Full Members
  • 1,945 posts
  • 44 thanks
  • LocationLondon
  • Country : Country Flag

Posted 15 April 2019 - 06:18 PM

Here's some electronics you can watch working

(Those with short attention spans should jump to ~2.45)



that was awesome and very beautiful :)



#1419 OFFLINE   PhilA

PhilA

    Rank: Renault 16

  • Full Members
  • 3,176 posts
  • 32 thanks
  • LocationLarose, Louisiana
  • Country : Country Flag

Posted 15 April 2019 - 07:04 PM

You can just about see that through the window in the plate when driving EL34's hard.

It's all good but if the glass isn't blocking the UV it's a quick way to get arceye/a suntan

Phil
  • LightBulbFun likes this
I'm a Byte Wizard. I've been told so.

#1420 OFFLINE   LightBulbFun

LightBulbFun

    Rank: Invacar Model 70

  • Full Members
  • 1,945 posts
  • 44 thanks
  • LocationLondon
  • Country : Country Flag

Posted 15 April 2019 - 07:22 PM

You can just about see that through the window in the plate when driving EL34's hard.

It's all good but if the glass isn't blocking the UV it's a quick way to get arceye/a suntan

Phil





tubes are 99% of the time made with fairly regular glass



which does not transmit down to the UV-C region so you wont get arceye, but if they are made of hard glass they would transmit a nice bit of UV-B for a good sun tan if they are powerful enough :)



(However in that regard you would need something like a 2000W Mercury lamp to get a sun tan in a meaningful amount of time, as one of my friends found out the hard way!)






(I wonder if any particularly powerful/compact vacuum tubes/valves are made of Quartz aka fused silica?)



#1421 OFFLINE   PhilA

PhilA

    Rank: Renault 16

  • Full Members
  • 3,176 posts
  • 32 thanks
  • LocationLarose, Louisiana
  • Country : Country Flag

Posted 15 April 2019 - 11:44 PM

Generally no. Enclosed inside a housing is more common, or in metal like a powerful MAR for example.

Phil
  • LightBulbFun likes this
I'm a Byte Wizard. I've been told so.

#1422 OFFLINE   PhilA

PhilA

    Rank: Renault 16

  • Full Members
  • 3,176 posts
  • 32 thanks
  • LocationLarose, Louisiana
  • Country : Country Flag

Posted 16 April 2019 - 03:33 AM


Tonight's achievement was to unpick the lid off the power transformer and discover the thing is potted in pitch. Lovely. At least I should be able to replace the capacitor.

Phil
  • somewhatfoolish likes this
I'm a Byte Wizard. I've been told so.

#1423 OFFLINE   LightBulbFun

LightBulbFun

    Rank: Invacar Model 70

  • Full Members
  • 1,945 posts
  • 44 thanks
  • LocationLondon
  • Country : Country Flag

Posted 16 April 2019 - 08:12 AM


Tonight's achievement was to unpick the lid off the power transformer and discover the thing is potted in pitch. Lovely. At least I should be able to replace the capacitor.

Phil



like 90% of all US Fluorescent ballasts then making them a bitch to repair LOL (they also have fixed wires, rather then terminals, so if a wire breaks off your quite screwed)



luckily with a heat lamp/gun you can melt the tar out to get to their built in capacitor....



(and in theory get to the actual ballast part to resolder on new wire on)



they also leak tar spectacularly when burning out



#1424 OFFLINE   PhilA

PhilA

    Rank: Renault 16

  • Full Members
  • 3,176 posts
  • 32 thanks
  • LocationLarose, Louisiana
  • Country : Country Flag

Posted 16 April 2019 - 04:45 PM

I had a moment this morning so sat and looked at the schematics of the two chassis again.

I have made a decision, definitely rebuild the '51, mainly due to the coupling between the IF, detector and AF preamp stages.

In the '56 the detector stages are doubled up in one tube, the IF is directly coupled through a self contained circuit to the AF preamp. As such there's a +7.0V bias on the volume control, feeding into the grid of the AF preamp.

The '51 is decoupled at the output of the IF/detector stage, and that is fed into a voltage divider circuit that's referenced to chassis for the volume and tone controls. As such the grid of the AF preamp is at 0 Volts with ground reference. That makes it perfect to switch input at that point, as a Bluetooth module will be chassis reference also. It also makes it good for Aux-in, too.

Good deal!

Phil
  • LightBulbFun likes this
I'm a Byte Wizard. I've been told so.

#1425 OFFLINE   busmansholiday

busmansholiday

    Rank: Citroen Ami

  • Full Members
  • 1,572 posts
  • 13 thanks
  • LocationPeoples Republic of South Yorkshire
  • Country : Country Flag

Posted 16 April 2019 - 06:39 PM

FFS, this is serious restoration! Most people would have fitted a modern unit behind the old radio front and said fuck it.

You sure you're not after winning something at Pebble Beach ?
  • tooSavvy, purplebargeken, PhilA and 1 other like this

#1426 ONLINE   tooSavvy

tooSavvy

    JussSoOZ!

  • Full Members
  • 6,950 posts
  • 11 thanks
  • LocationWallsend on Tyne
  • Country : Country Flag

Posted 16 April 2019 - 06:54 PM

You sure you're not after winning something at Pebble Beach ?

..... You mean, like, a FWD Pug diesel 'Morris 1000'

*cba restoring the A series :/


lol
  • busmansholiday likes this

Wallsend?.....it's not the End of the Walled ;<)

35942490325_0815d58667.jpgSUCKS


#1427 OFFLINE   beko1987

beko1987

    Reliable Renault

  • Full Members
  • 16,026 posts
  • 75 thanks
  • LocationThame, Oxon
  • Country : Country Flag

Posted 16 April 2019 - 07:16 PM

Crikey I remove all suppression devices in old vacuum cleaners as they like to explode, never given any thought to repair them!
  • PhilA likes this
2001 Gooner2 Ph1 1.9Dci Expression (His)
2008 orl Vauxhalls r Shit Zafira 1.8 SRI 140 (Hers)

#1428 OFFLINE   PhilA

PhilA

    Rank: Renault 16

  • Full Members
  • 3,176 posts
  • 32 thanks
  • LocationLarose, Louisiana
  • Country : Country Flag

Posted 16 April 2019 - 07:53 PM

FFS, this is serious restoration! Most people would have fitted a modern unit behind the old radio front and said fuck it.
You sure you're not after winning something at Pebble Beach ?

That's what the previous owners did.

It was ugly.




I want to have the original radio, natively running 12V (converted properly, none of this step down voltage converter nonsense) with the capacity to accept audio in that's not just crackly AM radio.

Phil
  • LightBulbFun likes this
I'm a Byte Wizard. I've been told so.

#1429 OFFLINE   PhilA

PhilA

    Rank: Renault 16

  • Full Members
  • 3,176 posts
  • 32 thanks
  • LocationLarose, Louisiana
  • Country : Country Flag

Posted 17 April 2019 - 04:25 AM

Zinc pest in action. It broke like trying to lever soft slate. Crumble crack splinter.

Thankfully there is Replacement Tuner, which I need to carefully liberate from that chassis. That one is in much better shape.

I knew I bought a Dremel for a reason.

I may also change the clutch friction material when I'm in there also. It's slipping a little.

Phil
  • tooSavvy, somewhatfoolish, paulplom and 2 others like this
I'm a Byte Wizard. I've been told so.

#1430 OFFLINE   PhilA

PhilA

    Rank: Renault 16

  • Full Members
  • 3,176 posts
  • 32 thanks
  • LocationLarose, Louisiana
  • Country : Country Flag

Posted 18 April 2019 - 02:05 AM

Tonight's car time was taken up by lawn maintenance, throwing leaves all over the Renault with the mower and generally getting covered in grass. Wanted to get it done because the weather tomorrow is meant to be really bad.

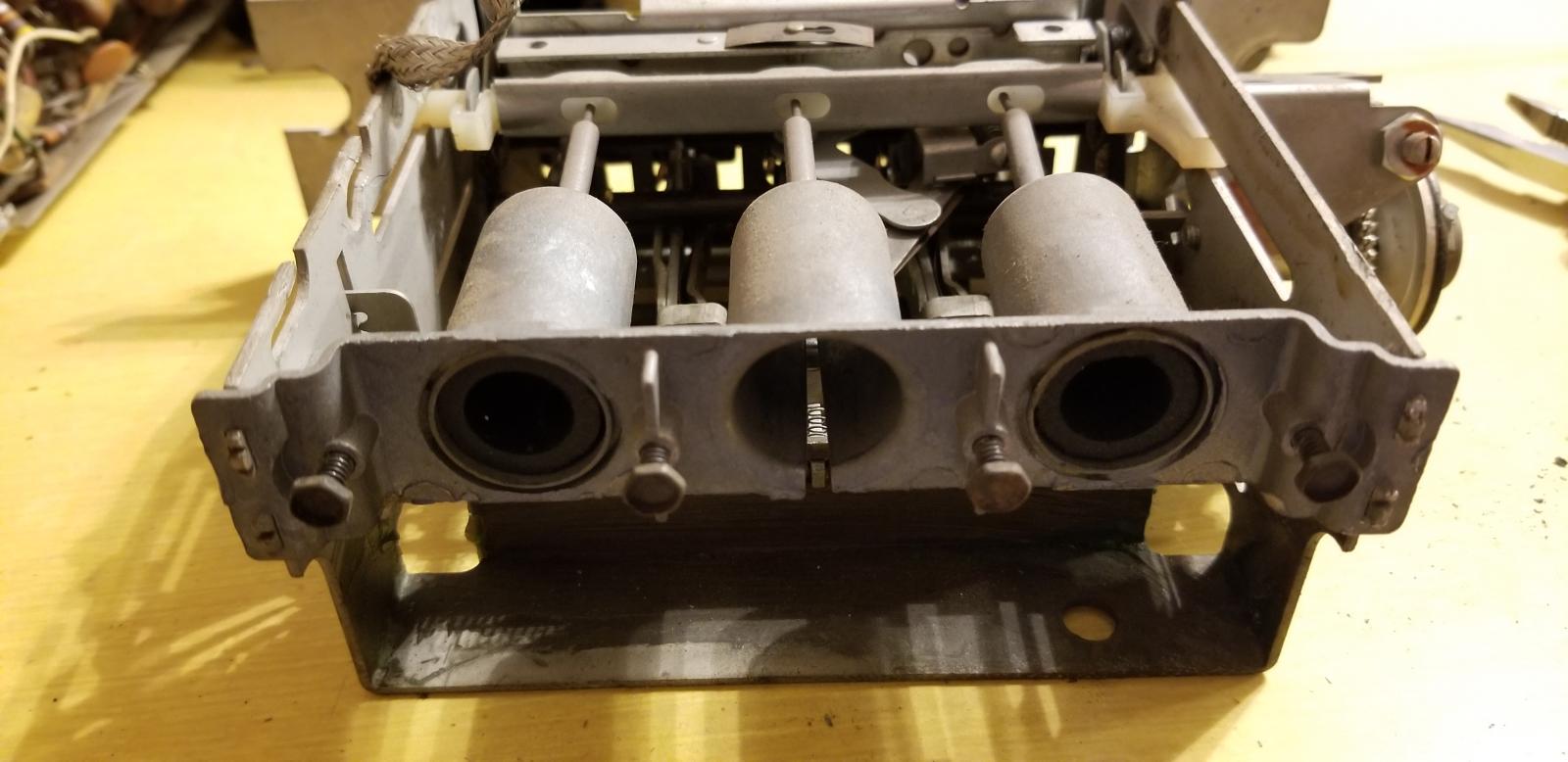

I did make time to bring the spares radio tuner chassis out to the garage and attack the peened lugs with my Dremel.

Carefully ground back, then gently tapped with a drift on the more solid parts of the back to loosen it.

Gently tapped the thing onto the pegs.

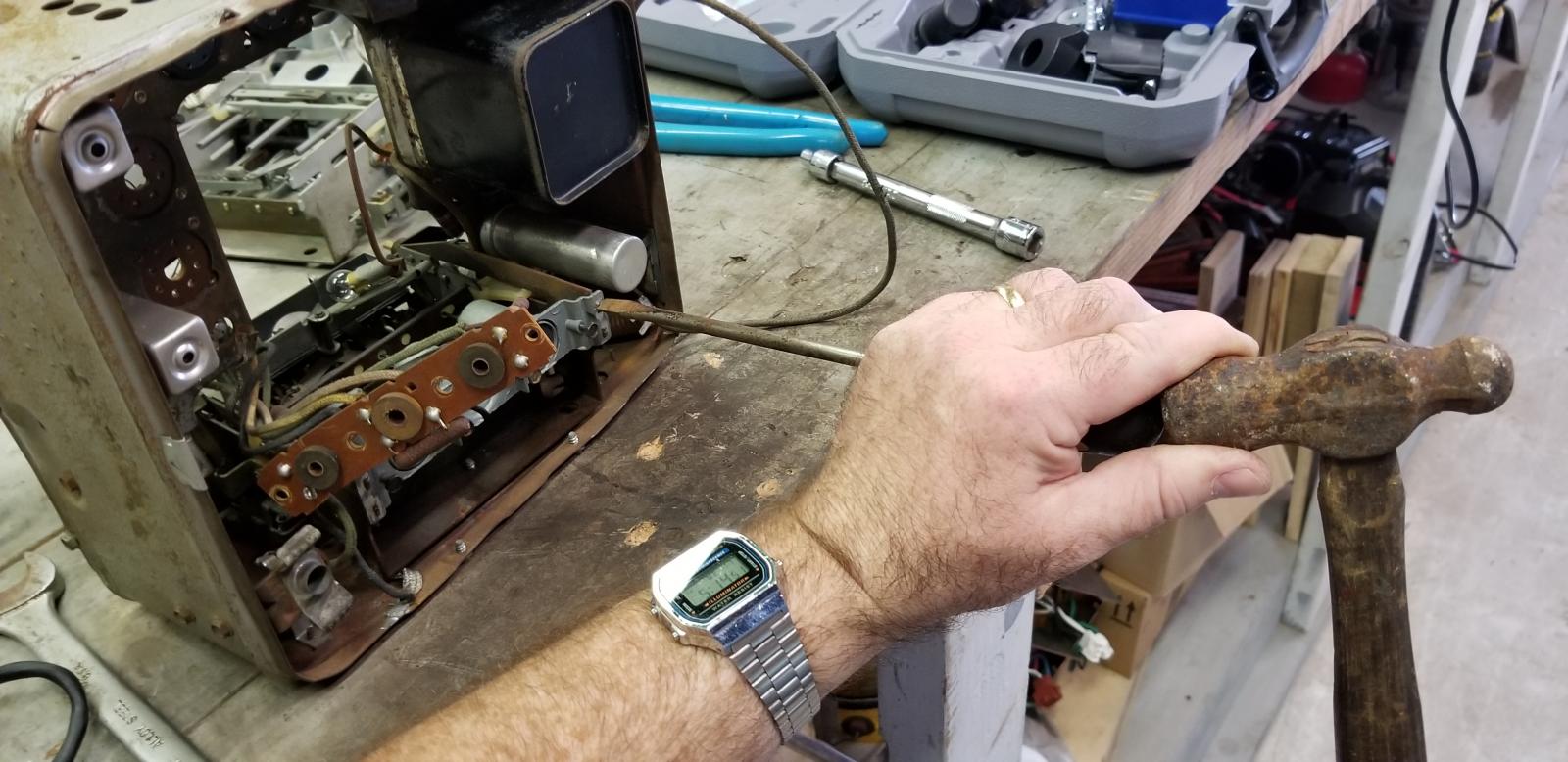

Hammer time! I removed all the glass bits from the frame and peened the lugs to secure the frame.

Finagled the slugs back into the coil cores without breaking anything.

Finally I was able to attach the board, straighten it out and secure it correctly. The mechanism is now much less tight (funny, that) and the clutch doesn't slip any more.

Progress!


Phil
  • tooSavvy, purplebargeken, mercedade and 5 others like this
I'm a Byte Wizard. I've been told so.

#1431 OFFLINE   PhilA

PhilA

    Rank: Renault 16

  • Full Members
  • 3,176 posts
  • 32 thanks
  • LocationLarose, Louisiana
  • Country : Country Flag

Posted 19 April 2019 - 02:51 AM

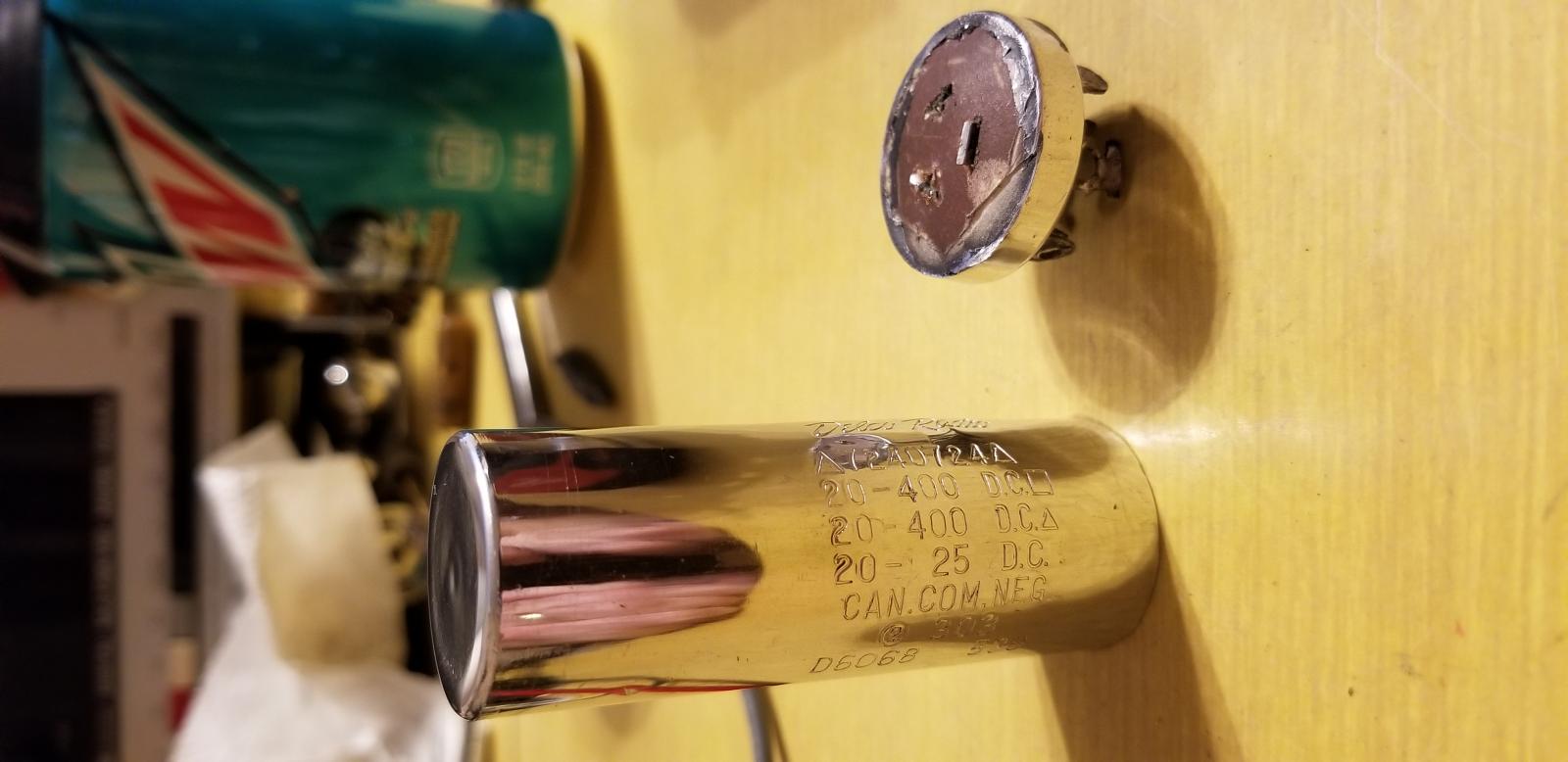

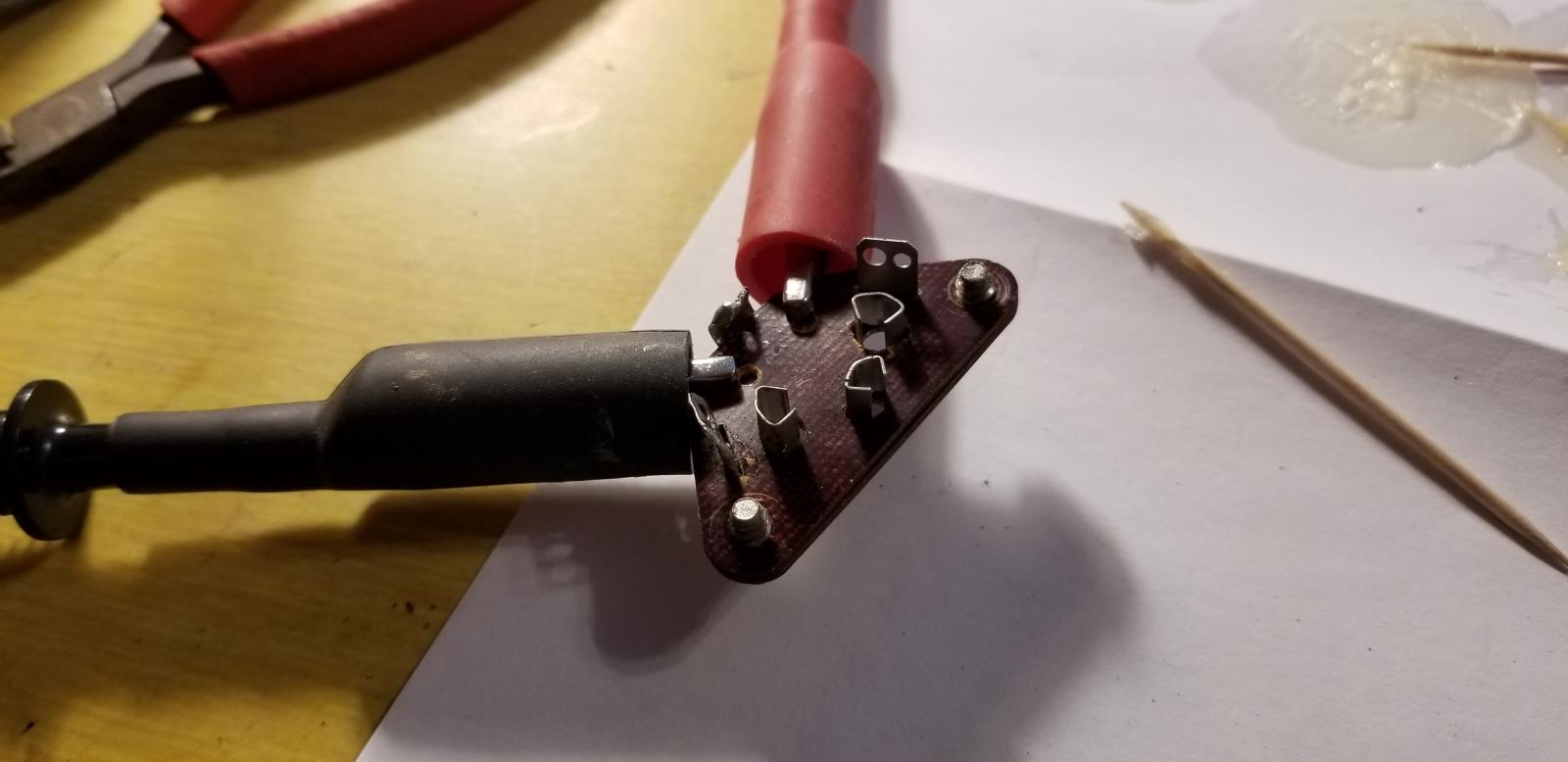

I cleaned up the tip of my slightly bigger iron- my fine work one wasn't cutting it for some of the bigger solder tabs.

This meant I was able to un-solder and remove the power transformer. I've decided I'm just going to shotgun the thing with new metal film resistors and new wire also, on top of the capacitors.

In short, it's gonna be a whole new radio set.


Phil
  • colc, purplebargeken, LabRat and 1 other like this
I'm a Byte Wizard. I've been told so.

#1432 OFFLINE   colc

colc

    Rank: Renault 16

  • Full Members
  • 4,351 posts
  • 6 thanks
  • LocationThe Garden of Ingerland..........
  • Country : Country Flag

Posted 19 April 2019 - 04:54 AM

I have absolutely no idea what you're doing....but it's mightily impressive..........electricity is witchcraft to me...........


  • STUNO and purplebargeken like this
You can tune a piano, but you can't tuna fish

#1433 OFFLINE   PhilA

PhilA

    Rank: Renault 16

  • Full Members
  • 3,176 posts
  • 32 thanks
  • LocationLarose, Louisiana
  • Country : Country Flag

Posted 19 April 2019 - 12:15 PM

The piece I removed works like the leverage of gears; the old one is wound to provide 250 volts output from an input of 6.
If I hooked it up to 12V then it would output 500V.
The new one generates 250V from 12V (would be 125V from 6V input).

Putting 500V into that radio would be a bad thing, so that's what's happening here.


The waxy yellow pieces have a design life of about 10 years and are well in excess of being due replacement- they are just two metal sheets sandwiching a piece of paper, rolled up. As they operate, one of the metal sheets is slowly dissolved by the electricity and ends up attached to the paper, which eventually becomes metalized paper, which is a short circuit, which is bad.

The vacuum tubes have a heater inside that works the same as a light bulb. 12V into a 6V one leads to a very short lifespan.

The little brown resistors are basically a lump of crushed coal inside, which has a particular resistance. Those have a tendency to "drift" and change resistance as they get older, due to the chemical breakdown of the stuff they're rolled in to stop them from falling apart. The resistances need to be quite accurate else the radio stops playing properly (or at all).

I'm replacing the bits that it needs to work on 12V, and the rest that are just really old and no more good.

In short, radioshite.

Phil
  • tooSavvy, mercedade, somewhatfoolish and 1 other like this
I'm a Byte Wizard. I've been told so.

#1434 ONLINE   tooSavvy

tooSavvy

    JussSoOZ!

  • Full Members
  • 6,950 posts
  • 11 thanks
  • LocationWallsend on Tyne
  • Country : Country Flag

Posted 19 April 2019 - 02:54 PM

Well.... If 'old = ruined part' then a refresh to AsNew spec is unavoidable Shirley!

The old 'factory air' in the tyres argument lol


Look Ma... A 50's radio, playing songs like in Christine, wow!!
*yes... surprise surprise... no chinkk solidstate radio guts inside.

Jeeze... Its a RADIO, like they used to be :)
  • PhilA likes this

Wallsend?.....it's not the End of the Walled ;<)

35942490325_0815d58667.jpgSUCKS


#1435 OFFLINE   PhilA

PhilA

    Rank: Renault 16

  • Full Members
  • 3,176 posts
  • 32 thanks
  • LocationLarose, Louisiana
  • Country : Country Flag

Posted 19 April 2019 - 03:14 PM

That's the thing, I'll be able to play that music from my phone.

Looking at Bluetooth receivers, there are a few with "call mute" (remember that wire on the back of your car radio that never got connected?) which I plan on using to operate a relay, which will switch from AM reception to Bluetooth when something is connected to the Bluetooth and attempting to play audio.

Phil
  • Pete-M, tooSavvy and LightBulbFun like this
I'm a Byte Wizard. I've been told so.

#1436 OFFLINE   PhilA

PhilA

    Rank: Renault 16

  • Full Members
  • 3,176 posts
  • 32 thanks
  • LocationLarose, Louisiana
  • Country : Country Flag

Posted 19 April 2019 - 03:38 PM

I'm rebuilding to what would be original spec if the thing was 12V, just with more stable components- this would bump up the price of the radio significantly back in the day so that's why they didn't do it...


Phil
  • tooSavvy and LightBulbFun like this
I'm a Byte Wizard. I've been told so.

#1437 OFFLINE   PhilA

PhilA

    Rank: Renault 16

  • Full Members
  • 3,176 posts
  • 32 thanks
  • LocationLarose, Louisiana
  • Country : Country Flag

Posted 19 April 2019 - 06:06 PM

Buggeration. I cracked the socket for the 12V vibrator while trying to drill out the rivets.

I think rivets are designed just to spin until you die of old age when you try drill them out.

Phil
  • busmansholiday likes this
I'm a Byte Wizard. I've been told so.

#1438 OFFLINE   PhilA

PhilA

    Rank: Renault 16

  • Full Members
  • 3,176 posts
  • 32 thanks
  • LocationLarose, Louisiana
  • Country : Country Flag

Posted 20 April 2019 - 12:05 AM

I mixed up some epoxy and stank up the house doing so. Wife unimpressed.

Stuck the two sandwich parts of the socket together and held it with screws and the clips of my test leads.

Added a flying lead to where the capacitor inside should go, going to mount that externally. Hammered the lid back on.

Took the smoothing capacitor apart. Dug the contents out (stinky).


Drilled holes for some new leads to attach new capacitors inside with.

Better, can solder onto the lugs with that.

The insides were full of the remnants of the capacitor and some tar that was used to hold it all in place.

Combination of heat gun and thinners later...

Finally, I might have become slightly carried away with the metal polish.

Phil
  • tooSavvy, Saabnut, mercedade and 2 others like this
I'm a Byte Wizard. I've been told so.

#1439 OFFLINE   PhilA

PhilA

    Rank: Renault 16

  • Full Members
  • 3,176 posts
  • 32 thanks
  • LocationLarose, Louisiana
  • Country : Country Flag

Posted 20 April 2019 - 01:59 AM

Sad really, as nobody will ever see it.
  • tooSavvy and paulplom like this
I'm a Byte Wizard. I've been told so.

#1440 OFFLINE   MorrisItalSLX

MorrisItalSLX

    Rank: Leyland P76

  • Full Members
  • 4,049 posts
  • 26 thanks
  • Location53 Miles West of Venus
  • Country : Country Flag

Posted 20 April 2019 - 06:49 AM

Sad really, as nobody will ever see it.



Don't worry, we have all seen and admired it.


  • colc, tooSavvy and LightBulbFun like this







Also tagged with one or more of these keywords: Project

1 user(s) are reading this topic

0 members, 1 guests, 0 anonymous users
