Wiper arm removal - wipers now kaput


  • Please log in to reply
63 replies to this topic

#1 OFFLINE   stripped fred

stripped fred

    Rank: Renault 16

  • Full Members
  • 2,260 posts
  • 9 thanks
  • LocationLeicester
  • Country : Country Flag

Posted 10 September 2017 - 02:07 PM

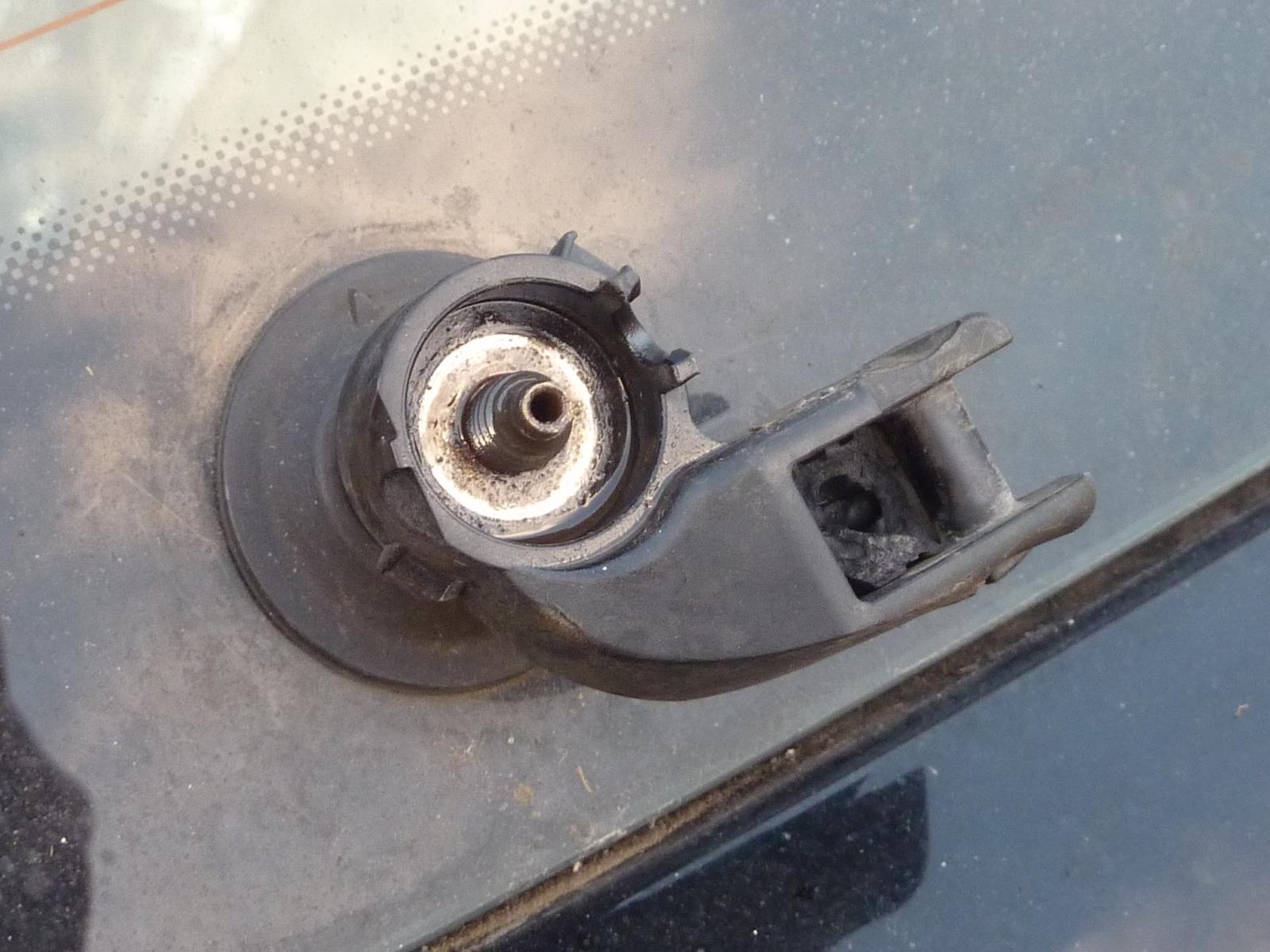

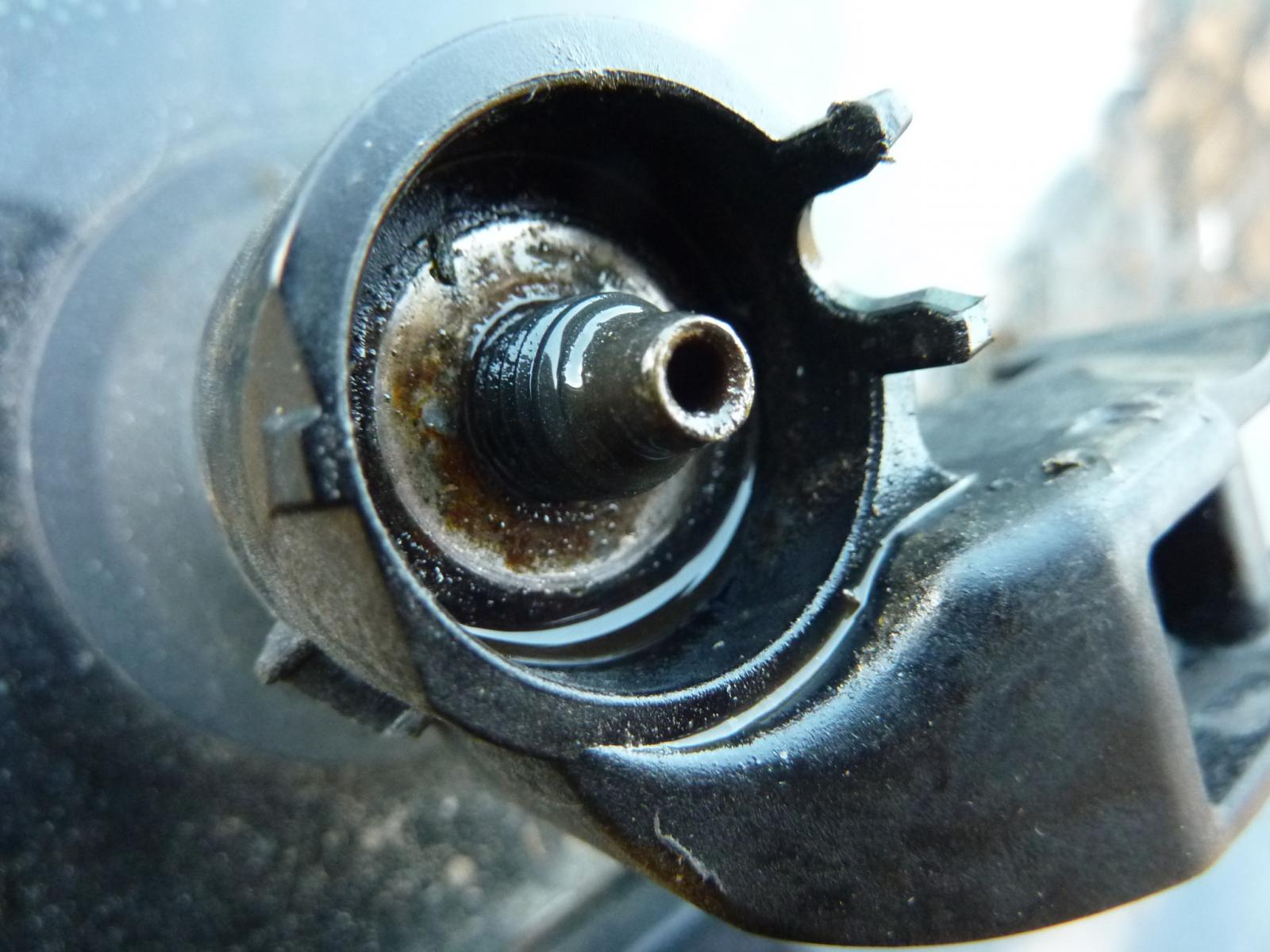

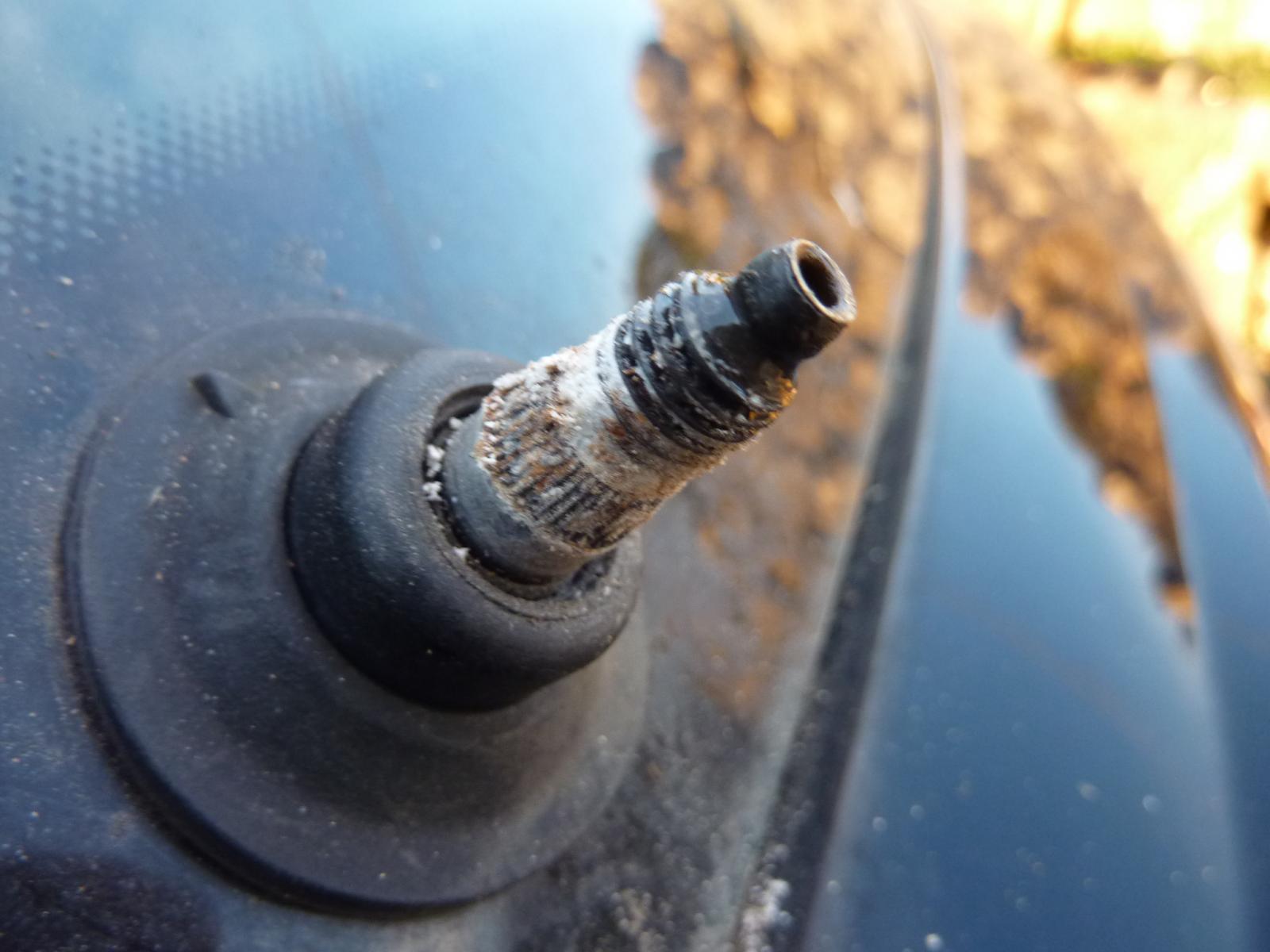

Had another go at removing the wiper arm from my sharan today. I need to take it off so I can replace the wiper mechanism as I managed to fracture the o/s support. It all started with trying to change the pollen filter but there you go, try and fix one thing and make more work.

I've tried hammers, screwdrivers, crowbars (hence the broken mechanism), plusgas and swearing loudly and nothing's worked. I bought this device hoping it would be the answer but the bar at the top bends and still the little b***ard won't shift. Any suggestions? I did think about heat but I'm likely to cause nore mischief with that method.

Attached Images

  • IMG_20170910_145958.jpg
  • IMG_20170910_150148.jpg

2004 VW Sharan 1.9 TDI SL - proving a very capable family wagon
1987 Toyota MR2 mk1 t-bar - currently SORN, need to use it more!

Previously...
2001 Peugeot 406 Estate GLX 2.0 Hdi - sold to a shiter
1993 Vauxhall Astra mk3 1.7D - sold to a shiter
2004 Alfa Romeo 156 2.4Jtd 20v SW - sold to a shiter
2001 Audi A4 Avant 1.9tdi - dead, engine problem

#2 ONLINE   dave21478

dave21478

    Rank: Renault 16

  • Full Members
  • 3,090 posts
  • 11 thanks
  • LocationFrance
  • Country : Country Flag

Posted 10 September 2017 - 02:16 PM

if I were changing the mechanism anyway I would belt the stud as hard as I could with a decent sized lump hammer.



Heat is no use unless you have oxy acetylene or similar...you need high power to get a LOT of heat into the arm quickly to expand it before everything else heats up too. A blowtorch is unlikely to cut it and will just heat everything else up, melt plastic etc.


  • stripped fred and Hooli like this

#3 ONLINE   dollywobbler

dollywobbler

    Mr HubNut

  • Full Members
  • 23,455 posts
  • 19 thanks
  • Country : Country Flag

Posted 10 September 2017 - 02:22 PM

Penetrating oil and a screwdriver to lever the non-hinge end while you pull the arm. Try to rock it back and forth if you can.
  • stripped fred likes this

1986 Citroen 2CV6, 1989 Nissan Bluebird
1990 Proton 1.5GLS, 1997 Honda S-MX, 2001 Perodua Nippa
HubNut Blog      HubNut Vids    Twatter


#4 OFFLINE   spartacus

spartacus

    Rank: Citroen Ami

  • Full Members
  • 1,019 posts
  • 8 thanks
  • Country : Country Flag

Posted 10 September 2017 - 02:28 PM

Is the car in everyday use? Leave the nut just on the end of the thread and use the wipers as normal, it might work it loose.
  • Aston Martin, pilninggas and stripped fred like this

#5 OFFLINE   stripped fred

stripped fred

    Rank: Renault 16

  • Full Members
  • 2,260 posts
  • 9 thanks
  • LocationLeicester
  • Country : Country Flag

Posted 10 September 2017 - 02:36 PM

if I were changing the mechanism anyway I would belt the stud as hard as I could with a decent sized lump hammer.

Heat is no use unless you have oxy acetylene or similar...you need high power to get a LOT of heat into the arm quickly to expand it before everything else heats up too. A blowtorch is unlikely to cut it and will just heat everything else up, melt plastic etc.

The problem is there's not much room to get a lump hammer in due to the way the bonnet opens. I will rule out heat based on your advice!
2004 VW Sharan 1.9 TDI SL - proving a very capable family wagon
1987 Toyota MR2 mk1 t-bar - currently SORN, need to use it more!

Previously...
2001 Peugeot 406 Estate GLX 2.0 Hdi - sold to a shiter
1993 Vauxhall Astra mk3 1.7D - sold to a shiter
2004 Alfa Romeo 156 2.4Jtd 20v SW - sold to a shiter
2001 Audi A4 Avant 1.9tdi - dead, engine problem

#6 OFFLINE   stripped fred

stripped fred

    Rank: Renault 16

  • Full Members
  • 2,260 posts
  • 9 thanks
  • LocationLeicester
  • Country : Country Flag

Posted 10 September 2017 - 02:36 PM

Penetrating oil and a screwdriver to lever the non-hinge end while you pull the arm. Try to rock it back and forth if you can.


Tried that and it won't shift even with a crowbar.
2004 VW Sharan 1.9 TDI SL - proving a very capable family wagon
1987 Toyota MR2 mk1 t-bar - currently SORN, need to use it more!

Previously...
2001 Peugeot 406 Estate GLX 2.0 Hdi - sold to a shiter
1993 Vauxhall Astra mk3 1.7D - sold to a shiter
2004 Alfa Romeo 156 2.4Jtd 20v SW - sold to a shiter
2001 Audi A4 Avant 1.9tdi - dead, engine problem

#7 OFFLINE   stripped fred

stripped fred

    Rank: Renault 16

  • Full Members
  • 2,260 posts
  • 9 thanks
  • LocationLeicester
  • Country : Country Flag

Posted 10 September 2017 - 02:38 PM

Is the car in everyday use? Leave the nut just on the end of the thread and use the wipers as normal, it might work it loose.


I will try this as running out of options. I also tried freeze spray but that didn't work either. I think it must have been on there for years.
2004 VW Sharan 1.9 TDI SL - proving a very capable family wagon
1987 Toyota MR2 mk1 t-bar - currently SORN, need to use it more!

Previously...
2001 Peugeot 406 Estate GLX 2.0 Hdi - sold to a shiter
1993 Vauxhall Astra mk3 1.7D - sold to a shiter
2004 Alfa Romeo 156 2.4Jtd 20v SW - sold to a shiter
2001 Audi A4 Avant 1.9tdi - dead, engine problem

#8 OFFLINE   billyboy406v6

billyboy406v6

    Rank: Citroen Ami

  • Full Members
  • 1,821 posts
  • 1 thanks
  • LocationNeyland, Pembrokeshire.
  • Country : Country Flag

Posted 10 September 2017 - 02:52 PM

Be brave, use heat.


1994 Mercedes E220, petrol estate, daily driver.

1998 Peugeot Coupe 3.0 v6, petrol, shopping car.


#9 ONLINE   MikeR

MikeR

    Rank: Austin Maxi

  • Full Members
  • 192 posts
  • 4 thanks
  • LocationFormby
  • Country : Country Flag

Posted 10 September 2017 - 02:53 PM

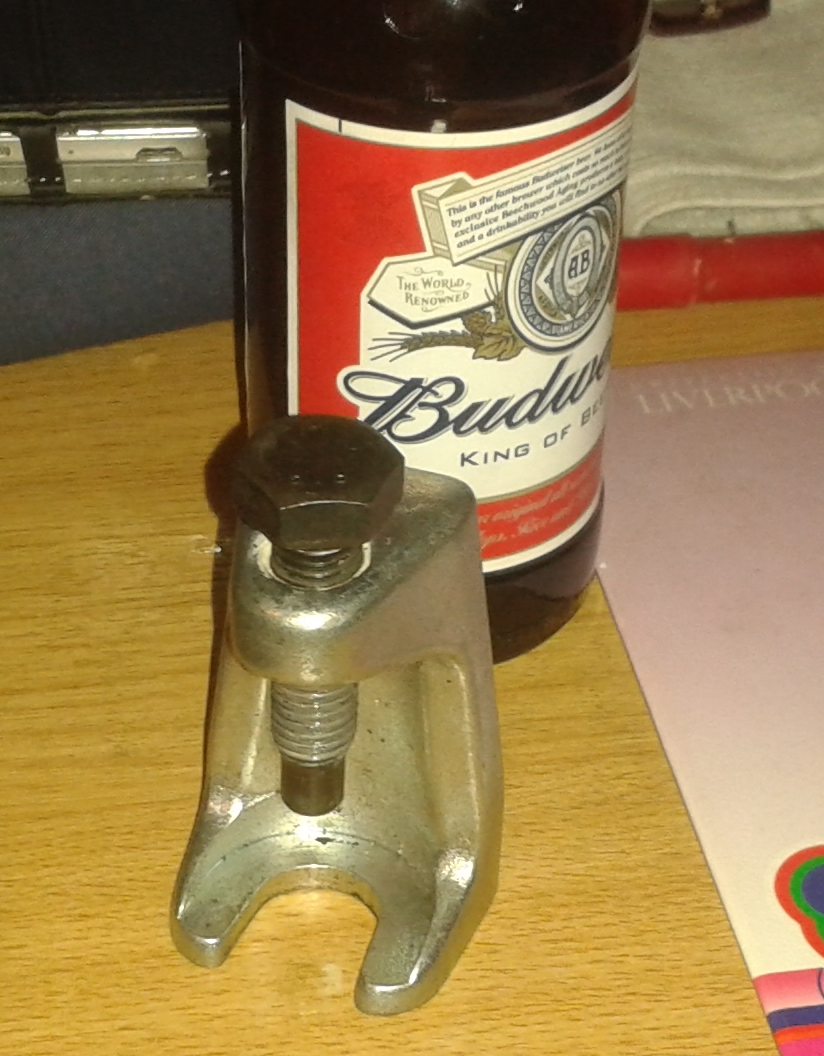

I have used one of these on a stubborn  wiper blade , needed a piece of metal to take up the gap , but it worked !






the bottle behind is to rejoice with afterwards !


  • Aston Martin and stripped fred like this

if you loose your cat , a very useful search term is not "lost pussy"


#10 OFFLINE   AlabamaShrimp

AlabamaShrimp

    Rank: Renault 16

  • Full Members
  • 3,856 posts
  • 6 thanks
  • LocationWakefield
  • Country : Country Flag

Posted 10 September 2017 - 02:56 PM

Have you tried hammer a bigger Sharon over the top of it?



Or what Dollywobbler said but with a much longer lever.
  • Hooli likes this

#11 ONLINE   Timewaster

Timewaster

    Yeah, yeah.. I'll do it in a minute....

  • Full Members
  • 4,380 posts
  • 12 thanks
  • LocationThe sticks
  • Country : Country Flag

Posted 10 September 2017 - 03:05 PM

If it is alloy corrosion, would a soak in vinegar help?

I R not chemist.
Pete M wrote:
Jesus H. Tapdancing Christ, I can't believe I'm sad enough as to post on the interweb

Des wrote:
the fine art that is welding, like trying to shovel butter into a badgers arse with a soldering iron.

#12 OFFLINE   stripped fred

stripped fred

    Rank: Renault 16

  • Full Members
  • 2,260 posts
  • 9 thanks
  • LocationLeicester
  • Country : Country Flag

Posted 10 September 2017 - 03:08 PM

I have used one of these on a stubborn wiper blade , needed a piece of metal to take up the gap , but it worked !


the bottle behind is to rejoice with afterwards !


I've tried one of them but there's not enough room behind it due to the shape of the plastic moulding.
2004 VW Sharan 1.9 TDI SL - proving a very capable family wagon
1987 Toyota MR2 mk1 t-bar - currently SORN, need to use it more!

Previously...
2001 Peugeot 406 Estate GLX 2.0 Hdi - sold to a shiter
1993 Vauxhall Astra mk3 1.7D - sold to a shiter
2004 Alfa Romeo 156 2.4Jtd 20v SW - sold to a shiter
2001 Audi A4 Avant 1.9tdi - dead, engine problem

#13 OFFLINE   stripped fred

stripped fred

    Rank: Renault 16

  • Full Members
  • 2,260 posts
  • 9 thanks
  • LocationLeicester
  • Country : Country Flag

Posted 10 September 2017 - 03:09 PM

Have you tried hammer a bigger Sharon over the top of it?

Will try this. Nothing to lever against though.

Or what Dollywobbler said but with a much longer leaver.


2004 VW Sharan 1.9 TDI SL - proving a very capable family wagon
1987 Toyota MR2 mk1 t-bar - currently SORN, need to use it more!

Previously...
2001 Peugeot 406 Estate GLX 2.0 Hdi - sold to a shiter
1993 Vauxhall Astra mk3 1.7D - sold to a shiter
2004 Alfa Romeo 156 2.4Jtd 20v SW - sold to a shiter
2001 Audi A4 Avant 1.9tdi - dead, engine problem

#14 OFFLINE   stripped fred

stripped fred

    Rank: Renault 16

  • Full Members
  • 2,260 posts
  • 9 thanks
  • LocationLeicester
  • Country : Country Flag

Posted 10 September 2017 - 03:09 PM

If it is alloy corrosion, would a soak in vinegar help?

I R not chemist.


I'll try it!
2004 VW Sharan 1.9 TDI SL - proving a very capable family wagon
1987 Toyota MR2 mk1 t-bar - currently SORN, need to use it more!

Previously...
2001 Peugeot 406 Estate GLX 2.0 Hdi - sold to a shiter
1993 Vauxhall Astra mk3 1.7D - sold to a shiter
2004 Alfa Romeo 156 2.4Jtd 20v SW - sold to a shiter
2001 Audi A4 Avant 1.9tdi - dead, engine problem

#15 OFFLINE   Squirrel2

Squirrel2

    Rank Morris Ital

  • Full Members
  • 66 posts
  • 2 thanks
  • LocationTenby, Pembrokeshire, Wales
  • Country : Country Flag

Posted 10 September 2017 - 03:23 PM

You could try boiling a full kettle and pouring it over the arm. It is made of alloy and will expand faster then the steel shaft. Hot water should not do any damage to this.

This method has worked countless times for me.

After you have got the arm off you go and refill the kettle and make yourself a well-deserved brew..

Squirrel2
  • alf892, The Moog, Lacquer Peel and 1 other like this
2005 Volvo XC70 - Useable
1994 Land Rover 110 - Quietly rusting
1975 Land Rover 101FC - Shed dweller
1944 25' Ex Admiralty Motor Cutter - Boatshite

Squirrel Motto: "It might come in useful even if you never need it."

#16 OFFLINE   AlabamaShrimp

AlabamaShrimp

    Rank: Renault 16

  • Full Members
  • 3,856 posts
  • 6 thanks
  • LocationWakefield
  • Country : Country Flag

Posted 10 September 2017 - 03:36 PM

If it's knackered can you not just saw it off?

#17 OFFLINE   PiperCub

PiperCub

    Rank: Renault 16

  • Full Members
  • 2,095 posts
  • 4 thanks
  • LocationLow & slow right over your head!
  • Country : Country Flag

Posted 10 September 2017 - 04:18 PM

You could try boiling a full kettle and pouring it over the arm. It is made of alloy and will expand faster then the steel shaft. Hot water should not do any damage to this.

This method has worked countless times for me.

After you have got the arm off you go and refill the kettle and make yourself a well-deserved brew..

Squirrel2



Was going to suggest this along with a small version of a ball-joint splitter tool.



Put the splitter tool on the shaft/wiper arm & wind it up as tight as you can.



Pour the boiling/v.hot water on the wiper arm.



The combination of the expansion of the arm and the tension on it will (almost) always pop it off. Worked on my old 406 that resisted all other tries at it!



#18 OFFLINE   vaughant

vaughant

    Rank: Austin Maxi

  • Full Members
  • 369 posts
  • 4 thanks
  • Country : Country Flag

Posted 10 September 2017 - 04:28 PM

If it's knackered can you not just saw it off?


Had to do this with a track rod end on my ml, in the end had to cut through either side of the thread and break it up, was totally corroded.

Wire brush and copper greased afterwards, sorted.

Same truck would work well on this, a dremmel if available or otherwise even a hacksaw blade up and down on the side of it, may take a while but it will work.

The thread looks totally fucked on the wiper mech now though from the pictures, a good die or you may get away with a file of and hope for the best.

Always leave nuts on a few turns when hitting threads, saves loads of hassle.

#19 OFFLINE   twosmoke300

twosmoke300

    Rank: Lancia Gamma

  • Full Members
  • 7,583 posts
  • 20 thanks
  • LocationCornwall

Posted 10 September 2017 - 04:56 PM

Get a medium size pair of water pump pliers . Undo the nut on the shaft until it's flush with the thread . Position the wp pliers so one jaw is under the wiper arm and the other on top of the nut as best you can . Proceed to bray shit out of the upper wp plier jaw until the arm pops loose .

Boiling water helps too . No warranties that you won't miss and crack the screen either . I've never had this method fail . I've also never ever used water pump pliers on a water pump .
  • Lacquer Peel likes this

Skoda Octavia 1.9tdi - the boring modern

Fiat Ducato 2009 l3h2

Honda Crf250X

Suzuki TS50x

Kawasaki Ke175d

Prilla Pigsasshole 650

Saxo 1.5D

Land Rover 90 2.5 petrol

Honda CB250N super wet dream








#20 OFFLINE   twosmoke300

twosmoke300

    Rank: Lancia Gamma

  • Full Members
  • 7,583 posts
  • 20 thanks
  • LocationCornwall

Posted 10 September 2017 - 04:58 PM

Oh and I forgot to say - squeeze like buggery on the wp pliers while hitting them

Skoda Octavia 1.9tdi - the boring modern

Fiat Ducato 2009 l3h2

Honda Crf250X

Suzuki TS50x

Kawasaki Ke175d

Prilla Pigsasshole 650

Saxo 1.5D

Land Rover 90 2.5 petrol

Honda CB250N super wet dream








#21 OFFLINE   stripped fred

stripped fred

    Rank: Renault 16

  • Full Members
  • 2,260 posts
  • 9 thanks
  • LocationLeicester
  • Country : Country Flag

Posted 10 September 2017 - 05:44 PM

Thanks for the advice. I had to call it a day as I wouldn't have had time to replace the mechanism and I need it for work tomorrow. I work very slowly. I also gave the already knackered thread a few more taps with a hammer which meant I couldn't get the nut back on properly so I'm now hoping it stays stuck together until I get chance to have another look. I don't have a tap and die set unfortunately. Didn't think to leave the nut on when hitting it but will try and remember that one!

Will try the boiling water and water pump pliers next time if it doesn't fall off before.

I need to sort my shed and garage out because I spent most of my time looking for tools that I couldn't find.

Sometimes diy maintenance is very frustrating although I did manage to successfully change the oil.
  • KruJoe and DVee8 like this
2004 VW Sharan 1.9 TDI SL - proving a very capable family wagon
1987 Toyota MR2 mk1 t-bar - currently SORN, need to use it more!

Previously...
2001 Peugeot 406 Estate GLX 2.0 Hdi - sold to a shiter
1993 Vauxhall Astra mk3 1.7D - sold to a shiter
2004 Alfa Romeo 156 2.4Jtd 20v SW - sold to a shiter
2001 Audi A4 Avant 1.9tdi - dead, engine problem

#22 ONLINE   Hooli

Hooli

    Rank: Lancia Gamma

  • Full Members
  • 5,206 posts
  • 30 thanks
  • LocationNr Doncaster
  • Country : Country Flag

Posted 10 September 2017 - 05:49 PM

 I've also never ever used water pump pliers on a water pump .



I've never worked out how they'd be any use on a water pump!

Mine have been worn out pressing stuck pistons in or pulling them out of brake callipers.



#23 OFFLINE   sierraman

sierraman

    Rank: Lancia Gamma

  • Full Members
  • 5,528 posts
  • 25 thanks

Posted 10 September 2017 - 05:50 PM

Freed off a brake drum today by chucking some boiling water on it.

#24 OFFLINE   omegod

omegod

    Rank: Citroen Ami

  • Full Members
  • 1,290 posts
  • 5 thanks
  • LocationLiverpool
  • Country : Country Flag

Posted 10 September 2017 - 06:11 PM

Take the bonnet off and twat it harder


  • KruJoe, barefoot and stripped fred like this

#25 OFFLINE   stripped fred

stripped fred

    Rank: Renault 16

  • Full Members
  • 2,260 posts
  • 9 thanks
  • LocationLeicester
  • Country : Country Flag

Posted 10 September 2017 - 06:31 PM

Take the bonnet off and twat it harder


If I took the bonnet off I doubt I'd ever get it back on!
2004 VW Sharan 1.9 TDI SL - proving a very capable family wagon
1987 Toyota MR2 mk1 t-bar - currently SORN, need to use it more!

Previously...
2001 Peugeot 406 Estate GLX 2.0 Hdi - sold to a shiter
1993 Vauxhall Astra mk3 1.7D - sold to a shiter
2004 Alfa Romeo 156 2.4Jtd 20v SW - sold to a shiter
2001 Audi A4 Avant 1.9tdi - dead, engine problem

#26 OFFLINE   KruJoe

KruJoe

    Joe Cleland

  • Full Members
  • 7,475 posts
  • 6 thanks
  • LocationChiangMai.th / Malhamdale.uk
  • Country : Country Flag

Posted 10 September 2017 - 10:37 PM

All the good ideas have been shared, so I can only add that I had similar fun* with my sister's A1 rear wiper. So I feel your pain.

I managed it eventually, but it was a buttock-clenching episode, especially as the spindle comes through the glass.












Oiled up, nut and socket for the hammer taps, grips to pull and wiggle lots...









Looking at the new arm I put on it, I theorised that they seize on so badly because the spindle splines cut their own new splines in the soft alloy hole in the wiper arm. The new one came without splines in it.



I know you love* your acronyms, Fred. Here's your new favourite: FFS VAG POS.


  • worldofceri, stripped fred and Hooli like this

#27 OFFLINE   doubleyeller

doubleyeller

    Rank: Austin Maxi

  • Full Members
  • 394 posts
  • 0 thanks
  • Country : Country Flag

Posted 11 September 2017 - 08:29 AM

The important thing that people fail to understand is the need to vary the sort of levering pressure being applied. This requires broddling! Get a wooden door-wedge, tap it into the gap, then grab the end and make the hand motion you would if finger tightening a nut. It will come off with little if any effort.


  • stripped fred likes this

#28 ONLINE   chodweaver

chodweaver

    Rank: BL Wedge

  • Full Members
  • 918 posts
  • 4 thanks
  • LocationCongleton
  • Country : Country Flag

Posted 11 September 2017 - 08:46 AM

The device you bought looks ideal - I'd find something that doesn't bend to replace the cheese part then persevere up to the point where the jaws snapped or I'd prevailed. Also, wind it up to tension THEN chuck a bucket of kettle water on it.

Sent from my BV6000 using Tapatalk
  • stripped fred likes this

#29 OFFLINE   RichardK

RichardK

    A Roger Corman Production

  • Full Members
  • 2,777 posts
  • 4 thanks
  • LocationA field Near Lutterworth
  • Country : Country Flag

Posted 11 September 2017 - 10:39 AM

You bought the same tool I would recommend. It does need a bit of force sometimes, but I'd wind to tension then use some shock-release freeze spray on it. Put as thick a cloth as you can on the window behind though. Just in case.



I have that tool originally for changing the spark plugs on a Chrysler Voyager, and it's allowed me to have no stress or undue forces when changing seals/wiper parts on a few Mercedes since, so they're a good investment. Useful for things like window winders as well.


  • chodweaver and stripped fred like this

--

Current fleet:

1998 SLK 230K, 2000 SLK 320, Twingo 1 Phase 2Fiat Fullback 180

Outgoing:  Stress. Incoming: Nowt.

Non-owned residents: Saab 9-3 Auto SE. Visitors: Rover 60, CX20 Pallas, 200TE, Volvo 740

Currently in favour: My friends. Currently out of favour: World Politics.


#30 OFFLINE   sierraman

sierraman

    Rank: Lancia Gamma

  • Full Members
  • 5,528 posts
  • 25 thanks

Posted 11 September 2017 - 11:39 AM

I'd have just smashed the back window on the Audi. That would have sorted it out in a timely fashion.
  • KruJoe, Aston Martin and theshadow like this




0 user(s) are reading this topic

0 members, 0 guests, 0 anonymous users
