Fun with Fronterrors or Gear driven oil pump moments


  • Please log in to reply
15 replies to this topic

#1 OFFLINE   red5

red5

    Rank: Citroen Ami

  • Full Members
  • 1,740 posts
  • 2 thanks
  • LocationSunny Bewdley
  • Country : Country Flag

Posted 17 February 2017 - 01:39 PM

So I, as some of you are aware by now, have a penchant for Frontera A models. If you don't - shame on you, this place etc.

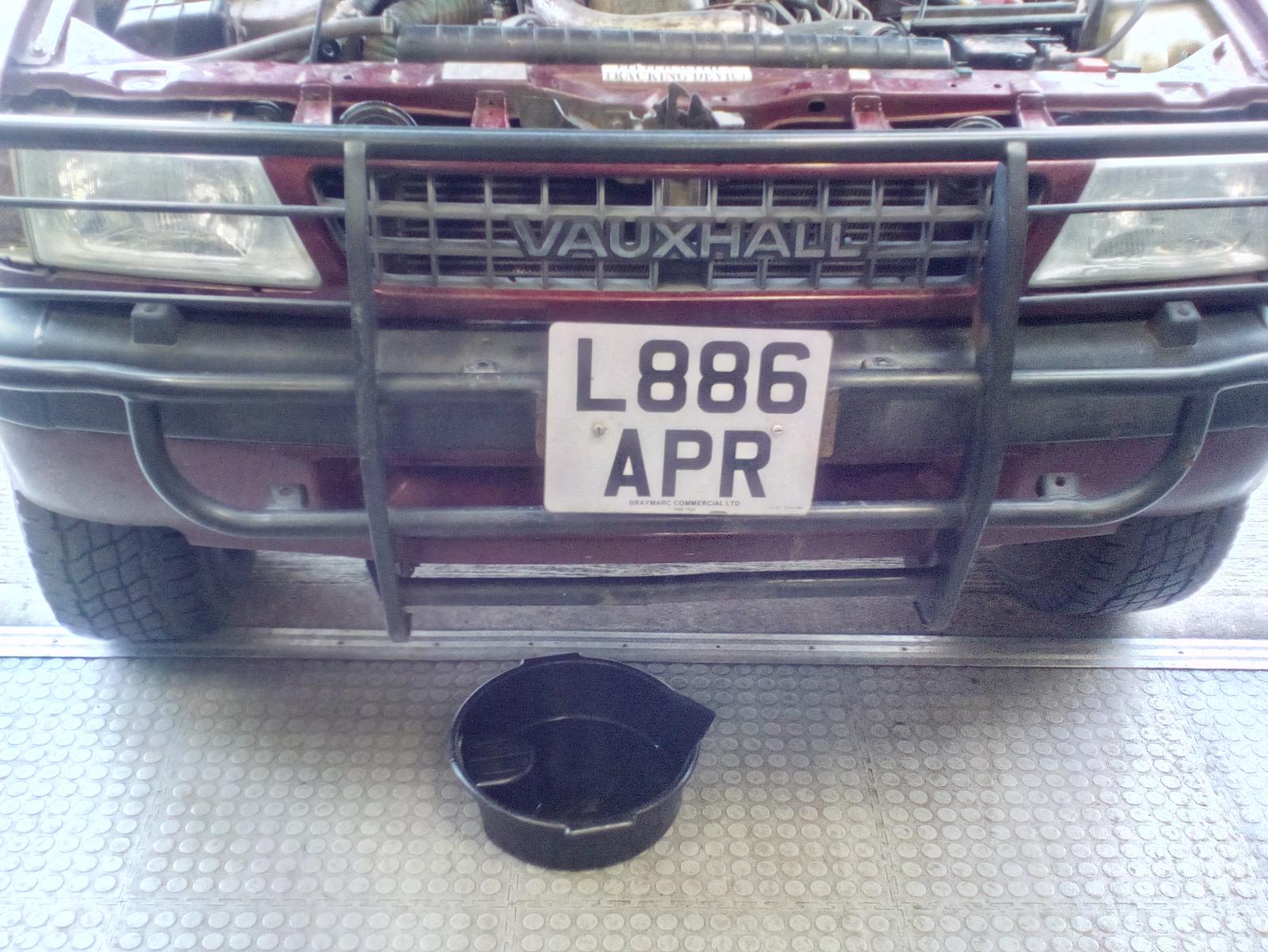

 I have one of Vauxhalls finest rebadged Isuzu 4x4 - assembled in Luton with a Turbo-charged Opel (CF-type) diesel...












As usual lack of regular oil changes has led to this -














So I located one of these. From a friendly Opel dealer. For a lot.












  • tooSavvy, Lacquer Peel, UltraWomble and 1 other like this

1995 2.8 Fronterror LWB

2001 Vectra B 2.2 Estate



Living the dream.








#2 OFFLINE   tooSavvy

tooSavvy

    tooSerious x far..!

  • Full Members
  • 4,921 posts
  • 6 thanks
  • LocationWallsend on Tyne
  • Country : Country Flag

Posted 17 February 2017 - 03:05 PM

So I, as some of you are aware by now, have a penchant for Frontera A models. If you don't - shame on you, this place etc.

 I have one of Vauxhalls finest rebadged Isuzu 4x4 - assembled in Luton with a Turbo-charged Opel (CF-type) diesel...





As usual lack of regular oil changes has led to this -






So I located one of these. From a friendly Opel dealer. For a lot.






Nice paperweight m8.... bet you could get two Laggy for that ££ (but need a really large desk) ;)

TS

Wallsend?.....it's not the End of the Walled ;<)

35942490325_3f0da8b633_m.jpgSUCKS


#3 OFFLINE   Station

Station

    Rank: Isuzu Florian

  • Full Members
  • 9,792 posts
  • 0 thanks
  • Country : Country Flag

Posted 17 February 2017 - 03:08 PM

how much was the cog?



#4 OFFLINE   Lacquer Peel

Lacquer Peel

    Rank: Isuzu Florian

  • Full Members
  • 8,613 posts
  • 10 thanks
  • Country : Country Flag

Posted 17 February 2017 - 03:10 PM

What's that 2.3 diesel like? I've heard they're fairly terrible but I like rubbish old diesels.

#5 OFFLINE   red5

red5

    Rank: Citroen Ami

  • Full Members
  • 1,740 posts
  • 2 thanks
  • LocationSunny Bewdley
  • Country : Country Flag

Posted 17 February 2017 - 04:28 PM

how much was the cog?



£42.00 + Vat



Not bad I guess for a 22 year old part/last produced engine.


1995 2.8 Fronterror LWB

2001 Vectra B 2.2 Estate



Living the dream.








#6 OFFLINE   red5

red5

    Rank: Citroen Ami

  • Full Members
  • 1,740 posts
  • 2 thanks
  • LocationSunny Bewdley
  • Country : Country Flag

Posted 17 February 2017 - 04:31 PM

What's that 2.3 diesel like? I've heard they're fairly terrible but I like rubbish old diesels.



I love them - glacier-like would describe them to most people but a well (properly!) set up one is a decent drive. Lots of horror stories but all those CF owners can't be wrong. Oh, wait....



Slog on all day. Very understressed in standard-ish trim. Just watch oil pump wear if servicing is neglected....:-D


  • Lacquer Peel likes this

1995 2.8 Fronterror LWB

2001 Vectra B 2.2 Estate



Living the dream.








#7 OFFLINE   red5

red5

    Rank: Citroen Ami

  • Full Members
  • 1,740 posts
  • 2 thanks
  • LocationSunny Bewdley
  • Country : Country Flag

Posted 17 February 2017 - 04:36 PM

Hold tight hold tight...

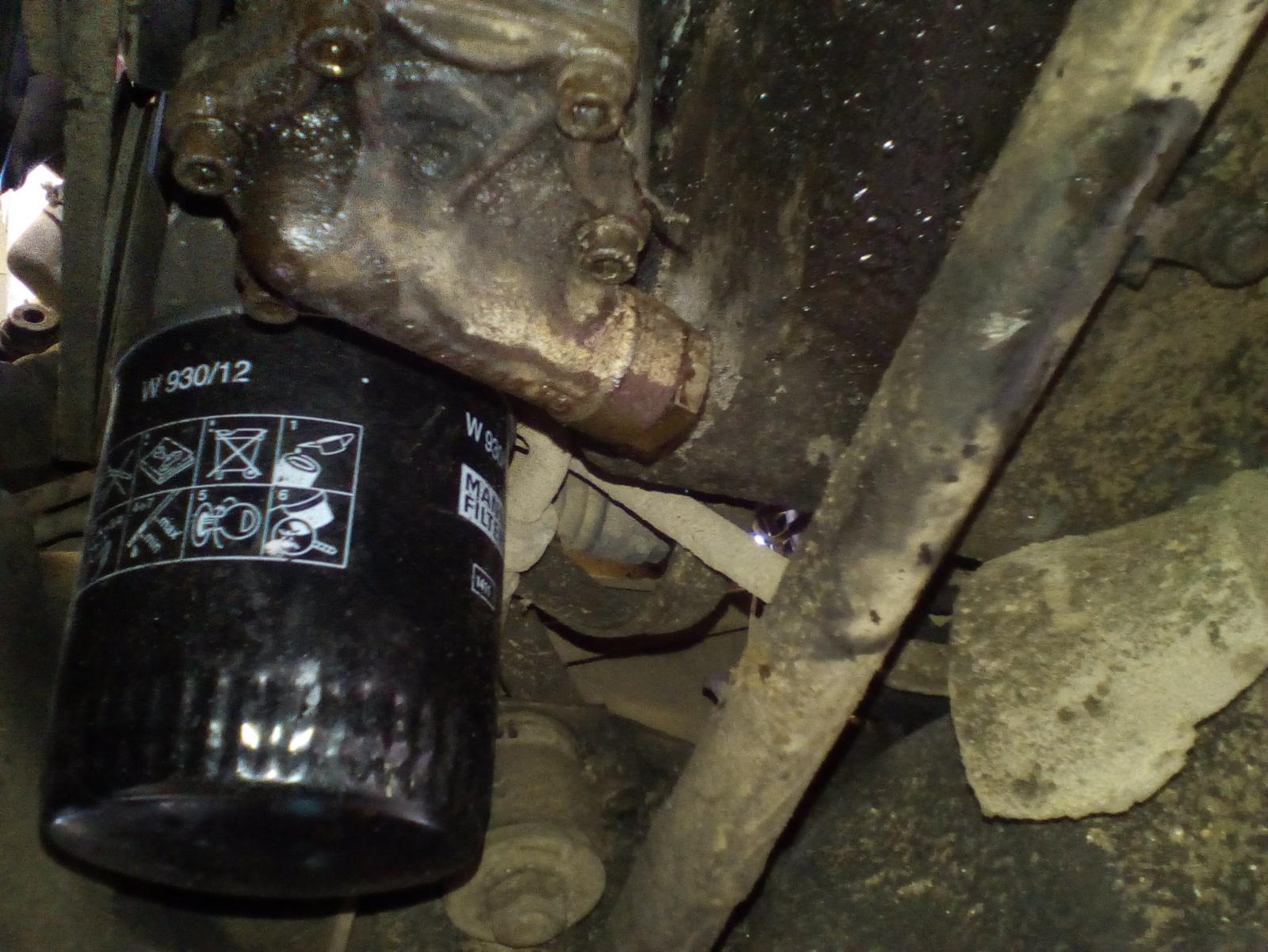

Oil pump end cover - 6 hex screws holding it on to housing.



The large 'bolt' is end of oil pressure relief valve.











  • Lacquer Peel and Coprolalia like this

1995 2.8 Fronterror LWB

2001 Vectra B 2.2 Estate



Living the dream.








#8 OFFLINE   red5

red5

    Rank: Citroen Ami

  • Full Members
  • 1,740 posts
  • 2 thanks
  • LocationSunny Bewdley
  • Country : Country Flag

Posted 17 February 2017 - 04:45 PM

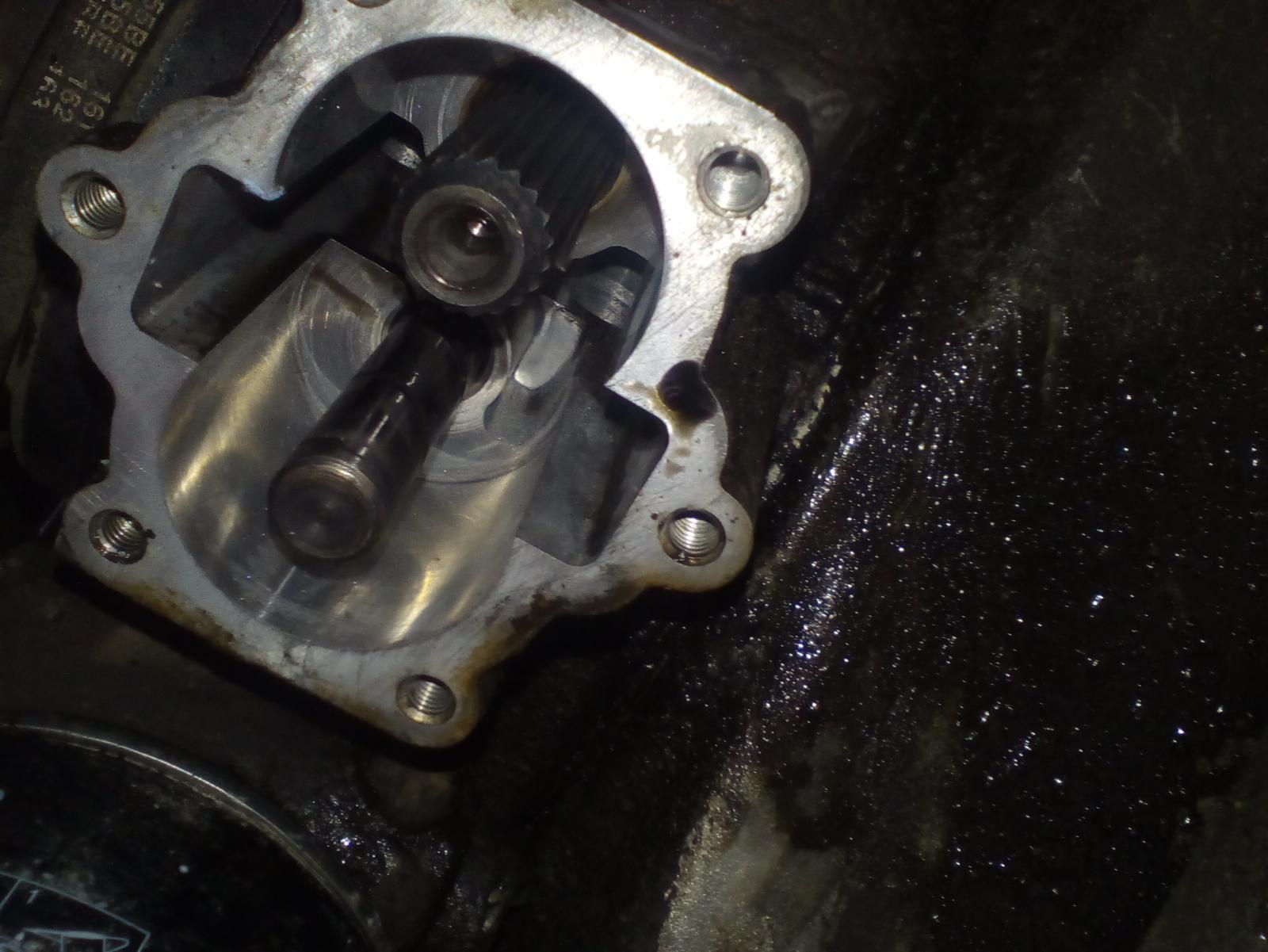

Slacken 6 hex screws and remove  - remember to miss oil drainer and watch  (with slight horror/air of resignation) oil make it's way inexorably up (down) your arm....



Both driver and driven gears will slide down their respective oily shafts as you remove end cover.














Yay.

Splined/toothed shaft is driven via injection pump/crank gear. There is some wear but even I draw the line.



Sometimes.















  • Coprolalia likes this

1995 2.8 Fronterror LWB

2001 Vectra B 2.2 Estate



Living the dream.








#9 OFFLINE   red5

red5

    Rank: Citroen Ami

  • Full Members
  • 1,740 posts
  • 2 thanks
  • LocationSunny Bewdley
  • Country : Country Flag

Posted 17 February 2017 - 04:51 PM

No oily armpit for me today. A little part of me was disappointed...










Some light cleaning of housing before cover/leaking oil prv attended to - not that I didn't resealed it properly before. Honest. :-)










Then on to cover - gently held in vice for old gasket removal, prv remove and reseal.




















  • Lacquer Peel, rrsix and Coprolalia like this

1995 2.8 Fronterror LWB

2001 Vectra B 2.2 Estate



Living the dream.








#10 OFFLINE   red5

red5

    Rank: Citroen Ami

  • Full Members
  • 1,740 posts
  • 2 thanks
  • LocationSunny Bewdley
  • Country : Country Flag

Posted 17 February 2017 - 05:07 PM

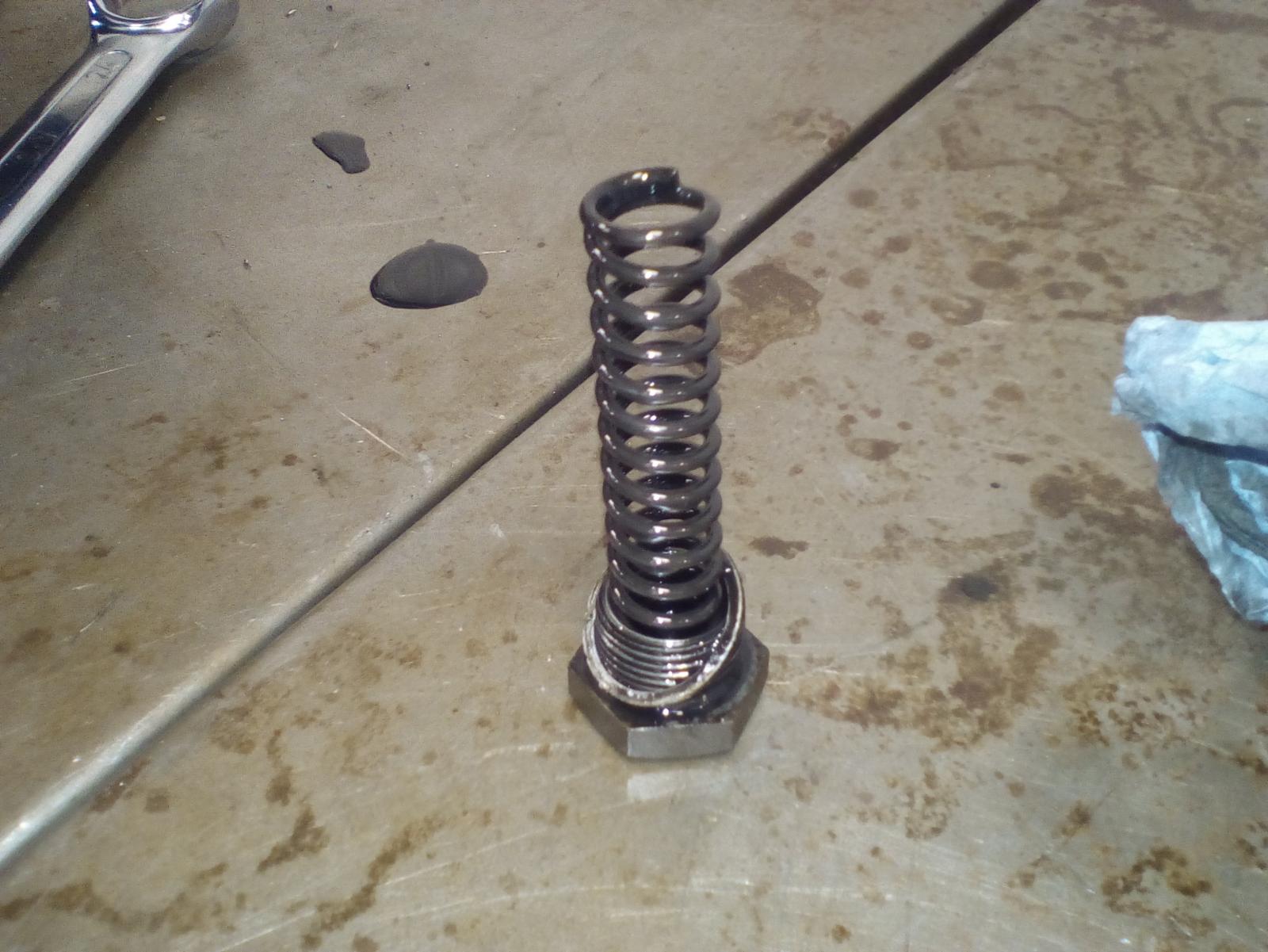

Yes, it's a long spring that really doesn't want to be compressed whilst attempting to refit retainer with oily hands. At all.

Apply a constant pressure with twisting action and swearage. Retrieve spring. Repeat.












Insert picture of perfectly formed Vx grey sealer gasket here. Whoops.

Refit cover while holding new /old pump gears in place without disturbing 'gasket'.

Refit all six hex screws without dropping any on your head/in drainer or watching them roll away.












Torque (wiv and actual tool an' everyfin') and wait appropriate amount of time (12 hours) before starting. Or 45 min because I need to load workshop.

Check for leaks and oil pressure - none yet and some. :-)



Upcoming -



Check oil pressure after sustained high-speed run (hahhahahahhahah - 'high')

Check for leaks on Monday after minor Torrey Canyon on drive

Replace turbo with another one (about 2ish mm radial play!)

Wonder if odd clicking noise is vicious fan coupling about to seize/explode.

Repair drivers seat base webbing.



:-D


  • Lacquer Peel, Rusty_Rocket, Danterzza and 4 others like this

1995 2.8 Fronterror LWB

2001 Vectra B 2.2 Estate



Living the dream.








#11 OFFLINE   twosmoke300

twosmoke300

    Rank: Lancia Gamma

  • Full Members
  • 7,721 posts
  • 27 thanks
  • LocationCornwall

Posted 17 February 2017 - 06:18 PM

I'm surprised the steel gears wear before the housing , nice to see someone bothering though . Quite a frontera fan on the qt

Skoda Octavia 1.9tdi - the boring modern

Fiat Ducato 2009 l3h2

Honda Crf250X

Suzuki TS50x

Kawasaki Ke175d

Prilla Pigsasshole 650

Saxo 1.5D

Land Rover 90 2.5 petrol

Honda CB250N super wet dream








#12 OFFLINE   red5

red5

    Rank: Citroen Ami

  • Full Members
  • 1,740 posts
  • 2 thanks
  • LocationSunny Bewdley
  • Country : Country Flag

Posted 17 February 2017 - 06:28 PM

The end case wears. Gears usually wear due to lack of oil changes. 4500 miles on mineral is the way forward.

1995 2.8 Fronterror LWB

2001 Vectra B 2.2 Estate



Living the dream.








#13 OFFLINE   AlabamaShrimp

AlabamaShrimp

    Rank: Renault 16

  • Full Members
  • 3,948 posts
  • 6 thanks
  • LocationWakefield
  • Country : Country Flag

Posted 17 February 2017 - 07:58 PM

Well all looks very easy from the pics which must mean it's actually a total bastard when you try to do it yourself.

Is this the same pump on the petrol engines?

#14 OFFLINE   CreepingJesus

CreepingJesus

    Rank Bajin

  • Full Members
  • 3,211 posts
  • 6 thanks
  • LocationHere Be Dragonnes
  • Country : Country Flag

Posted 17 February 2017 - 08:43 PM

I am impressed! I remember them well when new, being regarded as a bit of a lash-up; and only a handful of years ago I looked at buying a similar one to yours, and the owner was complaining about parts problems.

...as the actress said to the bishop.



Truck magazine scans!



Some short stories of mine...


#15 OFFLINE   Lord Sterling

Lord Sterling

    Rank: Autoshite's official Syrian-Arab Muslim chap

  • Full Members
  • 6,550 posts
  • 16 thanks
  • LocationNorth Worcestershire, İstanbul, Büyükada Türkiye, sometimes Isle of Wight
  • Country : Country Flag

Posted 17 February 2017 - 08:49 PM

Glad to see you've still got this. It was a bit of an arse clenching drive from Hampshire when I drove it back, all that overheating I've got some pics of it with an RAC van. Does it still try and overheat under pressure?

▄▀▄▀▄█▓▒░..AUTOSHITE; bringing misery and despair to the world of motoring..░▒▓█▄▀▄▀▄

سبحان الله

AUTOSHITES CRUMBLING EXECUSHITE LEAGUE...
'03 BMW 316i SE - ...Daily... :lol:
'97 Rover 825 Sterling auto - ...It lives!...Sort of... :|
'95 Rover 827 Sterling auto - ...Broken... :(
'90 Rover 827 Sterling auto - ...Broken... :(
'87 Rover 825 Sterling auto - ...Sitting... :neutral:
'87 Rover 820E auto - ...Garaged... :mrgreen:


...

#16 OFFLINE   red5

red5

    Rank: Citroen Ami

  • Full Members
  • 1,740 posts
  • 2 thanks
  • LocationSunny Bewdley
  • Country : Country Flag

Posted 17 February 2017 - 09:20 PM

Nope. New rad and thermostat fixed it. Rad was 3/4 blocked by baked mud.



Top hose was a bit leaky but fixed as well.


  • Lord Sterling likes this

1995 2.8 Fronterror LWB

2001 Vectra B 2.2 Estate



Living the dream.
