Fabergé Greggs Posted April 17, 2016 Share Posted April 17, 2016 Sorry for the call out, I ordered a HBOL on ebay but it hasn't come through. I've got a bit of spare time today and fancy tackling my hydraulic belt, anyone got a PDF they could send through, or possibly photograph the "changing the hydraulic belt" section.. Ta Link to comment Share on other sites More sharing options...
KruJoe Posted April 17, 2016 Share Posted April 17, 2016 Sorry, I only have the pez book here, but I'll see if owt applies to yours... Stand by. Fabergé Greggs 1 Link to comment Share on other sites More sharing options...
KruJoe Posted April 17, 2016 Share Posted April 17, 2016 Fabergé Greggs 1 Link to comment Share on other sites More sharing options...
forddeliveryboy Posted April 17, 2016 Share Posted April 17, 2016 http://www.mirari.fr/vVqv Should be enough to sort you out, the HP pump belt needs to be pretty tight. The pump is to the rhs of the cylinder head, above the gearbox. All fairly straightforwards. Don't lose nutsnbolts, they can be M9s and hard to replace. Fabergé Greggs 1 Link to comment Share on other sites More sharing options...
KruJoe Posted April 17, 2016 Share Posted April 17, 2016 On pez models, the HP pump is on the lower osf corner of the engine, you should find yours above the gearbox, driven from a pulley ont' end of the camshaft. Can't imagine it's much difference other than that. But French, so you takes your chances. Fabergé Greggs 1 Link to comment Share on other sites More sharing options...
Fabergé Greggs Posted April 17, 2016 Author Share Posted April 17, 2016 Awesome, thanks guys, but on my diesel it appears different- there isn't a jockey wheel to tension the belt, the belt just runs between the cam driven wheel and pump pulley. I can see how the pump is removed but not how to tension. The pump must be the part that moves to provide tension.. Fabergé Greggs 1 Link to comment Share on other sites More sharing options...
forddeliveryboy Posted April 17, 2016 Share Posted April 17, 2016 Look harder! I think the pump does pivot, it must if there are just the two pulleys. Fabergé Greggs 1 Link to comment Share on other sites More sharing options...
forddeliveryboy Posted April 17, 2016 Share Posted April 17, 2016 Need to sign up, BX diesel manual here Manual Service Citroen Bx Diesel Manualspath - 104.197.178.73 Fabergé Greggs 1 Link to comment Share on other sites More sharing options...
Fabergé Greggs Posted April 17, 2016 Author Share Posted April 17, 2016 Link to comment Share on other sites More sharing options...

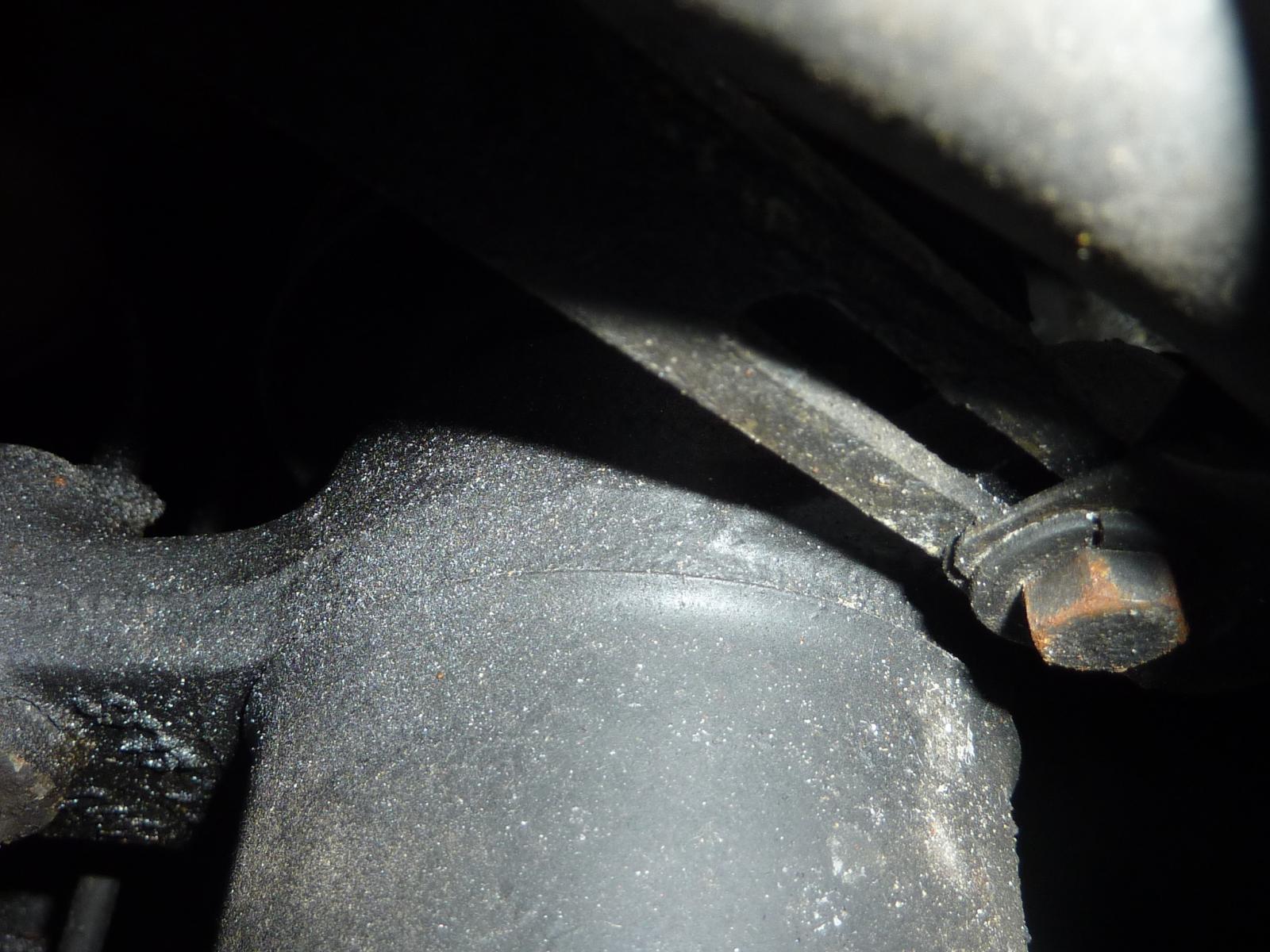

Fabergé Greggs Posted April 17, 2016 Author Share Posted April 17, 2016 The pump seems only held on by this one bolt but doesn't pivot on it- the bracket must be keyed in such a way as to not turn. Link to comment Share on other sites More sharing options...
forddeliveryboy Posted April 17, 2016 Share Posted April 17, 2016 Here's a pic I found: Link to comment Share on other sites More sharing options...
forddeliveryboy Posted April 17, 2016 Share Posted April 17, 2016 http://www.ckc.dk/pubs/bx2_19.pdf No diesels here either, mightswell post it up for future reference Link to comment Share on other sites More sharing options...
Fabergé Greggs Posted April 17, 2016 Author Share Posted April 17, 2016 Need to sign up, BX diesel manual here Manual Service Citroen Bx Diesel Manualspath - 104.197.178.73Hmm they want my card details.. Link to comment Share on other sites More sharing options...
forddeliveryboy Posted April 17, 2016 Share Posted April 17, 2016 Worth asking on the French car forum if you're stuck. Maybe worth cleaning the whole area up with some brake cleaner and shining a torch behind everything to see where else it's attached. http://www.bxclub.co.uk/forum/viewtopic.php?t=15924http://www.bxclub.co.uk/forum/viewtopic.php?f=2&t=10446&p=108964&hilit=hp+pump+tension Link to comment Share on other sites More sharing options...
Eddie Honda Posted April 17, 2016 Share Posted April 17, 2016 I've got a PDF here. Just let me work out linking it. ETA BOL Dizzler book: http://www.mediafire.com/download/rk9d7dv4mh4qxdu/Citroen_Diesel_Engine_1984-1996_autorepman.com.pdf 2nd ETA: BOL BX: http://www.mediafire.com/download/v22bm7s5rzrqq32/Haynes_Citroen_Bx_Service_And_Repair_Manual.pdf Fabergé Greggs 1 Link to comment Share on other sites More sharing options...
UltraWomble Posted April 17, 2016 Share Posted April 17, 2016 PSA diesel is a sep HBOL to the BX manual - so technically you need both. Ghosty 1 Link to comment Share on other sites More sharing options...
KruJoe Posted April 17, 2016 Share Posted April 17, 2016 Here, on FDB's pic, it looks like a normal alternator adjustment bracket: I think I can see yours behind that hose: WTF, we have a BX TD outside here, I'm off to see. Link to comment Share on other sites More sharing options...
Eddie Honda Posted April 17, 2016 Share Posted April 17, 2016 PSA diesel is a sep HBOL to the BX manual - so technically you need both. FFS, I've just had to do more work and upload that too. PAH! Fill yer boots before I tug the links down. Fabergé Greggs 1 Link to comment Share on other sites More sharing options...
KruJoe Posted April 17, 2016 Share Posted April 17, 2016 Here. From the front: It is under that bloody hose! Camera down the side oft' battery: Now get on with it lad! You may find it easier if you hoick out the batt first. Lacquer Peel and Fabergé Greggs 2 Link to comment Share on other sites More sharing options...
forddeliveryboy Posted April 17, 2016 Share Posted April 17, 2016 That's the adjuster bracket on the pic I posted earlier. Just wasn't sure whether or not they'd be all the same since French. KruJoe and Fabergé Greggs 2 Link to comment Share on other sites More sharing options...
KruJoe Posted April 17, 2016 Share Posted April 17, 2016 I'm sure I can see it on his own pic here: Hopefully he's outside doing it now! Fabergé Greggs 1 Link to comment Share on other sites More sharing options...
Fabergé Greggs Posted April 17, 2016 Author Share Posted April 17, 2016 HYDRAULIC PRESSURE ACHIEVED! I cannot believe I didn't see that tension bracket. it's pretty hidden but jesus... Thanks for the pictures and links everyone! All hail autoshite.. KruJoe and forddeliveryboy 2 Link to comment Share on other sites More sharing options...
KruJoe Posted April 17, 2016 Share Posted April 17, 2016 All done in daylight too! Link to comment Share on other sites More sharing options...
forddeliveryboy Posted April 17, 2016 Share Posted April 17, 2016 I once failed to slacken an alternator for belt adjustment/removal - I'd found three bolts and was convinced there couldn't be four. Which, obviously, there were. It can be like looking for your sunglasses when they're on your head/top pocket, when you've stared at oily bits for long enough and not found the holy grail. Link to comment Share on other sites More sharing options...
